1. Description
This component check shear stresses at Z1, Z2 and Z3 locations. Z1 and Z3 can be either input directly by the user or specified automatically. If the Auto option is checked, the program checks shear at the top and bottom ends of the webs.
Z1: Distance from the centroid to the underside of the top flange at the webs
Z3: Distance from the centroid to the upperside of the bottom flange at the webs
The PSC Value Qy in the Section Propeties function can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > PSC
2. Grasshopper Path
[Midas] > [Properties] > [ PSC Value Qy ]

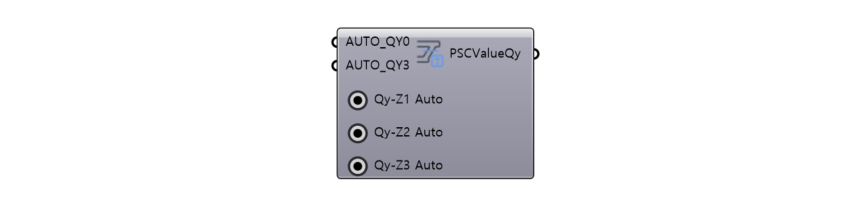

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | AUTO_QY1 | Qy Value for shear of I,J | Real | - | - |
| 2 | AUTO_QY3 | - | - | ||
| 3 | Qy-Z1 Auto | Qy Check for shear of I,J | Select | false | - |
| 4 | Qy-Z2 Auto | false | - | ||
| 5 | Qy-Z3 Auto | false | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SECT | Create PSC Value Qy Data | Object | - | PSC Value Shape |
5. Reference API Manual Link
