1. Description
This component generates Composite Shape Data in the Civil NX.
The sectional data pertaining to the "Analysis considering the section variation before and after composite actions in Composite Bridges" are specified.
The Composite Shape function can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > [Composite] tab
2. Grasshopper Path
[Midas] > [Properties] > [ Composite Shape ]

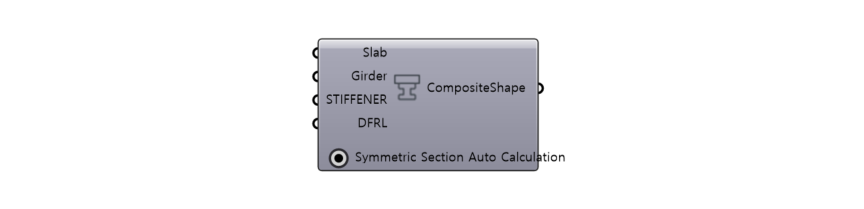

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Slab | Slab Dimension | Object | - |
Slab Dimension |
| 2 | Girder | Girder Dimension | Object | - |
Girder Dimension |
|
PSC Non Box Shape |
|||||
| 3 | STIFFENER | Stiffener Item | Object | - |
Stiffener of Composite Steel Shape (Type 1) |
|
Stiffener of Composite Steel Shape (Type 2) |
|||||
| 4 | DFRL |
Distance from Reference Line |
Object | - | Distance from Reference Line of Composite Shape(Type2) |
| 5 | Symmetric Section Auto Calculation | Symmetric Section Auto Calculation Option | Select | false | - |
- Output Data
| Index | Command | Description | Type | Method |
Next Component |
|---|---|---|---|---|---|
| 1 | - | Create Composite Shape Data | Object | - | Section |
