1. Description
This component generates Stiffener of Composite Steel Shape Type 1 in the Civil NX.
Enter Composite section properties for line elements.
The Stiffener of Composite Steel Shape Type1 funtion can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > [Composite] tab > Stiffener
2. Grasshopper Path
[Midas] > [Properties] > [ Stiffener of Composite Steel Shape Type1 ]

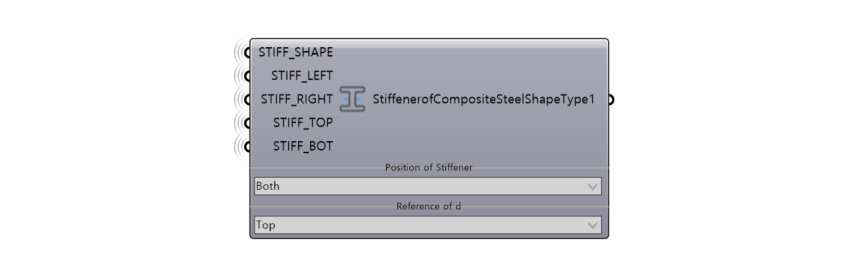

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | STIFF_SHAPE | Define Stiffener Shape | Object | - | Stiffener Shape of Composite Steel Shape |
| 2 | STIFF_LEFT STIFF_RIGHT STIFF_TOP STIFF_BOT |
Between the layouts of stiffeners created at designated locations in the section | Object | - |
Stiffener Item of Composite Steel Shape (Type 1) |
|
Stiffener Item of Composite Steel Shape (Type 2) |
|||||
| 3 | Position of Stiffener |
The direction in which stiffeners are generated |
Select | Both | - |
| 4 | Reference of d | Reference of Start Position | Select | Top | - |
- Output Data
| Index | Command | Description | Type | Method |
Next Component |
|---|---|---|---|---|---|
| 1 | - | Create Stiffener of Steel Composite Shape (Type1) | Object | - | Composite Shape |
