1. Description
This component operates the Seismic Loads function in Gen NX.
This component calculates story levels based on ground level and inputs seismic pressure (force) data within the Seismic Loads User Type.
The Seismic Loads function can be found in the Gen NX main menu, select [Load] tab > [Static Loads] group > [Lateral] group > [Seismic Loads]
2. Grasshopper Path
[Midas] > [Static Loads] > [Seismic Pressure(User)]

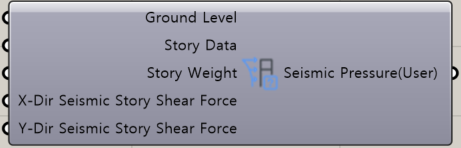

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Ground Level | Ground Level | Real | - | - |
| 2 | Story Data | Story Data | Object | - | Story Data |
| 3 | Story Weight | Story Weight | |||
| 4 | Wind Pressure(X-Dir) | X-Dir Value |
Array[ Real, Real] |
0 | - |
| 5 |
Wind Pressure (Y-Dir) |
Y-Dir Value |
Array[ Real, Real] |
0 | - |
- Output Data
| Index | Command | Description | Type |
Next Component |
|
|---|---|---|---|---|---|
| 1 | SEIS | Seismic Pressure(User) | Json | Seismic Loads |
