1. Description
This component operates the Story Mass Table function in Gen NX.
The Story Mass Summary function can be found in the Gen NX main menu, select [Load] tab > [Static Loads] tab > [Load Tables] group > [Story Mass Table]
2. Grasshopper Path
[Midas] > [Results] > [Story Mass Summary]

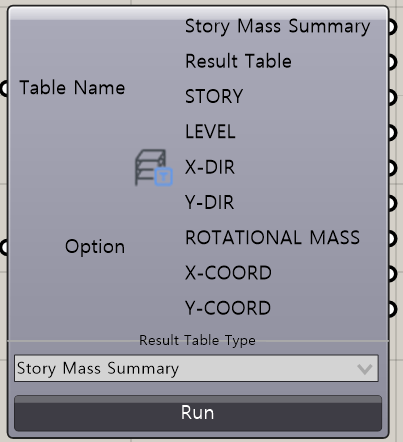

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Table Name | Table Name | String | - | - |
| 2 | Option | Option of Result Table | Object | - | Option of Result Table |
- Output Data
| Index | Command | Description | Type |
Next Component |
|
|---|---|---|---|---|---|
| 1 | TABLE | Story Mass Table | Json | - |
5. Reference API Manual Link
Summary Table - Story Mass Table
