1. Description
This component operates the Story Drift parameter function in Gen NX.
The Story Drift function can be found in the Gen NX main menu, select [Results] tab > [Analysis Result] tab > [Story Tables] group > [Story drift]
2. Grasshopper Path
[Midas] > [Results] > [Story Drift]

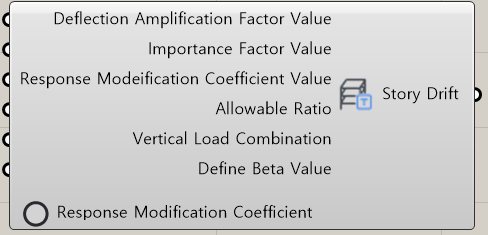

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| Response Modification Coefficient (false) | |||||
| 1 | Deflection Amplification Factor Value |
Eurocode: Behavior Factor Other: Deflection Amplification Factor
|
Real | 1 | - |
| 2 | Importance Factor Value | Importance Factor | Real | 1.5 | - |
| 3 | Response Modification Coefficient Value | Response Modification Coefficient Value | Real | 1 | - |
| 4 | Allowable Ratio | Allowable Ratio | Real | 0.015 | - |
| 5 | Vertical Load Combination | Vertical Load Combination |
Object |
- | Item of Load Combinations |
| 6 | Define Beta Value | Define Beta Value | Object | - | Define Beta Value |
| Response Modification Coefficient (true) | |||||
| 7 | Response Modification Coefficient Value | Response Modification Coefficient Value | Real | 1 | - |
| 8 | Scale Factor Value | Scale Factor | Real | 1 | - |
| 9 | Allowable Ratio | Allowable Ratio | Real | 0.015 | - |
- Output Data
| Index | Command | Description | Type |
Next Component |
|
|---|---|---|---|---|---|
| 1 | TABLE | Story Drift | Json | Story Drift Table |
5. Reference API Manual Link
Story Tables - Story Drift Parameter
