1. Description
This component operates the Plane Force Result Table function.
The Plate Stress function can be found in the Gen NX / CIVIL NX main menu, select [Result] tab > [Result Tables] tab > [Plane Force]
2. Grasshopper Path
[Midas] > [Results] > [Plane Force]

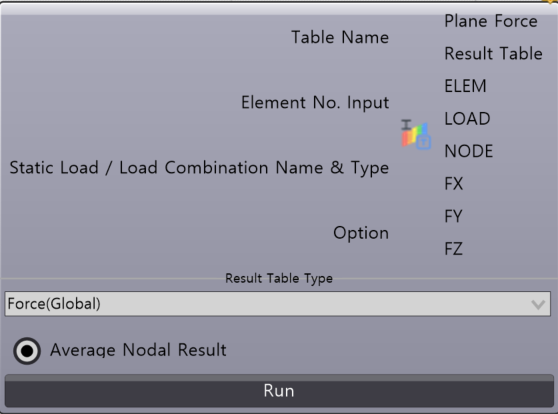

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous Component |
|---|---|---|---|---|---|
| 1 | Table Name | Table Name | String | - | - |
| 2 | Element No | Element Number | Array | - | - |
| Element Number | String | - | - | ||
| Structure Group | String | - | - | ||
| 3 | Load Case | Load Case Name | String | - | - |
| 4 | Option | Option | Object | - | Option of Result Table |
- Output Data
| Index | Command | Description | Type | Next Component | |
|---|---|---|---|---|---|
| 1 | TABLE | Plane Force Result Table | Json | - |
5. Reference API Manual Link
Plane Force(Local) - Aanlysis Result Table
Plane Force(Global) - Aanlysis Result Table
