1. Description
This component inputs data for the automatic calculation of Seismic Earth Pressure / Static Earth Pressure.
The Pressure Profile Items function can be found in the GEN NX main menu, select [Load] tab > [Static Load] tab > [Lateral] Group > [Earth Pressure] Group > Static Earth Pressure / Seismic Earth Pressure > Pressure Profile Items
2. Grasshopper Path
[Midas] > [Static Loads] > [Pressure Profile Items]

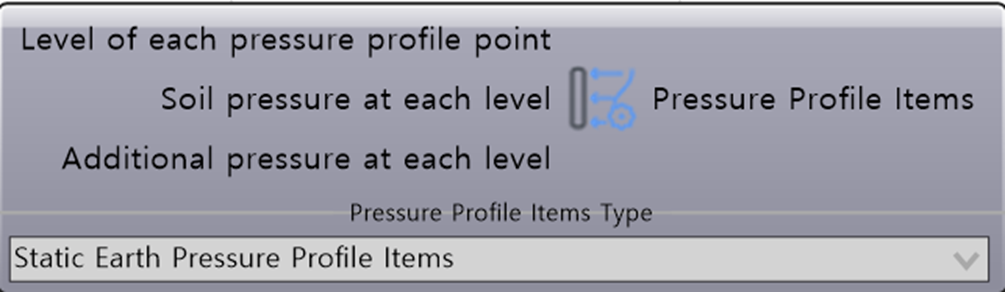

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default | Previous Component |
|---|---|---|---|---|---|
| Static Earth Pressure Profile Items Type | |||||
| 1 | Level | Level | Real | - | - |
| 2 | Soil Pressure | Soil Pressure | Real | - | - |
| 3 | Additional Pressure | Additional Pressure | Real | - | - |
| Seismic Earth Pressure Profile Items Type | |||||
| 1 | Level | Level | Real | - | - |
| 2 | Kh | Kh | Real | - | - |
| 3 | Relative Earth Displacement | Relative Earth Displacement | Real | - | - |
| 4 | Design Seismic Earth Pressure | Design Seismic Earth Pressure | Real | - | - |
| 5 | Additional Pressure | Additional Pressure | Real | - | - |
- Output Data
| Index | Command | Description | Type | Next Component | |
|---|---|---|---|---|---|
| 1 | - | Pressure Profile Items | Json | Static Earth Pressure Seismic Earth Pressure |
