Check Element Local Axis

Function

  • Depending on the direction of view, the two sides perpendicular to the local z-axis of plate elements are displayed in two different colors.
  • This allows us to recognize the local axes of plate and beam elements without having to check the local axes individually.



Call

From the main menu, select [Node/Element] tab > [Element Detail] group > [Check Element Local Axis]



Input

Structure-Check Structure-Check Element Local Axis.png

Check Element Local Axis dialog box




Front Face Color

Color of the +z local axis side



Back Face Color

Color of the -z local axis side

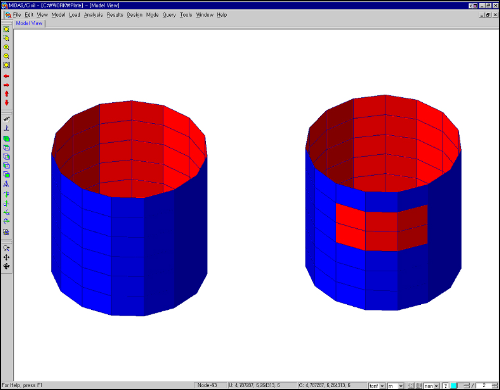

Display of Element Local Axis
