Section Properties - Combined


  • Enter the sectional properties for the following structural elements: Truss, Tension-only, Compression-only, Cable, Gap, Hook, and Beam Element.
  • In the Combined tab, you can input the sectional properties of a composite section formed by combining two different types of standard sections.



From the main menu, select [Properties] tab > [Section Properties] group > [Section Properties] > [Combined]



Properties-Section-Section Properties-Combined.png

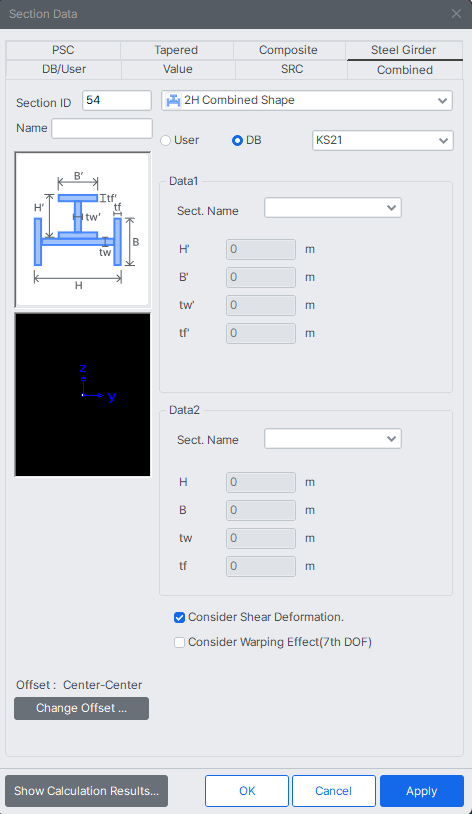

Section(Combined) dialog box


List of section shapes

In this dialog box, enter the section properties for a combined section made up by two standard section types.

User : Enter the main dimensions of standardized section shapes.


DB : Enter the main dimensions of standardized section shapes. Select the desired database from the right-hand DB list.

KS : Korean Industrial Standards

AISC2K(US) : American Institute of Steel Construction, 2000 (US Unit : lb, in)

AISC2K(SI) : American Institute of Steel Construction, 2000 (SI Unit : kN, m)

AISC : American Institute of Steel Construction

CISC02(US) : Canadian Institute of Steel Construction (US Unit : lb, in)

CISC02(SI) : Canadian Institute of Steel Construction (SI Unit : kN, m)

BS : British Standard

NOTE.png BS indicates BS4-1 revised prior to 1993.

DIN : Deutches Institut fur Normung e.v

JIS : Japanese Industrial Standards

JIS2K : Japanese Industrial Standards 2000

GB-YB : Guojia Biao Zhun-Yejin Bu Biao Zhun

GB-YB05 : Guojia Biao Zhun-Yejin Bu Biao Zhun(2005)

Pacific(SI) : Bentley Pacific Standards (SI Unit : kN, m)

IS84 : Indian Standards

CNS91 : Taiwan Standards


Data 1, Data 2

Enter the section data for individual components constituting the combined section.

Sect. Name : Enter directly a DB section name or select a desired DB from the Section list. When the section name is directly entered, it must correspond to the format of the DB section names.

Ex) KS, JIS : H 400X200X8/13, AISC : W36X280, CISC : HP310x110, BS : UB 406x178x54, DIN : HD400x288


H, B, ... : Refer to the diagram denoting section dimensions in the dialog box.


Consider Warping Effect(7th DOF)

You have the option to consider the torsional effects. When there is an uneven torsion resulting from the restricted torsional displacement, torque is resisted by St. Venant's torsional shear stress and warping torsion. In cases involving curved members, eccentric loads, or differences between the center of gravity and the shear center, simulating the warping torsion effect using a 1D beam element can provide more accurate results.

When considering the warping effect (7 degrees of freedom), the warping coefficient (Iw), warping functions (w1, w2, w3, w4), and shear deformations due to the twisting moment can be checked in the sectional properties dialog box.


Applicable element types : General beam/Tapered beam

Applicable boundary condition types : Supports, Beam End Release

Applicable analysis types : Linear Static, Eigenvalue, Buckling, Response Spectrum, Construction Stage Analysis, Moving Load Analysis

Post-processing results : Reviewable in reaction forces, displacements, member forces, and stresses.
