Define Constraint Label Direction


  • Define the directions of the supports for a display purpose on screen.



From the main menu, select [Boundary] tab > [Advanced] group > [Define Label Dir.]

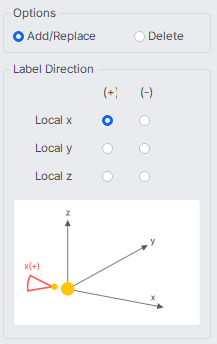

Boundary-etc-defined constraint label direction.png



Add/Replace : Add or replace the constraint label direction.

Delete : Delete the constraint label direction.


Label Direction

Define the direction of the label of the support.

For example, a set-up such that local z(+) is defined for the bottom supports and local x(+) is defined for the left supports will display on screen as below.

NOTE.png [View] tab > [Display] group > [Display] > [Display] > [Boundary] Tab, the display of the directions of supports can be controlled by checking on and off.
