Moving Load Analysis Data Created Edited

Vehicles

Function

  • Enter vehicle loads.



Call

From the main menu select [Load] tab > [Type : Moving Load] > [Moving Load Analysis Data] group > [Vehicles]



Input

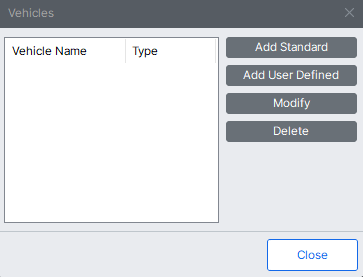

Load-Moving Load-Vehicles.png

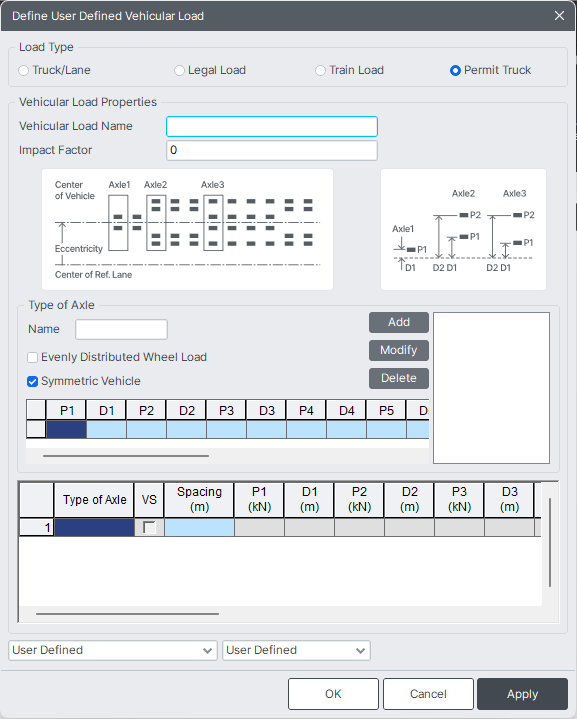

To enter new or additional vehicle loads

Click Add Standard when a vehicle load conforms to designated standards.



  • AASHTO Standard
AASHTO Standard



AASHTO Standard Load

Enter the vehicle loads specified in AASHTO standard.

AASHTO Standard Load.png

AASHTO Legal Load

Enter the vehicle loads specified in AASHTO Legal Loads.

AASHTO Legal Load.png

Caltrans Standard Load

Enter the vehicle loads specified in Caltrans Specification.

Caltrans Standard Load.png

Turkey

Enter the vehicle loads specified in Turkey specifications.


Others

Enter the vehicle loads specified in PENNDOT and Australian specifications.






  • AASHTO LRFD
AASHTO LRFD

DOT rating vehicle loadings are implemented for load rating.



AASHTO LRFD Load

Enter the vehicle loads specified in AASHTO LRFD standard.

AASHTO LRFD Load.png

· Add Centrifugal Force

Check on the “Add Centrifugal Force” option to consider the overturning effect due to centrifugal force on the vertical loads of the vehicle as per the factor provided for the left wheel of forward direction vehicle in “Traffic Line lane/ Traffic Surface Lane” definitions.

This option is only available for the AASHTO LRFD vehicles.
Centrifugal force is not applied to distributed loads, only to concentrated loads.
Centrifugal force is not applied to PL, PLM, PLV concentrated loads in the lane load of user-defined vehicles (Truck/Lane).
Consider the multiple presence factor for centrifugal force as well.
Dynamic load allowance applies only to static effects of the vehicle, not centrifugal forces.
In order to obtain the maximum momentum, when two vehicles with a reduction of 90% are loaded, centrifugal force is applied to the two vehicles with a reduction of 90%.



· Consider Two Tandems in Adjacent Spans

Check on the “Consider Two Tandems in Adjacent Spans” option to consider the combined effect mentioned on C3.6.1.3.1 AASHTO LRFD 2020. The standard says "one hundred percent of the combined effect of the design tandems and the design lane load should be used to investigate negative moment and reactions at interior supports.".

This option is only available for the HL-93TDM vehicle.

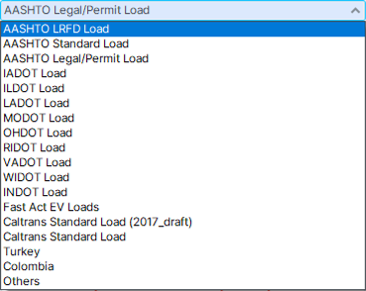

AASHTO Legal/permit Load

Enter the vehicle loads specified in AASHTO Legal/permit Specification.

AASHTO Legal permit Load.png

IADOT Load

Enter the vehicle loads specified in IADOT Specification.

IADOT Load.png

ILDOT Load

Enter the vehicle loads specified in ILDOT Specification.

ILDOT Load.png

INDOT Load

Enter the vehicle loads specified in INDOT Specification.

INDOT Load.png

LADOT Load

Enter the vehicle loads specified in LADOT Specification.

LADOT Load.png

MODOT Load

Enter the vehicle loads specified in MODOT Specification.

MODOT Load.png

OHDOT Load

Enter the vehicle loads specified in OHDOT Specification.

OHDOT Load.png

RIDOT Load

Enter the vehicle loads specified in RIDOT Specification.

RIDOT Load.png

VADOT Load

Enter the vehicle loads specified in VADOT Specification.

VADOT Load.png

WIDOT Load

Enter the vehicle loads specified in WIDOT Specification.

WIDOT Load.png

Caltrans Standard Load

Enter the vehicle loads specified in Caltrans Specification.

AASHTO LRFD- Caltrans Standard Load.png

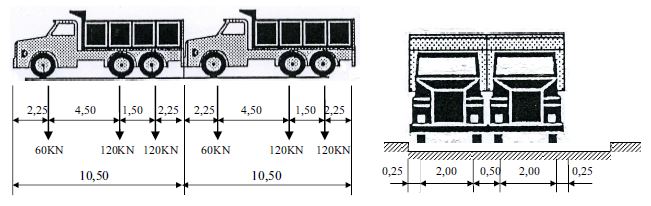

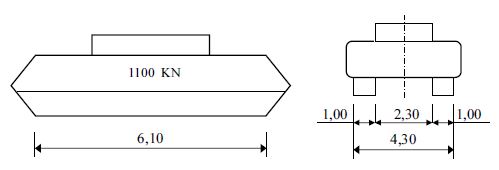

Turkey

Enter the vehicle loads specified in Turkey Specification.

AASHTO LRFD-Turkey.png

Colombia

Enter the vehicle loads specified in Turkey Specification.

AASHTO LRFD-Colombia.png

Others

Enter the vehicle loads specified in UIC and Australian specifications.

AASHTO LRFD-Others.png





  • PENNDOT
PENNDOT



PENNDOT Load

Enter the vehicle loads specified in PENNDOT specification.

PENNDOT Load.png

Others

Enter the vehicle loads specified in PENNDOT and Australian specifications.






  • Canada
Canada



Canadian Standard Load

Enter the vehicle loads specified in Canadian Standard.


Dynamic Load Allowance

Auto : Apply Dynamic Load Allowance factor as per Canadian specification

User Input : Apply Dynamic Load Allowance factor using user input value

As specified in the code, it is differently applied for the following condition.
Where only one axle of the CL-W Truck is used
Where any two axle or axles 1,2 and 3 are used
Where three axles except for axles 1,2 and 3 or more than three axles are used


The applied dynamic load allowance factor can be checked by lanes in the moving load tracer by clicking [Detail Results] button.





  • BS
BS



BS5400 Standard Load



Vehicular Load Name : Enter the name of the vehicular load.

Vehicular Load Type : Enter the type of the vehicular load.

Enter the vehicle loads specified in BS5400 Standard.

BS5400 Standard Load.png

No. of Units : Minimum number of loads for HB Type vehicle load. (Usually this is considered to be 30)



BD37/01 Standard Load



Enter the vehicle loads specified in BD37/01 Standard.

BD37 01 Standard Load.png

HA Loading

BD 37/01

Enter HA vehicle loads specified in BD 37/01 Standard. HA Lane Factors are automatically calculated as per BD 37/01.

BD 21/01

Enter HA vehicle loads specified in BD 21/01 Standard. HA Lane Factors are applied as follows as per BD 21/01.

Lane 1: 1.0, Lane 2: 1.0, Lane 3: 0.5, Lane 4 and subsequent: 0.4

Additional Data

Adjustment Factor : The HA UDL and KEL are adjusted in order to eliminate the lateral bunching factor by dividing by dividing by the Adjustment Factor (AF). Clause 5.23 of BD 21/01

Reduction Factor : The Reduction Factor (K) is the ratio of Assessment Live Loading effects/Type HA loading effects. Both the UDL and the KEL parts of the type HA loading are reduced by an identical Reduction Factor for each of the Assessment Live Loadings. Clause 5.20 of BD 21/01

User-defined

HA Lane Factors are considered with the value defined by the user.


HB Loading

Enter HB vehicle loads specified in BD37/01 Standard.

HA & HB Loading

BD 37/01

Enter HA and HB loading combined in one lane specified in BD37/01 Standard. HA UDL in a lane shall be loaded to the total length displaced by HB loading with the front and rear clear spaces (dd). HA Lane Factors are automatically calculated as per BD 37/01.

BD 21/01

Enter HA vehicle loads specified in BD 21/01 Standard. HA Lane Factors are applied as follows as per BD 21/01.

Lane 1: 1.0, Lane 2: 1.0, Lane 3: 0.5, Lane 4 and subsequent: 0.4

Additional Data

Adjustment Factor : The HA UDL and KEL are adjusted in order to eliminate the lateral bunching factor by dividing by dividing by the Adjustment Factor (AF). Clause 5.23 of BD 21/01

Reduction Factor : The Reduction Factor (K) is the ratio of Assessment Live Loading effects/Type HA loading effects. Both the UDL and the KEL parts of the type HA loading are reduced by an identical Reduction Factor for each of the Assessment Live Loadings. Clause 5.20 of BD 21/01

User-defined

HA Lane Factors are considered with the value defined by the user.



HA & HB (Auto) Loading

BD 37/01

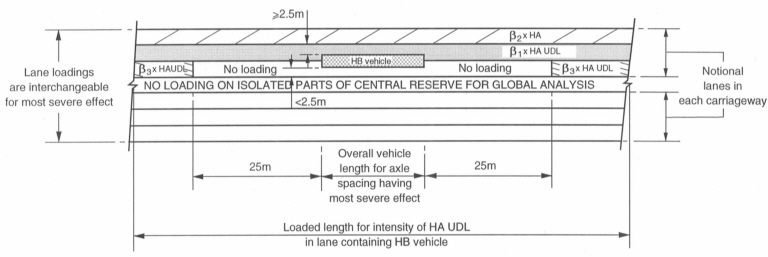

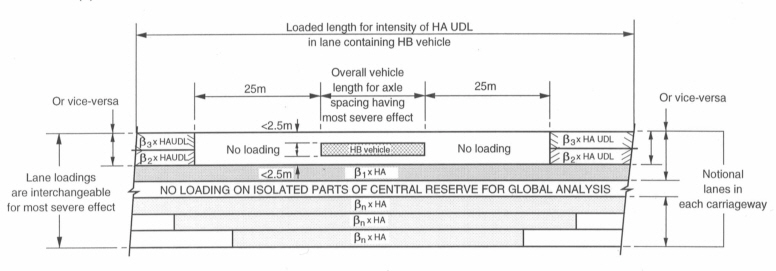

Enter HA and HB loading combined for the entire lanes so that the program can automatically organize live load combination specified in BD37/01 Standard as shown in the figures below.

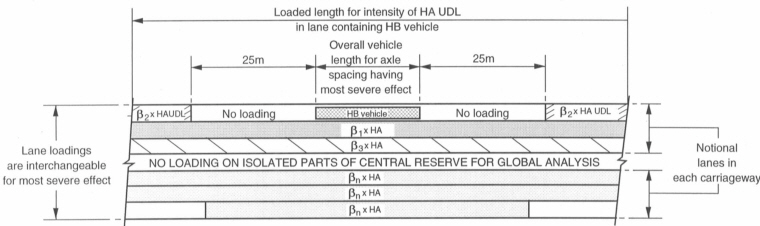

HA loading shall be applied to the notional lanes of the carriageway. HA UDL and KEL shall be multiplied by the lane factor. HA Lane Factors are automatically calculated as per BD 37/01. HB loading shall occupy any transverse position on the carriage way, either wholly within one notional lane or straddling two notional lanes.

BD 21/01

Enter HA vehicle loads specified in BD 21/01 Standard. HA Lane Factors are applied as follows as per BD 21/01.

Lane 1: 1.0, Lane 2: 1.0, Lane 3: 0.5, Lane 4 and subsequent: 0.4

Additional Data

Adjustment Factor : The HA UDL and KEL are adjusted in order to eliminate the lateral bunching factor by dividing by dividing by the Adjustment Factor (AF). Clause 5.23 of BD 21/01

Reduction Factor : The Reduction Factor (K) is the ratio of Assessment Live Loading effects/Type HA loading effects. Both the UDL and the KEL parts of the type HA loading are reduced by an identical Reduction Factor for each of the Assessment Live Loadings. Clause 5.20 of BD 21/01

User-defined

HA Lane Factors are considered with the value defined by the user.



Pedestrian
Enter foot/cycle track bridge live loads specified in BD37/01 Standard.



CS 454 Assessment



Enter the vehicle loads specified in CS 454 standard.

ALL Model 1

Vehicular Load Name : Enter the name of vehicle.

Sub Type : Select one of the vehicle load models for normal and restricted loading levels.

Loading Case : Select Single or Convoy.

The ALL model 1 shall consist of vehicle loads, applied in the following situations, considered separately.
1) single vehicle in each lane
2) a convoy of vehicles in each lane

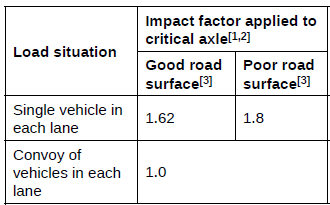

Load Surface : Select Good or Poor to determine impact factor.

CS 454 Assessment-table.png

Traffic Flow Category : Select High or Medium or Low to determine traffic flow factor.

High: 1.0, Medium: 0.95, Low: 0.9



1. Lane Factors

Lane Factors for ALL model 1 will be automatically applied as per CS 454 specification.
Lane 1: 1.0, Lane 2: 1.0, Lane 3: 0.5, Lane 4 and subsequent: 0.4
The lane factors are interchangeable between lanes.

2. Remaining Area

Where the assessment live loading exceeds 7.5 tonnes, a UDL of 5 KN/m2 shall be applied over the remaining area of carriageway, except where this provides a relieving effect. The user needs to create a lane to represent remaining area and define it as remaining area in the Moving Load Case. Then, UDL of 5 kN/m2 will be applied to the lane.

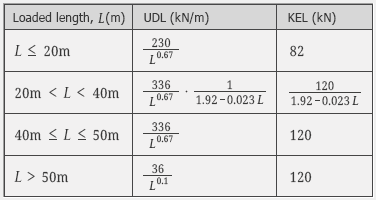

ALL Model 2 (UDL+KEL)

CS 454 Assessment_All_model_2.png
Lane Factor

CS 454

Lane Factors are automatically calculated as per CS 454.

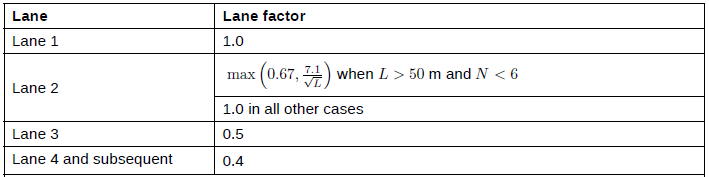

CS 454 Assessment_Lane_factor_all_model_2.png

User-defined

Lane Factors are considered with the values defined by the user.



Category for K Factor

CS 454

The K factors accounts for surface category and traffic flow category given in Figures 5.19a to 5.19f and Table 5.19c. Clause 5.19 of CS 454.

"Result Tables>Beam>Forces"
Separate results by vehicle can be obtained for ALL model and special vehicle for the combined results using 'View by Load Cases or View by Max. Value Item. These separate results can be used to calculate the reserve factors for special vehicle with ALL model 1 or 2 as per CS 454.



CS 458 (BD86/11) Standard Load



Enter the special vehicle loads specified in BD86/11 Standard.

SV 80
The SV 80 load model is intended to model the effects of STGO Category 2 vehicles with a maximum gross vehicle weight of 80 tonnes and a maximum basic axle load of 12.5 tonnes.

SV 100
The SV 100 load model is intended to model the effects of STGO Category 3 vehicles with a maximum gross vehicle weight of 100 tonnes and a maximum basic axle load of 16.5 tonnes.

SV 150
The SV 150 load model is intended to model the effects of STGO Category 3 vehicles with a maximum gross vehicle weight of 150 tonnes and a maximum basic axle load of 16.5 tonnes.

SV 196
The SV 196 load model represents the effects of a single locomotive pulling a STGO Category 3 vehicles with a maximum gross vehicle weight of 100 tonnes and a maximum basic axle load of 16.5 tonnes. (UK National Annex to Eurocode 1)

SV-Train
The SV-Train load model is intended to model the effects of a single locomotive pulling a STGO Category 3 vehicles with a maximum gross vehicle weight of 100 tonnes and a maximum basic axle load of 16.5 tonnes.

SOV 250
Maximum total weight of SO trailer units up to 250 tonnes.

SOV 350
Maximum total weight of SO trailer units up to 350 tonnes.

SOV 450
Maximum total weight of SO trailer units up to 450 tonnes.

SOV 600
Maximum total weight of SO trailer units up to 600 tonnes.

Dynamic Amplification Factor : The Dynamic Amplification Factor calculated by the program is considered based on the equation given below. qka is the basic axle load in kN. The DAF values could be different for the different axles depending on their loads.

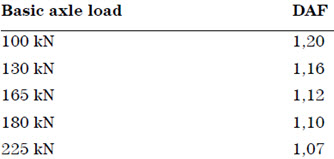

CS 454 Assessment_BD8611_sv_DAF.png



DAF for each axle of SV or SOV load model

Overload Factor : The Overload Factor calculated is taken as 1.2 for the worst critical axle and 1.1 for all other axles of SV or SOV load models.

Vehicle Speed:

• Where the SV or SOV load model is moving at ‘normal’ speed the associated HA loading is not applied within 25 meters from the center of outer axles (front and rear) of the SV or SOV load model.

• Where the SV or SOV load model is moving at ‘low’ speed the associated HA loading is not applied within 5 meters from the center of outer axles (front and rear) of the SV or SOV load model.

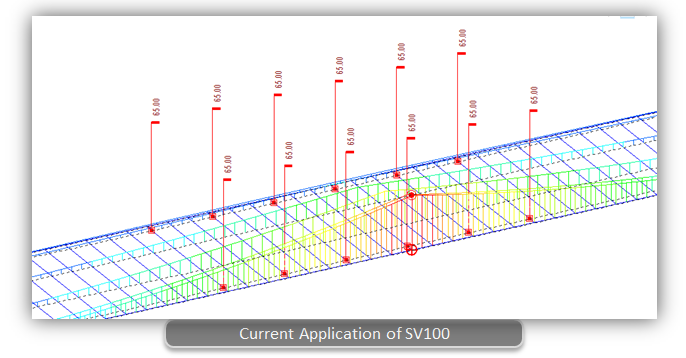

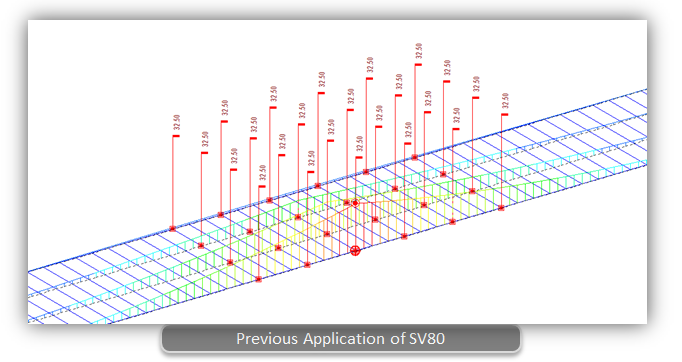

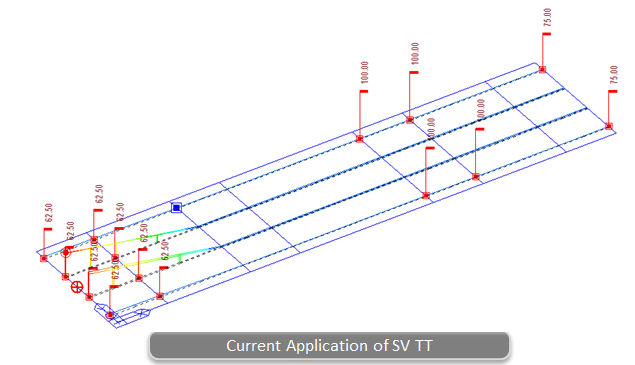

Previously the transverse wheel spacing of SV, SV-Train, and SOV vehicles were modelled by 4 equidistance wheels. This has been improved since Civil 2018 (v3.1),

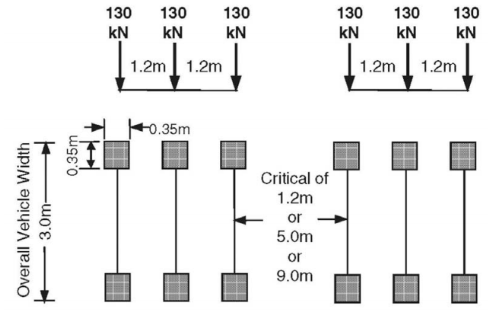

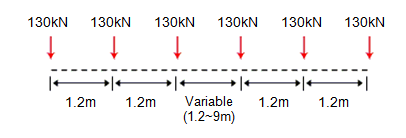

CS 454 Assessment_SV80.png

SV 80

CS 454 Assessment_sv802.png

CS 454 Assessment-sv803.png

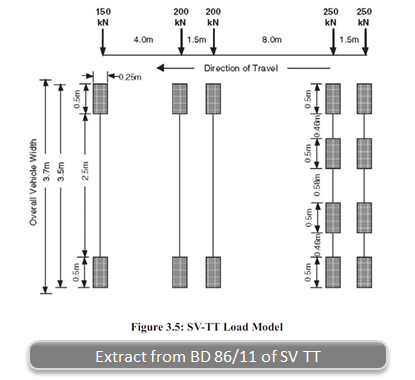

CS 454 Assessment_sv_tt.png

CS 454 Assessment_sv_tt2.png







  • EUROCODE
EUROCODE



EN1991-2:2003 - Road Bridge



Various Load Models as per EN1991-92 can be defined here. These Load Models include:

Load Model 1 : Concentrated and uniformly distributed loads, which cover most of the effects of the traffic of lorries and cars.

Load Model 2 : A single axle load applied on specific tyre contact areas.

Load Model 3 : A set of assemblies of axle loads representing special vehicles (e.g. for industrial transport) which can travel on routes permitted for abnormal loads. It includes special vehicles as per Eurocode recommendation as well as UK National Annex.

Load Model 4 : A crowd loading.

Below are the dialog boxes corresponding to the Load Models:

NOTE.png 1

Types of Load Model 3 Special vehicles

In case of Load Model 3, there exists two kinds of special vehicles:the recommended special vehicles as per EN 1991-2 and the straddling special vehicles as per UK national annex.
Straddling between two lanes are not supported for the recommended Load Modal 3 special vehicles. These include
Load Model 3(600/150)
Load Model 3(900/150)
Load Model 3(1200/150/200)
Load Model 3(1800/150/200)
Load Model 3(2400/200)
Load Model 3(3000/200)
Load Model 3(3600/200)
For description about the notations and axle loads refer to EN1991-2-Annex A.
A load case considering the placement of LM1 and recommended LM3 vehicles can be specified by selecting the LM1 & 3( multi) load model in Moving Load cases (Refer to Moving Load Cases).
The special vehicles as per UK national annex can straddle between two lanes by the program. These vehicles include :
Load Model 3 (SV 80)
Load Model 3 (SV 100)
Load Model 3 (SV 196)
Load Model 3 (SOV 250)
Load Model 3 (SOV 350)
Load Model 3 (SOV 450)
Load Model 3 (SOV 600).
For description about the notations and axle loadings and spacings refer to UK National Annex to Eurocode1:Actions on structures.



Wheel Spacings for the Recommended LM3 vehicles and UK LM3 vehicles

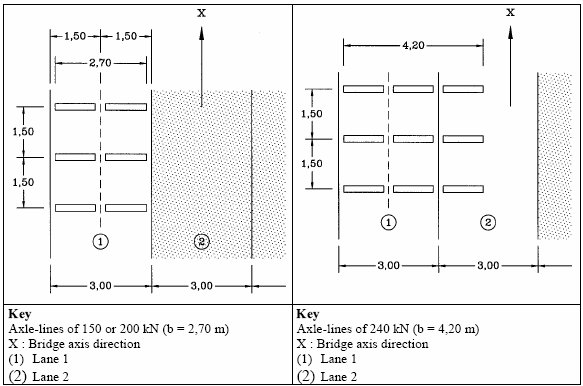

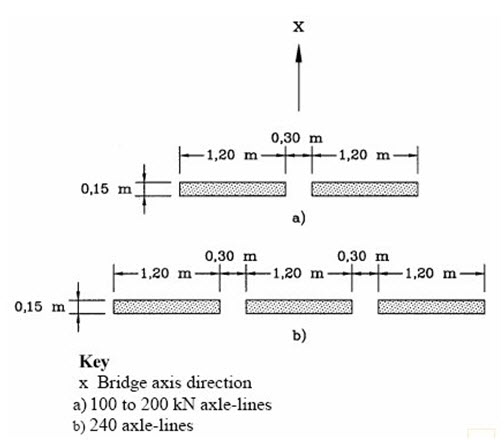

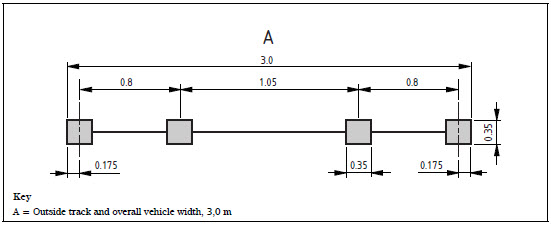

In case of Load Model 3 vehicles, the transverse wheel spacing considered is the value of the wheel spacings that has been entered while defining the lanes. Therefore when the Load Model 3 vehicles are used in combination with the Load Model 1 vehicles or in isolation, the same transverse wheel spacings are considered both for the LM3 and LM1 vehicles. In case of Recommended Load Model 3, three wheels at one axle (figure b) are converted into equivalent two wheel loads when placed in combination with Load Model vehicle or when used in isolation. Therefore for any Recommended Load Model 3 vehicle the effect due to the true transverse spacings between the wheels could not be captured but rather the effect due to equivalent two wheels is captured.

EN1991-2-2003 - Road Bridge-lm3wheel.jpg

Thus when the vehicle placements corresponding to the Standardised LM3 and the UK LM3 are visualized using the Moving Load Tracer, the transverse wheel spacing is same as defined in the lanes definition. But this is not the actual transverse wheel spacing corresponding to the straddling vehicles( UK LM3 vehicles).The transverse wheel spacing for straddling SV and SOV as defined in UK National Annex is shown below. Thus to consider the effects of UK LM3 vehicle with the actual wheel spacing, the obtained results from the Moving Load Tracer are converted into static Load using Write Min/Max Load to File and the program automatically considers the below mentioned spacings in the converted static loads and thus the results obtained using the converted static loads reflect the results corresponding to the true wheel spacings.

EN1991-2-2003 - Road Bridge-wss.jpg

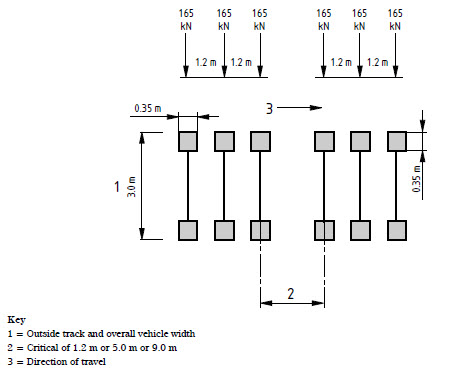

The transverse wheel spacing for LM3 SV 100(same for other SVs ): 2.65m centre-centre.

EN1991-2-2003 - Road Bridge-wssov.jpg

The transverse wheel spacing for LM3 SOV vehicles.



NOTE.png 2

Vehicle Placement : When the LM3 vehicles are applied alone, they are applied in the manner shown below. Any LM3 vehicles having three wheels per axle shown in the right side of the image are not supported. This placement applies to only the standardised Load Model 3 vehicles. A load case considering when the placement of LM3 vehicles when applied in isolation is considered using the LM 2,3,4/ FLM 2,3,4/ Footbridge load model in Moving Load cases (Refer to Moving Load Cases). The Standard LM3 vehicles cannot be applied in two lanes so the right hand vehicle placement in the image shown below cannot be achieved. The straddling effect or the placement of vehicle in two lanes can be accounted for the straddling vehicles only by specifying the LM1 & 3( special) Load model in Moving Load cases (Refer to Moving Load cases).

EN1991-2-2003 - Road Bridge-Note2.jpg



NOTE.png 3

Dynamic Amplification Factor : The value of characteristic loads for Load Models 1,2 and 4 includes the dynamic amplification consideration. But for Load Model 3 special vehicles this dynamic amplification factor needs to be considered separately as it is not included in the axle loads. The dynamic amplification factor can be input manually or calculated automatically by the program.

When the vehicle is recommended Load Model 3 vehicle: Dynamic Amplification Factor calculated by the program is considered based on the equation given below.

EN1991-2-2003 - Road Bridge-daf3.jpg

DAF for recommended Load Model 3 vehicles



When the vehicle is Load Model 3 as per UK NA: Dynamic Amplification Factor calculated by the program is considered corresponding to the basic axle loads as shown below

EN1991-2-2003 - Road Bridge-daf.jpg

DAF for UK Load Model 3 vehicles

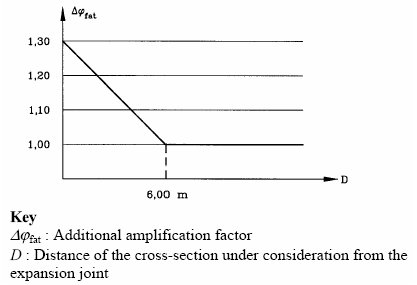

In case of Load Model 3, additional dynamic amplification factor within a distance of 6 m from an expansion joint is not considered.

EN1991-2-2003 - Road Bridge-Note3.jpg

Representation of the additional amplification factor



EN1991-2:2003 - Footway and Foot Bridge



Enter the Load Model acting on Footway or Foot Bridge. For details on input parameters, refer to Section 5.3 in 'Eurocode 1: Action on structures - Part 2 : Traffic loads on bridges'.



EN1991-2:2003 - Road bridge Fatigue



Enter the Fatigue Load Model for Road Bridge. For details on input parameters, refer to Section 4.6 in 'Eurocode 1: Action on structures - Part2: Traffic loads on Bridges.'



EN1991-2:2003 - Rail Traffic Load



The Rail Traffic Loads as per EN 1991-2:2003 can be specified. The various load models considered in the program are:

Load Model 71 (and Load Model SW/0 for continuous bridges) to represent normal rail traffic on mainline railways,

Load Model SW/2 to represent heavy loads,

Load Model HSLM A/B to represent the loading from passenger trains at speeds exceeding 200 km/h. Dynamic amplification is also considered.

Load Model "Unloaded train" to represent the effect of an unloaded train.

Longitudinal distribution of a point force or wheel load by the rail
A point force in Load Model 71 and HSLM A(A1 to A10) may be distributed over three rail support points as shown below:

Rail Traffic Load-ld.jpg



where :
Qvi: point force on each rail due to load model 71 and HSLM A.
a: distance between rail support points.

Figure 1. Longitudinal distribution of point load





Eccentricity of Lateral Displacement of Vertical Loads

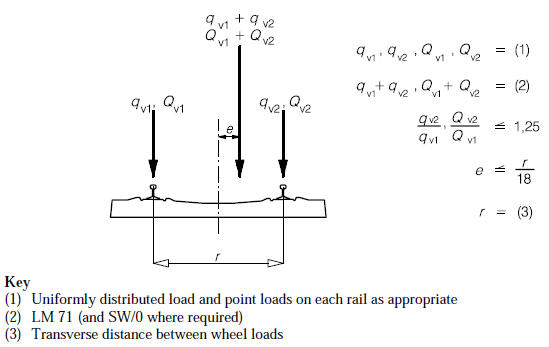

According to the clause 6.3.5 of EN 1991-2, the effect of lateral displacement of vertical loads (unbalanced or asymmetric loading of wagons) needs to be considered by taking the ratio of wheel loads on all axles as up to 1.25:1.0 on any one track. This criterion may be used to determine the eccentricity of loading with respect to the center-line of the track.

Rail Traffic Load-05-V-Ecc.jpg

Figure 2. Eccentricity of vertical loads



NOTE.png1

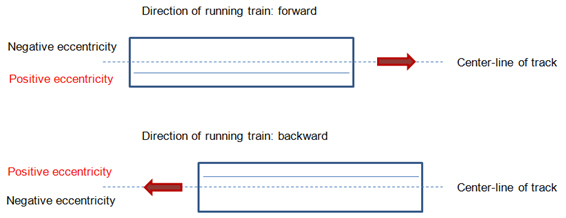

Sign convention of eccentricity: The positive value means that the sum of vertical loads is applied to the right side of the train by the amount of eccentricity with respect to the center of gravity.

Rail Traffic Load-02-TLL-7.jpg

Figure 3. Sign convention of eccentricity



NOTE.png 2

How to consider the effect of lateral displacement of LM 71 on one track only:
Suppose there are two tracks named ‘L1’ and ‘L2’ and we want to consider this effect only for the track ‘L1’.
Step 1 Define two LM71 models- one with eccentricity (LM 71E) and the other without eccentricity (LM 71).
Step 2 In the Moving Load Case, create two sub-load cases as follows:
Sub-load case 1: Select the train ‘LM 71E’ and the track ‘L1’.
Sub-load case 2: Select the train ‘LM 71’ and the track ‘L2’.
Step 3 Select the ‘Combined’ option for Loading Effect



Dynamic effect

For HSLM (A1- A10) and HSLM B, a dynamic enhancement is applied as per the factor obtained from the equation below where the value of phi' and phi" are input by the user. This dynamic factor amplifies the static load accordingly but this is very different from the dynamic analysis which needs to be performed separately if the dynamic behavior of the bridge with the vehicle motion has to be considered.

Rail Traffic Load-de.jpg







  • Australia
Australia



AS 5100.2 - Road Traffic



Enter the vehicle loads specified in AS 5100.2 specification.

W80, A160, M1600, M1600 without UDL, M1600 tri-axle group, S1600

NOTE.png A160 and M1600 without UDL can be applied to the fatigue moving load case.



Pedestrian and Bicycle-path Load



Enter the vehicle loads specified in AS 5100.2 specification.

Attached to Road Bridge, Independent of Road Bridge, Service Live Load on Walkways



AS 5100.2 - Rail Traffic Load



Vehicular Load Type

150LA, 300LA

Dynamic Load Allowance

The design action is equal to (1+alpha) x the load factor x the action under consideration. Enter the value corresponding to alpha. Dynamic load allowance (alpha) can be applied separately between bending moment and all other effects. Characteristic length is not automatically determined by the program. Dynamic load allowance (alpha) should be directly defined by the user.

Bending Moment : Enter dynamic load allowance to be applied to bending moments, i.e. My, Mz

All Other Effects : Enter dynamic load allowance to be applied to all other effects, i.e. axial force, shear force, torsion, displacements.

1. Different dynamic load allowances between bending moment and all other effects can be applied to beam element and virtual beam only. For all other type of elements including plate element, the value entered for all other effects will be applied.

2. Composite Section for C.S has both total section forces and part forces. Different dynamic load allowances between bending moment and all other effects will be applied on the basis of total section forces. The part forces provided from the Result Tables>Composite Section for C.S>Beam Force will be the results to which the dynamic load allowance for all other effects is applied.

3. Bending stresses are calculated using the dynamic load allowance for bending moment. Axial stresses are calculated using the dynamic load allowance for all other effects. Note that combined stresses will be calculated using the dynamic load allowance for all other effects. Thus it will not be equal to the sum of axial stress and bending stress. In the moving load analysis, stresses are determined on the basis of the influence line of individual stress, i.e. axial stress, bending stress, combined stress.



AS 5100.2 - Heavy Load Platform

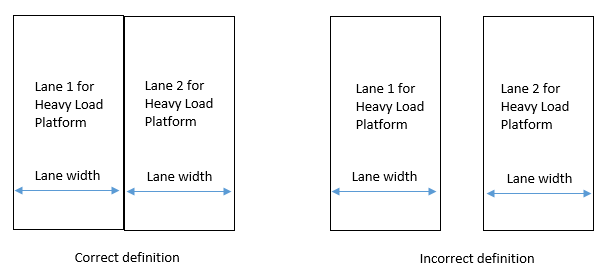

The HLP 320 and HLP 400 heavy load platform shall be positioned within two standard design lanes. The Heavy Load Platform shall be positioned up to 1.0 m laterally from the center of two standard design lanes to create the worst effect. Note that these two lanes should be adjacent and the two lanes should not be away from each other. The two adjacent lanes should meet each other at the boundary lines of the lane width.

Heavy Load Platform.png

Vehicular Load Type

HLP 320, HLP 400

Dynamic Load Allowance

The design action is equal to (1+alpha) x the load factor x the action under consideration. Enter the value corresponding to alpha. The recommended value for heavy load platform is 0.1.



AS 5100.7 - Rating Vehicles



Vehicular Load Type

T44 Truck Load, L44 Lane Load

Dynamic Load Allowance

The design action is equal to (1+alpha) x the load factor x the action under consideration. Enter the value corresponding to alpha. The recommended value for rating vehicles is 0.4.







  • India
India



IRC:6-2000 Standard Load

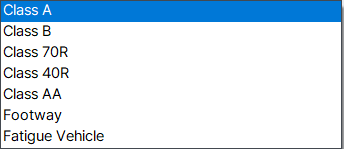

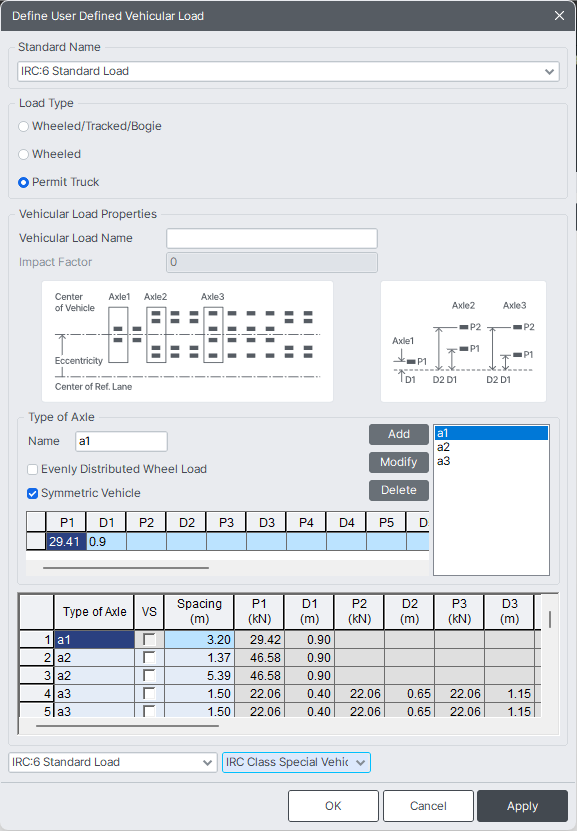

Enter the vehicle loads specified in the IRC:6-2000 standard.

IRC6-2000 Standard Load.png



IRS Bridge Rules

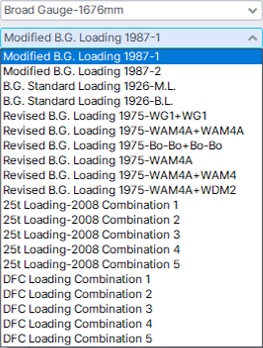

Enter the vehicle loads specified in IRS Bridge Rules.

IRS Bridge Rules.png

IRS Bridge Rules-2.png

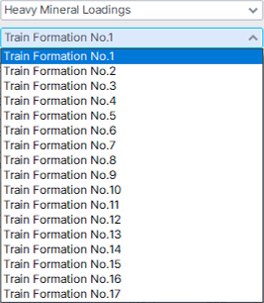

IRS Bridge Rules-3.png

IRS Bridge Rules-4.png

IRS Bridge Rules-5.png







  • Taiwan
Taiwan



Taiwan Standard Load



Enter the vehicle loads specified in Taiwan standard.







  • Russia
Russia



Select the vehicles for moving load analysis as per Russian Moving Load Code. The following vehicles can be selected for performing the moving load analysis.

Standard Name

Road Bridge and Railway Bridge:

SP 35.13330.2011 : SK, AK, N11, N11 (2nd edition), N14, Subway and Tramcars

SNiP 2.05.03-84 : NG-60 and NK-80

Walkway and Pedestrian loads:

SP 35.13330.2011 : Uniform loads, Concentrated loads with and without AK.

Vehicular Load Properties

AK, SK, SK Fatigue, N14 and N11 : The AK, SK, SK Fatigue, N14 and N11 vehicles as defined in the SP 35.13330.2011 contains a multiplier factor (K), which determines the axle load (and in turn the wheel) for moving load analysis.

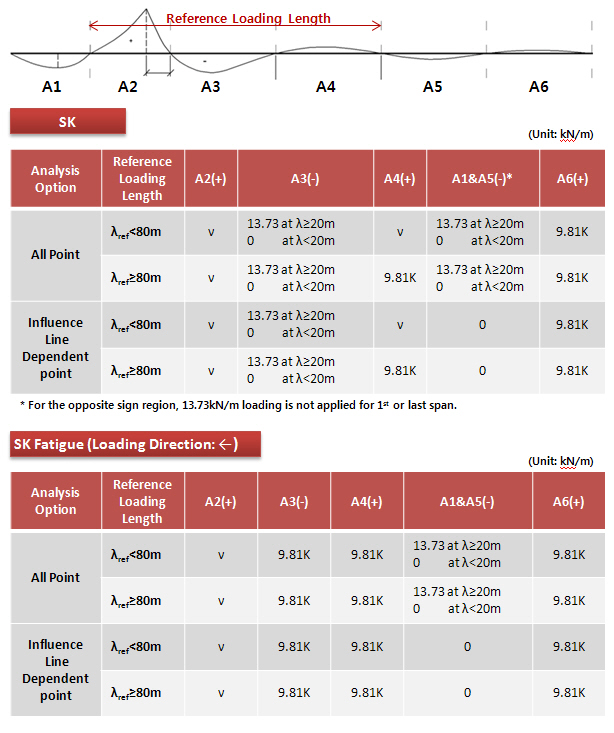

NOTE.png Application of SK and SK Fatigue

Normative temporary vertical load, SK, applied by the railroad rolling stock is applied as shown in the example below. The application of loading is changed based on the Load Point Section: Influence Line Dependent Point/ All Point option in the Moving load Analysis Control dialog box.

When the influence line is shown as below, for the maximum bending moment:

note 05-Russian-SK.jpg





Load Factor (K)



Define the load factor K for the determination of axle load for the moving load analysis. The factor K is multiplied to the following when the units for the loads are KN:

AK : 10

SK : 9.81 or 13.73 depending on the value of Influence Load Length (λ)

N11 : 14

N14 : 18

For all other units a conversion is made from KN to obtain the factor to be multiplied to K to obtain the axle load. Default value of K is 14. The value of Axle load (or the wheel load) can be verified from the Moving Load Tracer.

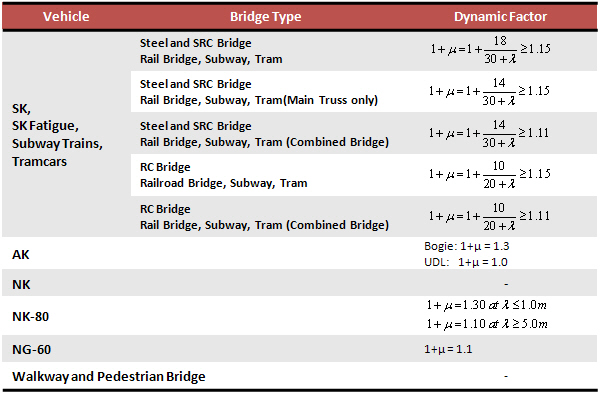

Dynamic Factor



The dynamic factor can be defined automatically as per the code or manually by the user. The applied dynamic factor can be checked in the moving load tracer, Detail Results text output.

The dynamic load factors can be defined in the Vehicle definition dialog box.

The displayed material and bridge type can be changed from Moving Load Analysis Control.

Automatic Definition of Dynamic Factor : The dynamic factor is defined as per the material ( RC , Steel and SRC) and the type of bridge.

The type of material and bridge can be defined in Moving Load Analysis Control.

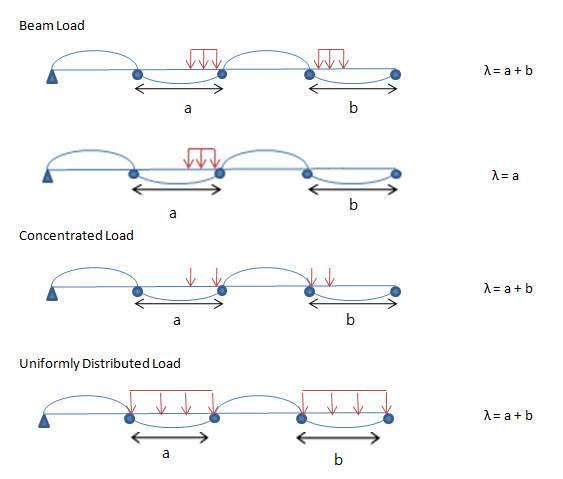

The automatic dynamic factor calculation involves the Influence Load Length (λ)

The following procedure is adopted in midas civil for the calculation of λ:


Manual Definition of Dynamic Facto r: The dynamic factor can be defined manually for UDL and Concentrated Loads individually.







  • Poland
Poland

Select the vehicles for moving load analysis as per Polish Moving Load Code. The following vehicles can be selected for performing the moving load analysis.



Standard Name



PN-85/S-10030 - Road Bridge

Vehicle K, Vehicle S, Vehicle 2S

PN-85/S-10030 - Walkway and Pedestrian Bridge

Sidewalks/stairs and walkways, Main girders and supports, Service walkways and working platforms

Military Load Class

Tracked vehicle, Wheeled vehicle according to TRILATERAL DESIGN AND TEST CODE FOR MILITARY BRIDGING AND GAP-CROSSING EQUIPMENT (2005)



Vehicular Load Properties

Vehicle K, Vehicle S and Vehicle 2S : Vehicle K, Vehicle S and Vehicle 2S as defined in the PN-85/S-10030 contains a dynamic amplification factor, which determines the axle load for moving load analysis.

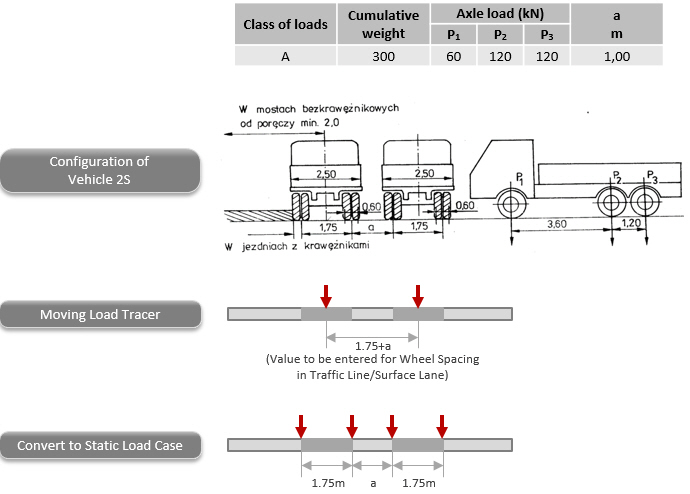

NOTE.png Application of Vehicle 2S



Limitation for vehicle 2S:

One axle of Vehicle 2S consists of 4 wheels. In the program, only two wheels are allowed in one axle. Therefore, the wheel spacing in Traffic Line/Surface Lane dialog box should be entered considering the distance between the center lines of two trucks. In moving load tracer, the wheel loads will be placed to the center line of each truck for all the axles. However, the user can convert this loadings into a static load case in which actual positions of 4 wheels are taken into account.






Dynamic Amplification Factor

PN-85/S-10030 : Sidewalks/stairs and walkways, Main girders and supports, Service walkways and working platforms

The dynamic factor can be defined automatically as per the code or manually by the user. The applied dynamic factor is not reflected in the wheel load value in the moving load tracer, however it is reflected in the analysis results such as member forces/stresses, displacements and reactions. Dynamic amplification factor can automatically be calculated considering span length. For multi-span bridges, average span length is applied as specified in Polish Standard. Span length can automatically be calculated using “Span Start” option in Traffic Line/Surface Lane dialog box.

Auto: The dynamic factor is defined as per the code.

Phi = 1.35 - 0.005L (unit: meter)

1.00 ≤ Phi ≤ 1.325

User Input: The dynamic factor can be defined manually for Concentrated Loads.

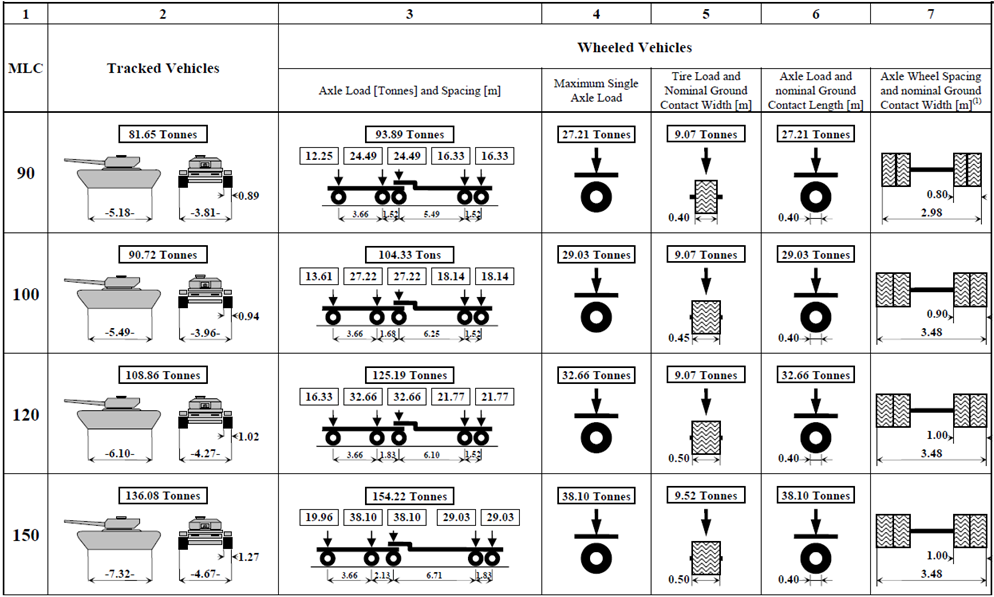

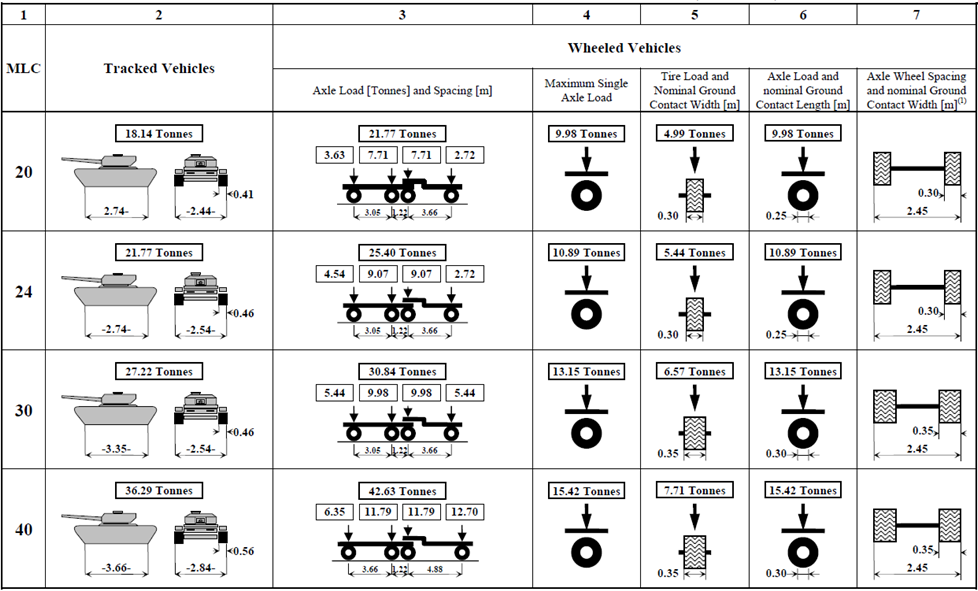

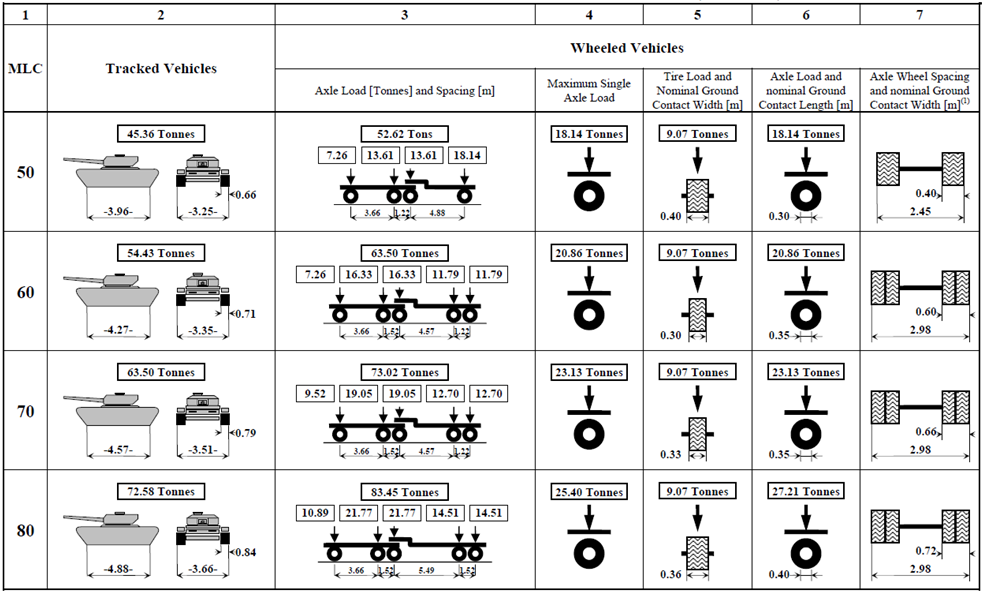

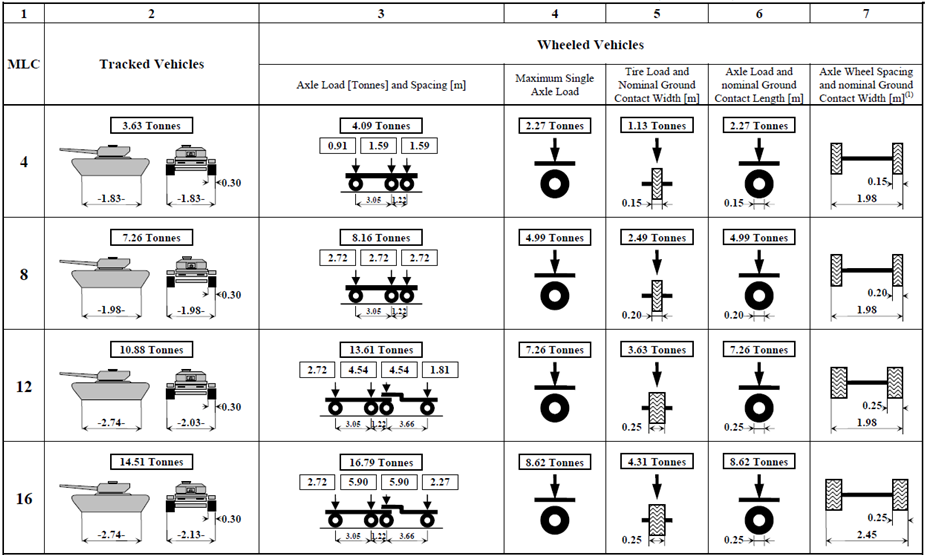

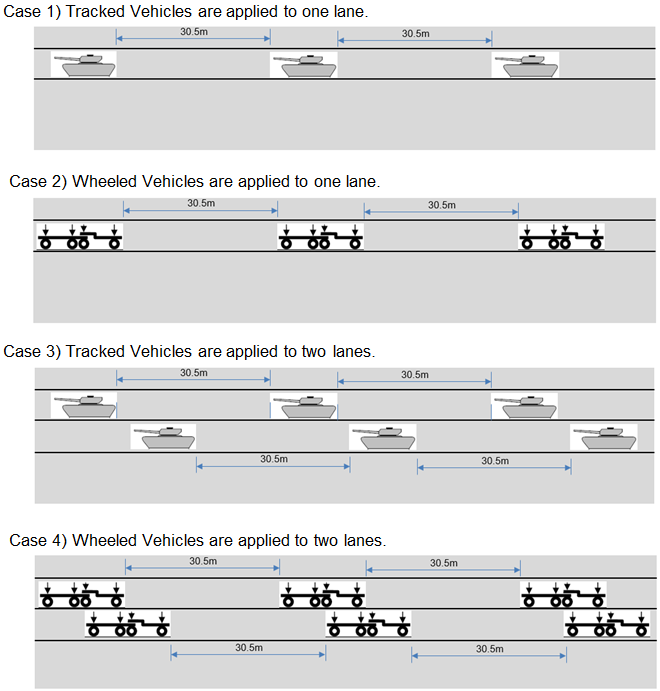

NOTE.png Military Load Class



  • Tracked Vehicle, Wheeled Vehicle





  • Application Rule










  • South Africa
South Africa



TMH7 Standard Load



Vehicular Load Name : Enter the name of the vehicular load.

Vehicular Load Type : Select the type of the vehicular load.

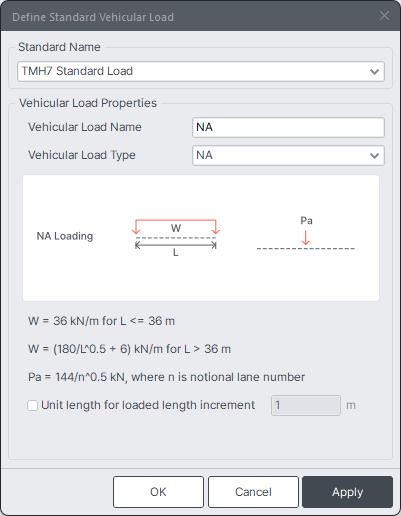

TMH7 Standard Load.png

NA (Normal Loading)

The load to be applied depends on Effective Loaded Length and Increment of Loaded Length. It does not depend on the lane order.

The loaded length causing the worst effect can be in other lane, either parallel on the same span or in the other span as the case may be.

NA loading represents normal traffic loading and comprises of 2 parts acting simultaneously:

i) Nominal distributed lane loading:

W = Average load per meter of Notional Lane (kN)
L = Effective loaded length (m)
Above equation is valid for L>36m, for L ≤ 36m → W = 36kN/m

ii) Nominal axle load:

Load per notional lane = south_africa_equ2.png

n = Notional lane number


NOTE.png Engineering judgement is required whether to consider the relieving effect (opposing effect) of the vehicle or not.

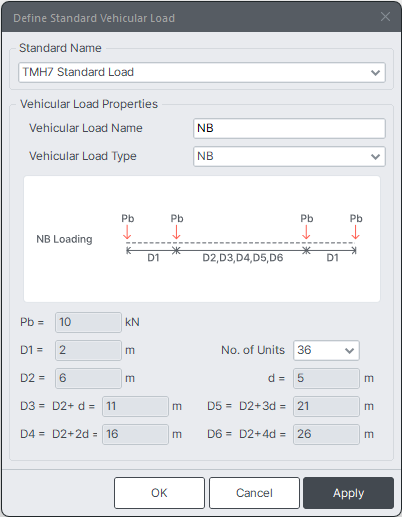

NB (Abnormal Loading)

NB loading is a unit loading representing a single abnormally heavy vehicle. Type NB vehicle has no specified load lane and can be placed anywhere in carriage way. NB24 and NB36 vehicles can be selected by selecting the no. of units. 36 units of type NB loading shall be applied, which equals an axle loading of 360 kN and 24 units of type NB loading shall be applied, which equals an axle loading of 240 kN.

Load Calculation for Type NB Vehicle:

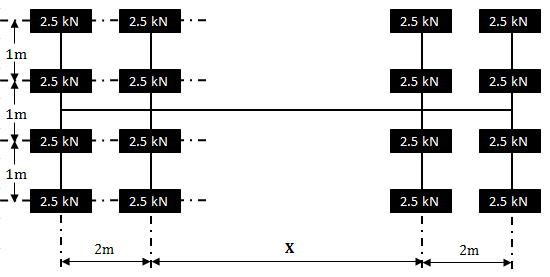

The plan and axel arrangement of Unit NB vehicle is as below:


X is automatically decided such that the effect is worst for the element under consideration.
Allowable values of X are 6, 11, 16, 21 and 26m. Load of above mentioned vehicle is multiplied with appropriate unit.



There are 2 codal magnitudes for Type NB Vehicle:

i) Type NB36 Loading:

Unit NB vehicle shold be multiplied with 36.

Load for each wheel = 36 (unit) x 2.5 (kN) = 90kN

Load for each axel = 36 (unit) x 4 (wheels) x 2.5 (kN) = 360kN

ii) Type NB24 Loading:

Unit NB vehicle shold be multiplied with 24.

Load for each wheel = 24 (unit) x 2.5 (kN) = 60kN

Load for each axel = 24 (unit) x 4 (wheels) x 2.5 (kN) = 240kN

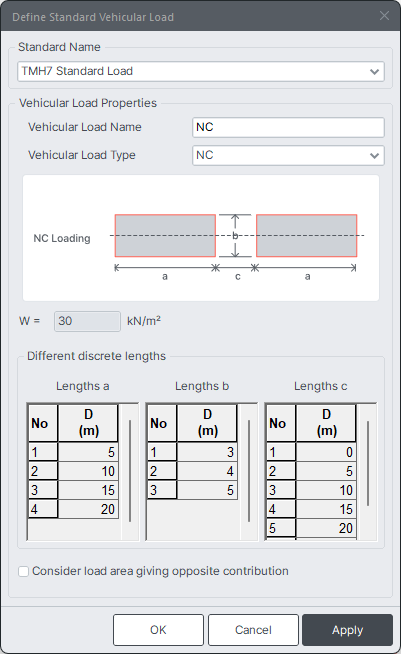

NC (Super Loading)

NC loading is a loading representing multi-wheeled trailer combinations (or self-propelled multi-wheeled vehicles) with controlled hydraulic suspension and steering intended to transport very heavy indivisible payloads. NC vehicle has no specified load lane and has to be placed near the center of carriageway with a maximum offset up to 1m unless otherwise specified.


Type NC vehicle consists of loaded areas only.

a : Length of loaded area
b : Width of loaded area
c : Length of area not loaded

The allowable values of a, b and c are as below:

a : 5m, 10m, 15m, 20m
b : 3m, 4m, 5m
c : 0m, 5m, 10m, 15m, 20m, 25m

Intensity of load in the loaded area is 30 kN/m2. This load is an area load and needs to be converted into UDL in accordance to the placement and distribution method (Cross Beam or Lane Element).

NOTE.png Engineering judgement is required whether to consider the relieving effect (opposing effect) of the vehicle or not.







  • France
France

Select the vehicles for moving load analysis as per French Code. The following vehicles can be selected for performing the moving load analysis.



Standard Name



Load System A

This load is the uniformly distributed load and obtained using the equation below.

A = a1 x a2 x A(L)


L: Loaded length determined by the program based on the influence line.
a1: Coefficient determined by the program based on the number of loaded lanes and the bridge class. The number of loaded lanes is determined for each component of each element to cause the critical effect for the corresponding element. The bridge class can be defined by the user from the Analysis>Moving Load Analysis Control dialog box.
a2: Coefficient determined by the program based on the lane width and the bridge class. The lane width is calculated by dividing the loadable width by the number of lanes.

NOTE.png The applied coefficients, a1 and a2 are not reflected in the wheel load value in the moving load tracer, however it is reflected in the analysis results such as member forces/stresses, displacements and reactions.



Load System B

This system consists of Load System Bc and Load System Bt.
Load System Bc is multiplied by coefficient bc.
bc: Coefficient determined by the program based on the number of loaded lanes and the bridge class. The number of loaded lanes is determined for each component of each element to cause the critical effect for the corresponding element. The bridge class can be defined by the user from the Analysis>Moving Load Analysis Control dialog box.
Load System Bt is multiplied by coefficient bt.
bt: Coefficient determined by the program based on the bridge class.

NOTE.png The applied coefficients, bc and bt are not reflected in the wheel load value in the moving load tracer, however it is reflected in the analysis results such as member forces/stresses, displacements and reactions.

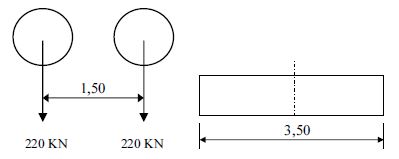

Load System Bc




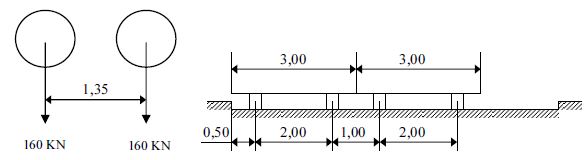

Load System Bt

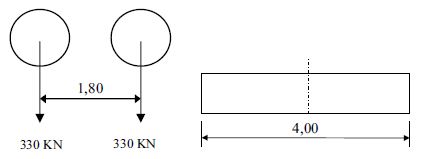

Military Load

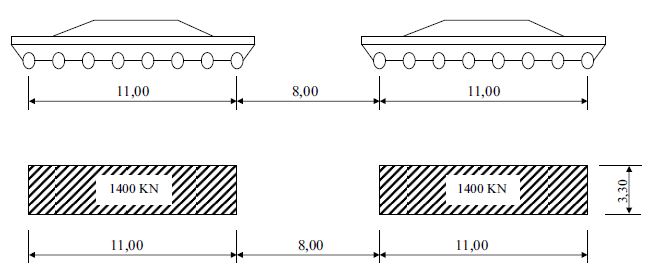

Convoy Mc 80

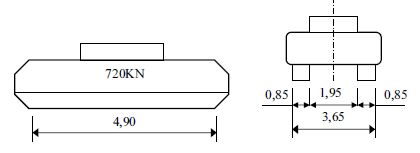

Convoy Mc 120




Convoy Me 80




Convoy Me 120




Convoy Type D




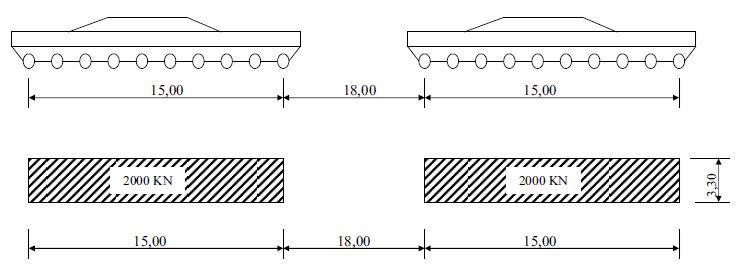

Convoy Type E



Sidewalk/Pedestrian

Sidewalk: User-defined. 4.5 kN/m2 as a default value

Pedestrian




Vehicular Load Properties



Load System B and military loads contains a dynamic factor, which is multiplied to the axle loads for moving load analysis.



Dynamic Factor

The dynamic factor can be calculated automatically as per the equation below. Span length (L) and span weight (G) are entered manually by the user in the Traffic Line/Surface Lane. The vehicle load (S) is determined by the program. The applied dynamic factor is not reflected in the wheel load value in the moving load tracer, however it is reflected in the analysis results such as member forces/stresses, displacements and reactions.








Click Add Standard when a vehicle load conforms to designated standards.



  • AASHTO Standard
AASHTO Standard



Load type



Enter the type of vehicle loads

Truck / Lane : Concentrated axle loads or traffic lane loads

Train Load : Train Loads



Vehicular Load Properties



Vehicular Name
Enter the name of a vehicle.



Truck Load
Enter the concentrated wheel axle loads and spacings.

P# : Concentrated loads

D# : Spacings between concentrated loads

Add : Add the entered concentrated loads.

Insert : Insert a concentrated load at a specified position.

Modify : Modify the magnitude or spacing of the concentrated loads previously selected in the list.

Delete : Delete the selected loads from the list of previously entered concentrated loads.

NOTE.png The data entry sequence for the wheel loads must coincide with the actual moving sequence of the wheels.



Lane Load
Enter traffic lane loads.

w : Distributed traffic lane load

PL : Concentrated traffic lane load used to calculate member forces

PLM : Concentrated traffic lane load used for moment calculations

PLV : Concentrated traffic lane load used for shear force calculations



Train Load
Enter subway train loads.

dW1~2 : Distributed traffic lane load

dD1~2 : Spacing between the distributed traffic lane load and concentrated load (Refer to diagram)

P : Concentrated traffic lane load (Enter in Load)

D : Spacing between concentrated traffic loads (Enter in Distance)







  • AASHTO LRFD
AASHTO LRFD



Vehicular Load Name : Enter the name of the vehicular load.

Type of Axle

Name : Enter the name of the axle

Evenly Distributed Wheel Load : By selecting this option, all loads, except P1, are deactivated and the program uses P1 for analysis.

Symmetric Vehicle : By selecting this option, the program only uses the wheel loads right-side of the vehicle for analysis.

P1, P2, ..., Pn : Enter the wheel loads of each axle. Enter the wheel load starting from the wheel closest to the center.

D1, D2, ..., Dn : Enter the distance between the center to the wheel. Indicate right side as (+) and left side as (-).

Table : Enter the vehicle load using the defined axle.

Type of Axle : Select the defined axle.

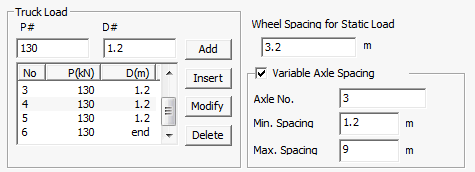

VS : Variable spacing.

[Details]



VS represents the variable spacing of axle in longitudinal direction as required for certain Permit Truck user defined vehicle. VS option can’t be activated for the first axle. When VS is activated for any axle, the axles are placed in accordance to the influence line diagram. The minimum distance is the spacing as entered in the preceding axle and maximum spacing is spacing as entered in the axle for which VS is checked on. In case of the example above, the spacing between Axle 1 and Axle 2 is variable from 0.5m to 15m and the 3rd axle is placed 1m after the second axle.





Spacing : Enter the distance between the axles.



· Add Centrifugal Force

Check on the “Add Centrifugal Force” option to consider the overturning effect due to centrifugal force on the vertical loads of the vehicle as per the factor provided for the left wheel of forward direction vehicle in “Traffic Line lane/ Traffic Surface Lane” definitions.

- This option is only available for the AASHTO LRFD vehicles.
- Centrifugal force is not applied to distributed loads, only to concentrated loads.
- Centrifugal force is not applied to PL, PLM, PLV concentrated loads in the lane load of user-defined vehicles (Truck/Lane).
- Consider the multiple presence factor for centrifugal force as well.
- Dynamic load allowance applies only to static effects of the vehicle, not centrifugal forces.
- In order to obtain the maximum momentum, when two vehicles with a reduction of 90% are loaded, centrifugal force is applied to the two vehicles with a reduction of 90%.





  • Canada
Canada



When Truck/Lane is selected



Vehicular Name
Enter the name of a vehicle.

Truck Load
Enter the concentrated wheel axle loads and spacings.

P# : Concentrated loads

D# : Spacings between concentrated loads

Add : Add the entered concentrated loads.

Insert : Insert a concentrated load at a specified position.

Modify : Modify the magnitude or spacing of the concentrated loads previously selected in the list.

Delete : Delete the selected loads from the list of previously entered concentrated loads.

NOTE.png The data entry sequence for the wheel loads must coincide with the actual moving sequence of the wheels.

Lane Load
Enter traffic lane loads.

w : Distributed traffic lane load

Dynamic Load Allowance

Auto : Apply Dynamic Load Allowance factor as per Canadian specification

User Input : Apply Dynamic Load Allowance factor using user input value

As specified in the code, it is differently applied for the following condition.

Where only one axle of the CL-W Truck is used

Where any two axle or axles 1,2 and 3 are used

Where three axles except for axles 1,2 and 3 or more than three axles are used

NOTE.png The applied dynamic load allowance factor can be checked by lanes in the moving load tracer by clicking [Detail Results] button.



When "Permit Truck" is selected



Name : Enter the name of the axle

Evenly Distributed Wheel Load : By selecting this option, all loads, except P1, are deactivated and the program uses P1 for analysis.

Symmetric Vehicle : By selecting this option, the program only uses the wheel loads right-side of the vehicle for analysis.

P1, P2, ..., Pn : Enter the wheel loads of each axle. Enter the wheel load starting from the wheel closest to the center.

D1, D2, ..., Dn : Enter the distance between the center to the wheel. Indicate right side as (+) and left side as (-).

Table : Enter the vehicle load using the defined axle.

Type of Axle : Select the defined axle.

Spacing : Enter the distance between the axles.







  • BS
BS



HA & HB (BS5400) Loading

Enter HB vehicle loads specified in BD37/01 Standard.

HA Loading

Enter HA vehicle loads specified in BD37/01 Standard. HA Lane Factor can be considered with the value calculated by the program or defined by the user.

HB Loading

Enter HB vehicle loads specified in BD37/01 Standard.

HA & HB Loading

Enter HA and HB loading combined in one lane specified in BD37/01 Standard. HA UDL in a lane shall be loaded to the total length displaced by HB loading with the front and rear clear spaces (dd).
HA Lane Factor can be considered with the value calculated by the program or defined by the user.

HA & HB (Auto) Loading

Enter HA and HB loading combined for the entire lanes so that the program can automatically organize live load combination specified in BD37/01 Standard as shown in the figures below.
HA loading shall be applied to the notional lanes of the carriageway. HA UDL and KEL shall be multiplied by the lane factor. HB loading shall occupy any transverse position on the carriage way, either wholly within one notional lane or straddling two notional lanes.


HB Vehicle within One Lane



HB Vehicle Straddling Two Lanes



Pedestrian Live Load

Enter foot/cycle track bridge live loads specified in BD37/01 Standard.

Permit Truck

Vehicular Load Name : Enter the name of the vehicular load.

Impact Factor : This refers to the portion of dynamic effect due to moving vehicles. This should not include the static effect of vehicle loads. Thus, this factor is usually less than 1.0.

Type of Axle

Name : Enter the name of the axle
Evenly Distributed Wheel Load : By selecting this option, all loads, except P1, are deactivated and the program uses P1 for analysis.
Symmetric Vehicle : By selecting this option, the program only uses the wheel loads right-side of the vehicle for analysis.
P1, P2, ..., Pn : Enter the wheel loads of each axle. Enter the wheel load starting from the wheel closest to the center.
D1, D2, ..., Dn : Enter the distance between the center to the wheel. Indicate right side as (+) and left side as (-).
Table : Enter the vehicle load using the defined axle.

Type of Axle : Select the defined axle.
Spacing : Enter the distance between the axles.







  • EUROCODE
EUROCODE



EN1991-2:2003 - Road Bridge/Footway and Foot Bridge



The user can directly enter the vehicle load data such as magnitudes of vehicle loads, distance between wheels and other parameters.

Various Load Models as per EN1991-92 can be defined here. These Load Models include:

Load Model 1 / Fatigue Load Model 1 : Concentrated and uniformly distributed loads, which cover most of the effects of the traffic of lorries and cars.

NOTE.png In Fatigue Load Model, Φ1 Factor applies to One Vehicle and Φ2 Factor applies to First Vehicle and Second Vehicle simultaneously in Two Vehicle considered cases.

Load Model 2, 4 / Fatigue Load Model 2, 4 : Concentrated and uniformly distributed loads.

Load Model 3 : A set of assemblies of axle loads representing special vehicles (e.g. for industrial transport) which can travel on routes permitted for abnormal loads. Application of special vehicles refer to EN1991-2-Annex A. A load case considering the placement of LM1 and recommended LM3 vehicles can be specified by selecting the LM1 & 3( multi) load model in Moving Load cases (Refer to Moving Load Cases). The most unfavorable result is produced by considering the entered three Load Cases.

NOTE.png The program uses a governing load case among defined load cases(1~3).

Load Model 3 (Straddling) : The special vehicles as per UK national annex can straddle between two lanes by the program. For description about the notations and axle loadings and spacings refer to UK National Annex to Eurocode1:Actions on structures.

NOTE.png Load Model3 (Straddling)
Load Model3 (Straddling) vehicle can be considered with variable axile spacing. For example, if the vehicle is composed as shown in the figure below, the variable axle spacing can be specified by entering Axle No. and Min/Max axle spacings. For the last axle, the user needs to specify the spacing "D#" as "0", so that it can be considered as "end" spacing.
Wheel spacing during an analysis will be applied as the spacing defined in Traffic Line Lanes/Traffic Surface Lanes. If the wheel spacing is different from the one defined in Traffic Line Lanes/Traffic Surface Lanes, exact wheel spacing can be considered by converting the vehicle loads into static loads using "Write Min/Max Load to File" button in Moving Load Tracer.



Permit Truck

Evenly Distributed Wheel Load : By selecting this option, all loads, except P1, are deactivated and the program uses P1 for analysis.
Symmetric Vehicle : By selecting this option, the program only uses the wheel loads right-side of the vehicle for analysis.
P1, P2, ..., Pn : Enter the wheel loads of each axle. Enter the wheel load starting from the wheel closest to the center.
D1, D2, ..., Dn : Enter the distance between the center to the wheel. Indicate right side as (+) and left side as (-).
Table : Enter the vehicle load using the defined axle.

Type of Axle : Select the defined axle.
Spacing : Enter the distance between the axles.

NOTE.png 1

Wheel Spacings for the Recommended LM3 vehicles and UK LM3 vehicles

In case of Load Model 3 vehicles, the transverse wheel spacing considered is the value of the wheel spacings that has been entered while defining the lanes. Therefore when the Load Model 3 vehicles are used in combination with the Load Model 1 vehicles or in isolation, the same transverse wheel spacings are considered both for the LM3 and LM1 vehicles. In case of Recommended Load Model 3, three wheels at one axle (figure b) are converted into equivalent two wheel loads when placed in combination with Load Model vehicle or when used in isolation. Therefore for any Recommended Load Model 3 vehicle the effect due to the true transverse spacings between the wheels could not be captured but rather the effect due to equivalent two wheels is captured.


Thus when the vehicle placements corresponding to the Standardised LM3 and the UK LM3 are visualized using the Moving Load Tracer, the transverse wheel spacing is same as defined in the lanes definition. But this is not the actual transverse wheel spacing corresponding to the straddling vehicles( UK LM3 vehicles).The transverse wheel spacing for straddling SV and SOV as defined in UK National Annex is shown below. Thus to consider the effects of UK LM3 vehicle with the actual wheel spacing, the obtained results from the Moving Load Tracer are converted into static Load using Write Min/Max Load to File and the program automatically considers the below mentioned spacings in the converted static loads and thus the results obtained using the converted static loads reflect the results corresponding to the true wheel spacings.


The transverse wheel spacing for LM3 SV 100(same for other SVs ): 2.65m centre-centre.


The transverse wheel spacing for LM3 SOV vehicles.



NOTE.png 2

Vehicle Placement : When the LM3 vehicles are applied alone, they are applied in the manner shown below. Any LM3 vehicles having three wheels per axle shown in the right side of the image are not supported. This placement applies to only the standardised Load Model 3 vehicles. A load case considering when the placement of LM3 vehicles when applied in isolation is considered using the LM 2,3,4/ FLM 2,3,4/ Footbridge load model in Moving Load cases (Refer to Moving Load Cases). The Standard LM3 vehicles cannot be applied in two lanes so the right hand vehicle placement in the image shown below cannot be achieved. The straddling effect or the placement of vehicle in two lanes can be accounted for the straddling vehicles only by specifying the LM1 & 3( special) Load model in Moving Load cases (Refer to Moving Load cases).


NOTE.png 3

Dynamic Amplification Factor : The value of characteristic loads for Load Models 1,2 and 4 includes the dynamic amplification consideration. But for Load Model 3 special vehicles this dynamic amplification factor needs to be considered separately as it is not included in the axle loads. The dynamic amplification factor can be input manually or calculated automatically by the program.
When the vehicle is recommended Load Model 3 vehicle: Dynamic Amplification Factor calculated by the program is considered based on the equation given below.


DAF for recommended Load Model 3 vehicles

When the vehicle is Load Model 3 as per UK NA: Dynamic Amplification Factor calculated by the program is considered corresponding to the basic axle loads as shown below


DAF for UK Load Model 3 vehicles



In case of Load Model 3, additional dynamic amplification factor within a distance of 6 m from an expansion joint is not considered.


Representation of the additional amplification factor



EN1991-2:2003 - Rail Traffic Load



The Rail Traffic Loads as per EN 1991-2:2003 can be specified. The various load models considered in the program are:

Load Model 71 (and Load Model SW/0 for continuous bridges) to represent normal rail traffic on mainline railways,
Load Model SW/2 to represent heavy loads,
Load Model HSLM A/B to represent the loading from passenger trains at speeds exceeding 200 km/h. Dynamic amplification is also considered.
Load Model "Unloaded train" to represent the effect of an unloaded train.

Longitudinal distribution of a point force or wheel load by the rail
A point force in Load Model 71 and HSLM A(A1 to A10) may be distributed over three rail support points as shown below:




where :
Qvi: point force on each rail due to load model 71 and HSLM A.
a: distance between rail support points.

Figure 1. Longitudinal distribution of point load





Eccentricity of Lateral Displacement of Vertical Loads

According to the clause 6.3.5 of EN 1991-2, the effect of lateral displacement of vertical loads (unbalanced or asymmetric loading of wagons) needs to be considered by taking the ratio of wheel loads on all axles as up to 1.25:1.0 on any one track. This criterion may be used to determine the eccentricity of loading with respect to the center-line of the track.


Figure 2. Eccentricity of vertical loads



NOTE.png 1

Sign convention of eccentricity: The positive value means that the sum of vertical loads is applied to the right side of the train by the amount of eccentricity with respect to the center of gravity.


Figure 3. Sign convention of eccentricity



NOTE.png 2

How to consider the effect of lateral displacement of LM 71 on one track only:
Suppose there are two tracks named ‘L1’ and ‘L2’ and we want to consider this effect only for the track ‘L1’.
Step 1 Define two LM71 models- one with eccentricity (LM 71E) and the other without eccentricity (LM 71).
Step 2 In the Moving Load Case, create two sub-load cases as follows:

Sub-load case 1: Select the train ‘LM 71E’ and the track ‘L1’.
Sub-load case 2: Select the train ‘LM 71’ and the track ‘L2’.

Step 3 Select the ‘Combined’ option for Loading Effect



Dynamic effect

For HSLM (A1- A10) and HSLM B, a dynamic enhancement is applied as per the factor obtained from the equation below where the value of phi' and phi" are input by the user. This dynamic factor amplifies the static load accordingly but this is very different from the dynamic analysis which needs to be performed separately if the dynamic behavior of the bridge with the vehicle motion has to be considered.








  • Australia
Australia



Truck/Lane



Enter the vehicle loads for truck and lane loads.
Variable Spacing (D6~D7) : Check on the variable spacing option to simulate M1600 and S1600 vehicles. When this option is checked on, the value entered in "D6" will be applied as the minimum variable spacing, and the value entered in "D7" will be automatically changed to infinite length in order to find the most critical axle spacing.



Train Load

Enter the distributed loads such as pedestrian and bicycle-patch loads.

Railway Traffic Load

Enter user-defined 300LA and 150LA loads. When 150LA is defined from the Standard vehicle, the number of axle groups is fixed as 2. When 150LA is defined from the User-Defined vehicle, the number of axle groups can be defined by the user. Also, locomotive load can be removed.

Dynamic Load Allowance

Dynamic load allowance (alpha) can be applied separately between bending moment and all other effects. Characteristic length is not automatically determined by the program. Dynamic load allowance (alpha) should be directly defined by the user.

Bending Moment : Enter dynamic load allowance to be applied to bending moments, i.e. My, Mz
All Other Effects : Enter dynamic load allowance to be applied to all other effects, i.e. axial force, shear force, torsion, displacements.


1. Different dynamic load allowances between bending moment and all other effects can be applied to beam element and virtual beam only. For all other type of elements including plate element, the value entered for all other effects will be applied.

2. Composite Section for C.S has both total section forces and part forces. Different dynamic load allowances between bending moment and all other effects will be applied on the basis of total section forces. The part forces provided from the Result Tables>Composite Section for C.S>Beam Force will be the results to which the dynamic load allowance for all other effects is applied.

3. Bending stresses are calculated using the dynamic load allowance for bending moment. Axial stresses are calculated using the dynamic load allowance for all other effects. Note that combined stresses will be calculated using the dynamic load allowance for all other effects. Thus it will not be equal to the sum of axial stress and bending stress. In the moving load analysis, stresses are determined on the basis of the influence line of individual stress, i.e. axial stress, bending stress, combined stress.



Permit Truck



Vehicular Load Name : Enter the name of the vehicular load.

Impact Factor : This refers to the portion of dynamic effect due to moving vehicles. This should not include the static effect of vehicle loads. Thus, this factor is usually less than 1.0.

Type of Axle

Name : Enter the name of the axle
Evenly Distributed Wheel Load : By selecting this option, all loads, except P1, are deactivated and the program uses P1 for analysis.
Symmetric Vehicle : By selecting this option, the program only uses the wheel loads right-side of the vehicle for analysis.
P1, P2, ..., Pn : Enter the wheel loads of each axle. Enter the wheel load starting from the wheel closest to the center.
D1, D2, ..., Dn : Enter the distance between the center to the wheel. Indicate right side as (+) and left side as (-).
Table : Enter the vehicle load using the defined axle.

Type of Axle : Select the defined axle.
Spacing : Enter the distance between the axles.







  • India
India



When the user selects the Wheeled/Tracked/Bogie option



The user can define vehicles, including class 60R and others, and assign the defined vehicles to Class II.

midas Civil considers two classes of vehicles to define the Live Load Combinations. Class AA, Class 70R and Class 40R are classified into Class II, and Class A and Class B are classified into Class I.



When the user selects the Wheeled option



The user can define vehicles and assign these to Class I.



When "Permit Truck" is selected



Name : Enter the name of the axle
Evenly Distributed Wheel Load : By selecting this option, all loads, except P1, are deactivated and the program uses P1 for analysis.
Symmetric Vehicle : By selecting this option, the program only uses the wheel loads right-side of the vehicle for analysis.
P1, P2, ..., Pn : Enter the wheel loads of each axle. Enter the wheel load starting from the wheel closest to the center.
D1, D2, ..., Dn : Enter the distance between the center to the wheel. Indicate right side as (+) and left side as (-).
Table : Enter the vehicle load using the defined axle.

Type of Axle : Select the defined axle.
Spacing : Enter the distance between the axles.

NOTE.png IRC Class Special Vehicle (SV) can be selected as shown below.







  • Russia
Russia



Vehicular Load Properties



Vehicular Name

Enter the name of a vehicle.

Vehicular Load Type

Enter the vehicular load type for automatic determination of the Lane factor

Truck Load

Enter the concentrated wheel axle loads and spacings.

P# : Concentrated loads

D# : Spacings between concentrated loads

Add : Add the entered concentrated loads.

Insert : Insert a concentrated load at a specified position.

Modify : Modify the magnitude or spacing of the concentrated loads previously selected in the list.

Delete : Delete the selected loads from the list of previously entered concentrated loads.

Min D4 Variable : This option is activated when the vehicular load type is specified as Tramcars. D4 can be defined for defining the minimum spacing between the tram loading for determining the position of the vehicle for obtaining the worst effect.

NOTE.png 1 Important Notice for User Defined Subway Trains

The data entry sequence for the wheel loads must coincide with the actual moving sequence of the wheels. The number of concentrated loads must be 4 in order to represent one subway train. And then, the program automatically consider unlimited trains as specified in the Russian Standard.

NOTE.png 2 Important Notice for User Defined Tramcars

The data entry sequence for the wheel loads must coincide with the actual moving sequence of the wheels. The number of concentrated loads must be 4 in order to represent one tramcar. And then, the program automatically consider 4 tram cars as specified in the Russian Standard.

Lane Load

Enter traffic lane loads.

w : Distributed traffic lane load



Dynamic Factor



Auto- Calculation

For the user defined vehicles the automatic calculation of Dynamic factor is allowed only for Subway Trams, N14, NK 80 vehicles. The type of bridge and material can be defined in moving load analysis control.

User Input

Dynamic Factor for Bogie : Enter the dynamic load factor to be applied to concentrated ( Tuck ) Loads
Dynamic Factor for UDL : Enter the dynamic factor to be applied to Lane Load.



05-Russian-DLF (1).jpg



The automatic dynamic factor calculation involves the Influence Load Length (λ)

The following procedure is adopted in midas Civil for the calculation of λ:



05-Russian-Lambda (1).jpg







  • Poland
Poland



Vehicular Load Name : Enter the name of the vehicular load.

Type of Axle

Name : Enter the name of the axle
Evenly Distributed Wheel Load : By selecting this option, all loads, except P1, are deactivated and the program uses P1 for analysis.
Symmetric Vehicle : By selecting this option, the program only uses the wheel loads right-side of the vehicle for analysis.
P1, P2, ..., Pn : Enter the wheel loads of each axle. Enter the wheel load starting from the wheel closest to the center.
D1, D2, ..., Dn : Enter the distance between the center to the wheel. Indicate right side as (+) and left side as (-).
Table : Enter the vehicle load using the defined axle.

Type of Axle : Select the defined axle.

Spacing : Enter the distance between the axles.





  • South Aftrica
South Aftrica



NA Type



Enter the vehicle loads specified in TMH7 Standard.



NB Type



Enter the vehicle loads specified in TMH7 Standard.



NC Type



Enter the vehicle loads specified in TMH7 Standard.



Permit Truck



Vehicular Load Name : Enter the name of the vehicular load.

Impact Factor : This refers to the portion of dynamic effect due to moving vehicles. This should not include the static effect of vehicle loads. Thus, this factor is usually less than 1.0.

Type of Axle

Name : Enter the name of the axle.
Evenly Distributed Wheel Load : By selecting this option, all loads, except P1, are deactivated and the program uses P1 for analysis.
Symmetric Vehicle : By selecting this option, the program only uses the wheel loads right-side of the vehicle for analysis.
P1, P2, ..., Pn : Enter the wheel loads of each axle. Enter the wheel load starting from the wheel closest to the center.
D1, D2, ..., Dn : Enter the distance between the center to the wheel. Indicate right side as (+) and left side as (-).
Table : Enter the vehicle load using the defined axle.
Type of Axle : Select the defined axle.
Spacing : Enter the distance between the axles.







  • Transverse Moving Load
Transverse Moving Load



Vehicular Load Name : Vehicle name for transverse moving load analysis
Wheel Load : Define Wheel Load
Distribution Width : Width of the equivalent strip spanning in longitudinal direction. To determine the load per unit width of the equivalent strip, the program divides the total load on one design traffic lane by the calculated strip width.
Max. Number of Lanes : Define the maximum number of lanes
Distance between wheels : Define the Distance between wheels
Min. Distance of Wheel Load : Define the minimum distance between vehicles
Edge Distance of Wheel Loads : Define the distance between the end of the vehicle and barrier curb, or the distance between the end of the vehicle and median strip
Median Strip
This should be checked if a median strip exists. Even if a lane is assigned at the location where the median strip exists, the vehicle traffic load will not be assigned at that location.

Location (MI) : The distance from the barrier curb to the center of the median strip.
Width : The width of the median strip
Max. Number of Left/Right Lanes (n1/n2): Enter the maximum number of left lanes and right lanes.
In case when MI is large for the entered number of lanes, more lanes than required ones may be placed on the left/right side of the median strip. To avoid this case, specify the maximum number of left/right lanes.




To modify previously entered vehicle loads

Select a vehicle load to be modified in the dialog box and click Modify.



To delete previously entered vehicle loads

Select a vehicle load to be deleted in the dialog box and click Delete.



0
Was this article helpful?
