Summary
Creates a Point Library by selecting objects in Base Mode.
How to Run
[Base Mode]

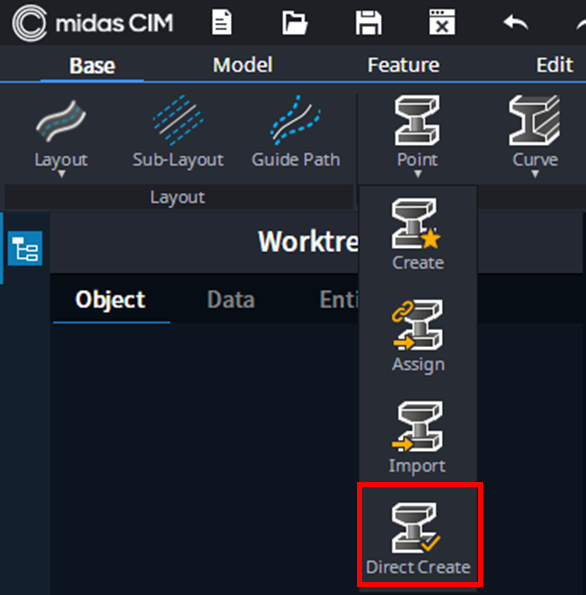

• Ribbon Menu > [Base] Tab > [Library] Group > Point > Direct Create
Explanation
Direct Create Feature
Creates a Point Library by selecting objects in Base Mode.
[Select Target] : Selects the objects to include in the created Point Library.
[Origin Point] : Sets the origin for the created Point Library.
[Option]
• Export Only : If turned On, the current file is saved as a .plbz file without registering to the Point Library.
Tip

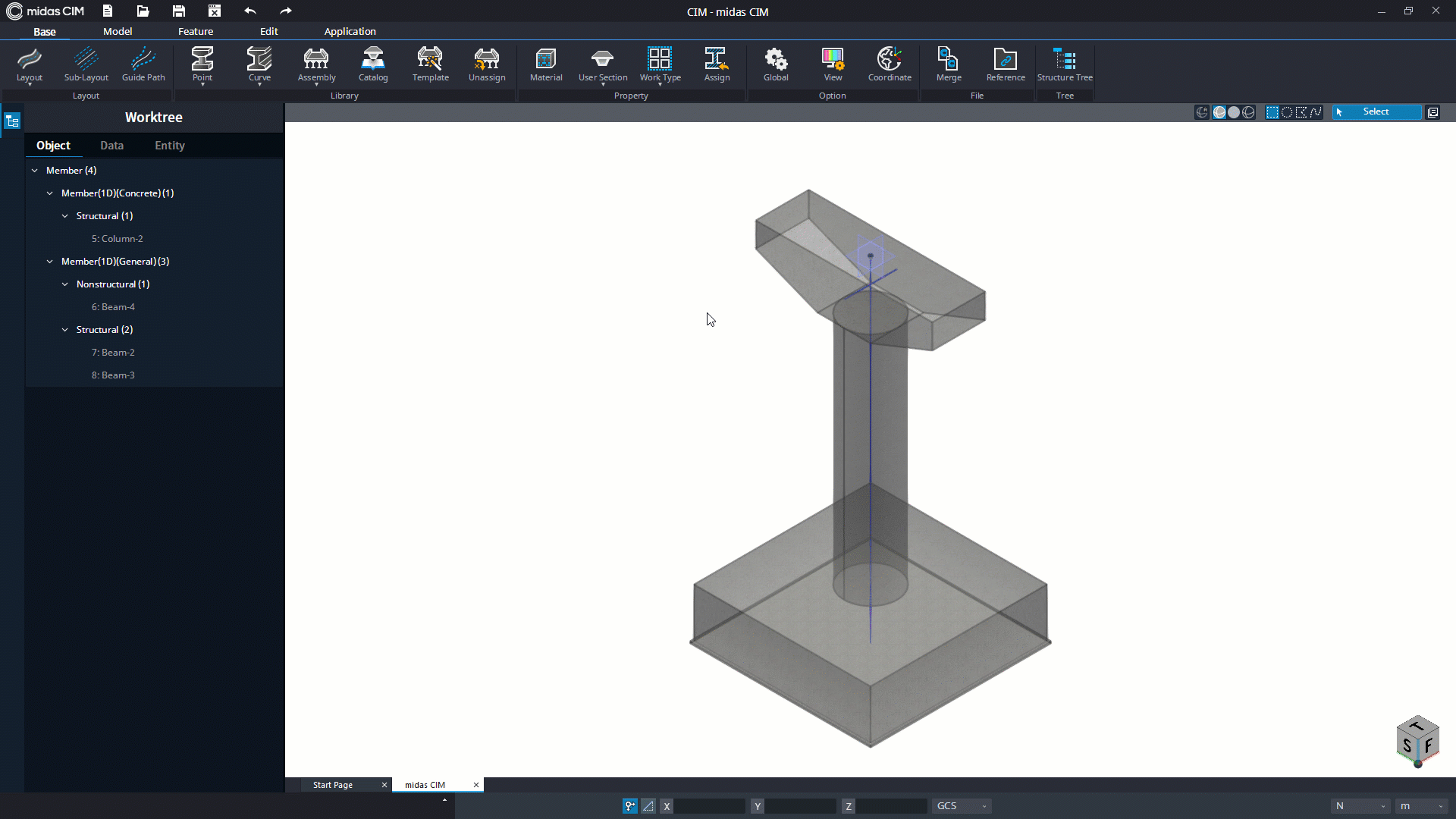

As of now, General Members cannot be included in the Point Library using the Direct Create feature. Hence, in the left GIF animation, only the column section was selected and saved to the Point Library.
