Question
Is there a way to display two different type of loads simultaneously on the screen?
Is there a way to display both point loads and uniformly distributed loads on the same screen simultaneously?
I am curious if there is a method to show different types of loads together for comparison.
Answer
If you go to the Load tab in Display, you can display all the desired loads on the screen at once.

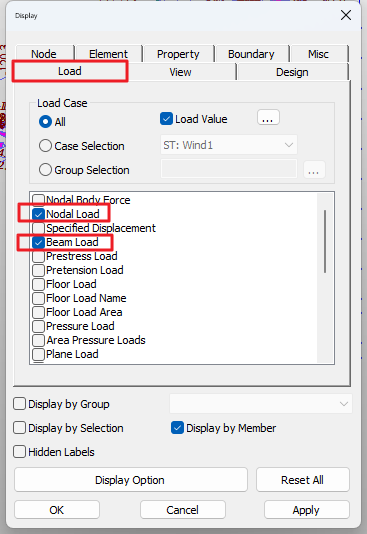

In CIVIL, go to Display and then to the Load tab where you can make the necessary settings.
After selecting the desired load (e.g., Nodal Load & Beam Load), press the OK button at the bottom, and you will be able to see different types of loads on one screen.

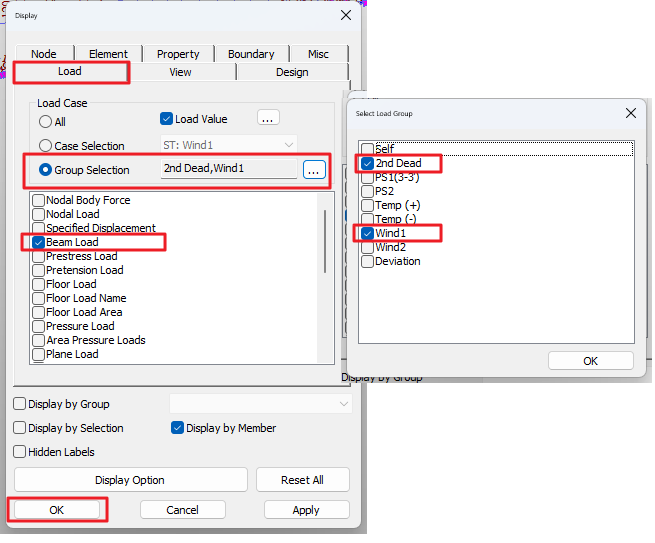

If you want to specifically check certain Load groups in more detail, select Group Selection and then click the '...' button on the right. This will open a window titled 'Select Load Group'.
Here, after selecting the Load groups you want, press the OK button and then confirm to see that the specific Load groups are activated.
When you want to use it this way, you must specify the Load group when entering the load.
