Function
- Plot graphs for story vs. story shear, story vs. inter-story drift or story vs. inter-story drift ratio for each story to represent the pushover analysis results.
Note
In order to use this function, the Story Shear Force Ratio of Member should be checked on in Model > Building > Control Data of the Main Menu.
Call
From the Main Menu select [Pushover] tab > [Pushover Results] group > [Pushover Graph] > [Story Shear/Drift/Drift Ratio]
Input
This graph can be plotted to check the story vs. story shear curve, the story vs. inter-story drift curve or the story vs. inter-story drift ratio curve for each Pushover Step when the pushover analysis is completed.
Pushover Load Case
Select a pushover load case, which was applied to analysis.
Result of Direction
Specify the directional component to be plotted
Type of Result
Select an item to be plotted.
Story vs. Story shear, Story vs. Inter-story drift or Story vs. Inter-story drift ratio (Multiple selections are possible)
Step
Select a Pushover Step to be checked. Multiple step selections are possible.
Note
The results for Additional Steps for the model imported from the old version are generated as Load Case (User). For more details, refer to Additional Pushover Step for Story Drift?in Design > Pushover Analysis > Pushover Curve.
Type of Display
Assign decimal points to be displayed on the axes (including exponential).
By invoking the Context Menu, various graphic expressions, data saving and image saving are possible.
Change Title & Label
The title and subtitles to the x & y-axes may be changed.
Draw Item Name At Graph Lines
Display the description on the graph lines.
Draw Gray & Color Graph
Draw the graph in gray or color. (default=Color Graph)
Save Graph As Image
Save the graph in the graphic file format of BMP, JPG or EMF. (default=BMP image)
Save Graph As Text
Save the graph in the format of a text file.
Save Graph As Excel
Export the graph data in the format of Excel Sheet.
Fig. Story Shear/Drift/Drift Ratio Graph (Story VS Story Shear)
Fig. Story Shear/Drift/Drift Ratio Graph (Story VS Story Drift)

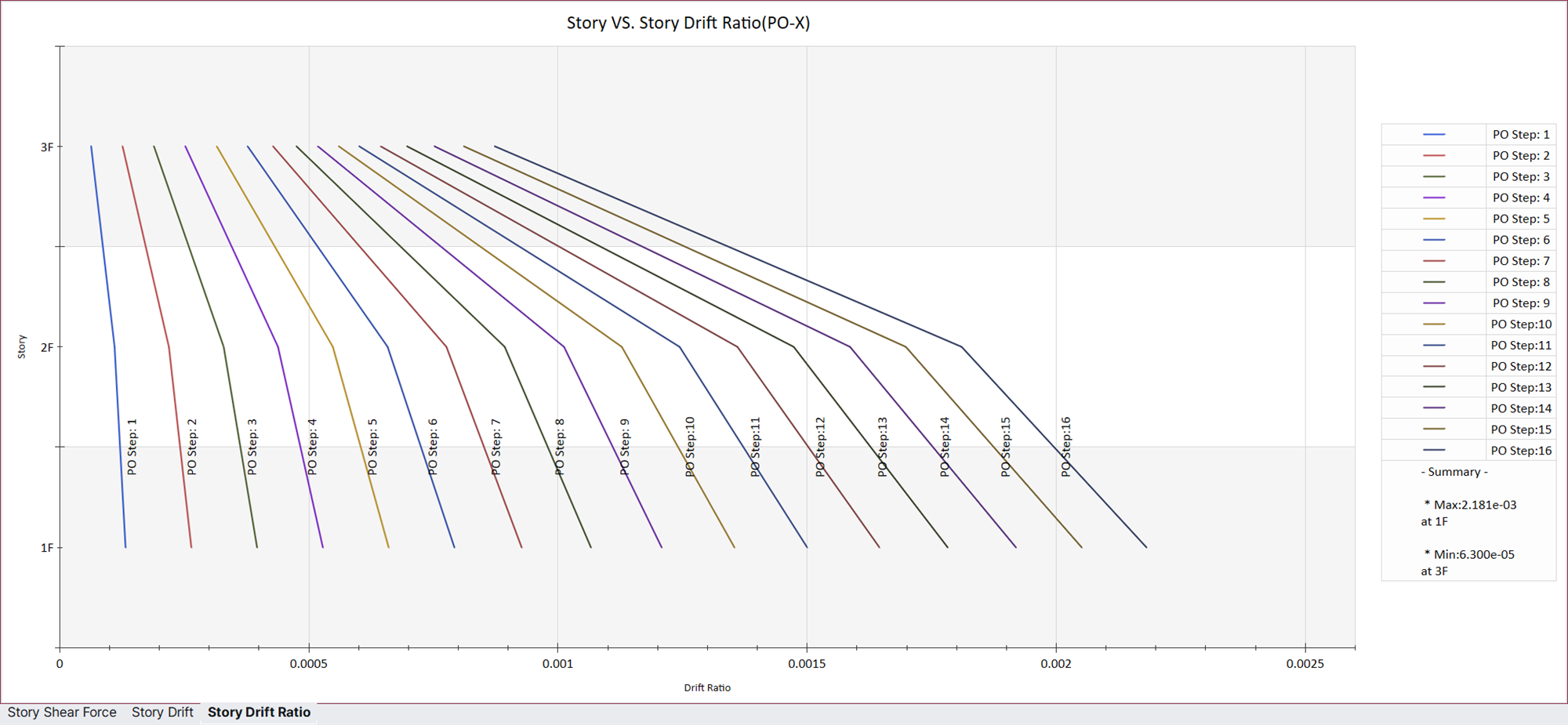

Fig. Story Shear/Drift/Drift Ratio Graph (Story VS Story Drift Ratio)
