Function
Import Tracing file to be created on model view.
Call
From the Main Menu select [Structure] tab > [Tracing] group > [Tracing File Import]

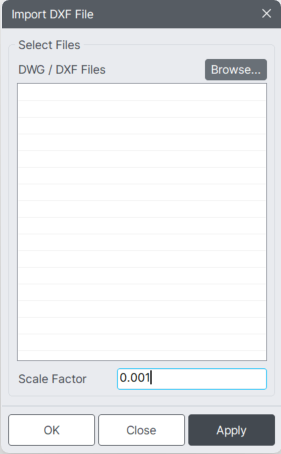

Input
Browse button
Click to access Open window of DWG/DXF File. Add selected DWG/DXF File to be imported on the list.
DWG/DXF File
List of DWG/DXF File is shown.
Scale Factor
Enter the Scale Factor to match the unit system (in, mm, etc.) of the DWG/DXF file with that of the program.
The DWG/DXF file will be imported into the model view according to the applied Scale Factor.
Example)
If unit system is in 'm' : Scale Factor = 0.001
If unit system is in 'cm' : Scale Factor = 0.1
If unit system is in 'mm' : Scale Factor = 1
