1. Description
Lack of Fit Force
How to use
- Place the Lack of Fit Force component from [Midas] > [Results] > [Lack of Fit Force] on the Grasshopper canvas.
- Select Result Table Type from the dropdown below the component.
- Press Run to get the result table from MIDAS; it is output as Result Table (JSON) and one output per column. To run several result components at once, connect them to Midas Table Builder.
2. Grasshopper Path
[Midas] > [Results] > [Lack of Fit Force]

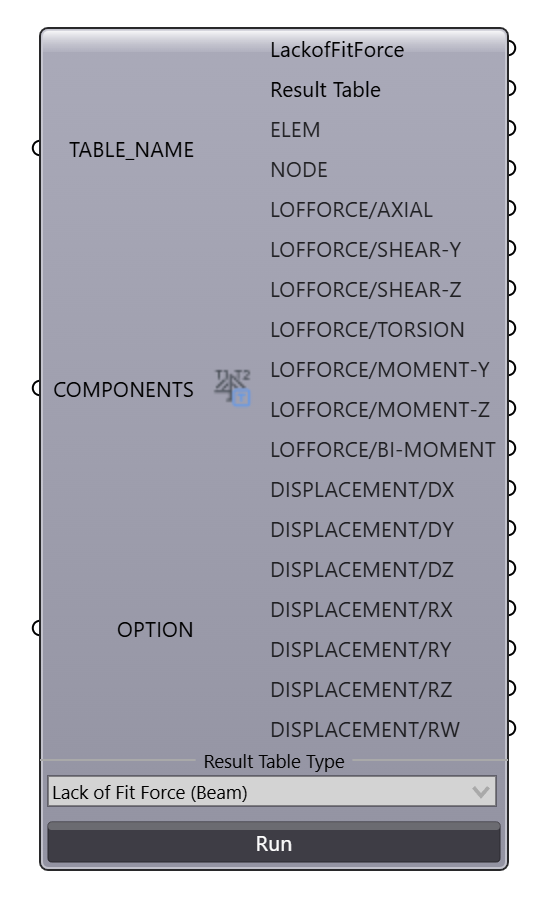

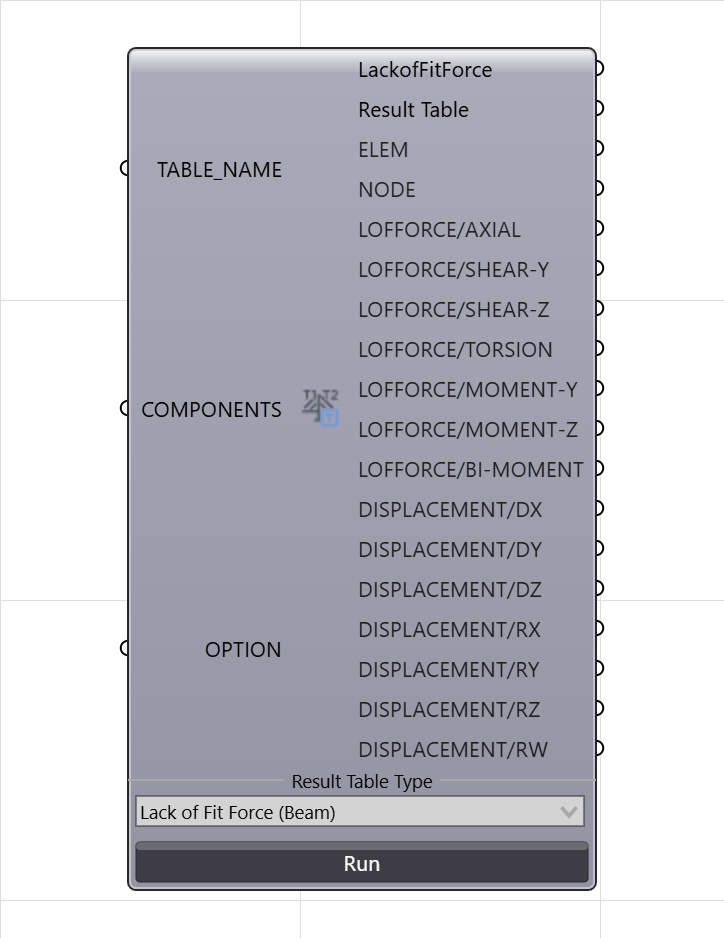

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default | Previous |
|---|---|---|---|---|---|
| 1 | Table Name (Optional) |
Table Name | String | - | - |
| 2 | Components of Result Table (Optional) |
Components of Result Table | String | - | - |
| 3 | Option (Optional) |
Option Of Result Table (connect component output) | Object | - | Option Of Result Table |
| 4 | Result Table Type (Optional) |
Result Table Type | Enumerated | Lack of Fit Force (Beam) | - |
- Output Data
| Index | Command | Description | Type | Next Component |
|
|---|---|---|---|---|---|
| 1 | LackofFitForce | Lack of Fit Force | Object | Midas Table Builder (optional) | |
| 2 | Result Table | Result Table | Json | - | |
| 3 | Elem | Elem column of the result table | List | - | |
| 4 | Node | Node column of the result table | List | - | |
| 5 | LOFForce/Axial | LOFForce/Axial column of the result table | List | - | |
| 6 | LOFForce/Shear-y | LOFForce/Shear-y column of the result table | List | - | |
| 7 | LOFForce/Shear-z | LOFForce/Shear-z column of the result table | List | - | |
| 8 | LOFForce/Torsion | LOFForce/Torsion column of the result table | List | - | |
| 9 | LOFForce/Moment-y | LOFForce/Moment-y column of the result table | List | - | |
| 10 | LOFForce/Moment-z | LOFForce/Moment-z column of the result table | List | - | |
| 11 | LOFForce/Bi-Moment | LOFForce/Bi-Moment column of the result table | List | - | |
| 12 | Displacement/DX | Displacement/DX column of the result table | List | - | |
| 13 | Displacement/DY | Displacement/DY column of the result table | List | - | |
| 14 | Displacement/DZ | Displacement/DZ column of the result table | List | - | |
| 15 | Displacement/RX | Displacement/RX column of the result table | List | - | |
| 16 | Displacement/RY | Displacement/RY column of the result table | List | - | |
| 17 | Displacement/RZ | Displacement/RZ column of the result table | List | - | |
| 18 | Displacement/RW | Displacement/RW column of the result table | List | - |
※ Outputs 3–18 are created one per column of the result table when Run is pressed. The columns depend on the COMPONENTS input and the Result Table Type.
5. Reference API Manual Link
Lack of Fit Force (Beam) - Analysis Result Table (/post/TABLE)
Lack of Fit Force (Plate) - Analysis Result Table (/post/TABLE)
Lack of Fit Force (Truss) - Analysis Result Table (/post/TABLE)
