1. Description
This component connects Civil NX & GEN NX and Grasshopper and requires the status of the MIDAS API to be set to "Connect" in order to function.

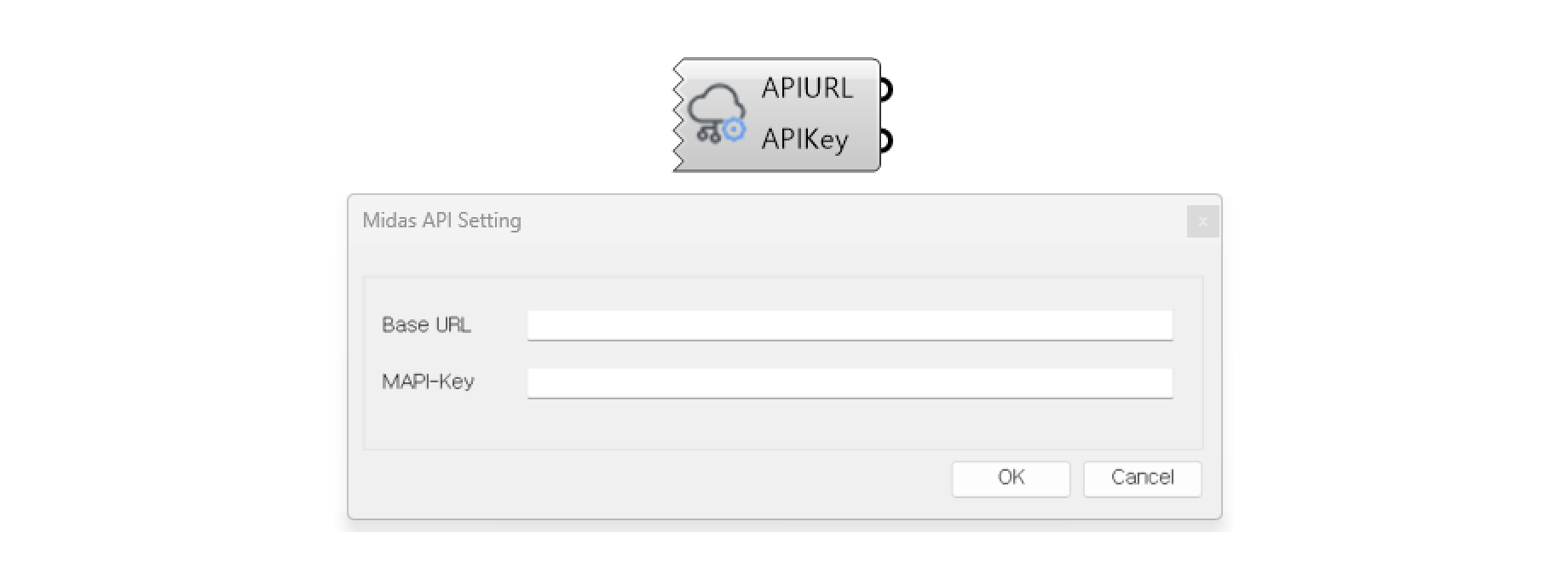

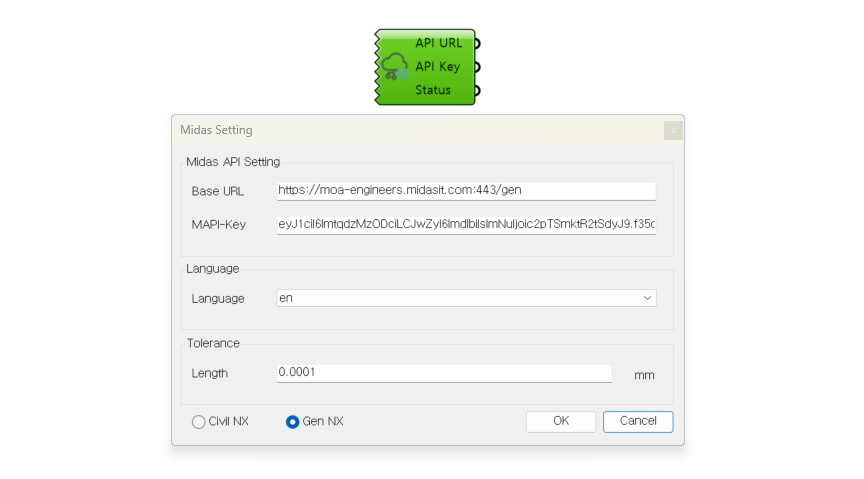

When you double-click the central icon in the Midas Settings, a dialogue box will appear where you can input the Base URL and MAPI Key. This connection will link you to CIVIL NX & GEN NX.
The API Settings function can be found in the Civil NX & GEN NX main menu,select [Apps] tab > [API] group > [API Settings]
2. Grasshopper Path
[Midas] > [Tools] > [Midas Setting]
3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Base URL | Base URL | - | - | - |
| 2 | MAPI-Key | User MAPI-Key | - | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Connected API URL information | - | - | - |
| 2 | - | Connected API Key information | - | - | - |
5. Reference API Manual Link
