Midas Table Builder

1. Description

Run the connected result table components.

How to use

Place the Midas Table Builder component from [Midas] > [Tools] > [Midas Table Builder] on the Grasshopper canvas.

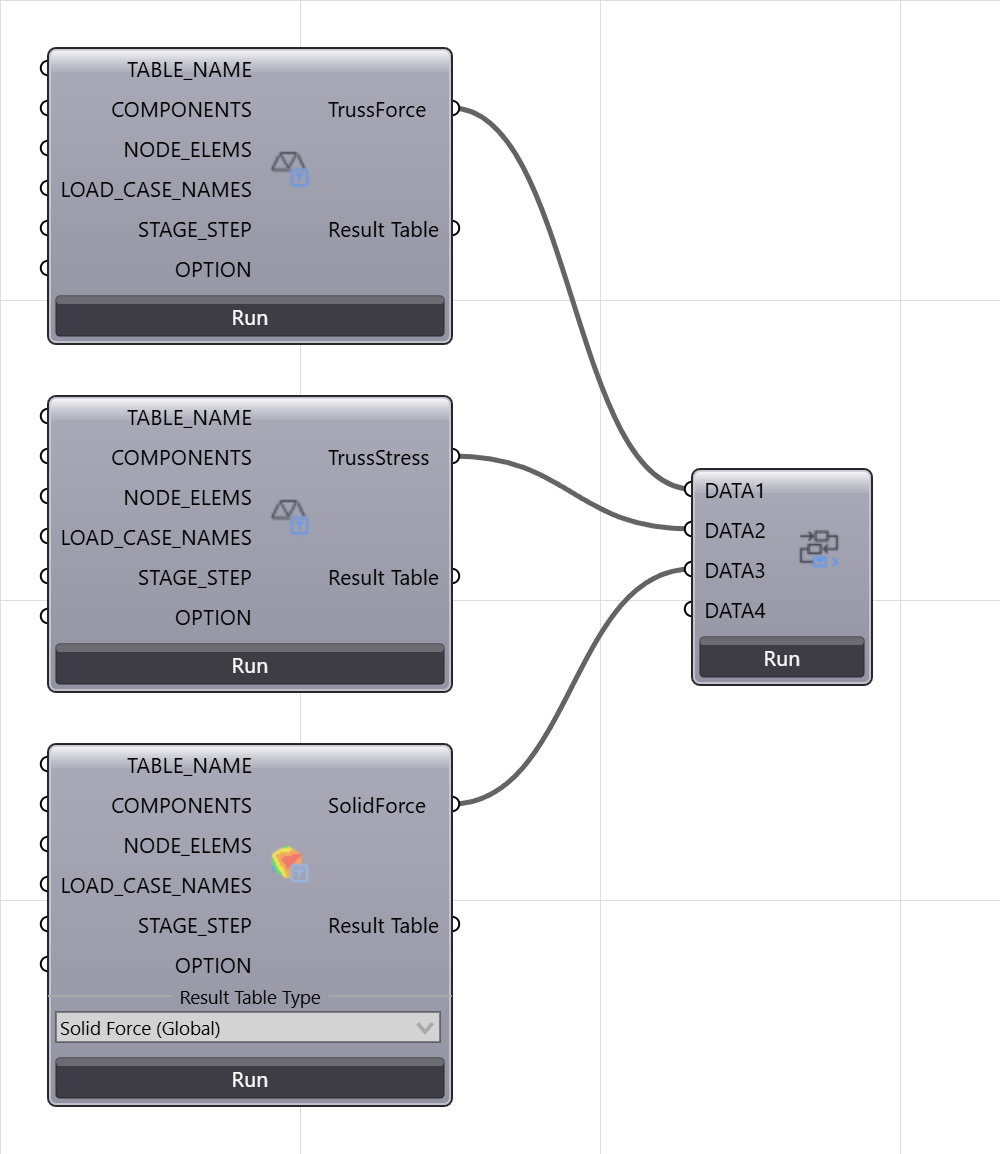

Midas Table Builder connection example

2. Grasshopper Path

[Midas] > [Tools] > [Midas Table Builder]

3. Component Image

Midas Table Builder

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	DATA1, DATA2, … (Optional)	First output of a Result Table component. A new empty DATA input is added each time one is connected.	Generic (Tree)	-	Result Table components (e.g. Truss Force, Truss Stress, Solid Force)

Output Data

Index	Command	Description	Type		Next Component
1	-	No output. Run re-runs all connected Result Table components.	-		-

5. Reference API Manual Link
