1. Description
This component operates the P-Delta of Construction Stage Analysis Control Data function in Civil NX.
Enter the method of performing moving load analysis and the location of output for element results.
The P-Delta of Construction Stage Analysis Control Data function can be found in the Civil NX main menu,select [Analysis] tab > [Analysis Control] Group > [Construction Stage] Menu
2. Grasshopper Path
[Midas] > [Analysis] > [P-Delta of Construction Stage Analysis Control Data]

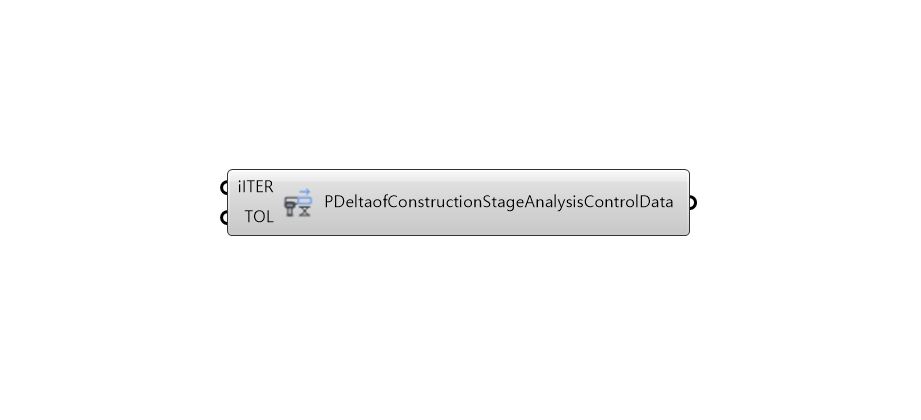

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | iITER | Number of Iteraitons | Integer | - | - |
| 2 | TOL | Convergence Tolerance | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create P-Delta of Construction Stage Analysis Control Data | Object | - | Construction Stage Analysis Control Data |
5. Reference API Manual Link
Construction Stage Analysis Control Data
