1. Description
This component operates the Erection Load of Construction Stage Analysis Control Data function in Civil NX.
Enter the method of performing moving load analysis and the location of output for element results.
The Erection Load of Construction Stage Analysis Control Data function can be found in the Civil NX main menu,select [Analysis] tab > [Analysis Control] Group > [Construction Stage] Menu
2. Grasshopper Path
[Midas] > [Analysis] > [Erection Load of Construction Stage Analysis Control Data]

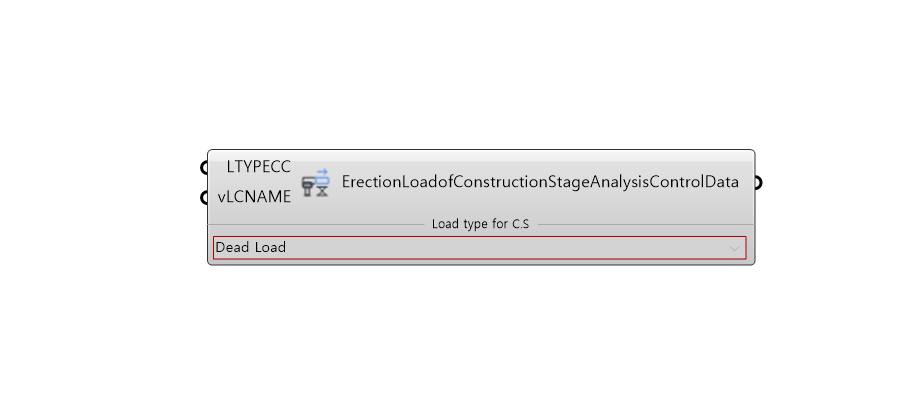

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | LYTPECC | Erection Load Case Name | String | - | - |
| 2 | vLCNAME |
Load Case Name List |
String | - | - |
| 3 | Load Type for C.S | Select | Dead Load | - | |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Erection Load of Construction Stage Analysis Control Data | Object | - | Construction Stage Analysis Control Data |
5. Reference API Manual Link
Construction Stage Analysis Control Data
