1. Description
This component operates the Creep of Construction Stage Analysis Control Data function in Civil NX.
Enter the method of performing moving load analysis and the location of output for element results.
The Creep of Construction Stage Analysis Control Data function can be found in the Civil NX main menu,select [Analysis] tab > [Analysis Control] Group > [Construction Stage] Menu
2. Grasshopper Path
[Midas] > [Analysis] > [Creep of Construction Stage Analysis Control Data]

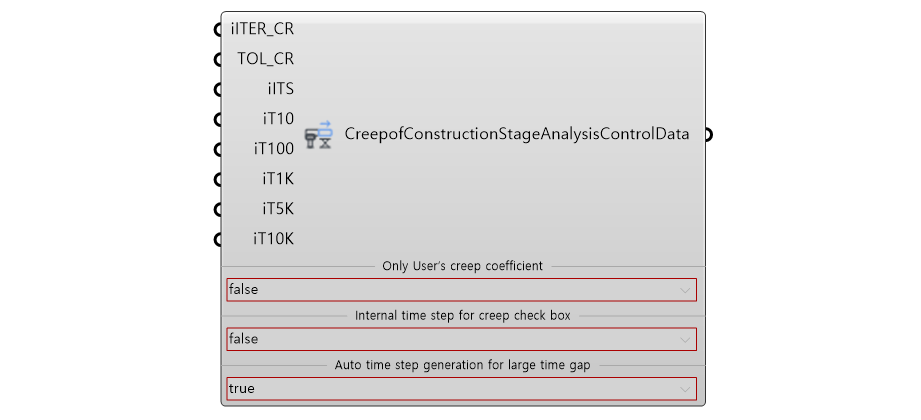

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | iITER_CR | Number of Iterations | Integer | - | - |
| 2 | TOL_CR |
Tolerance |
Real | 0 | - |
| 3 | iITS |
Time Step |
String | - | - |
| 4 | iT10 |
Time Gap |
Integer | - | - |
| 5 | iT100 |
Time Gap |
Integer | - | - |
| 6 | iT1K |
Time Gap |
Integer | - | - |
| 7 | iT5K |
Time Gap |
Integer | - | - |
| 8 | iT10K |
Time Gap |
Integer | - | - |
| 9 | Only User's Creep Coefficient | Select | false | - | |
| 10 | Internal Time Step for Creep Check Box | Select | false | - | |
| 11 | Auto Time Step Generation for Large Time Gap | Select | true | - | |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Creep of Construction Stage Analysis Control Data | Object | - | Time Dependent Effect of Construction Stage Analysis Control Data |
5. Reference API Manual Link
Construction Stage Analysis Control Data
