Intro
The Traffic Lane Generator is a powerful Plugin that allows users to create multiple traffic lanes with a single click.
Developed with
- MIDAS CIVIL NX 2025 (v2.2)
Benefits of this plugin
Efficiency: Allows users to create multiple traffic lanes with a single click, automating a traditionally repetitive process.
Wide Compatibility: Currently features support for 15 supported moving load codes.
Intuitive Interface: The plugin inputs are the same as the Civil NX user interface for consistency, reducing the learning curve for existing users.
Instant Application: Provides simultaneous creation of multiple traffic lanes automatically applied to the selected element within the Civil NX model.
How to use this plugin?

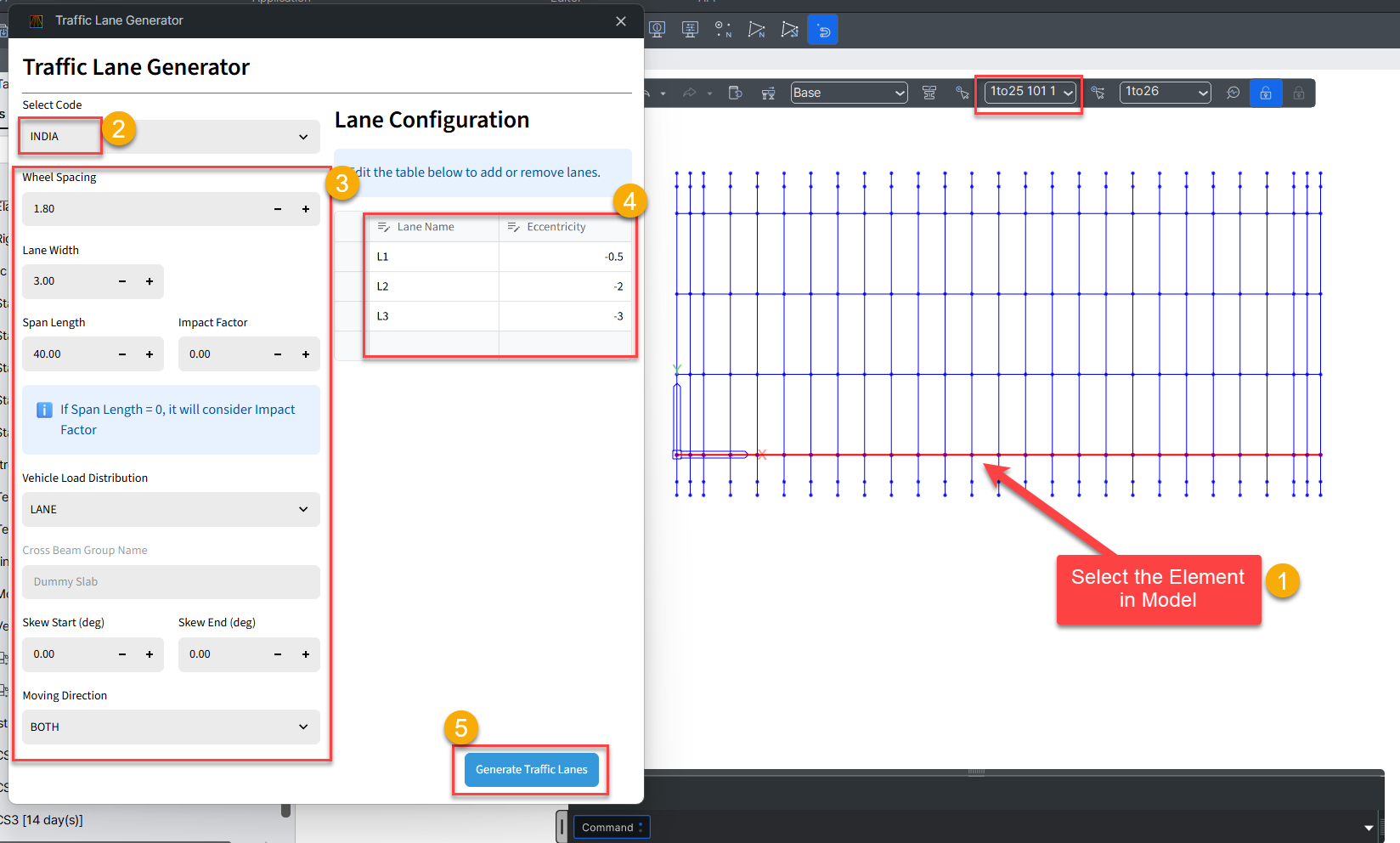

Select the reference element directly within Civil NX where the traffic lane(s) will be applied.
Choose the applicable moving load code from the dropdown menu.
Define the general traffic lane parameters in the left panel, such as wheel spacing, lane width, span length, impact factor, and vehicle load distribution.
In the Lane Configuration section on the right, edit the table below to add or remove lanes and specify the eccentricity for each individual lane (e.g., L1, L2, L3).
Trigger the generation process by clicking the "Generate Traffic Lanes" button at the bottom right of the window.
Conclusion
The Traffic Lane Generator simplifies the process of traffic lane definition in Civil NX. By leveraging API integration, it ensures accuracy while eliminating manual repetition, allowing engineers to dedicate more time to critical analysis and design tasks.
