Grillage Model Wizard - Transverse

Function

  • Determine the type of the cross-section and the position of columns or bearings in the transverse direction.



Call

From the main menu, select [Structure] tab > [Wizard] group > [PSC Box Bridge] > [Grillage Model]



Input

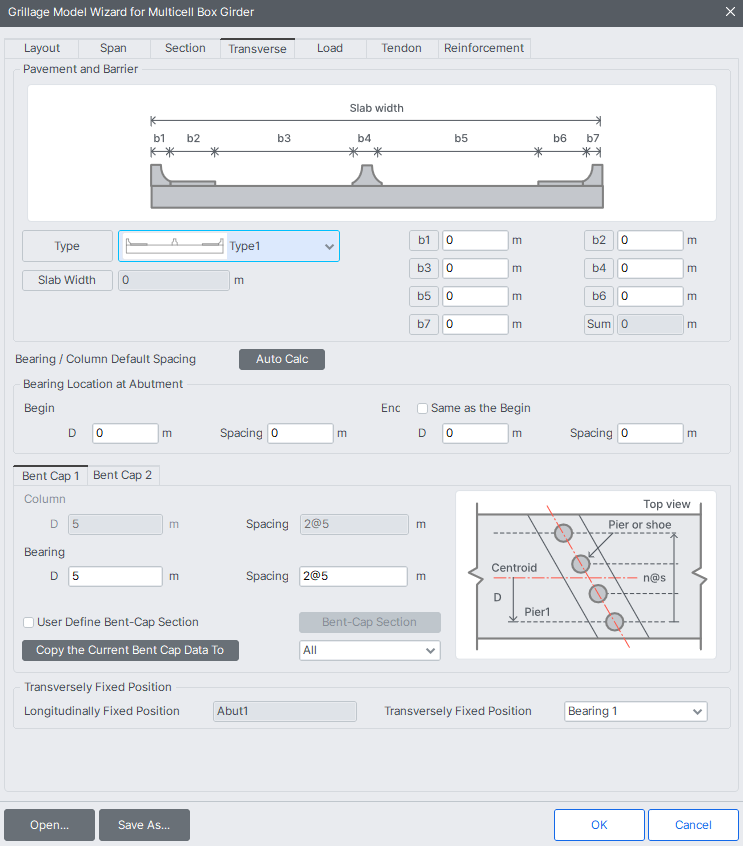

Structure-Wizard-Grillage Model-Transverse.png

Grillage Model Transverse dialog box



Pavement and Barrier

Type

Select the type of the cross-section for sidewalk, pavement, barrier and median strip.

Slab Width

The width of top slab of the cross-section selected from the Section tab.

The sum of Slab Width and b1b7 must be equal. If there is a difference, errors may occur in the load input section.



Bearing / Column Default Spacing

Auto Calc

The values of D and Spacing for abutments and bent-caps are automatically calculated such that bearings or columns are located at the centroids of all longitudinal girders.



Bearing Location at Abutment

Enter the position of bearings for the abutments. It is activated when the Bearing Type or Hybrid Type is selected as a boundary condition on the Layout tab.

D

Distance from the center line of the bridge to the center of the most exterior bearing on the (+)Y direction.

Spacing

Specify the spacing of bearings sequentially on the (+)Y direction.

Same as the Begin

Apply the same condition to the abutment at the end point of the bridge as the start point.



Bent Cap

Column

When Integral Type is selected on the Layout tab:

D : Distance from the center line of the bridge to the center of the most exterior column on the (+)Y direction.

Spacing : Specify the spacing of columns sequentially on the (+)Y direction.

Bearing

When Bearing Type is selected on the Layout tab:

D : Distance from the center line of the bridge to the center of the most exterior bearing on the (+)Y direction.

Spacing : Specify the spacing of bearings sequentially on the (+)Y direction.

User Define Bent-Cap Section : The section for bent cap can be defined by the user. If this option is not used, rectangular section is applied based on the width of bent cap and the height of adjacent Girder.

Copy the Current Bent Cap Data ToApply the current Bent Cap data to other bent caps.



Transversely Fixed Position

This option is activated only when Bearing Type is selected on the Layout tab. Longitudinally and transversely fixed bearing is used as a reference point for the determination of the direction of free bearings in case of the 'In Line with Fixed Support' option on the Layout tab.

Longitudinally Fixed Position

The position of longitudinally fixed support is shown, which is set up on the Layout tab.

Transversely Fixed Position

Select the transversely fixed bearing.
