Function
- Enter the material properties.
- Providing two types of materials: Isotropic Material and Orthotropic Material. However, the Orthotropic Material can only be specified in the User Defined Material section. Additionally, when performing material nonlinearity analysis, a plastic model should be specified (refer to Plastic Material).
Call
From main menu, select [Properties] tab > [Material] group > [Meterial Properties]
Input

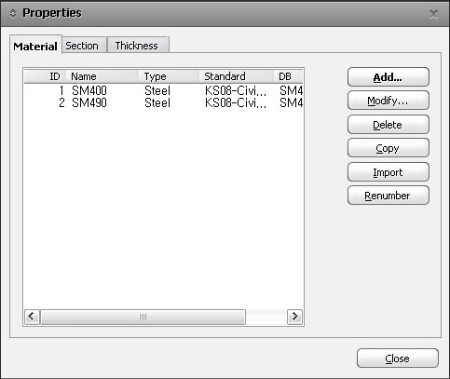

Properties _ Material dialog box
Add...
Add new material(s)
Modify...
Modify the existing material(s)
Delete
Delete the existing material(s)
Copy
Copy the existing material(s)
Import
Loading material data from existing fn.mcb file
Material List : The material data stored in the existing fn.mcb file will be displayed.
Selected List : Select the material data you wish to import and register it in the list.
When selecting the fn.mcb file, all the existing material data stored in the fn.mcb file is automatically registered in the Selected List.
Numbering Type : Specify the Import mode for material property numbers.
Keep ID. : Import the data keeping the same material property numbers.
New ID. : Assign new numbers to the imported material property data.

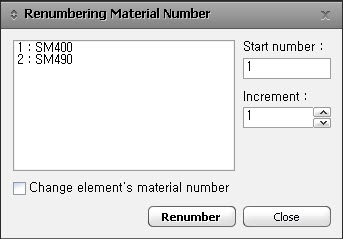

Renumber
Changing the material number of existing material data
Start number : Assign a new starting number for the material to be modified.
Increment : Enter the increment for numbering material property numbers.
Change element's material number : Modify a material property number. Using this option will modify the previously defined material property number. If this option is not checked, the selected material having previously defined number will become undefined and the additional user-defined material number will be created without any assigned elements.

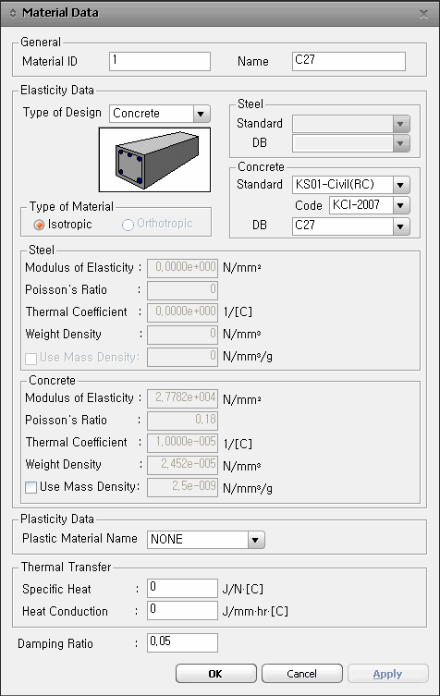

Material Data dialog box
General
Material ID : Material property number
Name : Material property name
Elasticity Data
Type of Design : Select a material property type, and enter the related data.
Type of Material : Select either Isotropic or Orthotropic material.
Isotropic : Isotropic material
Orthotropic : Orthotropic material (In case of Type of Design = User Defined)
When Type = 'Steel'
Standard : Select the country-specific standard from the dropdown menu.
None : This will be selected when entering material properties directly. This option can also be used when inputting material data from country-specific standard databases and making partial modifications to the input values.
KSCE-LSD12(S) : Apply the material strength of structural steel specified in the Road Bridge Design Code (Limit State Design Method) - V810-541.
KS10-Civil(S) : Considering the Additional Steel Grades in the Korean Road Bridge Design Standards (2010)
KS08-Civil(S) : Korean Industrial Standards, SI unit system applied
KS-Civil(S) : Applying the Allowable Stress of Structural Steel specified in the Korean Road Bridge Design Standards (Ministry of Land, Infrastructure and Transport)
KS08(S) : Korean Industrial Standards, SI unit system applied
KS(S) : Applying the Allowable Stress of Structural Steel specified in the Korean Industrial Standards, Steel Structural Calculation Standards (Korea Institute of Civil Engineering and Building Technology).
Differences between KS(S)and KS-Civil(S)
The allowable stress of structural steel varies depending on the thickness, and even for the same steel grade, the application method differs according to the design standards. In the Steel Structural Design Standards (AIK-ADS), the thickness of the steel is divided into two regions, while in the Road Bridge Design Standards (KSCE-ADS), it is divided into 2-3 regions based on thickness.
Differences between KS-Civil(S) and KS08-Civil(S)
KS-Civil(S) is a material defined in the CGS (Centimeter-Gram-Second) unit system, while KS08-Civil(S) is a material defined in the SI (International System of Units) unit system.
The meaing of KS08
The standard information in the KS (Korean Standard) criteria continues to evolve. New steel grades are added, and the information regarding existing steel grades is also updated. KS08 indicates that it reflects the content of the KS criteria revised until 2008.
ASTM(S) : American Society for Testing Materials
CSA(S) : Canadian Standards Association
JIS(S) : Japanese Industrial Standards
JIS-Civil(S) : Japanese Civil Standards
GB03(S) : (Chinese National Standards)
GB(S) : (Chinese National Standards)
JGJ(S) : (Chinese Industry Standards)
JTJ(S) : (Chinese Ministry of Transport Road Standards)
JTG04(S) : (Chinese Ministry of Transport Road Standards). You can select information on Tendon, Wire, and Heat-treated Reinforcement from the database.
TB05(RC) : TB 10002.3-2005- (Railway Bridge Reinforced Concrete and Prestressed Concrete Structural Design Standards)
BS04(S) : British Standards / BS EN 10025 (2004)
BS(S) : British Standards
DIN(S) : Deutshes Institut Fur Normung e.v.
EN(S) : European Code
UNI(RC) : Italian Industrial Standards
IS(S) : Indian Standards
CNS(S) : Chinese National Standard - Taiwanese National Standards
GOST(S) : Russian National Standards - Russian National Standards
DB : Select the types of steel registered in the standard codes of each country.
When Type of Design = 'Concrete'
Standard : Select the national standards from the dropdown menu.
None : Select this option when the user wants to directly input the material properties. It allows for inputting material data from national standard databases and also enables partial modification of input values.
KSCE-LSD12(RC) : Applying Elastic Modulus for Concrete by Compressive Strength as specified in the Road Bridge Design Standards (Ultimate Limit State Design Method) V810-541.
KS-Civil(RC) : Korean Industrial Standards
KS01-Civil(RC) : Korean Industrial Standards, SI system applied
KS01(RC) : Korean Industrial Standards, SI unit system applied
KS(RC) : Korean Industrial Standards
Differences between KS(RC) and KS-Civil(RC)
Taking into account the difference in unit weight according to the design conventions of architecture and civil engineering engineers, KS(RC) applies a unit weight of 2.3 ton/m³ (except for self-weight calculations, where it is 2.4 ton/m³), while KS-Civil(RC) applies a unit weight of 2.5 ton/m³.
Differences between KS-Civil(RC) and KS01-Civil(RC)
KS-Civil(RC) is defined in the CGS (Centimeter-Gram-Second) unit system, while KS08-Civil(RC) is defined in the SI (International System of Units) unit system. The design standard values of the materials have been adjusted to reflect the change in unit system in the design criteria.
The meaning of KS01
The standard information in the KS (Korean Standard) criteria continues to evolve. New steel grades are added, and the information regarding existing steel grades is also updated. KS01 indicates that it reflects the content of the KS criteria revised until 2001.
ASTM(RC) : American Society for Testing Materials
CSA(RC) : Canadian Standards Association
JIS(RC) : Japanese Industrial Standards
JIS-Civil(RC) : Japanese Civil Standards
GB(RC) : (Chinese National Standards)
GB-Civil(RC) : (Chinese National Standards)
JTG04(RC) : (Chinese Industry Standards)
TB05(RC) : TB 10002.3-2005- (Railway Bridge Reinforced Concrete and Prestressed Concrete Structural Design Standards)
BS(RC) : British Standard
When specifying material data based on Chinese or BS (British Standard) strength criteria, the compressive strength of concrete is applied using the cube specimen, not the cylinder specimen.
EN04(RC) : European Code
EN(RC) : European Code
UNI(RC) : Italian Industrial Standards
IS(RC) : Indian Standards
CNS(RC) : Chinese National Standard - Taiwanese National Standards
GOST(RC) : Russian National Standards - Russian National Standards
Code : This option is only activated when selecting the KS01-Civil(RC) criteria. It takes into account the changes in elastic modulus based on the revisions in the concrete structural design standards.
DB : Select the types of concrete registered in the standard codes of each country.
When Type = 'SRC'
Enter the material properties for steel and concrete in the respective input fields using the same method as Type = 'Steel' and 'Concrete'.
When Type = 'User Defined'
This option is used when the material type is not 'Steel', 'RC', or 'SRC', or when the user wants to input the material data directly. It also allows for entering material properties for orthotropic materials based on the element coordinate system. However, materials defined as 'User Defined' are not applicable in the design functions.
Modulus of Elasticity
Poisson's Ratio : The Poisson's ratio is used in the calculation of the shear modulus for elasticity.
Thermal Coefficient : Coefficient of thermal expansion, Coefficient of thermal expansion is used in thermal stress analysis.
Celsius : Celsius temperature scale
Fahr. : Fahrenheit temperature scale
Shear Modulus : Shear modulus (Local-xy, Local-xz, Local-yz), Shear modulus = Elastic modulus / (2 x (1 + Poisson's ratio)).
Type of Material = For isotropic materials, the shear modulus is automatically calculated using the aforementioned formula.
Type of Material = For orthotropic materials, the user-inputted shear modulus values are used.
Weight Dinsity : Unit weight (or specific weight)
It is used in the analysis process to calculate self-weight and mass.
Use Mass Density : Mass per unit volume
When "Use Mass Density" is checked, the Mass Density is calculated using the gravitational acceleration (g) provided in the database. When "check off," the Mass Density is calculated using the gravitational acceleration (g) specified in the Structure Type. This mass is independent of the Dead Load and is only applied during the eigenvalue analysis.
Plasticity Data
Input plasticity data
Plastic Material Name : Select a Plastic Material whose plastic model properties have been defined in the Plastic Material dialog box.
Thermal Transfer : Thermal transfer data
Specific Heat : Specific hear data
Heat Conduction : Heat conduction data
