Function
- Define Rigid End Offset Distance or take into account the Joint Eccentricity with respect to GCS or element's local coordinate system at both ends of beam elements.
- Beam End Offsets can be specified in conjunction with (Beam End Release).
This function cannot be used with truss elements and can be applied to beam elements only. If truss elements are changed into beam elements (Model > Elements > Change Element Parameters), Beam End Offset can be applied. To describe the behavior of truss elements, rotational degrees of freedom of beam elements should be released. This can be done using Model > Boundaries > Beam End Release.
If this function is used along with section offset then the offset of the section will be automatically changes to Center-Center.
Call
From main menu, select [Boundary] tab > [Release/Offset] group > [Beam End Offsets]
Input

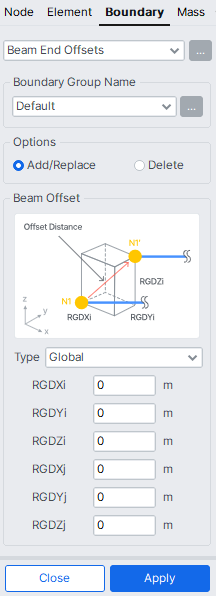

The right ... of Beam End Offsets
Display Beam End Offsets Table
Boundary Group Name
Select a Boundary Group in which the specified boundary condition is included. Select "Default" if Group assignment is unnecessary. Click to the right to prompt the "Define Boundary Group" dialog box to add, modify or delete Boundary Groups.
Options
Add/Replace : Enter or replace end offset distance and joint eccentricity for selected beam elements
Delete : Delete previously entered end offset distances and joint eccentricities for selected beam elements
Beam Offset
Global Type : It refers to the displacement distance from the node position to the offset position, considering the distance and direction in the global coordinate system.
RGDXi : Component of the end offset distance vector at N1 end in GCS X-direction
RGDYi : Component of the end offset distance vector at N1 end in GCS Y-direction
RGDZi : Component of the end offset distance vector at N1 end in GCS Z-direction
RGDXj : Component of the end offset distance vector at N1 end in GCS Z-direction
RGDYj : Component of the end offset distance vector at N2 end in GCS Y-direction
RGDZj : Component of the end offset distance vector at N2 end in GCS Z-direction
If the end offset distance is entered, all the data related to the element (element's local coordinate system, element length, element stiffness) are adjusted according to the Offset conditions.
Element Type
Type
Global : GCS
Element : Element's local x-direction
When Type = 'Global'
Enter the end offset distance represented by a vector in the direction from the node to the offset point with respect to GCS.
RGDXi : Component of the end offset distance vector at N1 end in GCS X-direction
RGDYi : Component of the end offset distance vector at N1 end in GCS Y-direction
RGDZi : Component of the end offset distance vector at N1 end in GCS Z-direction
RGDXj : Component of the end offset distance vector at N2 end in GCS X-direction
RGDYj : Component of the end offset distance vector at N2 end in GCS Y-direction
RGDZj : Component of the end offset distance vector at N2 end in GCS Z-direction
If the end offset distance is entered, all the data related to the element (element's local coordinate system, element length, element stiffness) are adjusted according to the Offset conditions.
When Type = 'Element'
Enter the end offset distance with respect to element's local x-direction.
RGDi : End offset distance in the element's local (+) x-direction at N1 end
RGDj : End offset distance in the element's local (-) x-direction at N2 end
Positive values must be entered for RGDi and RGDj. The beam element length will be then adjusted to reflect RGDi and RGDj.
Element length : L = L0 - (RGDi + RGDj)
Where, L0 : original length of beam element (distance between the ends, N1 and N2)
