Function
- Evaluate the displacements of a model by Displacement Contours
Call
From the main menu, select [Results] tab > [Type : Anslysis results] > [Result Display] group > [Deformations] > [Displacement Contour]
Input

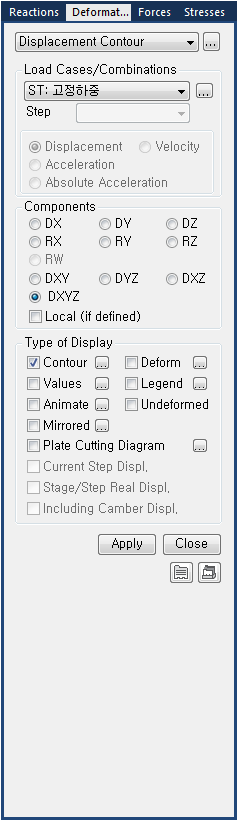

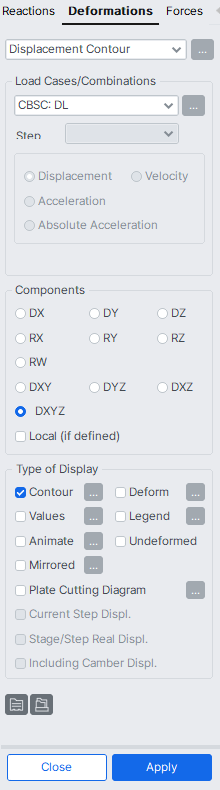

Displacement Contour dialog box
Load Cases/Combinations
Select a desired load case, load combination or envelope case.
Click the ... button to the right to enter new or modify existing load combinations. (Refer to "Load Cases / Combinations")
Step : Specify the step for which the analysis results are to be produced. The Step is defined in geometric nonlinear analysis as Load Step, and additional steps are defined in the construction stages of bridges or heat of hydration analyses.
The Construction Stage applicable for the output of the construction stage analysis is defined in Select Construction Stage for Display or Stage Toolbar.
Displacement : Display the displacement of the model in contour.
Velocity : Display the velocity in contour.
Acceleration : Display the acceleration in contour.
Absolute Acceleration : Display the absolute acceleration in contour.
Difference between '(Relative) Acceleration' and 'Absolute Acceleration'
Acceleration (Relative) = Acceleration (Absolute) + Observer's Acceleration
s seen from the above expression, Relative and Absolute accelerations differ depending on the presence of Observer's acceleration.
Above items become activated only when time history analysis has been performed.
Components
Select the desired displacement component among the following:
DX : Displacement component in GCS X-direction
DY : Displacement component in GCS Y-direction
DZ : Displacement component in GCS Z-direction
RX : Rotation component about GCS X-axis
RY : Rotation component about GCS Y-axis
RZ : Rotation component about GCS Z-axis
Rw : Warping component
DXY =
DYZ =
DXZ =
DXYZ =
Type of Display
Define the type of display as follows:
Contour
Display the displacement of the model in contour.
Ranges : Define the contour ranges.
Customize Range : Assign the color distribution range of contour. Using the function, specific colors for specific ranges can be assigned.
Number of Colors : Assign the number of colors to be included in the contour (select among 6, 12, 18, 24 colors)
Colors : Assign or control the colors of the displacement contour.
Color Table : Assign the type of Colors.
Customize Color Table : Control the colors by zones in the contour.
Reverse Contour : Check on to reverse the sequence of color variation in the contour.
Contour Line : Assign the boundary line color of the contour
Element Edge : Assign the color of element edges while displaying the contour
Contour Options : Specify options for contour representation
Contour Fill
Gradient Fill : Display color gradient (shading) in the contour.
Draw Contour Lines : Display color boundaries in the contour.
Draw Contour Line Only
Display only the colored boundaries of the contour.
Mono line : Display the boundaries of the contour in a mono color.
Contour Annotation
Legend or annotation signifying the ranges of the contour is displayed.
Spacing : Display the spacing for the legnd or annotation.
Coarse Contour (faster) (for large plate or solid model)
Represent a simplified contour for a large model using plate or solid elements in order to reduce the time required to represent a complete contour.
Extrude
Where plate elements or solid elements along a cutting plane are represented in contour, a three dimensional contour is created. The positive direction of the analysis results is oriented in the z-axis direction of the local element coordinate system.
The option is not concurrently applicable with the Deformed Shape option. Similarly, the option cannot be concurrently applied to the cases where the Hidden option is used to display plate element thicknesses or the Both option is used to represent Top & Bottom member forces (stresses).
Deform
Display the deformed shape of the model.
Deformation Scale Factor
Magnify or reduce the size of the displacement graphically displayed in the model window.
Deformation Type
Select the type of display for displacement
Nodal Deform : Display the deformed shape only with nodal displacements.
Real Displacement (Auto-Scale off) : The true deformation of the structure is graphically represented without magnifying or reducing it. This option is typically used for geometric nonlinear analysis reflecting large displacement.
Relative Displacement : The deformation of the structure is graphically represented relative to the minimum nodal displacement, which is set to "0"
Values
Display the forces/moments of plate elements in numerical values.
The font and color of the numbers can be controlled in Display Option.
Decimal Points : Assign decimal points for the displayed numbers
Exp. : Express as exponentials
Min & Max : Display the maximum and minimum values
Abs Max : Display the absolute maximum value
Max : Display only the maximum value
Min : Display only the minimum value
Limit Scale(%) : Set the screen display limit for internal forces relative to the selected maximum or minimum value
Set Orientation : Display orientation of numerical values
The default Decimal Points can be controlled in "Preferences".
Set Orientation = 0 horizontally displays the numerical values to the right of nodes or elements.
The orientation angle represents the counter-clockwise direction, which may be used to enhance the readability of the numbers.
Legend
Display various references related to analysis results to the right or left of the working window.
Element numbers pertaining to the maximum and minimum forces are displayed.
Legend Position : Position of the legend in the display window
Rank Value Type : Specify a type of values in the Legend and the number of decimal points
Animate
Dynamically simulate the forces/moments of plate elements.
Click the Apply button then click the Record button to the right of the Animation control board at the bottom of the working window.
Animation Mode : Determine the type of animation for analysis results.
Animate Contour : Option to change the color of the contour representing the transition according to the magnitudes of variation
Repeat Half/Full Cycle : Select the repetition cycle for the dynamic representation of the transition
Select 'Half Cycle' for the transient shapes of a structure and 'Full Cycle' for dynamically simulating vibration modes or buckling modes.
AVI Options : Enter the options required to produce animation window.
Bits per Pixel: Number of bits per pixel to create the default window for animation
Compressor: Assign the method of compressing image data
Frames per Half Cycle (3~300) : Number of frames to simulate a 'Half Cycle'
Frames per Second (5~60) : Number of frames per second to present dynamic simulation
Construction Stage Option : Select the animation options when the construction stage analysis is performed.
Stage Animation : Animations by construction stages
Current Stage-Step : Animations by Steps in the current construction stage
From ~ To : Starting and ending construction stages or steps for animations
Undeformed : Overlap the undeformed and deformed shapes of the model.
Mirrored
"Mirrored" allows the user to expand the analysis results obtained from a half or quarter model into the results for the full model by reflecting planes.
Half Model Mirroring
Quarter Model Mirroring
Mirror by : Specify the mirror plane (s) by designating a plane and a coordinate in the direction perpendicular to the plane in GCS.
Plate Cutting Diagram
Displacement of plate elements is produced in a graph along a specific line or plane cut through the elements. The following dialog box is used to specify the conditions required to generate the displacement diagram along the cutting line/plane.
Click to access the detail setting dialog box to define the cutting line or plate required to produce and view the transition of plate elements.
Plate Cutting Diagram Mode
Cutting Line : Produce a graph along a cutting line
Cutting Plane : Produce a graph along the line of intersection of the cutting plane and plate elements
Click to access the detail setting dialog box to define the cutting line or plate required to produce and view the transition of plate elements.
- When Cutting Line is selected
Define Cutting Lines
List of defined Cutting Lines
Add : Add the information contained in the Cutting Line Detail to the list of Defined Cutting Lines
Del : Delete a defined cutting line
Modify : Modify a defined cutting line
Cutting Line Detail
Define a Cutting Line
Name : Name of a Cutting Line
Pnt1 : Start point of the Cutting Line
Pnt2 : End point of the Cutting Line
Options
Specify the display color and the plane on which the graph is produced
Normal : Display the graph in the Normal direction of plate elements
In Plane : Display the graph in the In-Plane direction of plate elements
Scale factor : Scale factor for diagram output ratio
Reverse : Express the Diagram in the reverse direction.
Graph
Produce the output in a Graph Window ( valid only if 'Cutting lines' is selected).
Access the Plate Cutting Diagram Mode dialog box to determine the type of Graph Window.
Draw graphs
on separate panes : Graphs pertaining to different Cutting Lines/Planes produced separately
All in one pane : All the graphs pertaining to different Cutting Lines/Planes simultaneously produced in one graph
X-axis : Define the X-axis of the graph
Distance from Pnt1 : Distance from the first point
Global X coord.
Global Y coord.
Global Z coord.
Value Output : Produce the output in values.
MinMax Only : Show only the maximum and minimum values when Value Output is selected.
- When Cutting Plane is selected
Named Planes for Cutting
Select a plane from the defined planes and UCS x-y, x-z & y-z planes
Plate Cutting Plane Detail
Normal to plate : Consider a Cutting Plane parrallel to the Local Element Coordinate System z-axis of the plate elements
On cutting plane surface : Consider a Cutting Plane as per a defined plane
Draw continuous lines : Display the graphs for plate elements placed on different planes in a continuous line.
Scale Factor : Scale factor for diagram output ratio
Reverse : Express the Diagram in the reverse direction.
Value Output : Produce Output in numerical values
MinMax Only : Upon selecting Value Output, display only the Maximum and Minimum values.
Current Step Disp.
Produce the displacements pertaining to the selected step of the construction stage if a construction stage analysis has been performed.
Stage/Step Real
Disp.

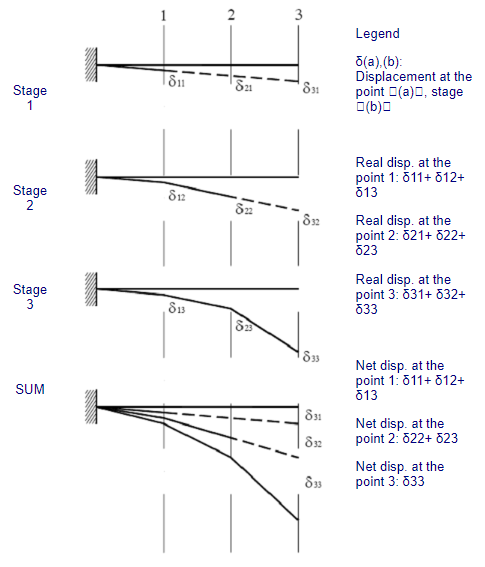

Display the Real Displacements for each construction stage when the construction stage analysis is performed.
Real displacement is relevant only for construction stage analysis. To illustrate real displacement, a cantilever is constructed in 3 stages as shown below. Node 3 is activated at the stage 3, and the deflection δ33 occurs due to the self weight of the segment 3. But when constructing steel girders or PC girders, the virtual displacements δ31 and δ32 occur at the stage 1 and stage 2 respectively. Real displacement is the summation of virtual displacements, which occur before the corresponding node is even activated and net displacement, which occurs after the node is activated. Real displacement corresponds to the fabrication camber.

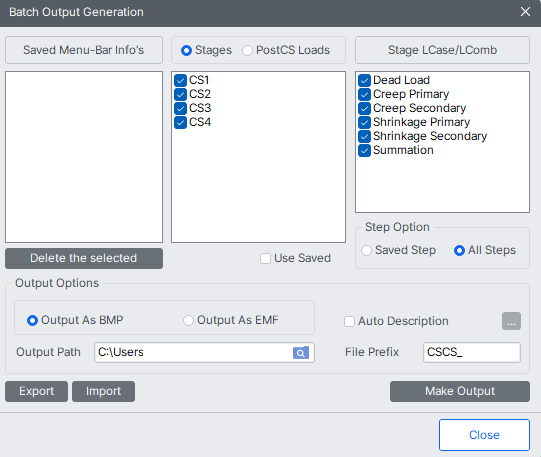

Batch Output Generation
( ,
)
Given the types of analysis results for Graphic outputs, generate consecutively graphic outputs for selected load cases and combinations. A total number of files equal to the products of the numbers of checked items in the three columns of the dialog box below are created.
: To perform Batch Output Generation, assign a name to the Base File that stores the screen display mode settings (Menu-Bar Info's).
: Batch Output Generation : Specify the Base Files to perform Batch Output Generation, construction stages, load cases (combinations), steps, etc. in the following dialog box.
Saved Menu-Bar Info's : Listed here are the Base Files. Select the Base File Names for Batch Output.
Delete the selected : Delete all the Base Files selected with the mouse.
When the construction stage analysis is carried out, all the construction stages are listed. We simply select the stages of interests to be included in the batch output. If no construction stage analysis is performed, the column in the dialog box becomes inactive and lists load (combination) conditions.
Stages
The results output of all the construction stages are produced. The construction stages are listed below.
Post CS Loads
The results output for only the Final Stage are produced. The construction stages are listed below. If no construction stage analysis is performed, the load (combination) conditions are listed.
Use Saved
Apply only the (saved) step or load (combination) condition selected at the time of creating each Base File.
Stage LCase/LComb
When the construction stage analysis is carried out, the auto-generated construction stage load conditions and the additionally entered construction stage load combinations are listed. Check on only the load (combination) conditions that will be used to produce batch outputs. This column becomes inactive if "Post CS Loads" is selected or no construction stage analysis is carried out.
Step Option
Specify the steps for which the outputs will be produced when the construction stage analysis or large displacement geometric nonlinear analysis is performed.
Saved Step : Use only the steps used for creating the Base Files
All Steps : Use all the steps
Output Options
Output File Type
Select a Graphic File type, either BMP or EMF.
Auto Description : At the top left of the Graphic Outputs produced in batch, auto-generate and include the notes such as the types and components of the analysis results, construction stages and steps, load (combination) conditions, etc. The font size, color, type, etc. can be changed upon clicking the button .
Output Path
Specify the path for saving the graphic files to be produced in batch.
File Prefix : Specify the prefix of the Graphic Files to be created. The filenames will be consisted of "Prefix"_"Base File Name"_"Load Comb.".bmp(emf) or "Prefix"_"Base File Name"_"Stage"_"Stage LCase"_"Step".bmp(emf).
Make Output : Produce the specified batch Graphic Files reflecting the contents of the dialog box.
Export / Import
Produce the contents of data input in the Base Files and Batch Output Generation dialog box in a binary type file (fn.bog). Click the Import button and select a fn.bog to use the same output format.
Import /Export is only meaningful for different projects. In a given structural model, the Base Files are automatically stored and listed.
