MIDAS CIM V190 Hotfix 3.0 (Mar. 2024)
[Mode] Improved to allow direct input of Constraint Entity names.
[Coordi. Extract] Enhanced preview state.
[Edit] Improved Edit Feature to choose whether to retain the original object during editing.
[Tendon] Fixed the issue with the Profile Points Add Button.
[Common] Maintaining the ability to undo previous actions after switching between different modes.
[WorkTree] Enhanced representation method for the number of Longitudinal Tapered Stiffeners.
[Measure] Improved functionality for measuring slope.
[Analysis] Fixed the issue with Analysis Line Stiffener exclusion.
MIDAS CIM V190 Hotfix 2.0 (Jan. 2024)

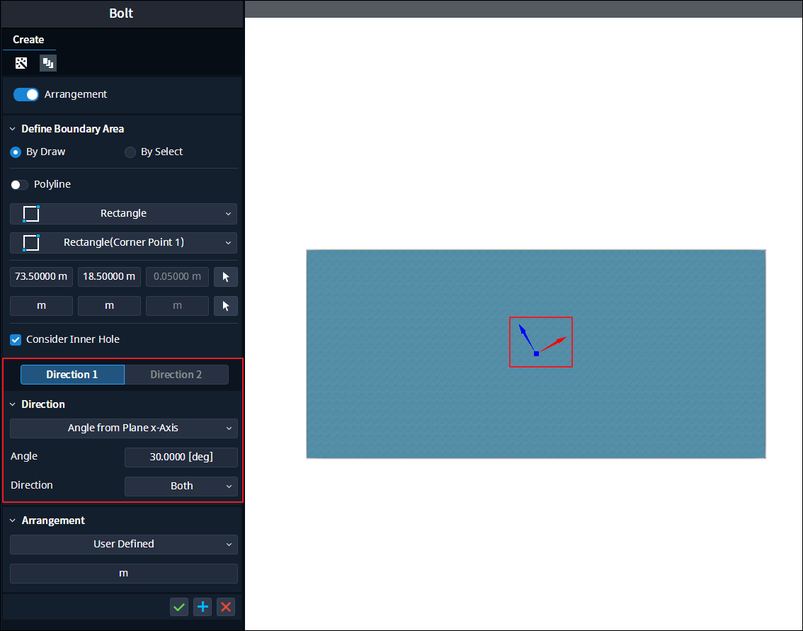

[Bolt] Improved bolt display direction
[[Analysis Line] Improved Auto Tracking performance
[Field Label] improved display method (abbreviated method)
[Field Data] Maintain field data when dividing objects (Split / Intersect / Divide / Union)
(※ Union: Merge with first selected object information)
[Tendon] Improvement of defects by applying Tendon Profile R value
New features of CIM V190

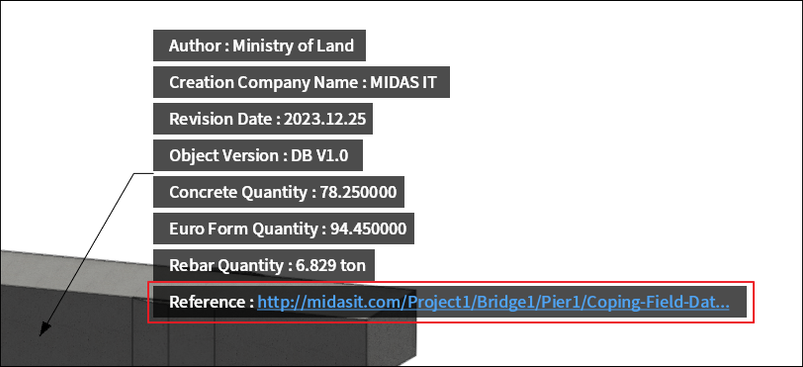

[Quantity] Added field data creation and object property assignment functions
[Quantity] Added Field Label output function
[IFC] Improvements to IFC Data Mapping function and IFC Export
In V190, with the addition of new functions of Data Field and IFC Data Mapping, a function has been added to define property information and Property Set (Pset) to each object.
In particular, the effects of adding the IFC Data Mapping function and improving IFC Export will be important functions for configuring and ensuring compatibility with the BIM information system.
Please refer to the video and manual for detailed information.
Added field data creation and object property assignment functions (Video: 00:00 ~ 10:35)
Added Field Label output function (Video: 10:35 ~ 11:20)
Improvements to IFC Data Mapping function and IFC Export (Video: 11:20 ~ 12:44)
Manual Link : Data(Field & IFC Mapping) / IFC File Export

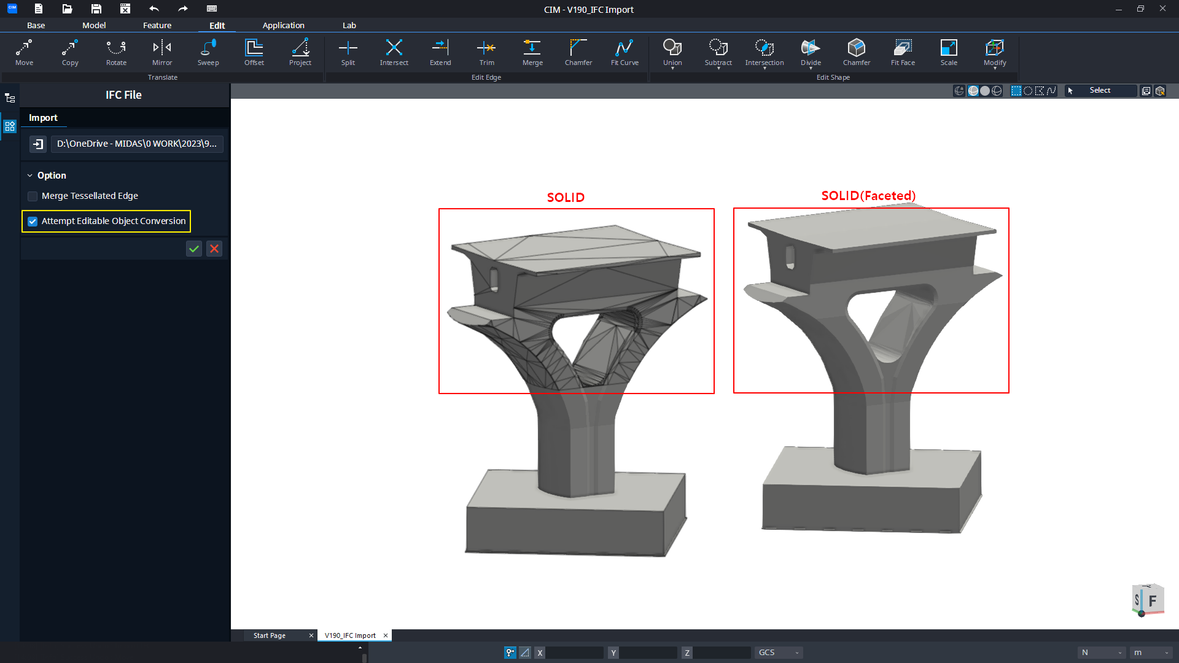

[IFC] Added IFC Import option [Attempt Editable Object Conversion] .
When importing an IFC file, the poly mesh shape of the original object is converted to a solid object to the maximum extent possible for the import.
Please refer to the video and manual for detailed information.
Manual Link : IFC File Import
[Lab] New Laboratory Category for experimental functions
[Lab] Addition of Point Library layout reference assigning function
A function to directly assign Point Library based on layout has been added.
With options based on the direction of layout progression, it's possible to achieve more efficient and precise allocation.
Please refer to the video and manual for detailed information.
Manual Link : Point Library Assign by Layout
[Analysis] Analysis Line creation
- Improved mutli-selection in Define Path
- Enhanced performance in automatically extracting analysis cross-section
- Added option for automatically tracking discontinuous edges
The capabilities of the Analysis Line function have been improved in V190.
When creating a single element, you can select multiple paths by using the 'By Select' method in Define Path.
This allows you to create Analysis Lines in batches, eliminating repetitive tasks.
In the existing Multiple Elements function, the user had to manually enter the location where the cross-section changes to create an Analysis Line.
However, the enhanced Analysis Line feature can now automatically input the position where the cross-section changes.
Please refer to the video and manual for detailed information.
Improved mutli-selection in Define Path (Video: 03 : 08 ~ 03 : 24)
Enhanced performance in automatically extracting analysis cross-section (Video: 05 : 12 ~ 05 : 39)
Added option for automatically tracking discontinuous edges (Video: 06 : 24 ~ 06 : 50)
Manual Link : Analysis Line
[Stiffener] Closed Stiffener Scallop function added

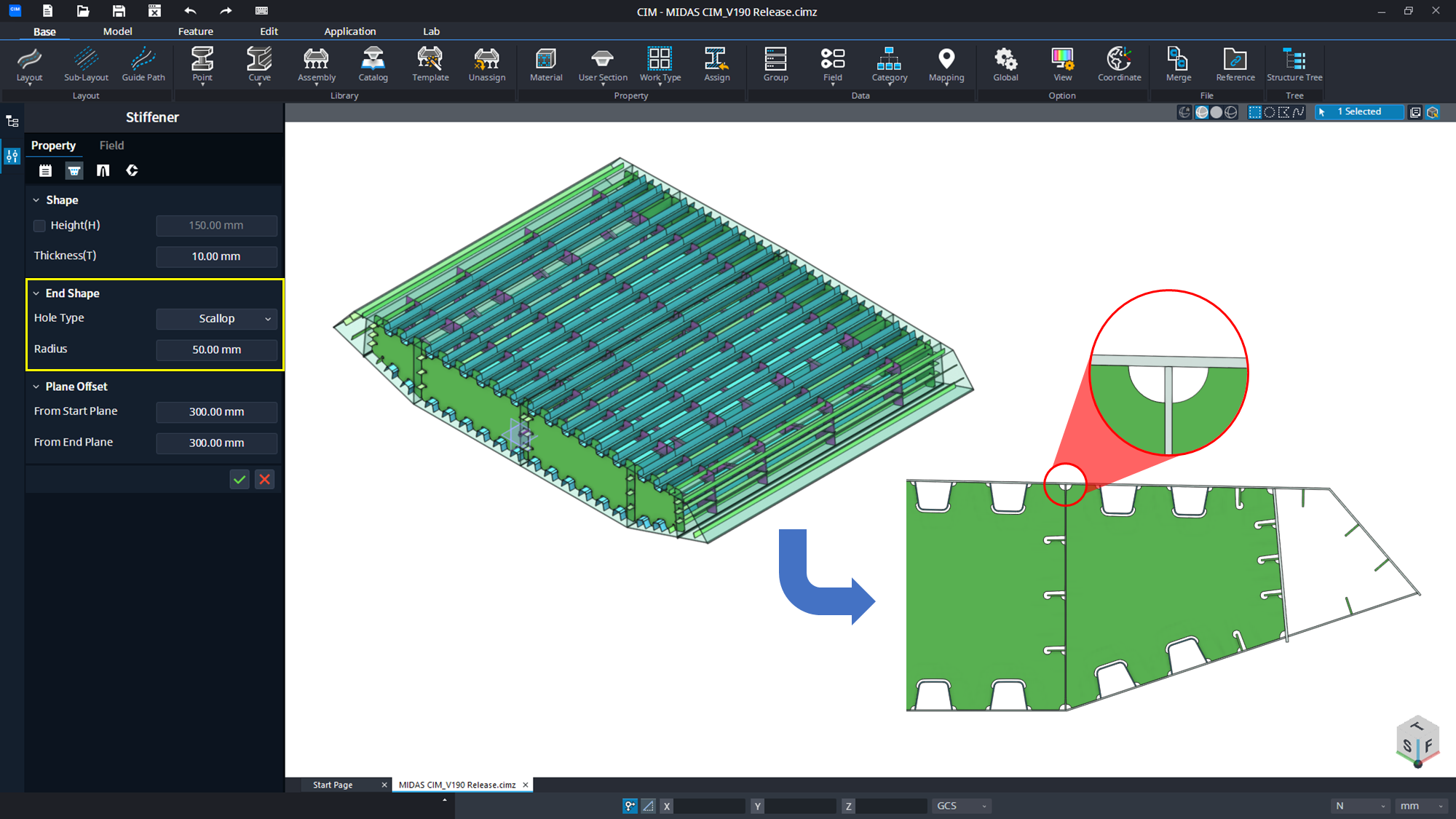

The Scallop and Chamfer options have been included in the properties to define the detailed shape of the Closed Stiffener
Please refer to the manual for detailed information.
Manual Link : Stiffener Property
[Convenience] WorkTree Category Filter function added
Added the ability to filter the WorkTree configuration.
Depending on the Category Filter, you can classify it into Object / Data / Entity and assign filter conditions to each entity.
Please refer to the video and manual for detailed information.
Manual Link : WorkTree Filter
[Convenience] Image Capture function added
Images modeled in CIM can be used in reports, etc. directly using the high-resolution image capture function without a separate image capture program.

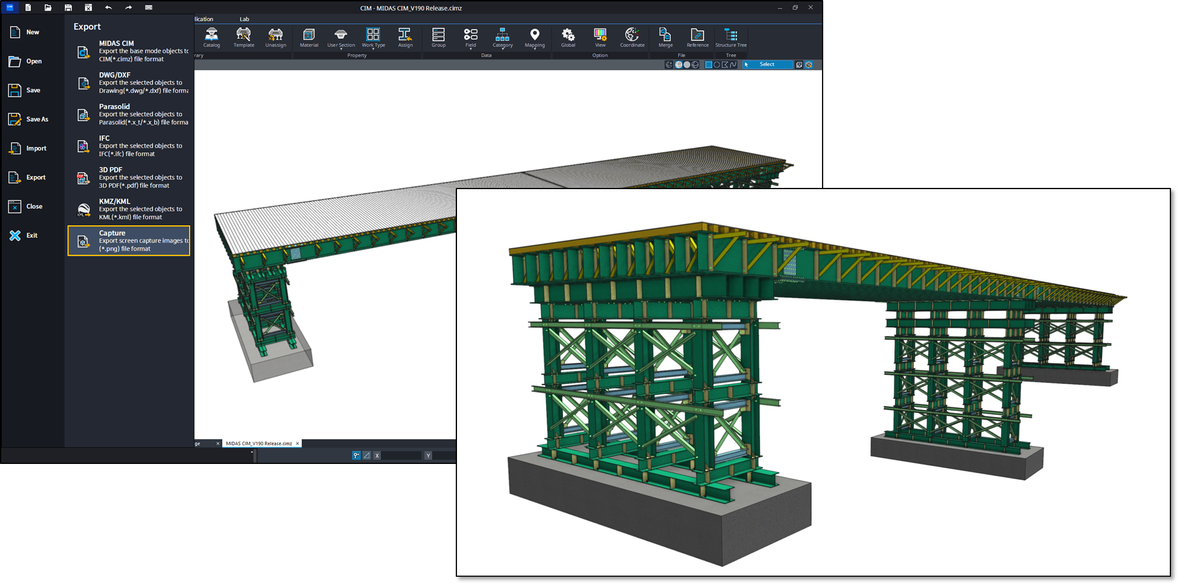

[Execution] : File Menu → Export → Capture
Please refer to the manual for detailed information.
Manual Link : Image Capture
[View] Freeze (In)valid function added
Added the ability to select the validity of the Freeze state.

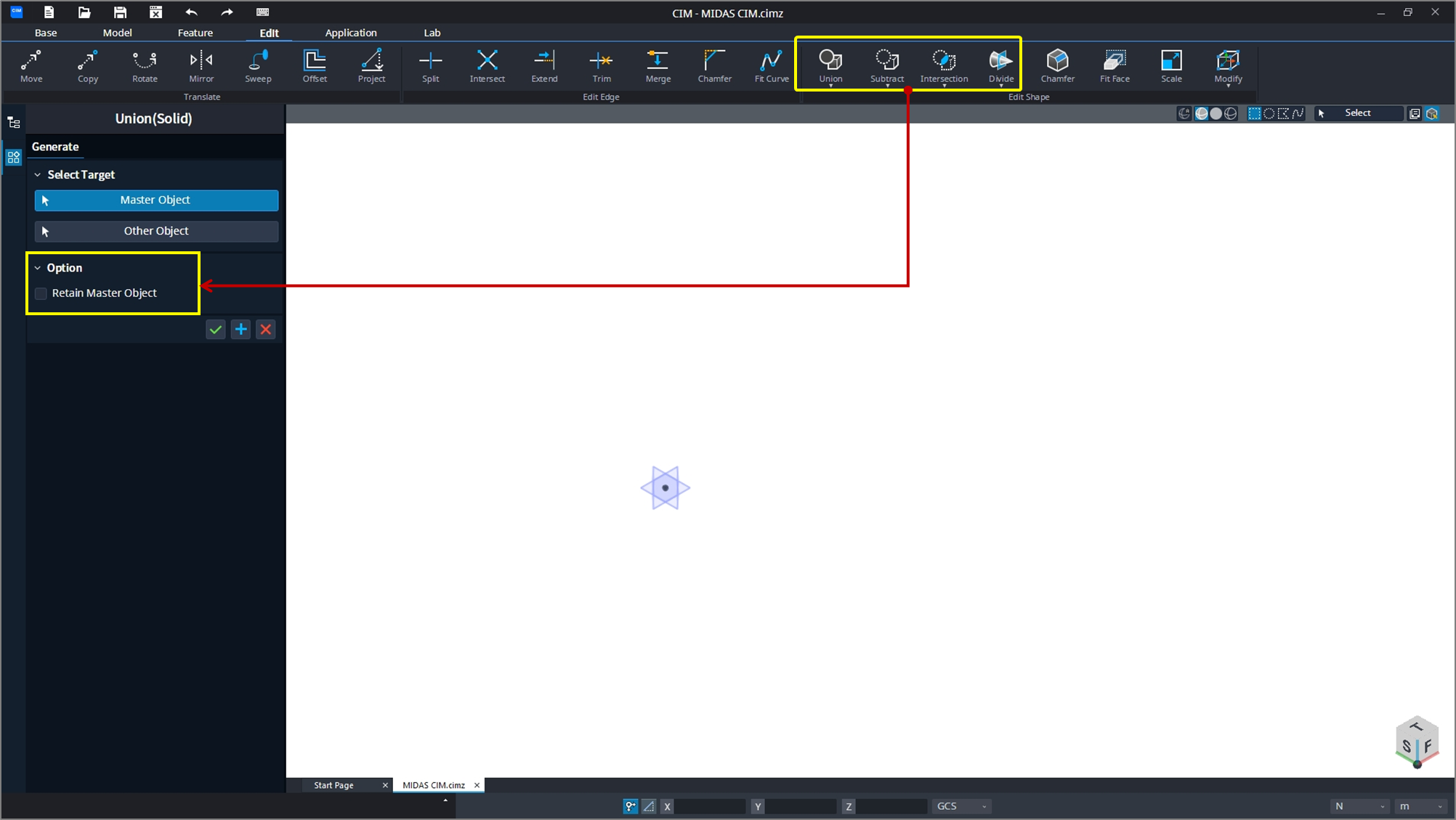

Now, even objects in the Freeze state can be designated as targets for functions such as Select Tool/Target and Extrude.
Freeze Valid status : Freeze objects cannot be selected.
Freeze Invalid state : All objects can be selected regardless of whether they are frozen or not.
You can change it by right-clicking on the screen / icon at the top / Alt + Space (shortcut key).
Please refer to the video and manual for detailed information.
Manual Link : Freeze / Unfreeze
[Rebar] Add Stirrup direction setting option

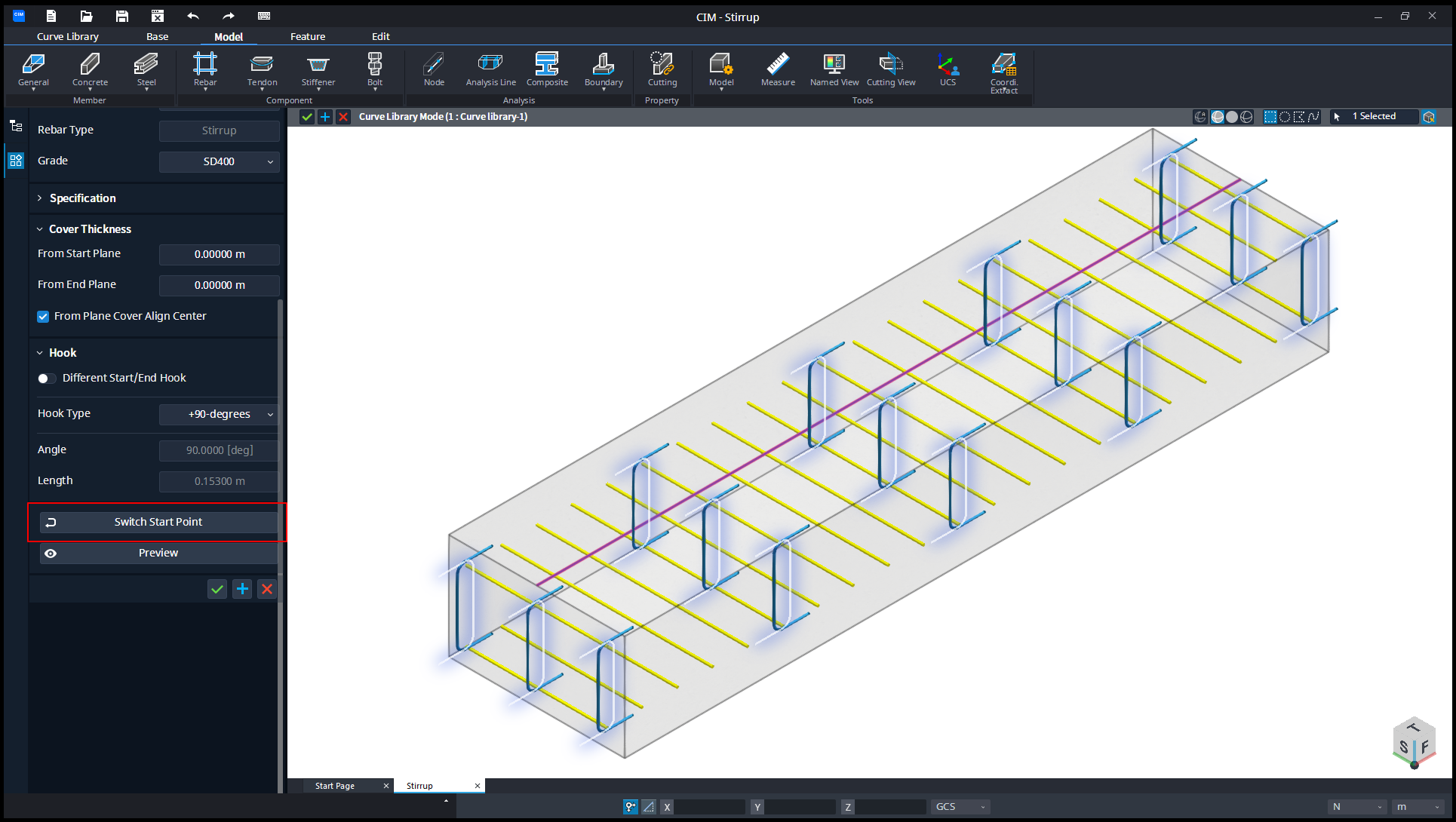

Previously, the Start Point of stirrup rebar could only be set when it was first created. In V190, ‘Switch Start Point’ was added to the Stirrup Property Tab, allowing the direction to be changed after creating the rebar.
Please refer to the manual for detailed information.
Manual Link : Stirrup Property
[Function improvement]
[Guide Path] Creation speed improved
[View] Improved Show / Lock / Freeze
[Convenience] Improvement and expansion of shortcut keys
In V190, shortcut keys have been improved for modeling convenience, and shortcut key settings for Feature / Edit functions have been significantly expanded.
Please refer to the manual for detailed information.
Manual Link : HotKey, Short Key
FAQ Link : The function of CIM shortcut keys and their effects
