MIDAS CIM V200 Hotfix 5.0 (24.12.27)
[Text Format] Improvement in Default Direction Application for Missing Direction in Curve Library Text Format
[User Request]

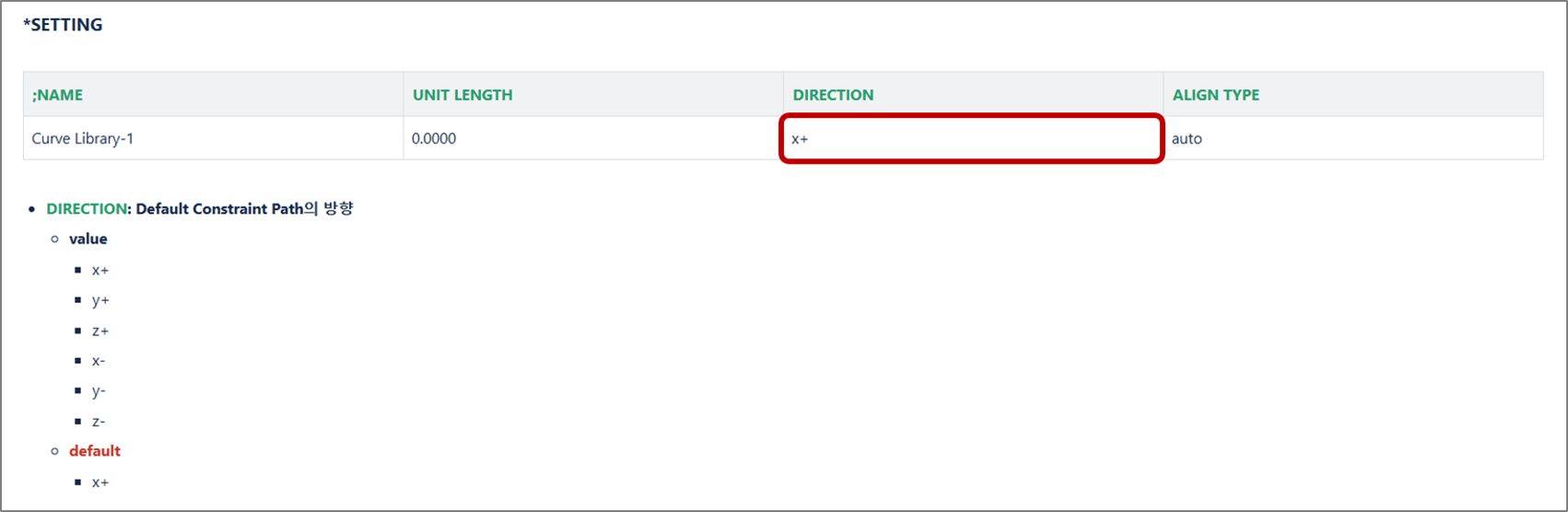

Previously, when the direction in the Curve Library was not specified, the text file import would fail.
This has been improved so that a default direction (X+) is applied even when the direction input is missing.

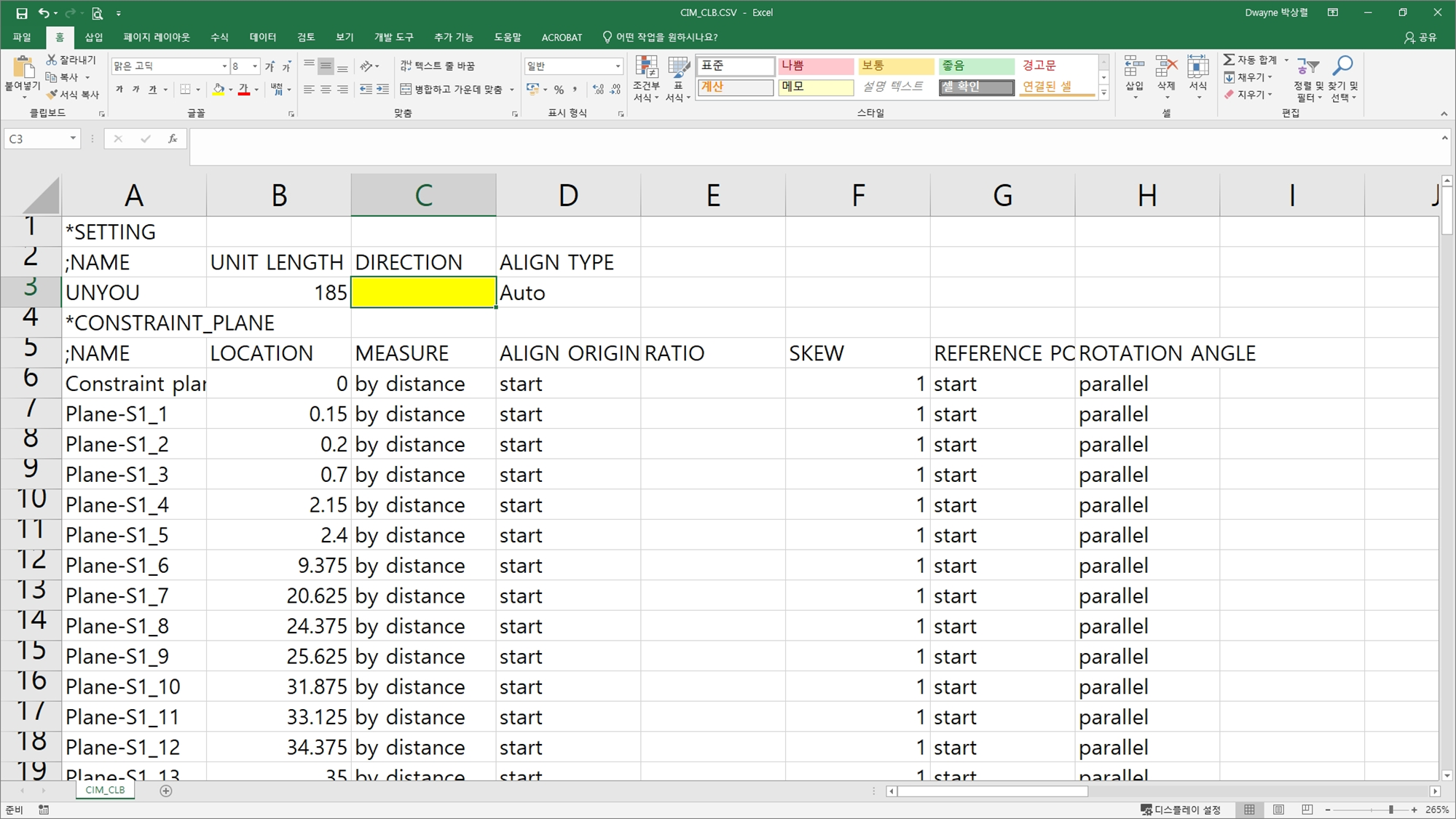

CSV Composition
[Modeling] Consistency Improvement for Keep Section Plane Option
An issue was identified where the Keep Section Plane option, which fixes the section direction of General Members, did not consistently maintain the section direction during changes caused by parameters in higher-level modes.
This inconsistency has been resolved.
Before Improvement
After Improvement

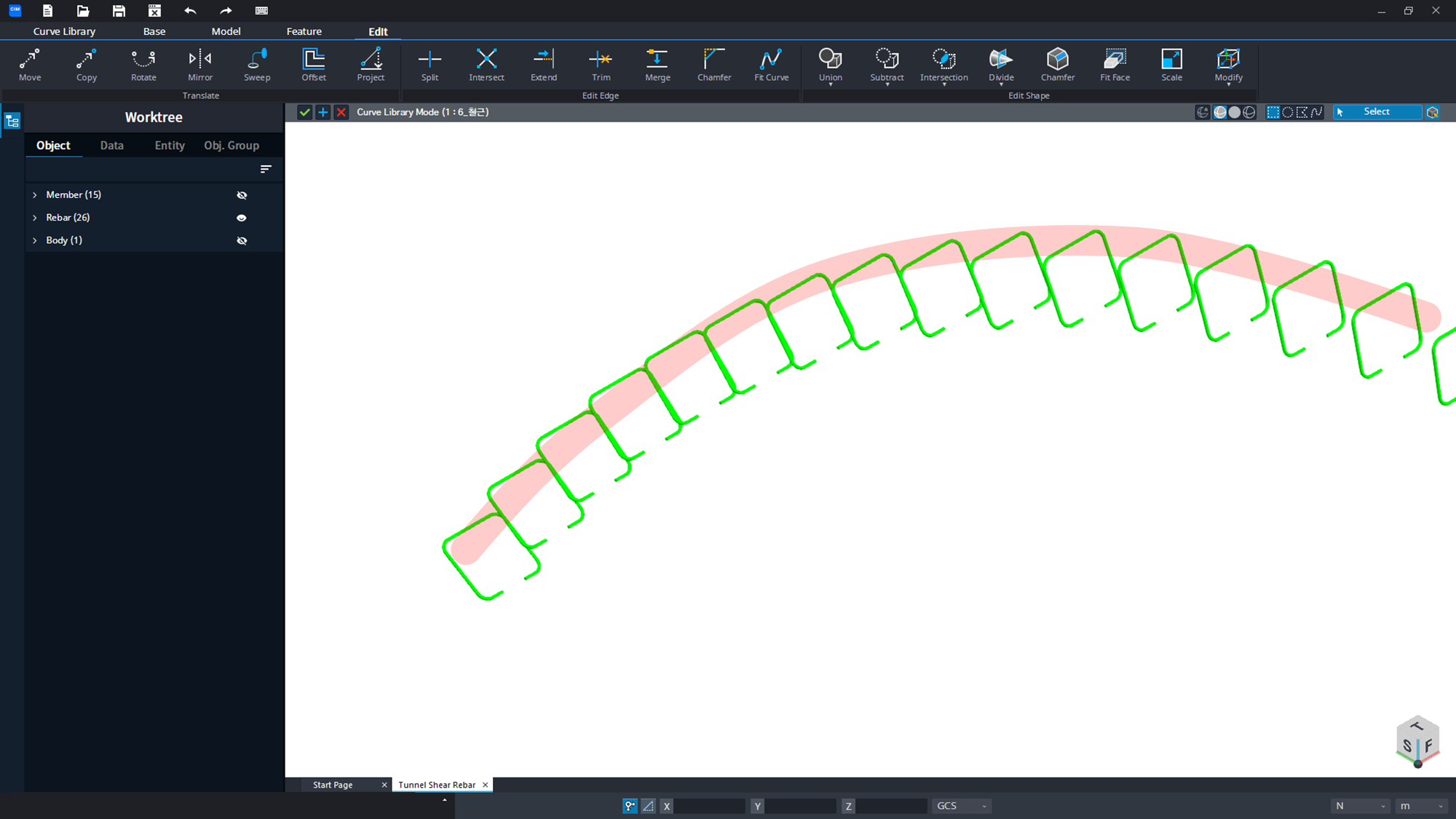

[Rebar] Correction of Direction Reversal Error During Shear Reinforcement Array
A problem where the direction of shear reinforcement arrays reversed at specific angles was identified and corrected.

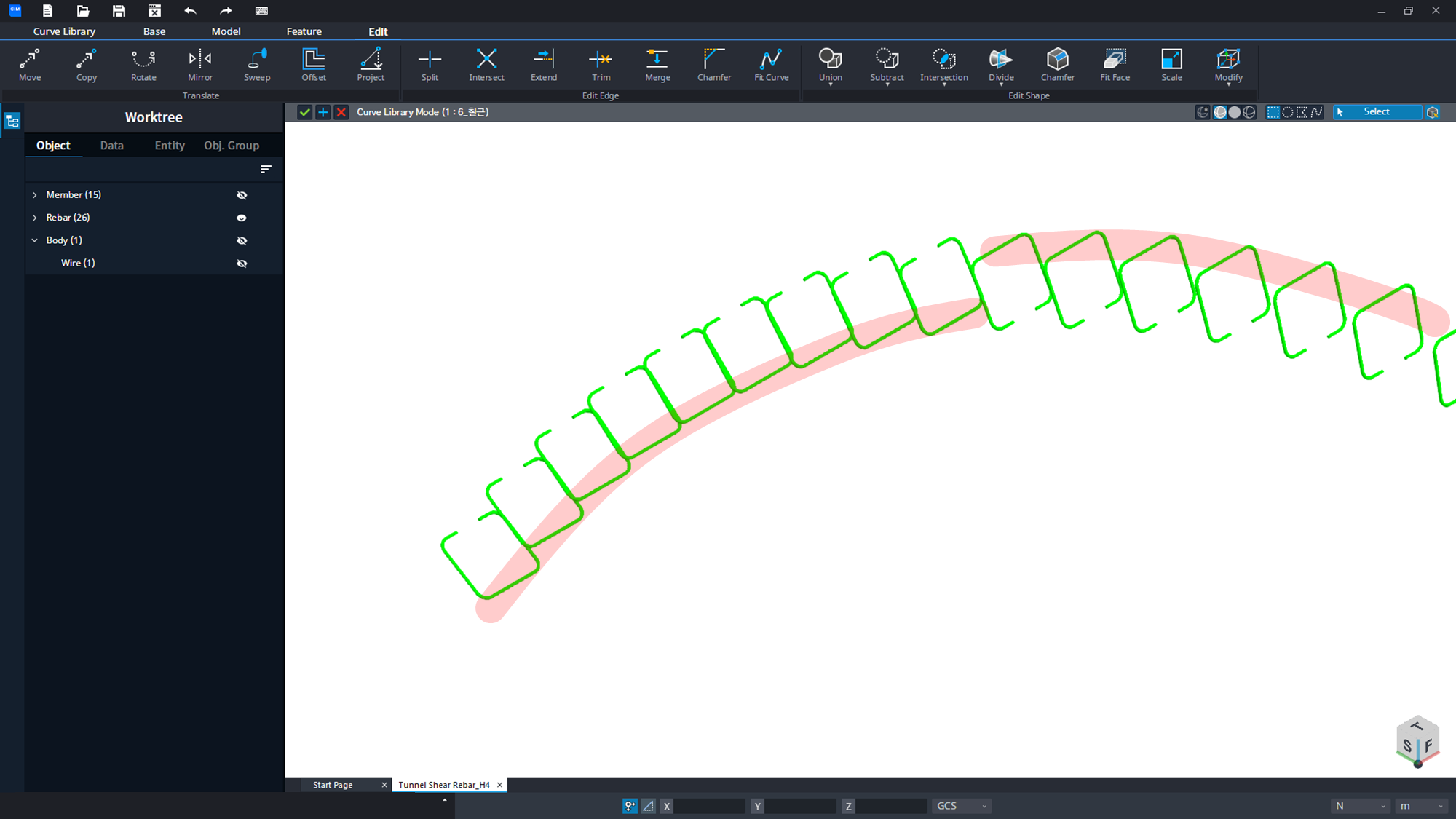

Before Improvement
After Improvement
[Rebar] Shape Improvement for Longitudinal Rebars Arranged in Reverse Direction

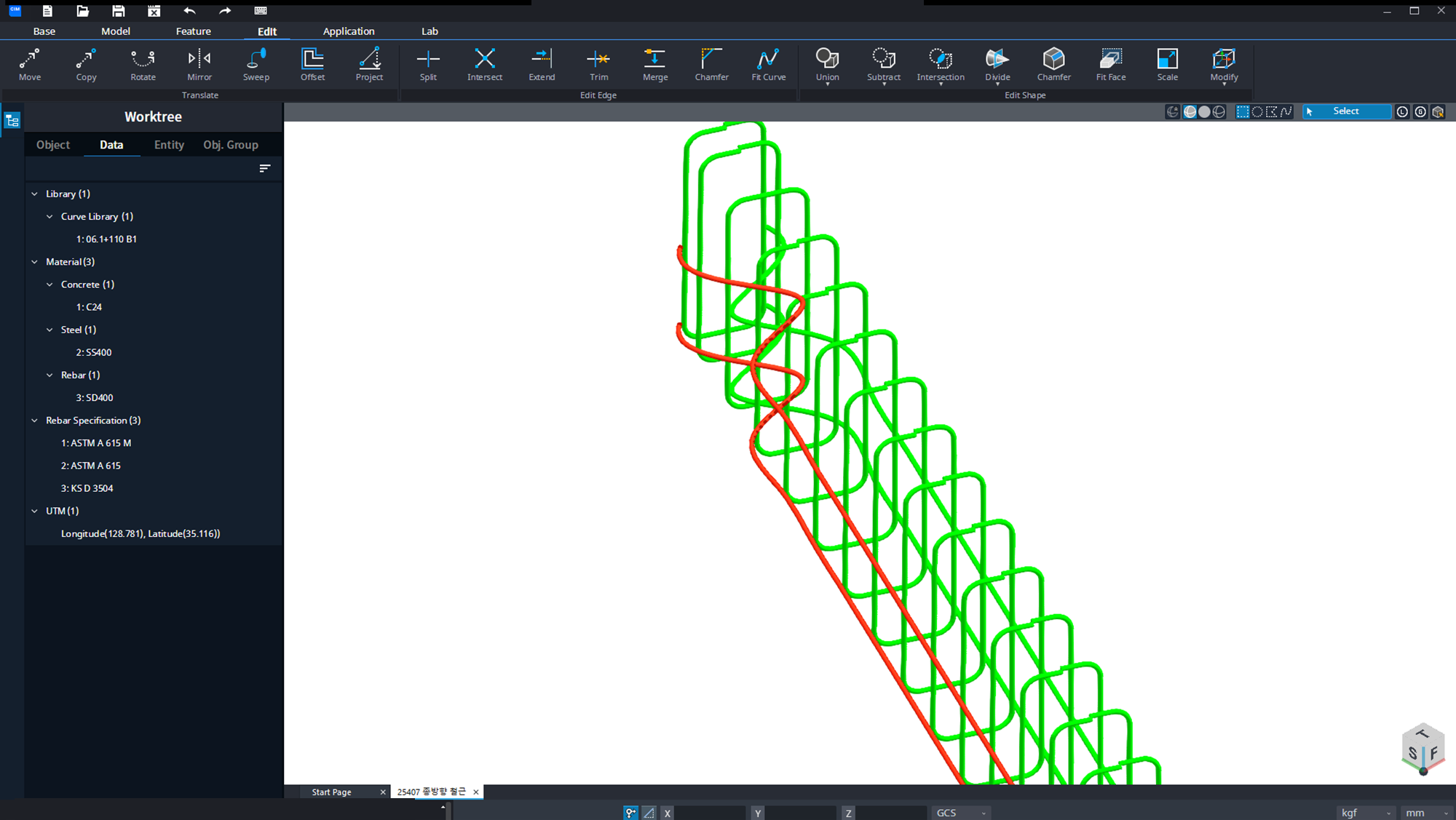

A logic error was identified and corrected in the arrangement of longitudinal rebars created on the End Plane.

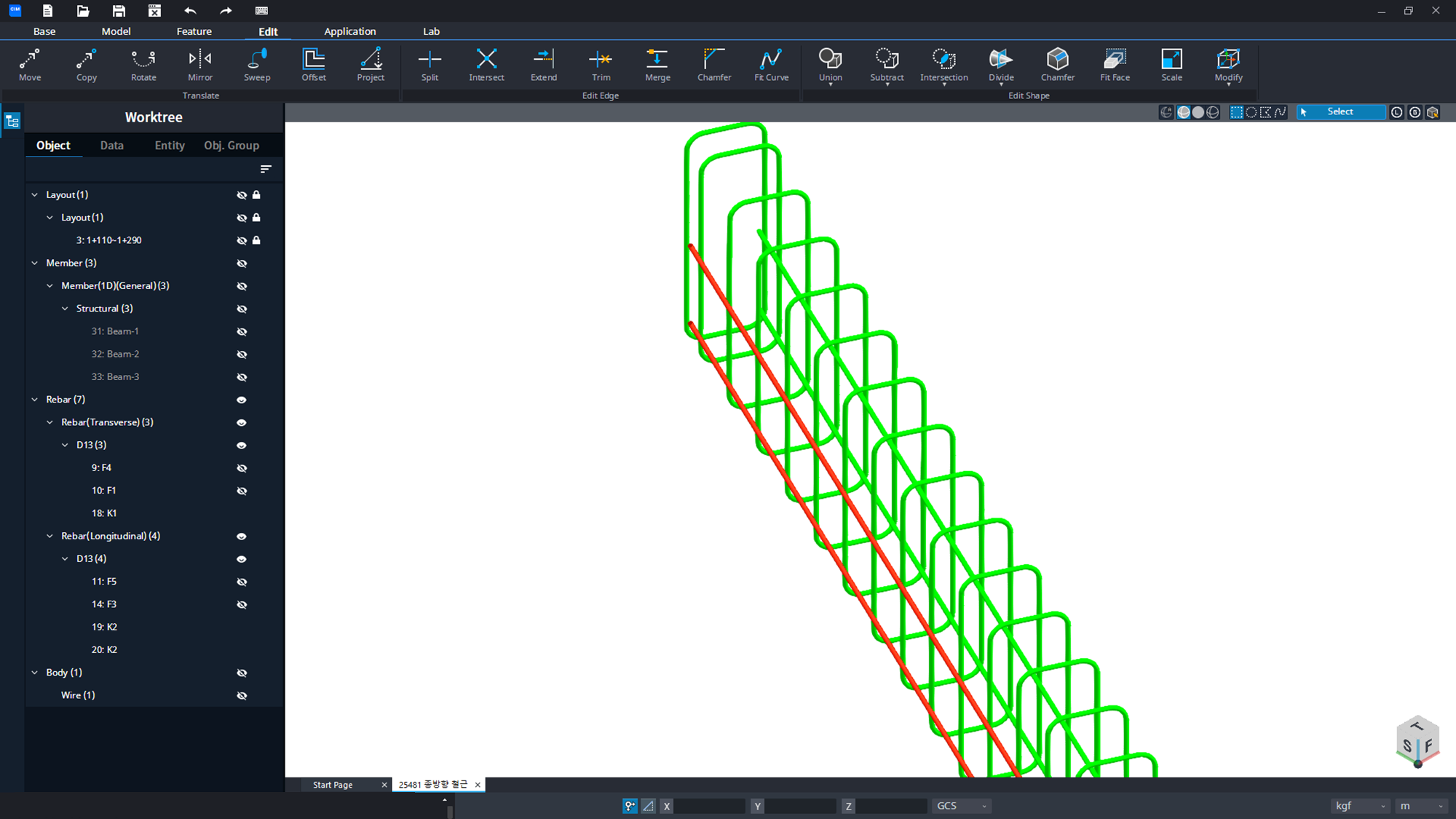

Before Improvement
After Improvement

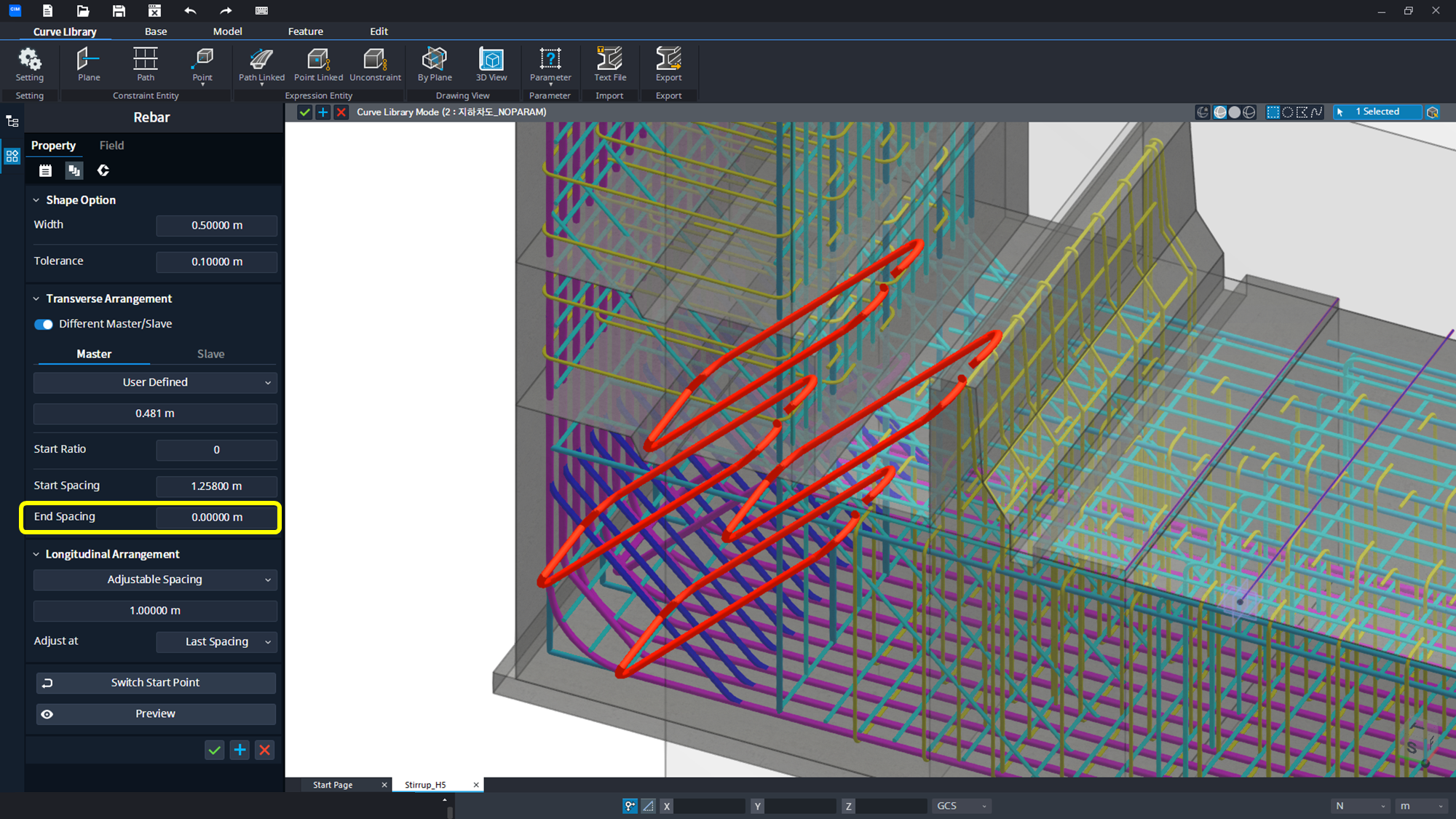

[Rebar Stirrup] Defect Correction for End Spacing Property in Transverse Arrangement
An issue was found where the End Spacing property of stirrup transverse arrangements was automatically applied with the value of Start Spacing.
This caused discrepancies between the initial settings and the arrangement when modifying stirrup properties. The issue has been resolved.
[Stiffener] Correction for CLB Assignment Failure with From End Setting
A defect that occurred only when assigning with the From End setting has been resolved by improving the vertex search function for diaphragm manholes.

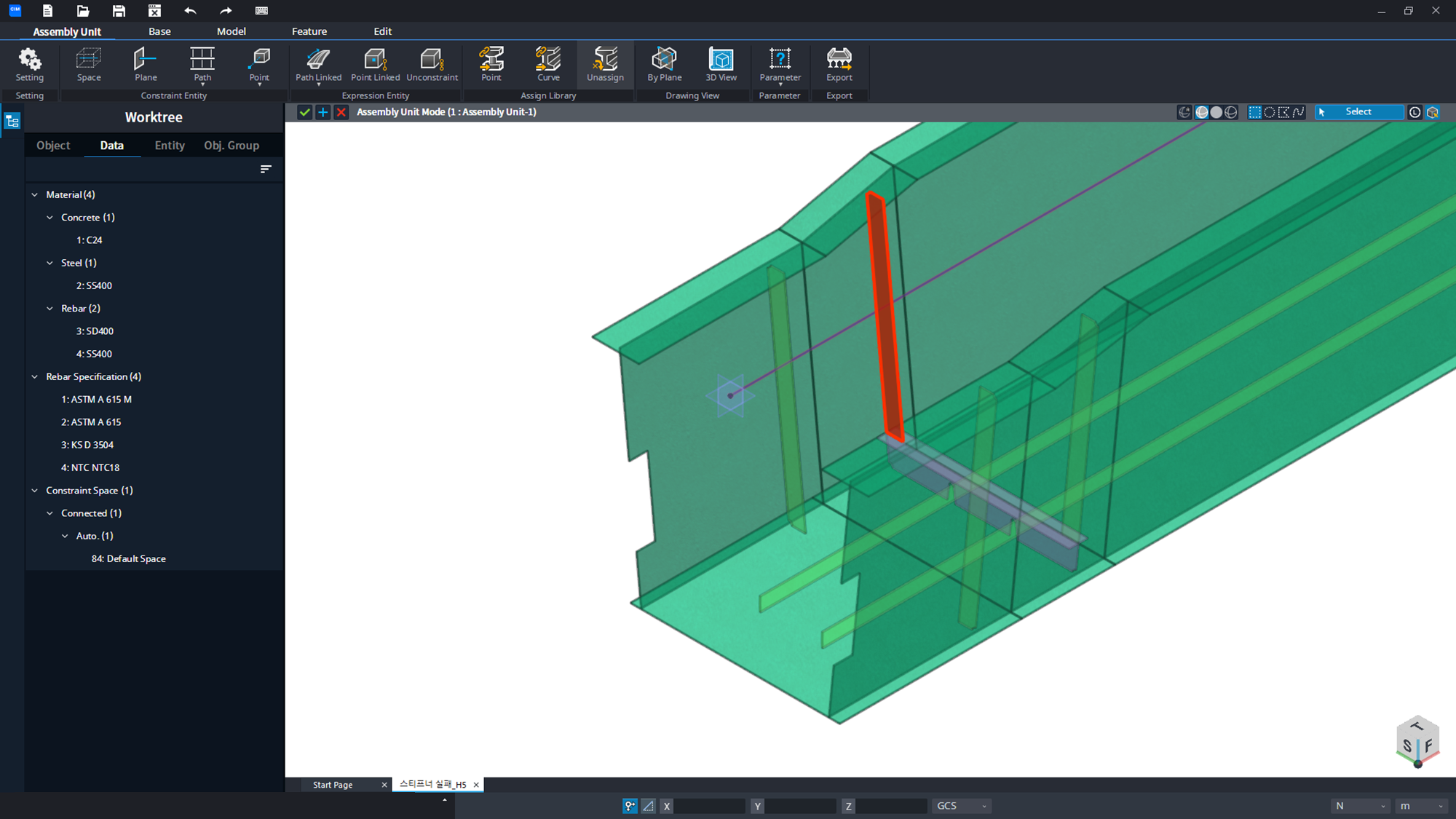

[Stiffener] Correction for Assignment Failure of Stiffeners to Higher-Level Modes in Line Type Members

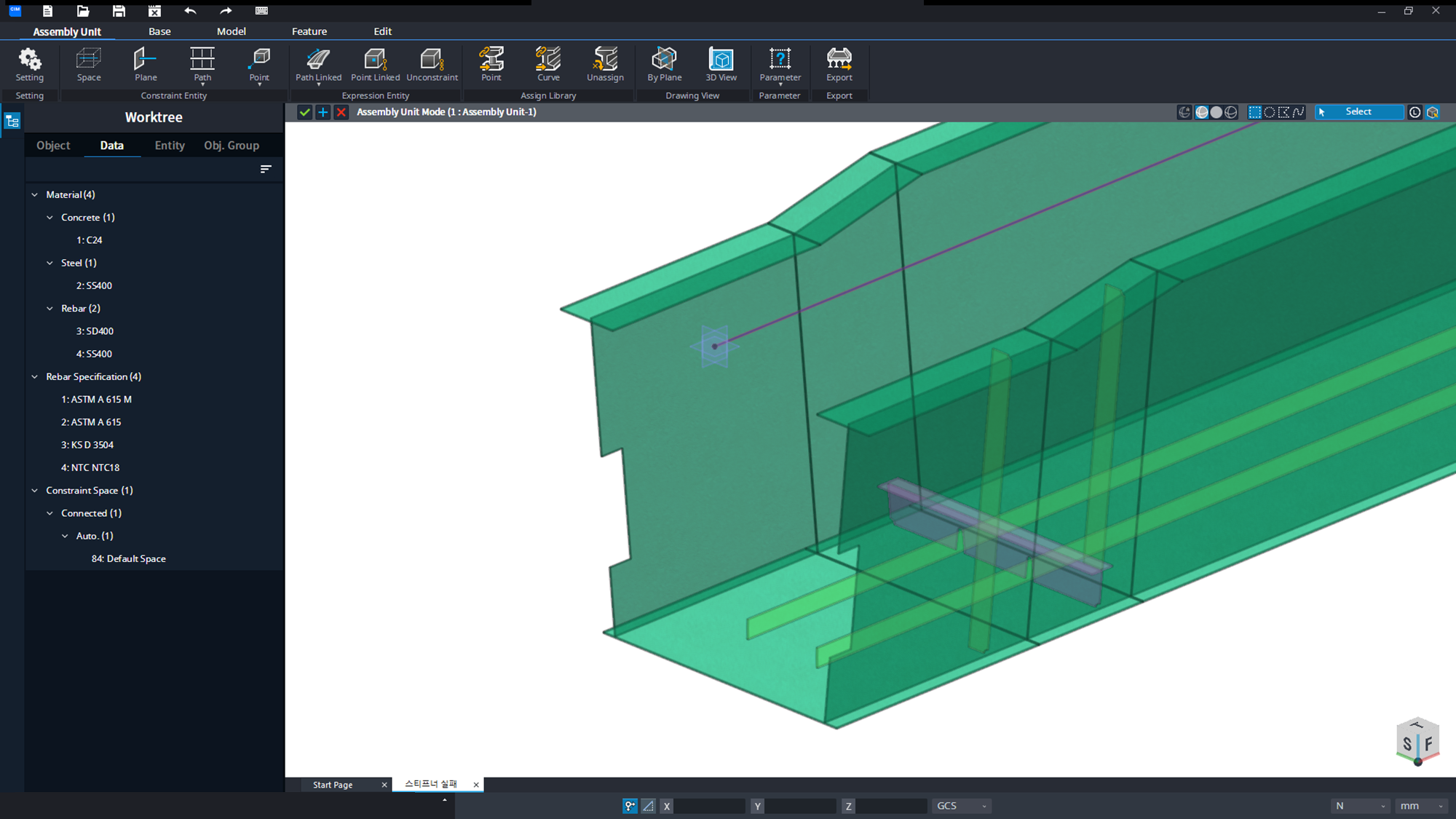

An issue where certain stiffeners failed to be assigned to higher-level modes due to path-tracking errors was identified and corrected.

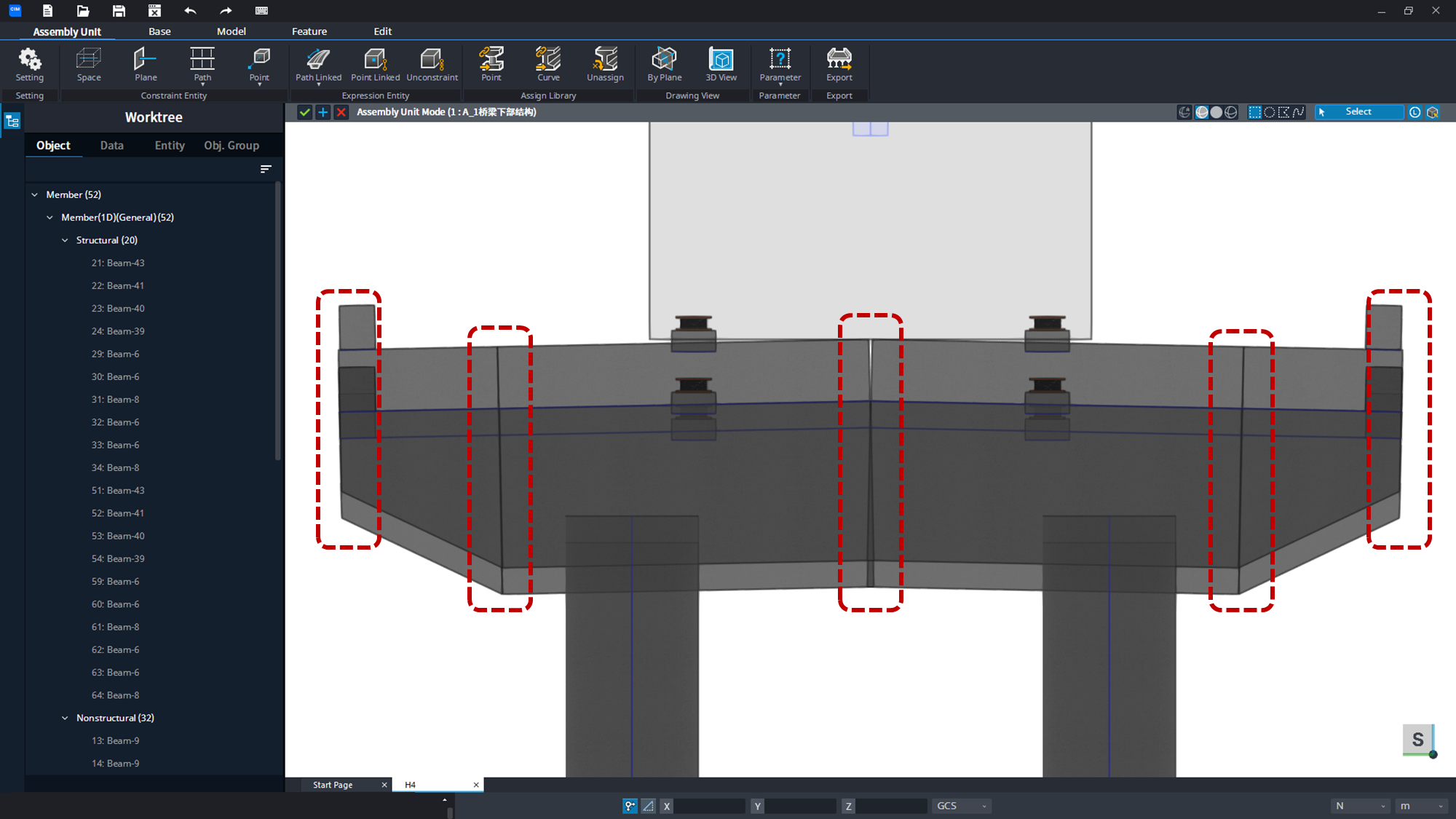

Before Improvement
After Improvement
[Construction] Correction for Missing User-Defined Material Objects in Construction Mode

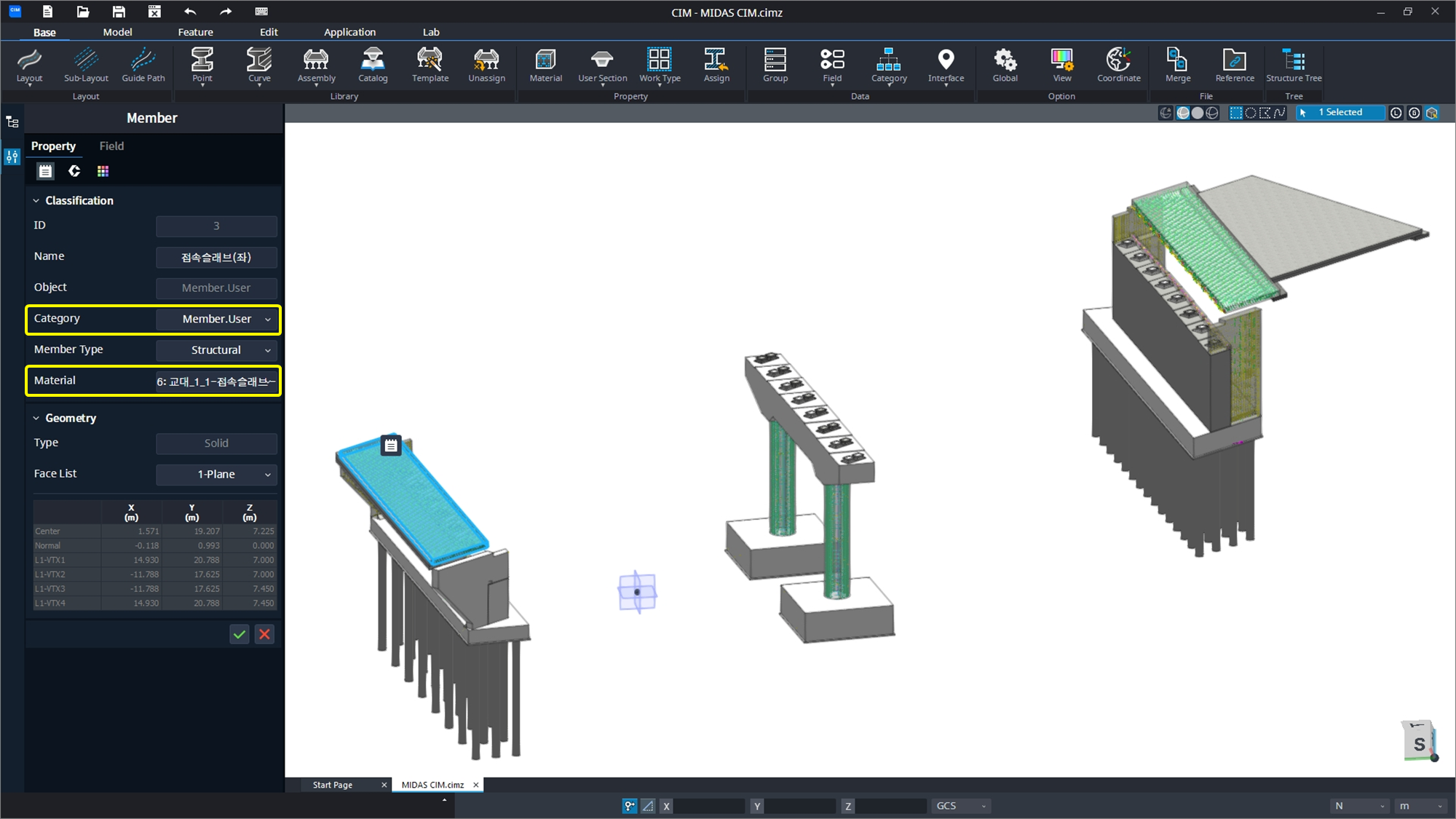

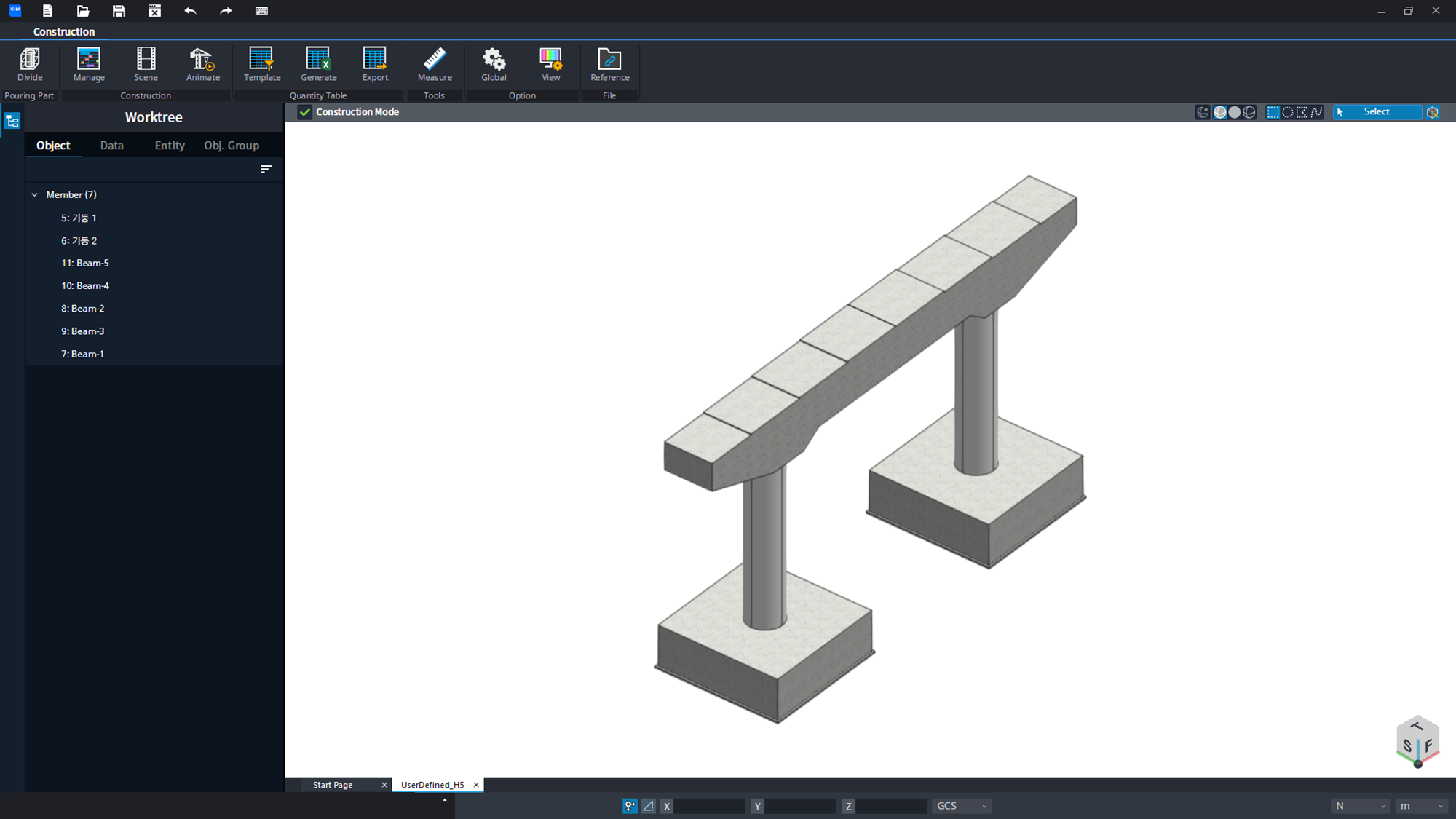

A problem where user-defined members were missing during transitions to construction mode was identified and fixed.

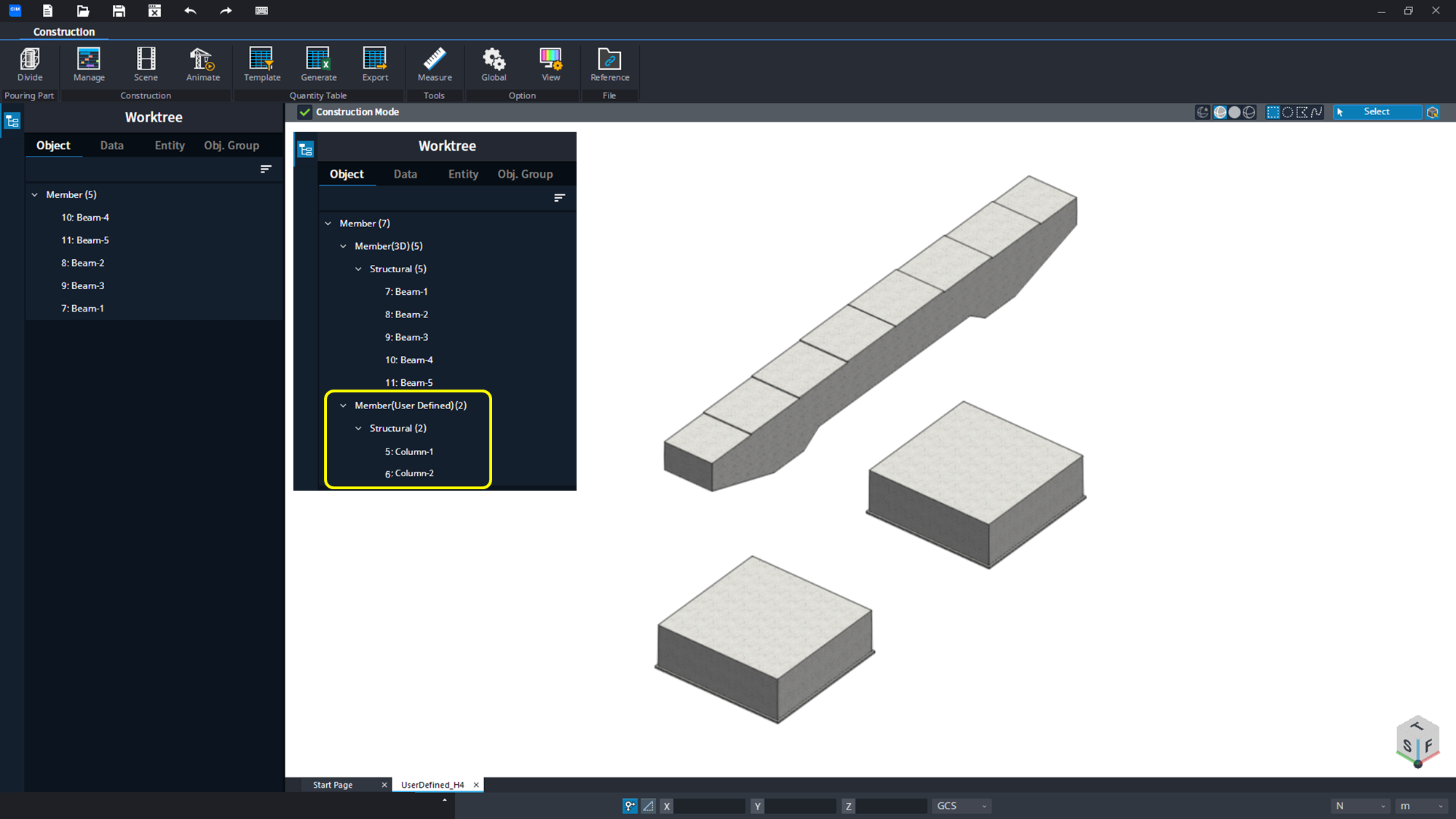

Before Improvement
After Improvement
[Field] Automatic Update of Field Items Added to Library in Base Mode
When adding field items to a library model assigned to Base Mode, an issue where item information did not display has been resolved.

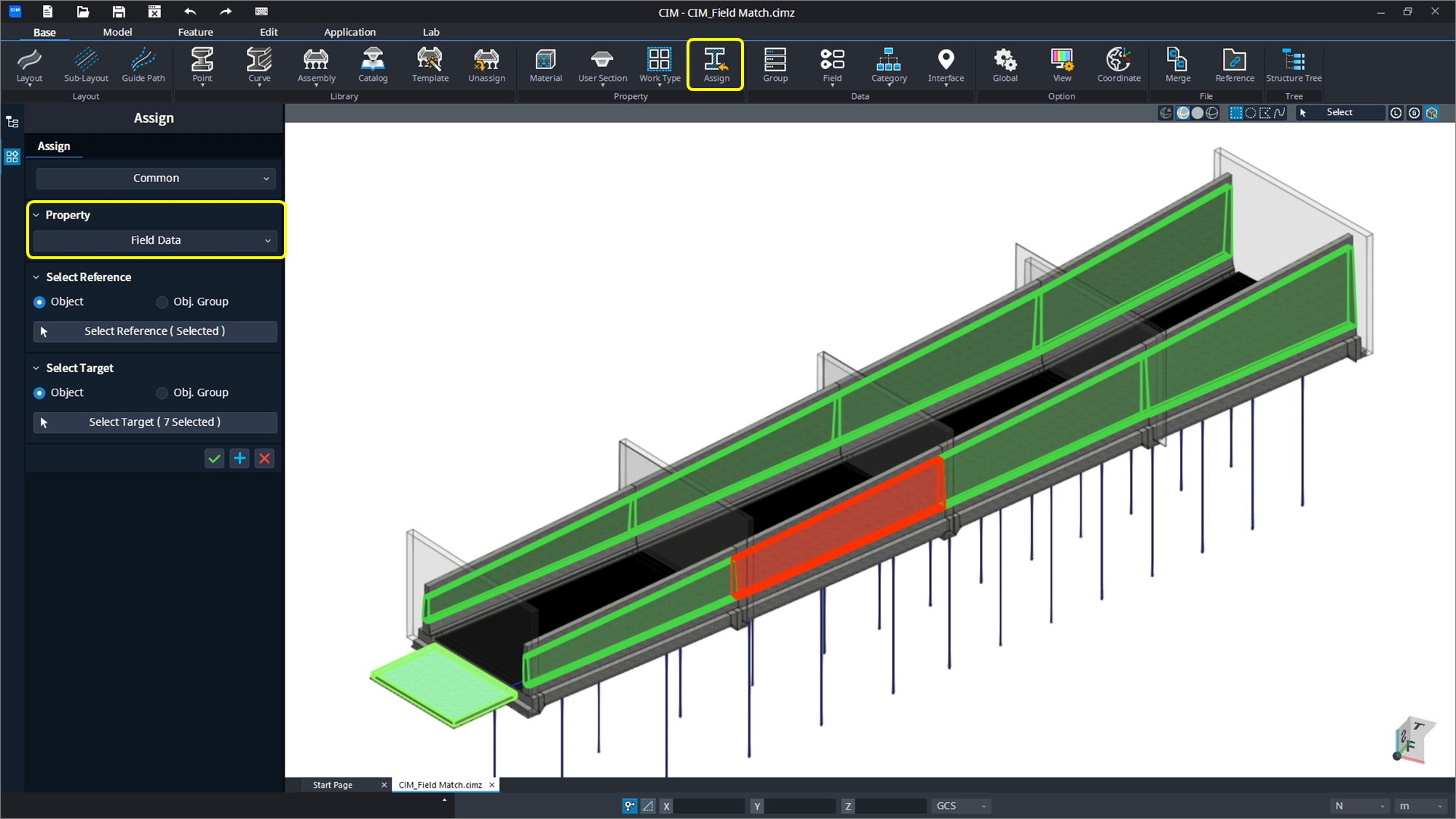

[Assign] Functional Improvements for Bulk Changes to Attribute Information (Field Data)

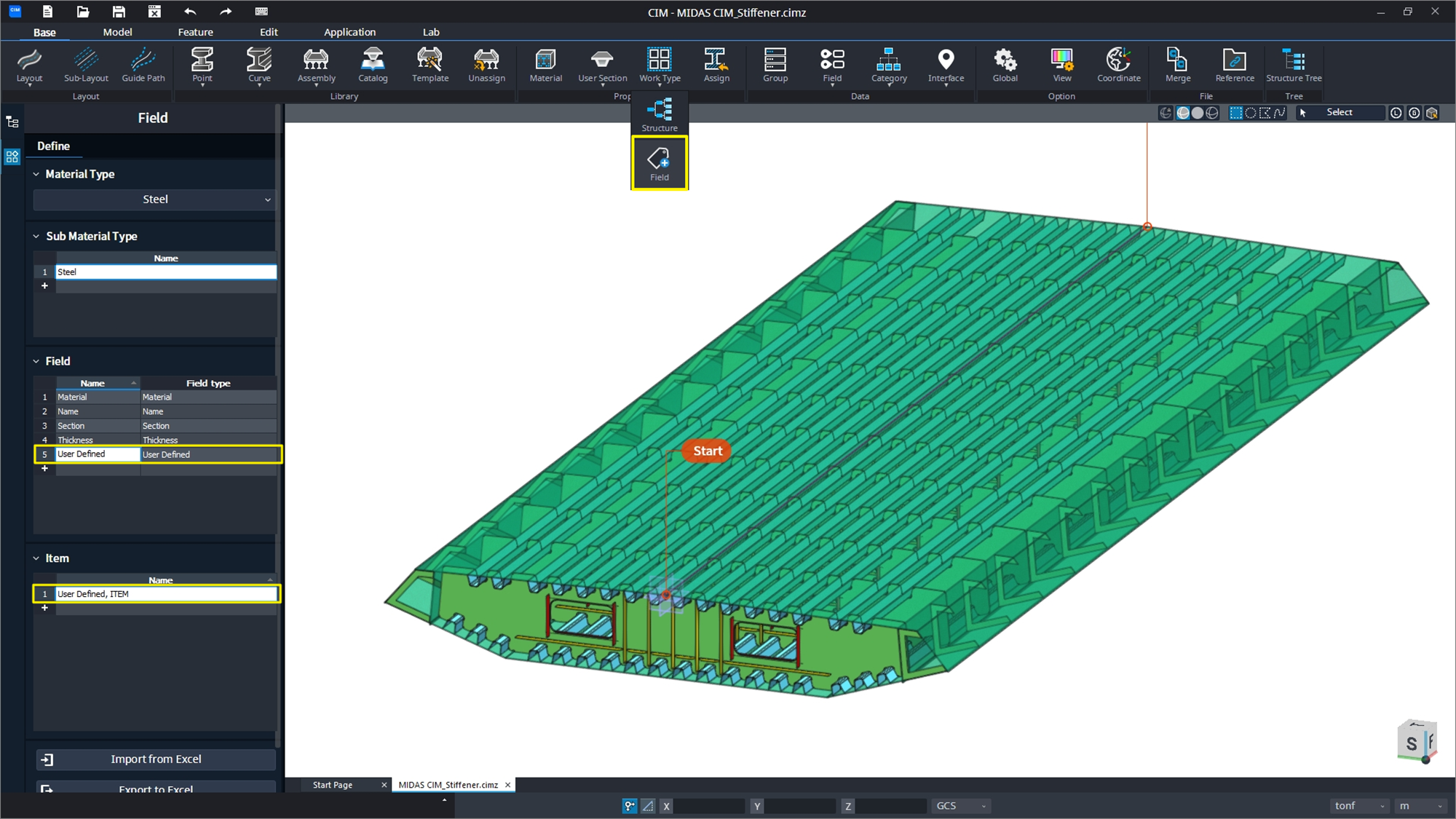

In the Field Data feature, which allows adding attribute information to modeling objects, an issue where some objects were not filtered during bulk changes using the Assign function has been corrected.
[IFC] Performance Improvements for IFC Import
Issues with missing material and object category information when importing user-defined material objects have been resolved.
Additionally, a problem where some solid objects were converted into sheet bodies during import has been improved.
New Features of MIDAS CIM V200
[Layout] Label Display Improvement

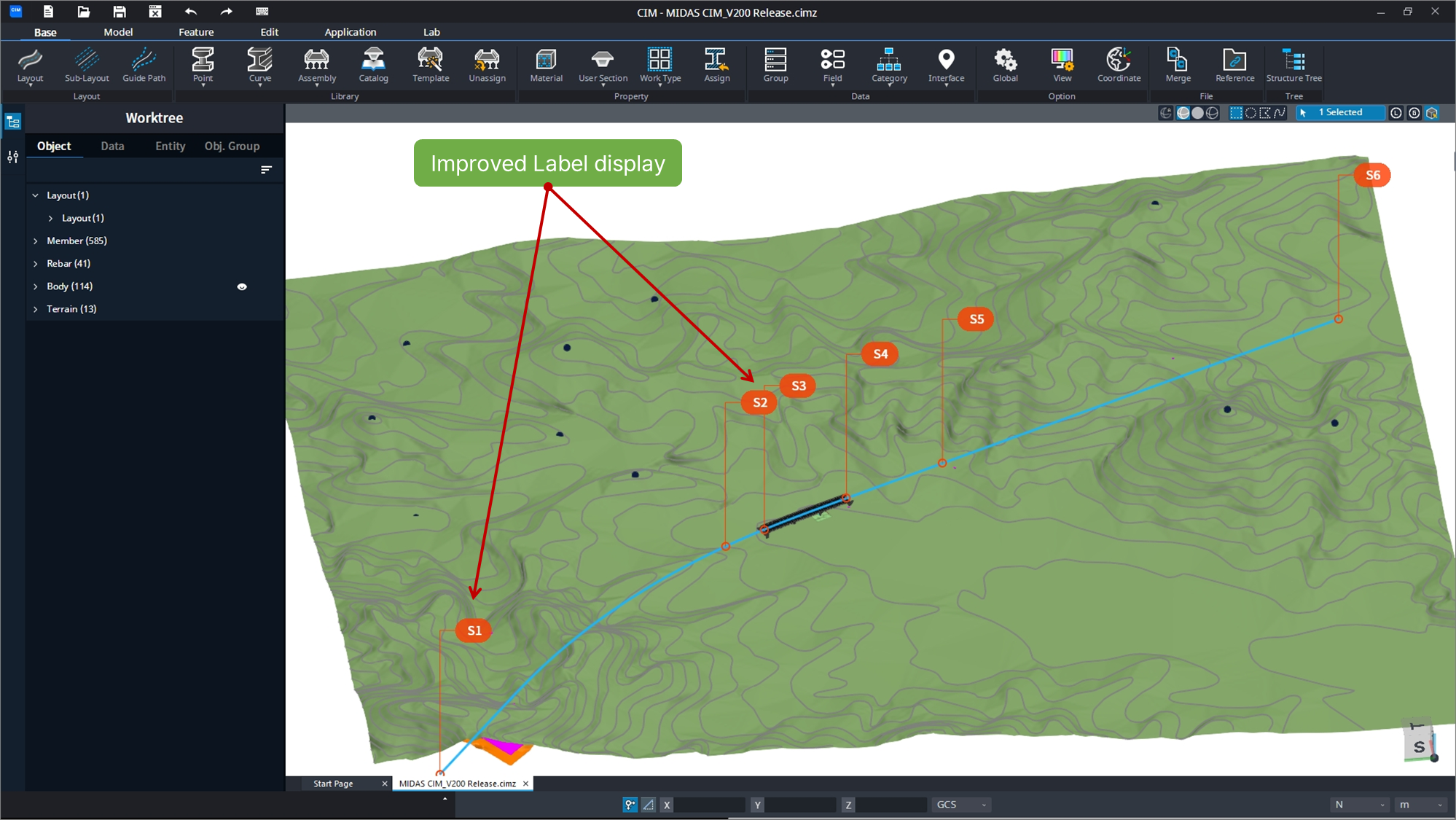

We have improved the graphics for displaying labels that indicate the start/end points and segments of layout, enhancing visibility.

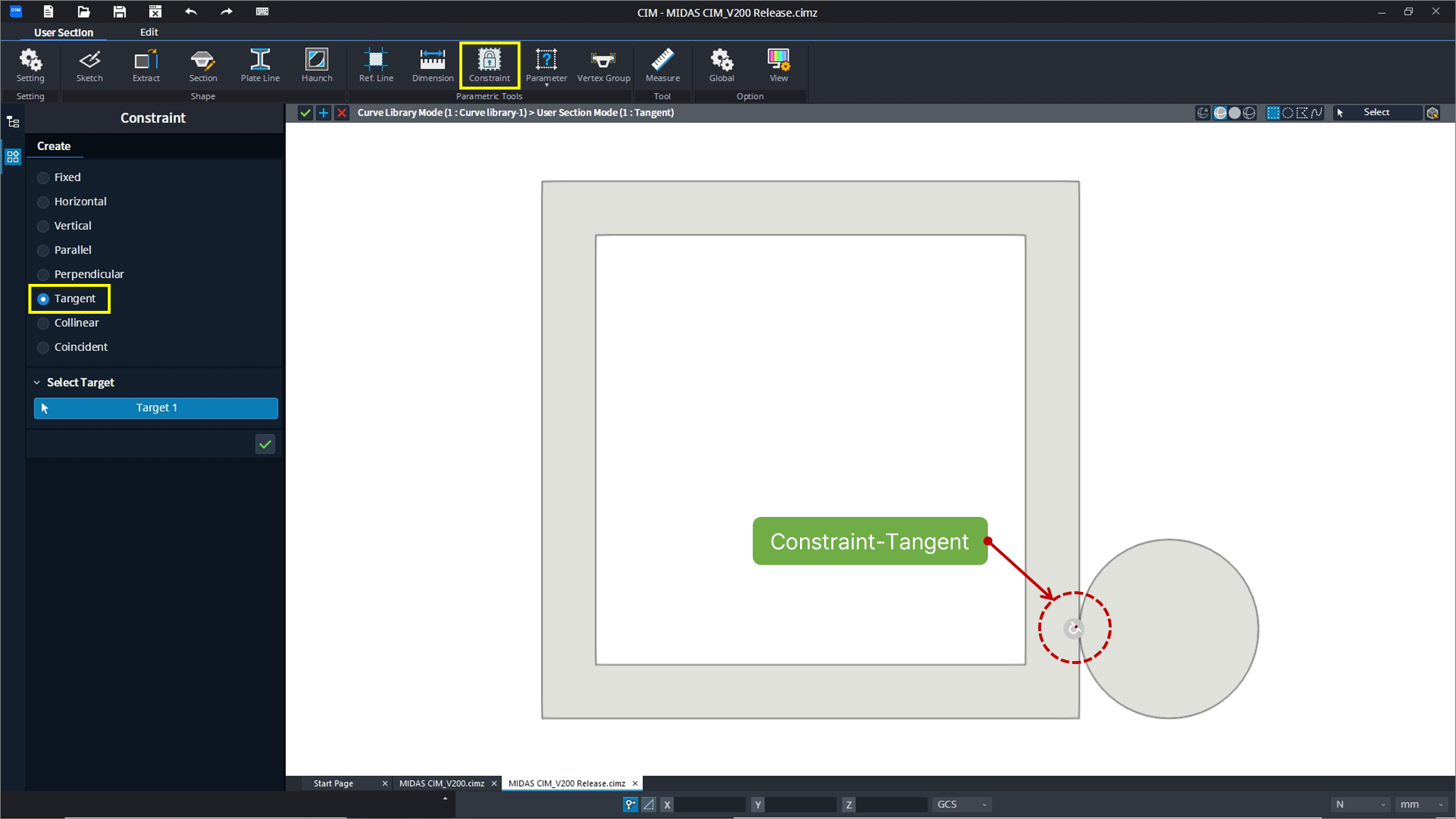

[Parameter] Expanded Constraint Functionality ⇾ Added Tangent Option
A Tangent option has been added to the Constraint feature, allowing for the application of contact conditions in modeling tasks using parameters.
Manual Link : Constraint
[Modeling] General Member ⇾ Assign Using Sweep Lock Option
The General Member feature has been revamped to facilitate the creation of objects by applying cross-sections along a path. The Sweep Lock option allows control of the cross-section's rotation axis, enabling the creation of various 3D shapes such as arches.
Manual Link : Creat General Member
Technical Doc. Link : Description of Tangential, Parallel, and Sweep Lock options
[Modeling] Curve Library ⇾ Assign Using Sweep Lock Option

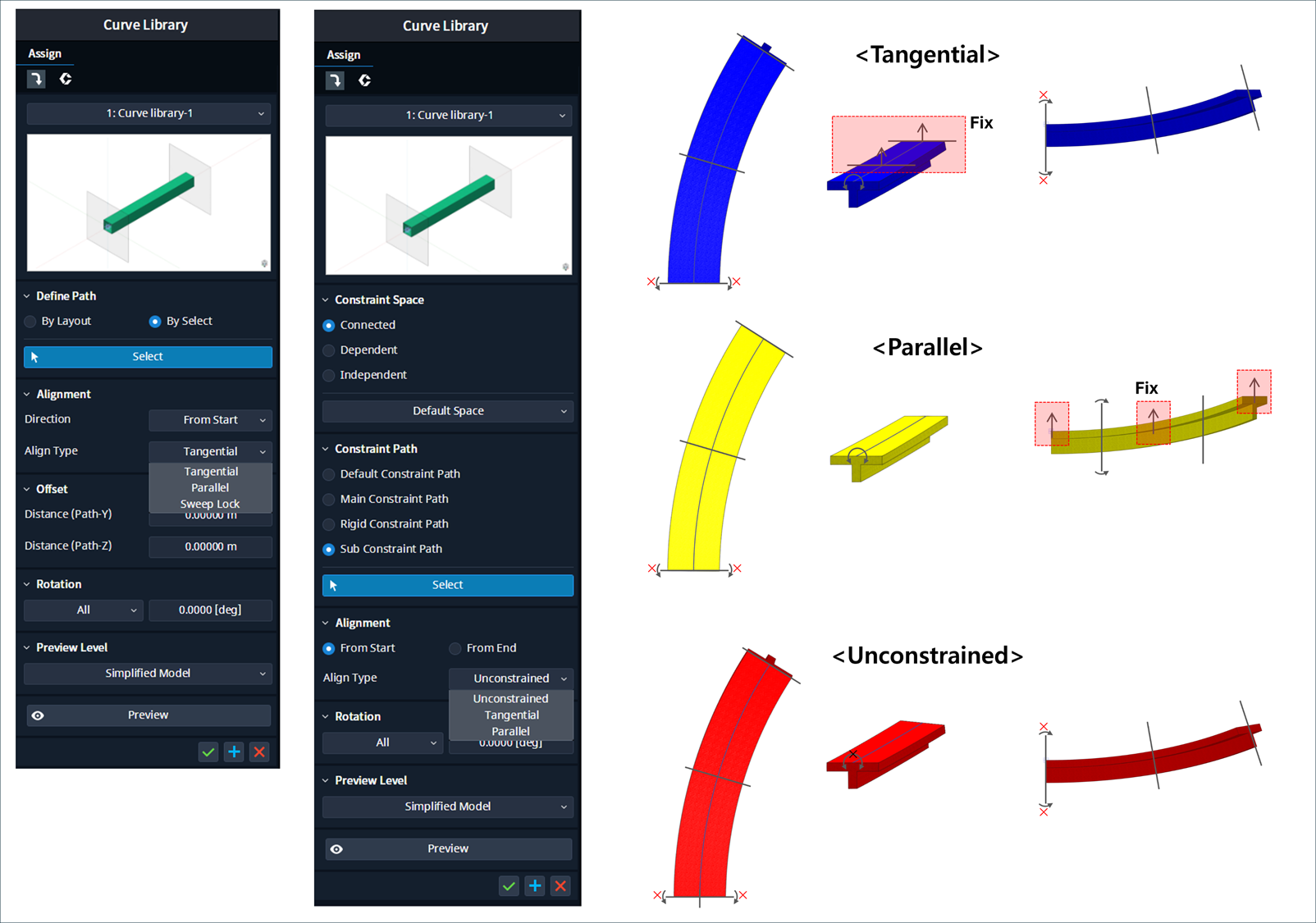

In Base Mode, Tangential, Parallel, and Sweep Lock options have been added to the Curve Library Assign - By Select method, allowing control over the resulting shape of the Curve Library assignment.
Additionally, during the assignment of the Curve Library to the Sub Path within an Assembly Unit, you can now choose between Unconstrained, Tangential, and Parallel options.
Manual Link : Curve Library Assign
Technical Doc. Link : Description of Tangential, Parallel, and Sweep Lock options
[Modeling] Added Line Type Member Creation Function ⇾ (User Section Mode)
To facilitate the modeling of thin members specialized for steel bridges, CIM V200 has incorporated the creation of Line Type Members in addition to the existing Plane Type. Modeling is conducted by assigning thickness to line objects, prioritizing Section Lines during modeling to ensure proper application of Fitting tools and targets.
For detailed information, please refer to the manual.
Manual Link : Section Line for Line Type

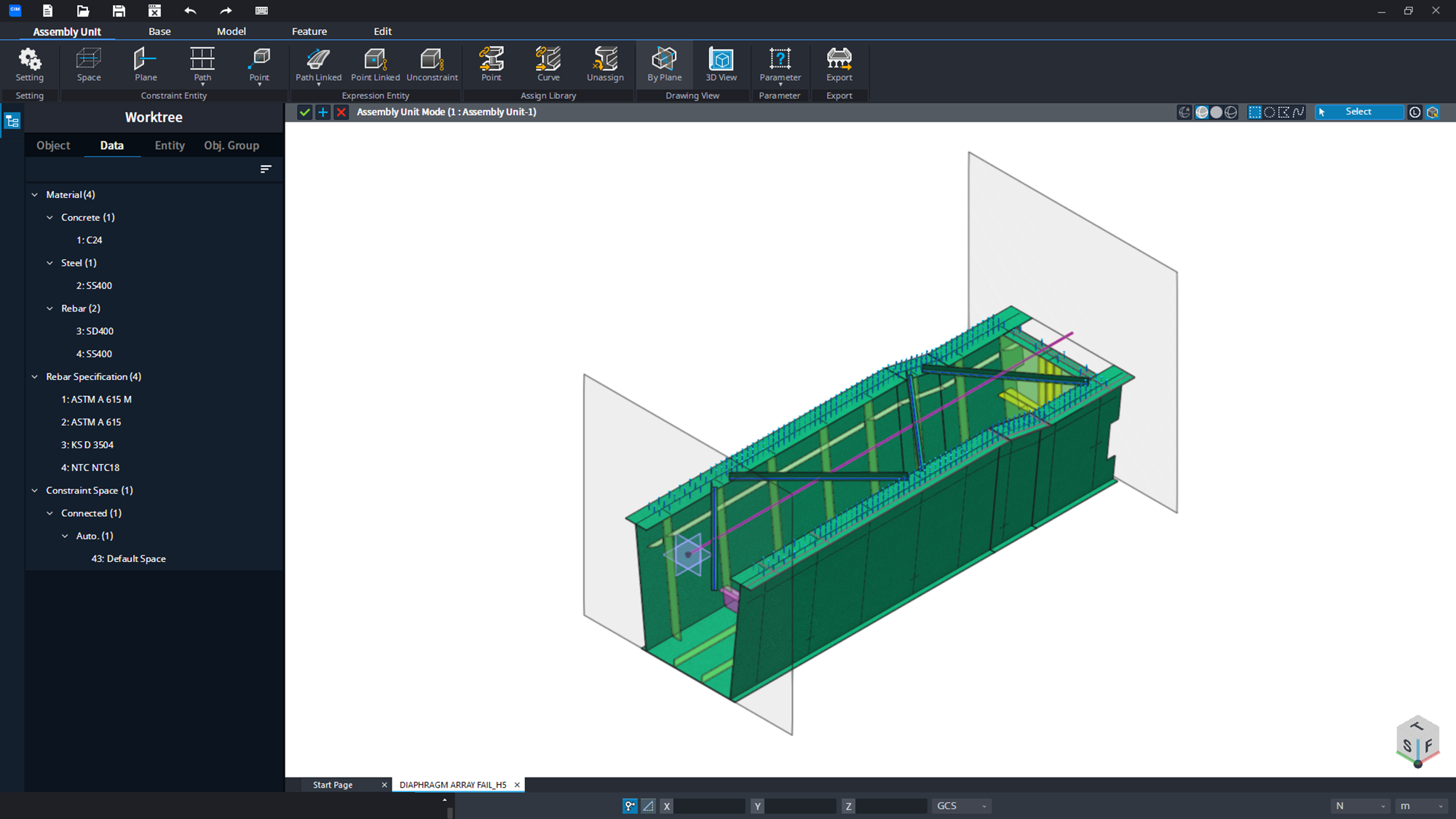

[Modeling] Added Diaphragm Stiffener & Manhole Creation Function
In most steel bridge design plans where diaphragms are applied, horizontal and vertical stiffeners and manholes are essential. Just as rebar modeling is emphasized in concrete bridges, CIM V200 has incorporated the creation functions for diaphragm stiffeners and manholes to simplify the modeling of steel bridges.
For detailed information, please refer to the manual.
Manual Link : Draw Diapharam
[Modeling] Haunch
In concrete structure planning, haunches or chamfers are prescribed to ensure smooth stress transfer in sections where the direction of stress changes abruptly due to sectional forces.
In CIM V200, during the creation of 3D models, the software has been developed to allow the addition of haunches or the flexible application of section sizes according to design plans without predefining these haunches.
For detailed information, please refer to the manual.
Manual Link : Haunch(User Section Mode)
[Field Data] Field Viewer
In CIM V190, an environment for Field Data, which allows embedding information into objects, was established. In the latest CIM V200, a Field Viewer has been provided to allow users to view custom-entered Field Data through a separate popup window.
The inherent Geometry Data of objects can be checked as Basic Property, while custom-entered information, such as Object Breakdown Structure (OBS), can be displayed separately as Property Data and Quantity Data.
Additionally, you can directly access the Field Viewer by clicking on the symbol that appears after selecting a created object.
For detailed information, please refer to the manual.
Manual Link : Field Viewer
[Field Set] Text Format Import
As a BIM model serves as an information model, it requires the input and management of a vast amount of information. While CIM V190 established a system for containing information, CIM V200 enhances related functionalities and introduces new user convenience features.
Field Set allows users to edit extensive information forms using editing tools similar to Excel and enables batch creation through CSV file imports.
Manual Link : Field Set, Text Format : Field Set
[Field Data] Object Group
The model of a structure is composed of multiple object units. For instance, modeling a bridge structure involves combining smaller units such as foundations, columns, and copings.
To assign management information to such structured models, CIM V200 allows management information to be assigned not only to individual objects like foundations, columns, and copings, but also to the structure as a whole.
One method of utilization is through the Object Group feature, which groups objects together. This allows information to be assigned to the model as a whole. Additionally, when models are exported in IFC file format, grouped models can be managed at the group level.
For detailed information, please refer to the manual.
Manual Link : Object Group

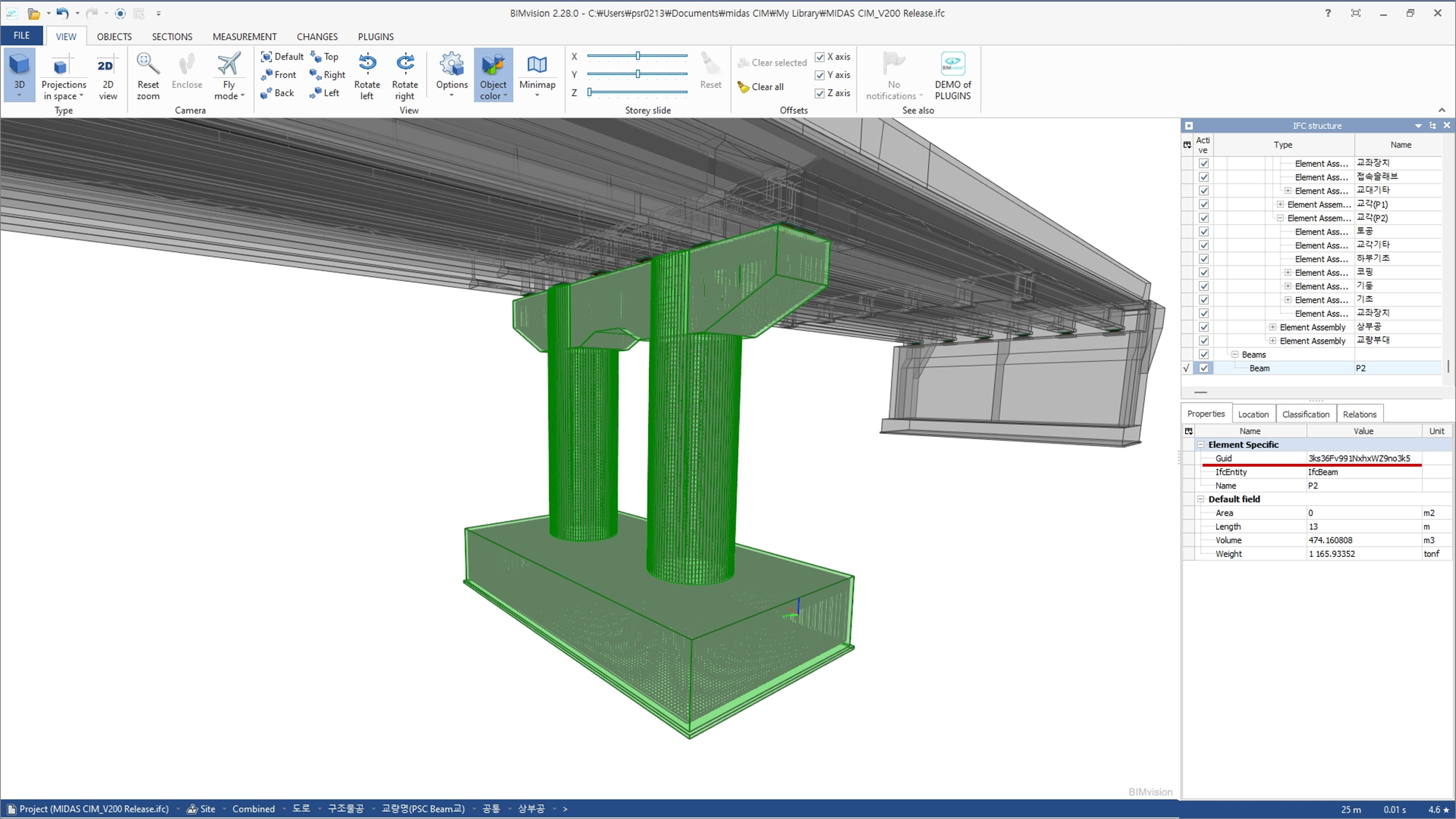

[IFC Export] Improvements Including GUID Preservation
Files with the IFC extension appear in the Industry Foundation Classes (IFC) file format, which sets international standards for importing and exporting objects and their properties for components. To ensure compatibility between different software applications, it is essential to support the latest IFC versions specified by buildingSMART International.
In the previous CIM V190, development and integration were carried out to enable exporting to the latest IFC version, IFC4.3. In CIM V200, ongoing improvements have been made to ensure that even if properties of the model change, their unique GUIDs are preserved.
Moving forward, for clients utilizing CIM, support for the latest maintenance of the IFC file format, which is crucial for BIM model compatibility, will be continued.

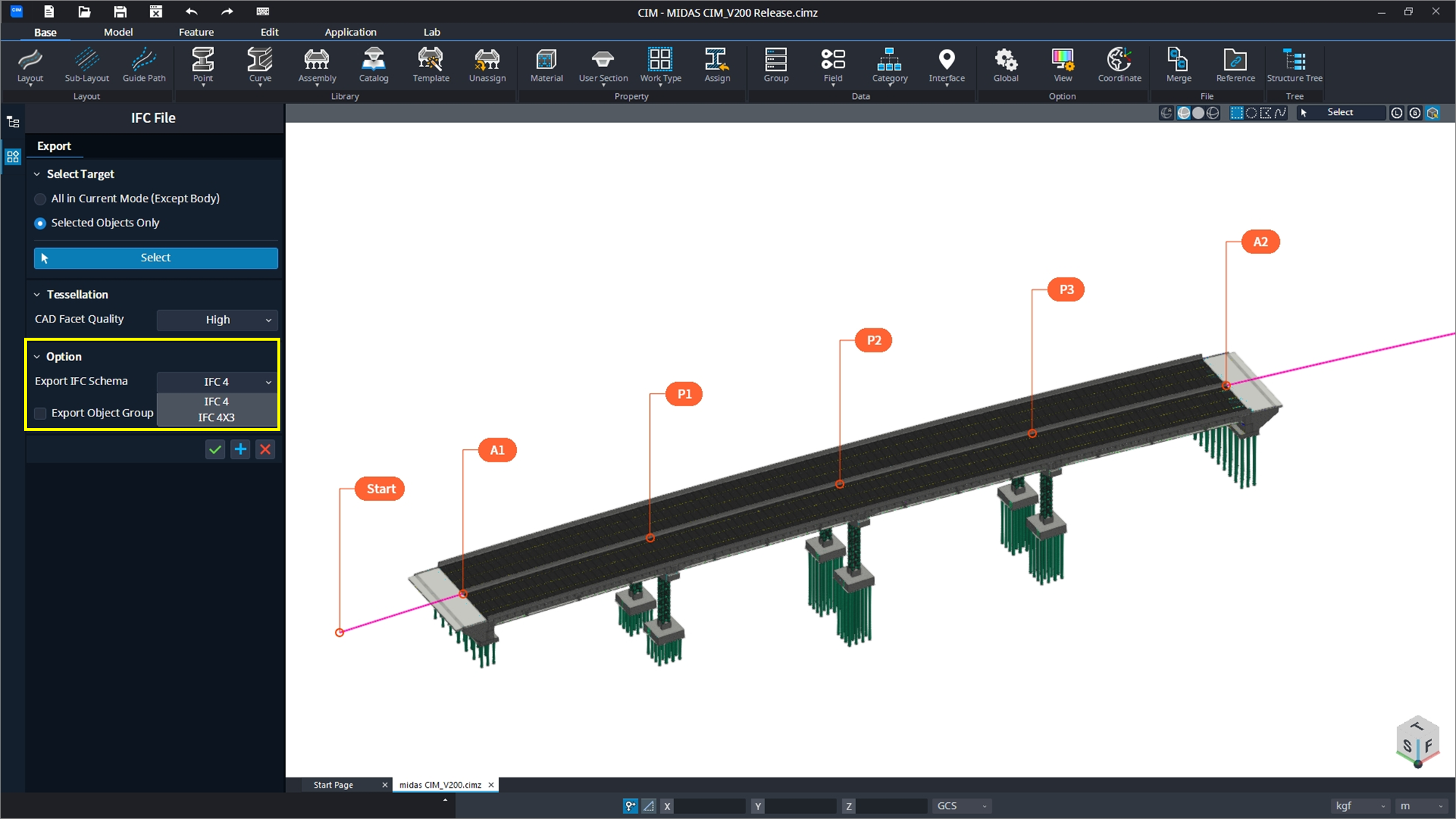

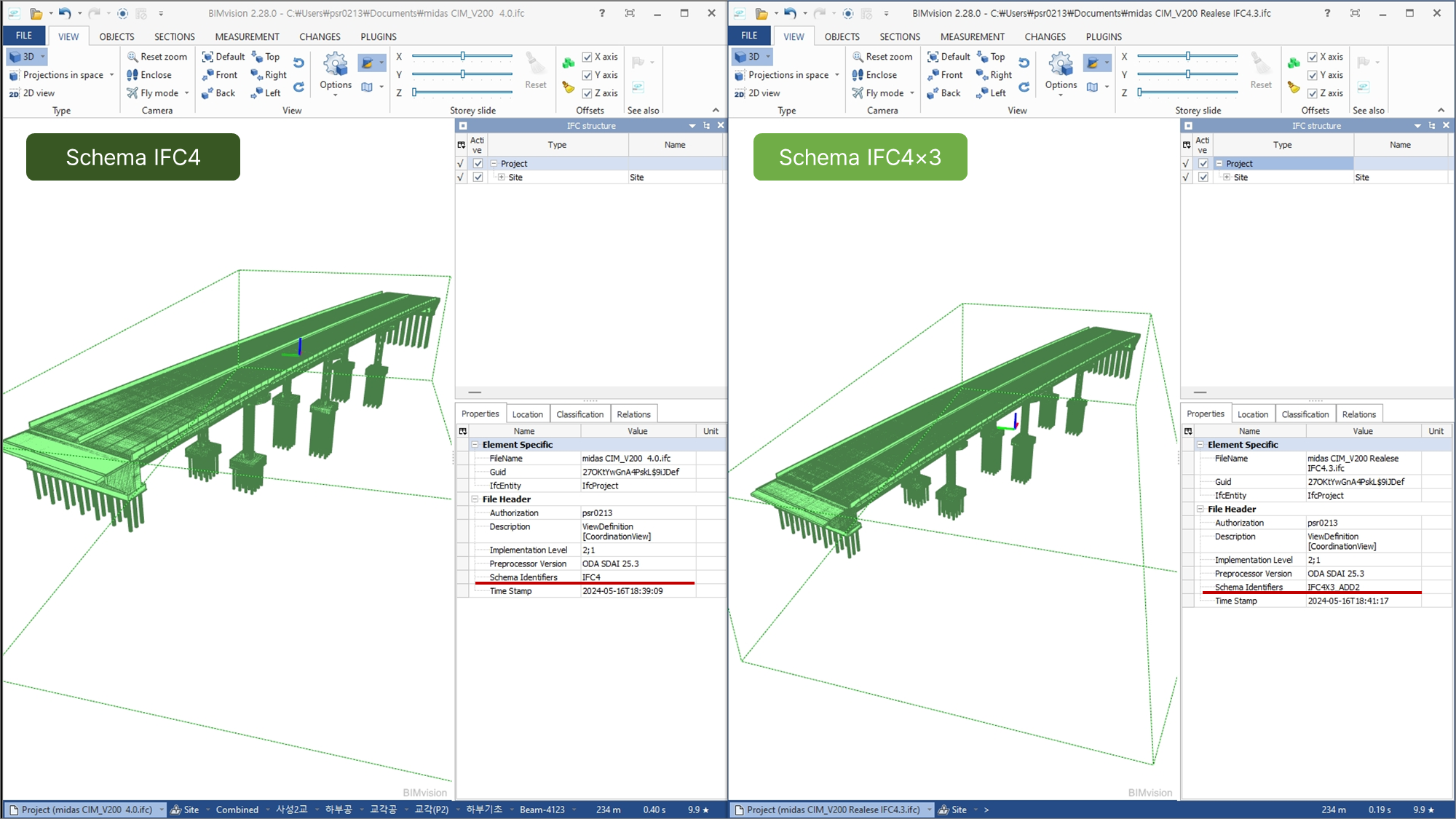

[IFC Export] Support for IFC Multi Schema
The IFC Export option has been enhanced to support both IFC4 and IFC4×3.

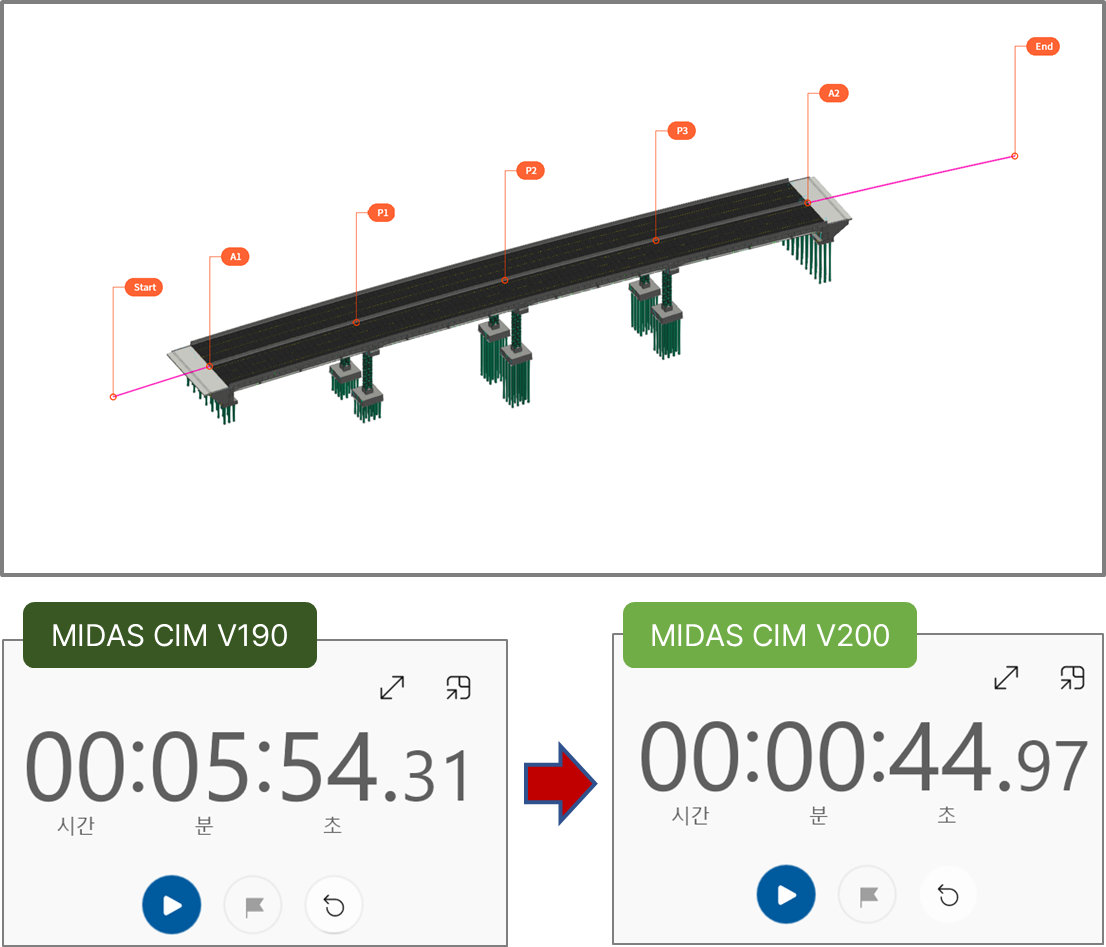

[IFC Export] Performance Improvement in IFC Export
In comparison to CIM V190, the average file creation speed in IFC Export has been improved by approximately sixfold, enhancing usability.

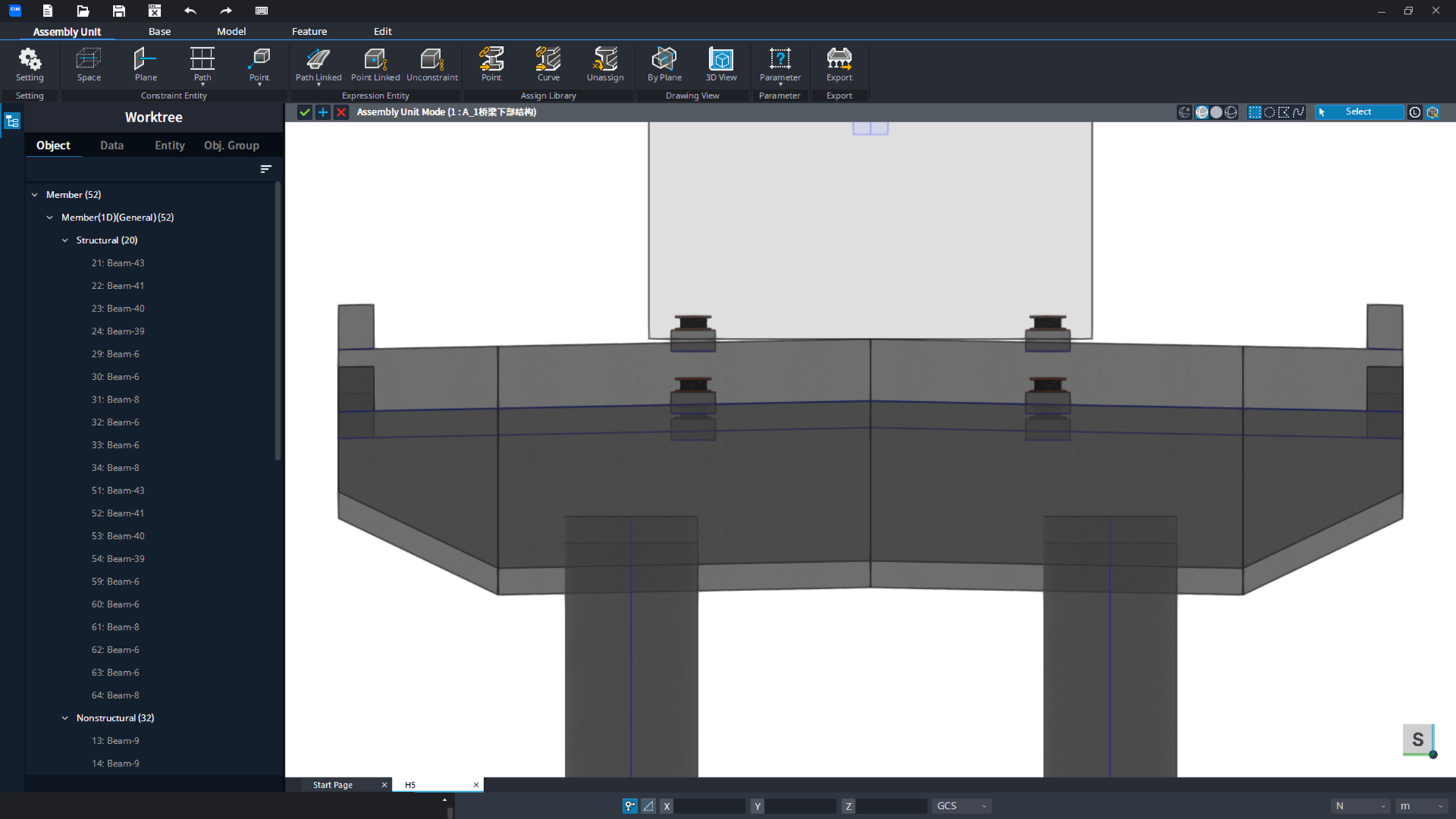

[Convenience] Save in Mode (File Saving in Library Mode)
Previously, in CIM models, file saving was restricted to Base Mode only, causing inconvenience. To address this issue, in CIM V200, it is now possible to save files while working in Library Mode. Even after closing the program, when reopening the file, users can continue their modeling work in Library Mode from the last saved state.
Furthermore, the speed of Mode Open processes for file reopening has been improved by approximately twofold on average.
[Convenience] Addition of Texture Images

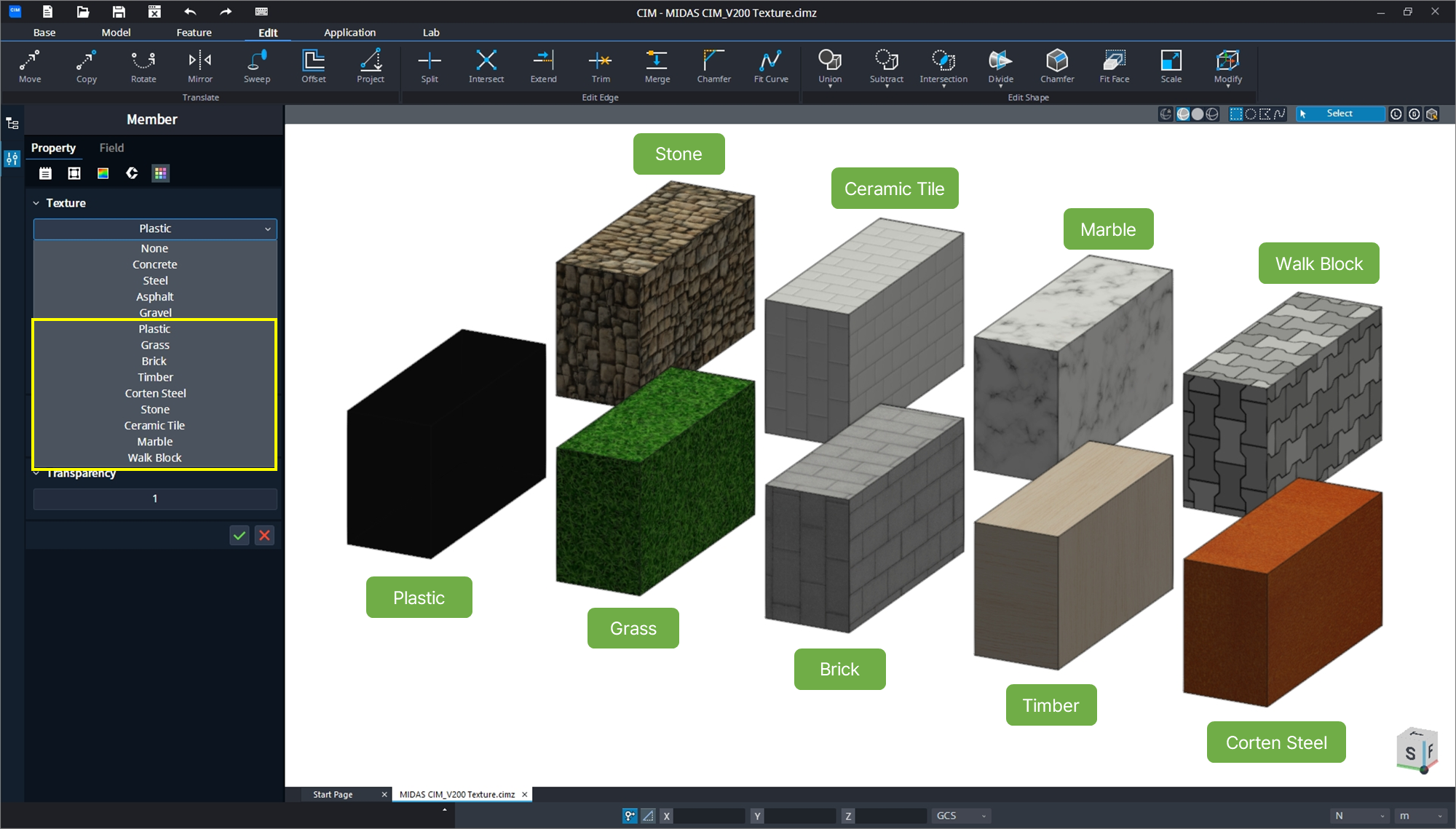

To apply various material effects, CIM V200 has incorporated nine new texture images, allowing them to be applied to models.
[Convenience] Addition of Graphics File Export
To enhance the usability of models created in CIM, the range of files that can be exported as Graphics Files has been expanded. Export to Wavefront OBJ format (.obj), GL Transmission Format (binary) (.glb), and Autodesk FBX (binary) (*.fbx) is now possible.
