Function
Define control parameters of deflection for serviceability check. The function is only activated for Eurocode.
Call
From the Main Menu select [Design] tab > [Type : Cold Formed steel Design] > [Design Input Data] group > [Design Parameters] > [Serviceability Parameters]
Input
Select a section from the list to modify the data.
Section List
Display the section list of cold formed steel entered during the creation of the analysis model. Select the section to be modified with the mouse.
Section Dimension
Display section dimension which is selected on list.
Metallic Coating
Enter the coating thickness. This value is taken into account in the tw (thickness) of the section for the strength check.
Type of Forming
Select type of forming option for "k" determination.

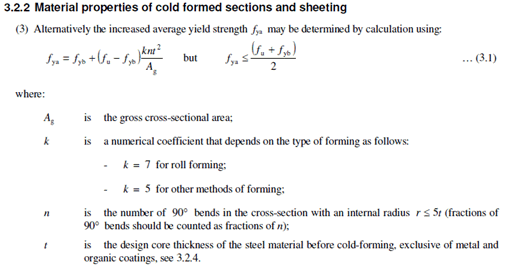

Note 1 [EN1993-1-3 : 2006]
