Ductility Factor(D/D2) Table

Function

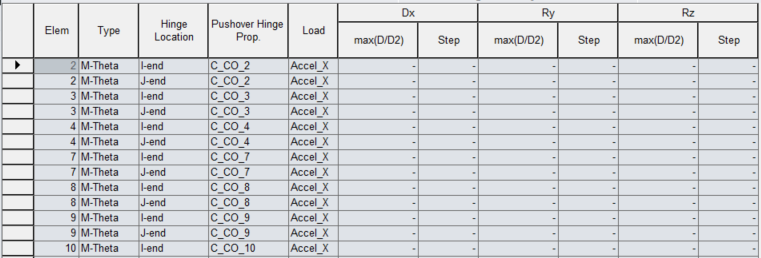

• Check the resulting ratio of the total deformation to the 2nd yielding deformation at each Pushover Step in a spreadsheet format table.
• Table Tool in Gen NX offers a variety of powerful built-in functions. Refer to the Usage of Table Tool for detailed information.

Call

From the Main Menu select [Pushover] tab > [Table] group > [Result Tables] > [Ductility Factor (D/D2) Table]

Input

Upon executing the Yield Step function, the Records Activation Dialog is invoked. Click the OK Button after selecting the output entities such as load cases, pushover steps, etc.

1. Beam Type

2. Wall Type

3. Truss Type

4. Spring Type
