Function
- Check the yielding steps for all the defined hinges in a spreadsheet format table, based on the pushover analysis results.
- Table Tool in Gen NX offers a variety of powerful built-in functions. Refer to the Usage of Table Tool for detailed information.
Call
From the Main Menu select [Pushover] tab > [Table] group > [Result Tables] > [Yield Step Table]
Input
Upon executing the Yield Step function, the Records Activation Dialog is invoked. Click after selecting the output entities such as load cases, pushover steps, etc.

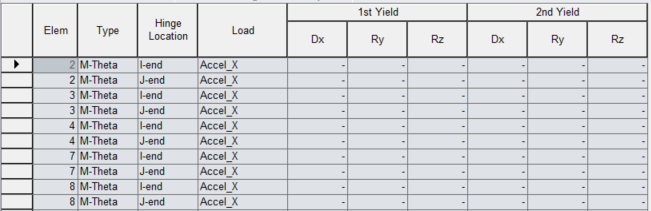

1.Beam Type
1st Yield : Pushover step at the first yielding point
2st Yield : Pushover step at the second yielding point
2. Wall Type
1st Yield : Pushover step at the first yielding point
2st Yield : Pushover step at the second yielding point
3. Truss Type
1st Yield : Pushover step at the first yielding point
2st Yield : Pushover step at the second yielding point
4. Spring Type
1st Yield : Pushover step at the first yielding point
2st Yield : Pushover step at the second yielding point
