Function
- Enter the rebar data for members for strength verification.
Call
From the Main Menu select Design > Meshed Design > Design Input Data > Design Parameters > Slab/Wall/Shell Rebars for Checking
Input
Member Type
Select the Member Type to be modified.
Type Name
Enter the name of a Sub-Domain.
Element List
Enter the element numbers of the slab to enter the specified rebar data.
Slab/Mat
Enter the standard rebar sizes, the spacing of rebars and covers used in the slab/mat design.
Dir. 1
Top : Enter the standard rebar size and spacing of the rebar for the top of the slab/mat
Bottom : Enter the standard rebar size and spacing of the rebar for the bottom of the slab/mat
Dir. 2
Top : Enter the standard rebar size and spacing of the rebar for the top of the slab/mat
Bottom : Enter the standard rebar size and spacing of the rebar for the bottom of the slab/mat

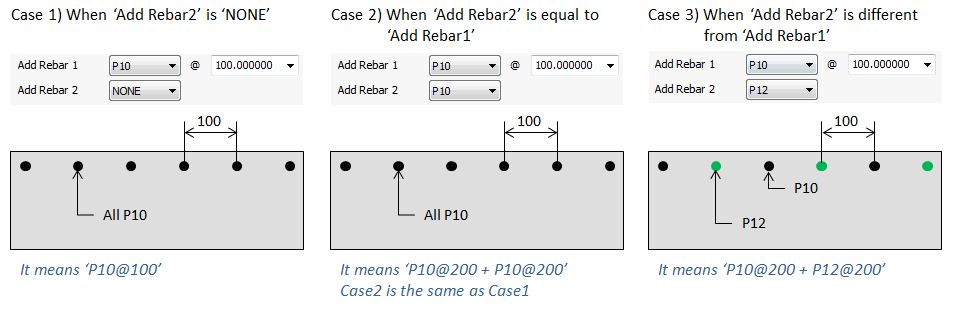

Add Rebar1 & Rebar2 :
Select the additional rebar.
Cover to Rebar
Distance between center of selected rebar in the top layer/bottom layer and top/bottom surface of the section
Wall
Enter the standard rebar sizes, the spacing of rebars and covers used in the wall design.
Vertical : Standard sizes for vertical rebars used in wall design
Horizontal : Standard size for horizontal rebars used in wall design
dw : Distance between the center of the end vertical rebars and the end of the shear wall (cover thickness)
Shell
Enter the standard rebar sizes, the spacing of rebars and covers used in the shell design.
Dir. 1
Top : Enter the standard rebar size and spacing of the rebar for the top of the shell
Bottom : Enter the standard rebar size and spacing of the rebar for the bottom of the shell
Dir. 2
Top : Enter the standard rebar size and spacing of the rebar for the top of the shell
Bottom : Enter the standard rebar size and spacing of the rebar for the bottom of the shell
Add Rebar1 :
Select the additional rebar.
Note
Consider Iteration for Optimal design :
If you Check off the option, default height of Sandwich thickness is defined as the thickness of 20% of shell.
If you Check on the option, the optimum sandwich thickness will be automatically calculated and used in the analysis.
Number of Iteration : Enter the maximum number of iterations.
Convergence Tolerance : Enter the Convergence Tolerance value.
