Summary
- View and modify field data assigned to objects and structures.
How to Run
- Select an object on the screen > Field tab > Field Data Viewer button
- Select an object on the screen > Field Viewer button
Explanation
Input Field Data

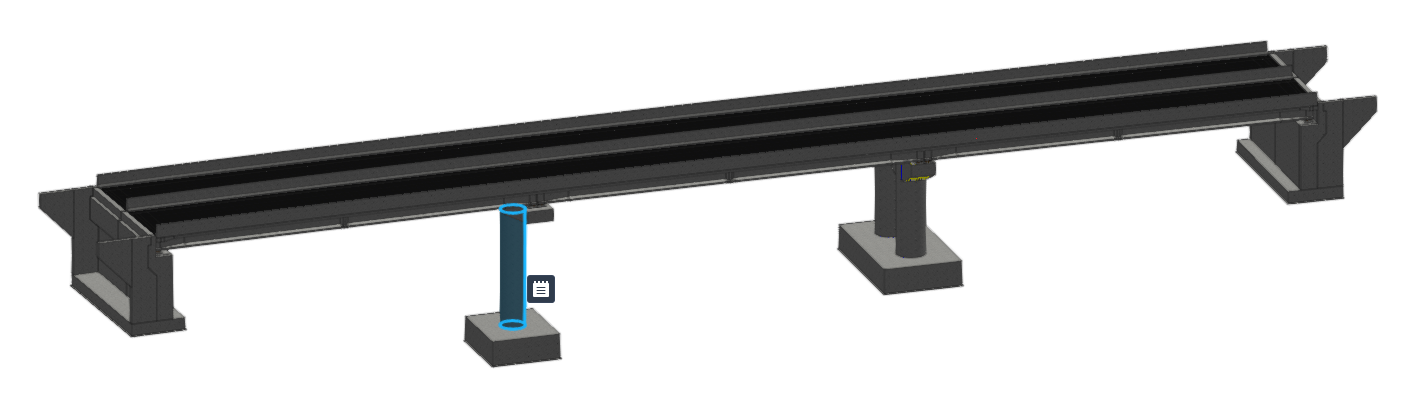

Check the Field Configuration configured for the Object or Structure and input Data.

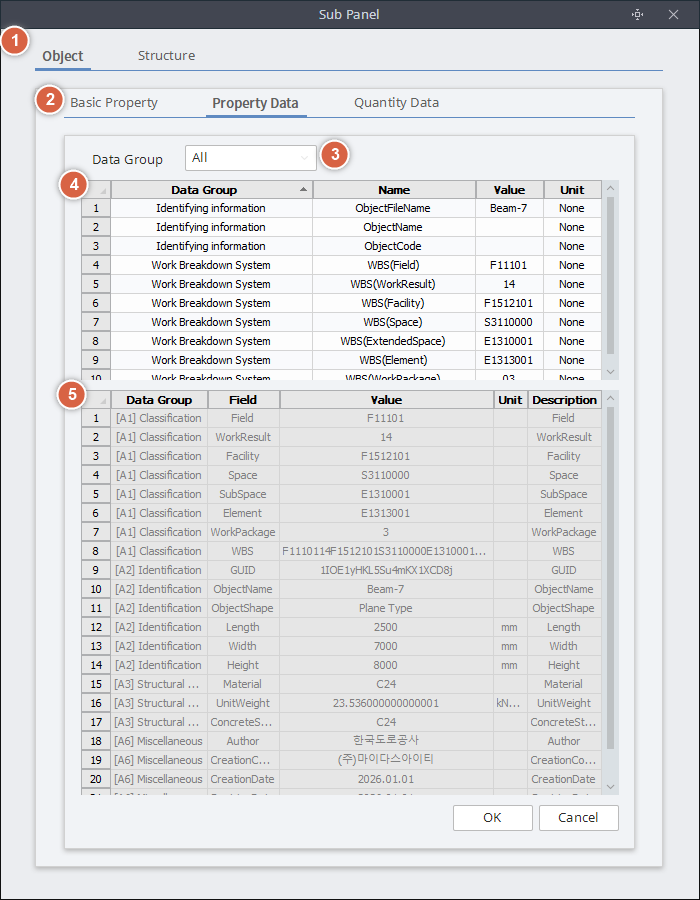

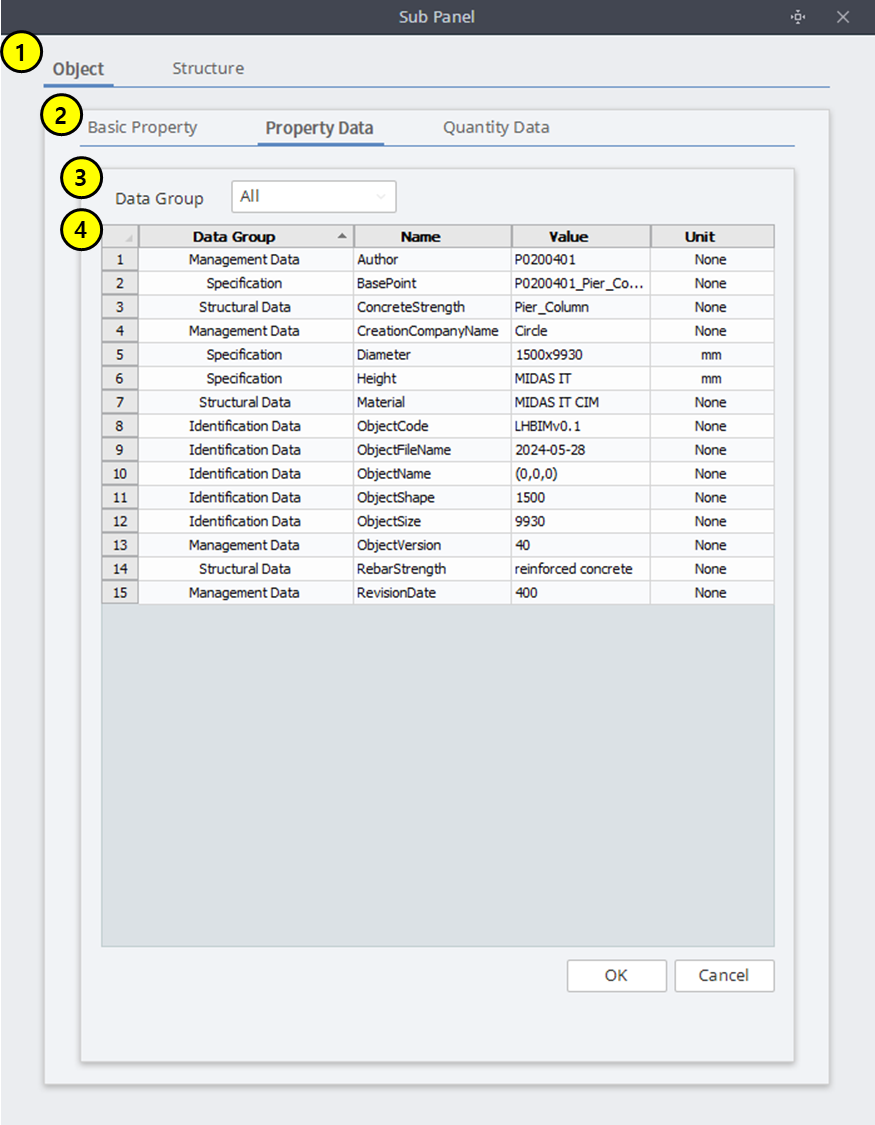

① [Object / Structure Tab]
Object : Check the Field Data assigned to the selected Object or Object Group.
Structure : Check the Field Data assigned to the parent Structures to which the selected object belongs.
② [Basic Property / Property Data / Quantity Data Tab]
Basic Property
Check the basic information the selected object has (e.g. volume, weight, length, etc.)
Structure does not have a Basic Proptery Tab.
Property Data / Quantity Data
Check the Field Data assigned to the selected object.
Tabs are differentiated based on the Property Data / Quantity Data setting in the Data Group.
③ [Data Group]
View Field Data by filtering on a specific Data Group.
④ [Data Table]
The Field Configuration generated based on the Category selection is displayed.
In the Value column of Field Data, the user inputs property information.
Not editable : Data Group, Name
Enterable : Value, Unit
Supports copy & paste using the Excel program.

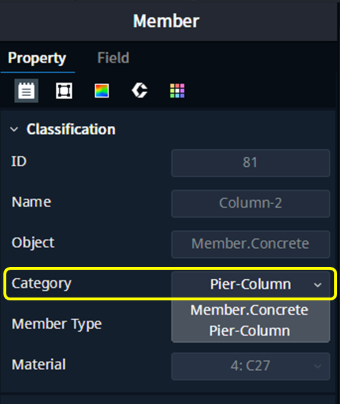

The field configuration is organized by the Category selected on the object's Properties tab.
Objects can only have one Category (Field Configuration), and changing an object's Category will result in a different Field Configuration.
Check the category configuration before entering the field data because the data will be lost if you change it.
[OK]
Save the changes to the Data Table temporarily and close the Field Viewer.
Click the Apply button in the main panel to save your final changes.
[Cancel]
Close the Field Viewer without saving.
