[DESIGN+] Unit System for Detailed/Summary Report

Question

How to change the Unit system of Detailed/ Summary report?

Answer

By default, the unit system in the detailed report is based on the selected design code and is not linked to the Global Unit System option.

To modify this setting, follow these steps:

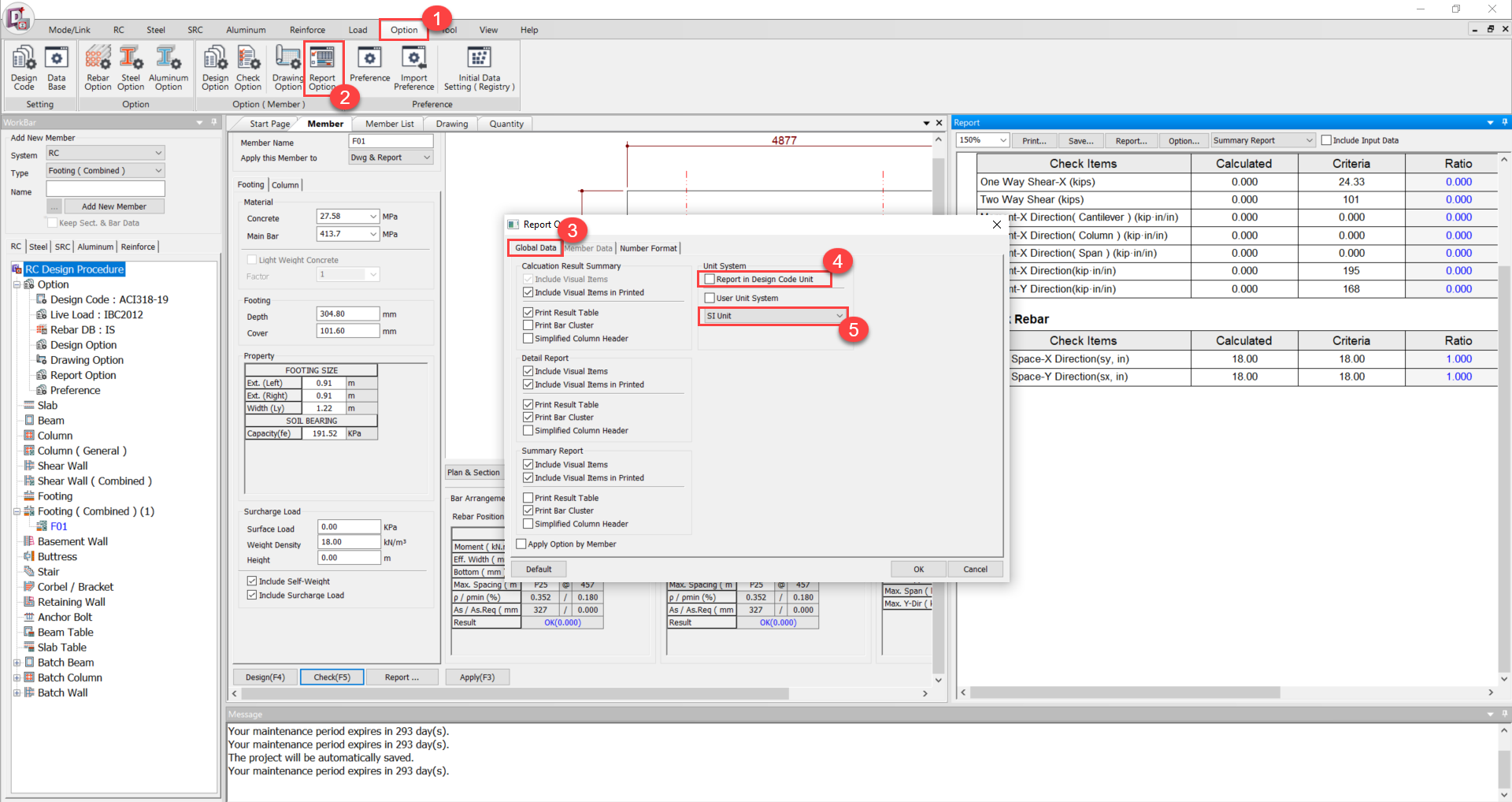

1. Navigate to the "Options" tab in the main ribbon menu.
2. Select "Report Options."
3. Under the "Global Data" tab, locate the "Unit System" section.
4. Uncheck the "Report in Design Code Unit" option.
5. Choose the preferred unit system from the dropdown list.

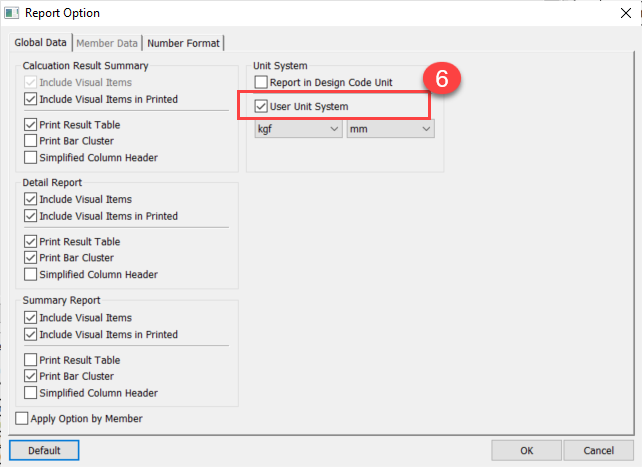

6. If the desired unit system is not available in the dropdown, enable the "User Unit System" option and manually set the required units.
