Question
An error message appears while importing RC column data from MIDAS Gen to Design+: “Material Data for the element is improper.” Both programs are updated to the latest versions. How can this issue be resolved?
Answer
This error typically occurs when different design codes are used in MIDAS Gen and Design+. Mismatched codes can cause the material data to be misinterpreted during data transfer, resulting in import failure.
Resolution Steps:

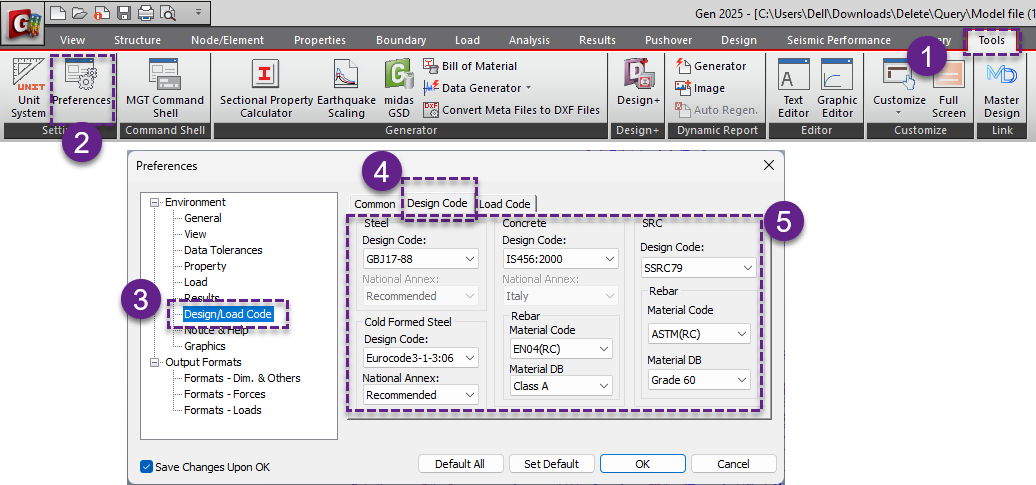

- Check the Design Code in MIDAS Gen:
→ Navigate to: Tools > Preference > Design/Load Code
→ Confirm the design code currently assigned to the structure.

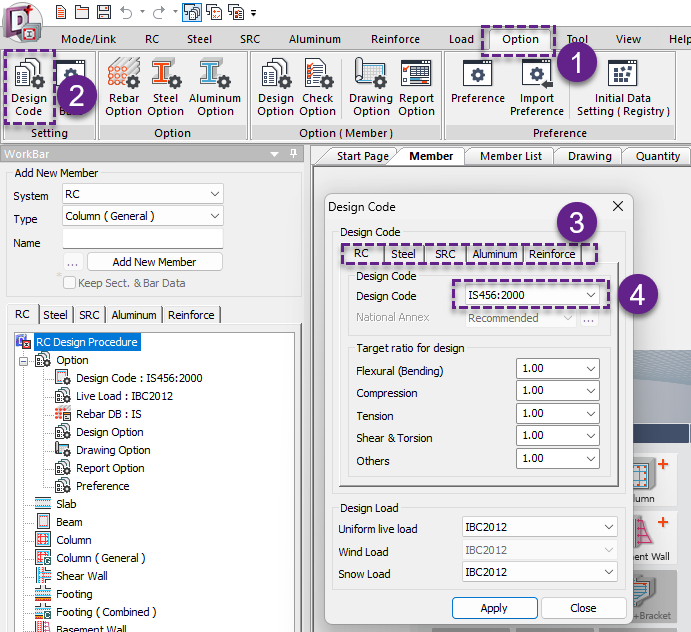

- Check the Design Code in Design+:
Before importing the model, ensure the same design code is selected.
→ Go to: Option > Setting > Design Code
→ Select the appropriate structure material type (e.g., Concrete or Steel)
→ Confirm or update the design code to match that used in Gen.
By ensuring consistency in design and rebar codes, the element material data will be recognized properly, and the model will import without error.
