1. Update Item
1) Fixed modeling creation error
2) Modified data deletion function
3) Modified temporary DB deletion function
4) Modified modeling number recalculation function
5) Prevented duplicate Node creation
2. Description
1) Fixed modeling creation error
The issue where duplicate IDs were created when multiple modeling components were used simultaneously in Grasshopper, causing errors in modeling creation, has been fixed.
2) Modified data deletion function

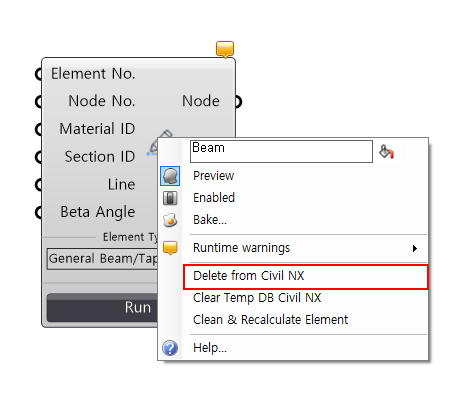

a. The component name has been changed from "Delete from Midas Civil NX" to "Delete from Civil NX."
b. The issue where the component's Run button no longer worked after the function was executed has been fixed.
c. Only data generated from Grasshopper will be deleted. (See detailed description below)
b. The issue where the component's Run button no longer worked after the function was executed has been fixed.
c. Only data generated from Grasshopper will be deleted. (See detailed description below)

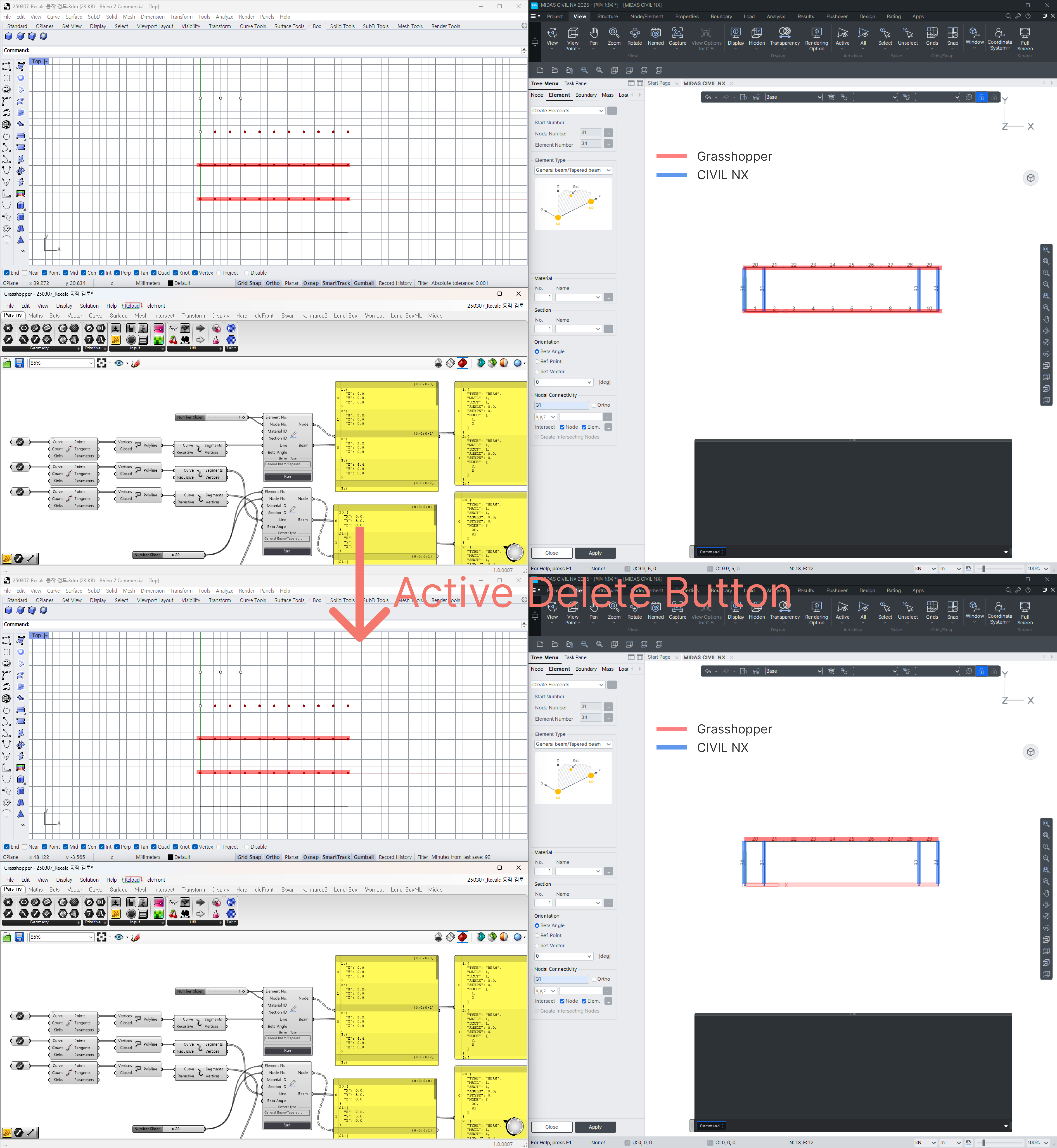

Data that was created in Grasshopper will be deleted, but data used in Civil NX, created from Grasshopper, will not be deleted.

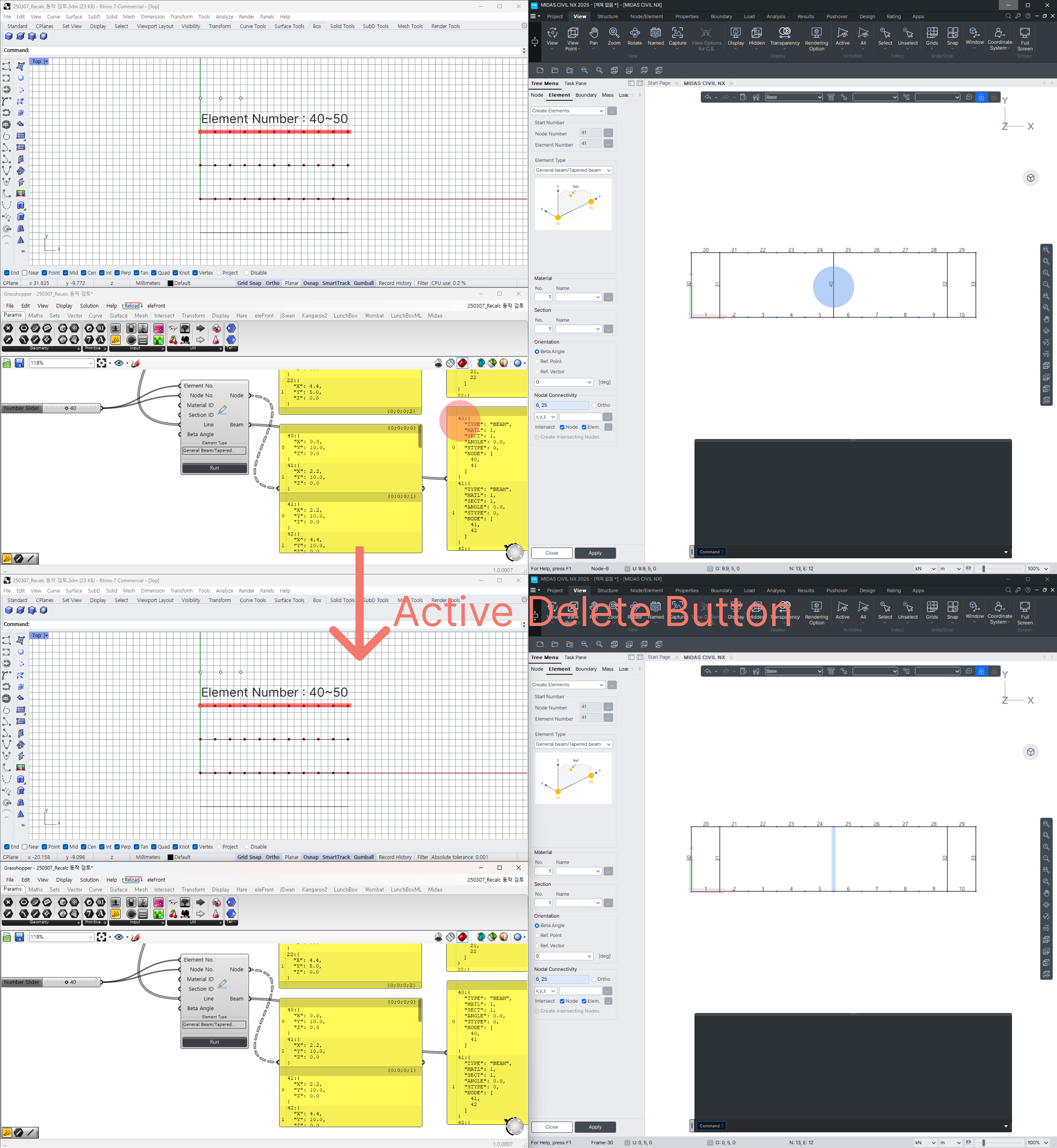

However, if an element created in Civil NX contains data from Grasshopper, it will be deleted.

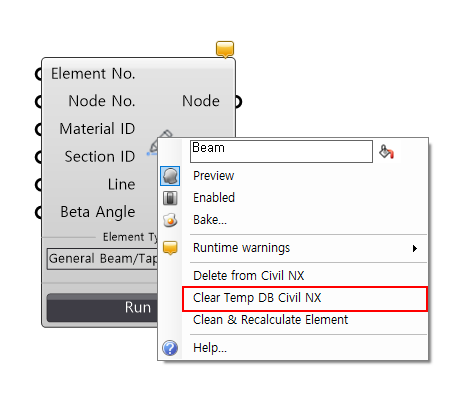

3) Modified temporary DB deletion function
The issue where no data was generated after re-running the component following the function execution has been fixed.
4) Modified modeling number recalculation function

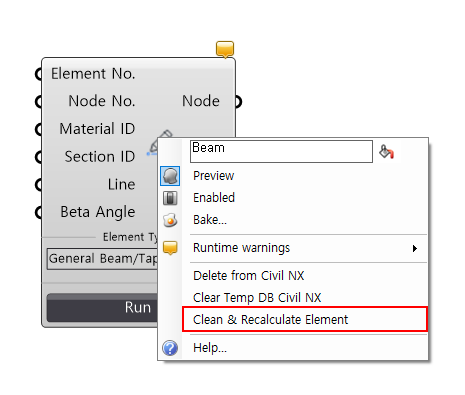

a. The component name has been changed from "Recalculating Temp DB" to "Clean & Recalculate Element."
b. All components with modeling information will be recalculated simultaneously, even with a single component recalculation.
c. When the function is executed, the modeling information created in Civil NX will be deleted, similar to the "Delete from Civil NX" function.
b. All components with modeling information will be recalculated simultaneously, even with a single component recalculation.
c. When the function is executed, the modeling information created in Civil NX will be deleted, similar to the "Delete from Civil NX" function.
5) Prevented duplicate Node creation

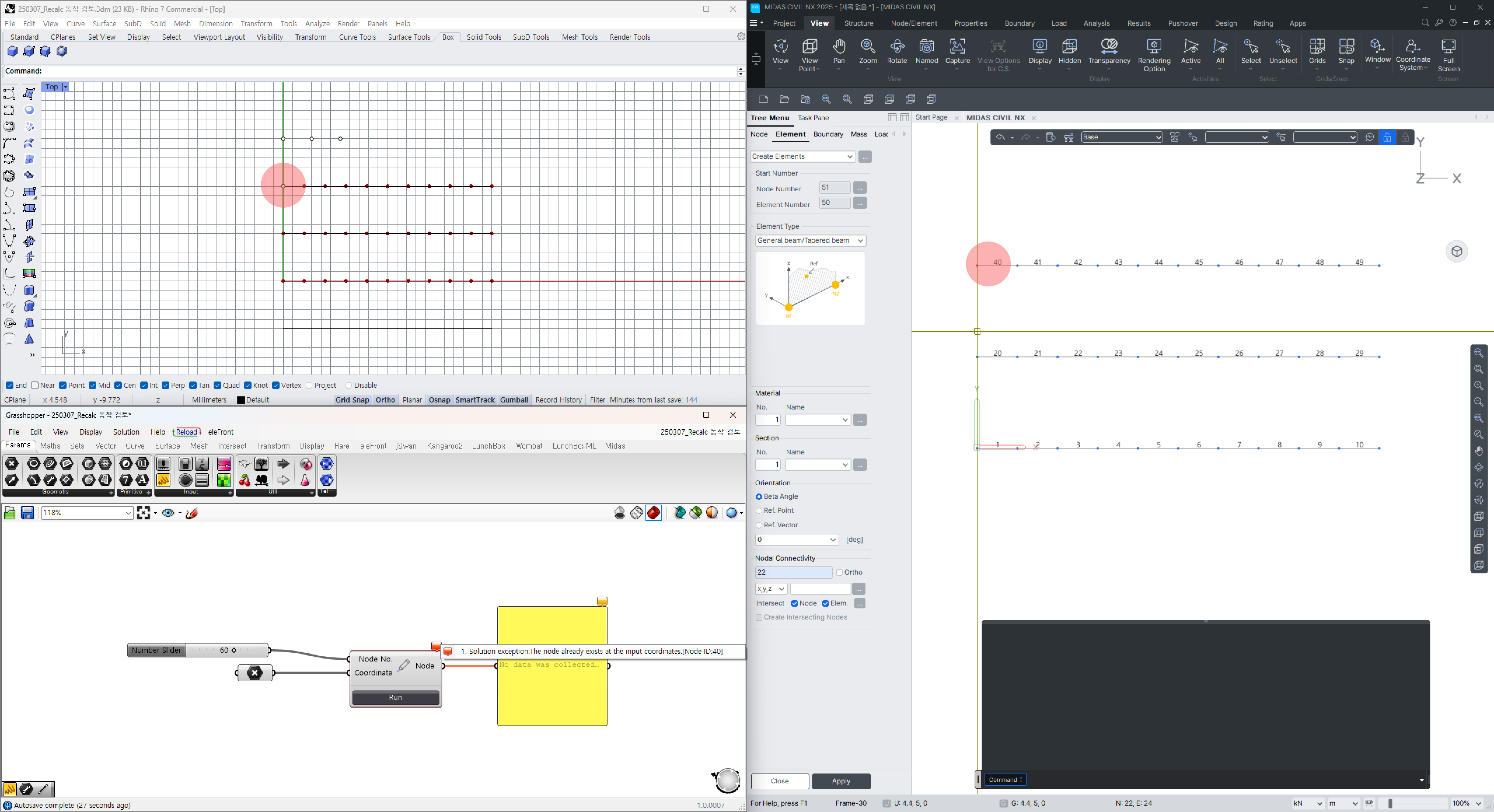

The issue where duplicate Nodes could be created at the same location in Grasshopper has been fixed.
If duplication occurs at the same location, a warning message will appear in the component.
If duplication occurs at the same location, a warning message will appear in the component.
