[MIDAS GH] 2026 V.3.7.0

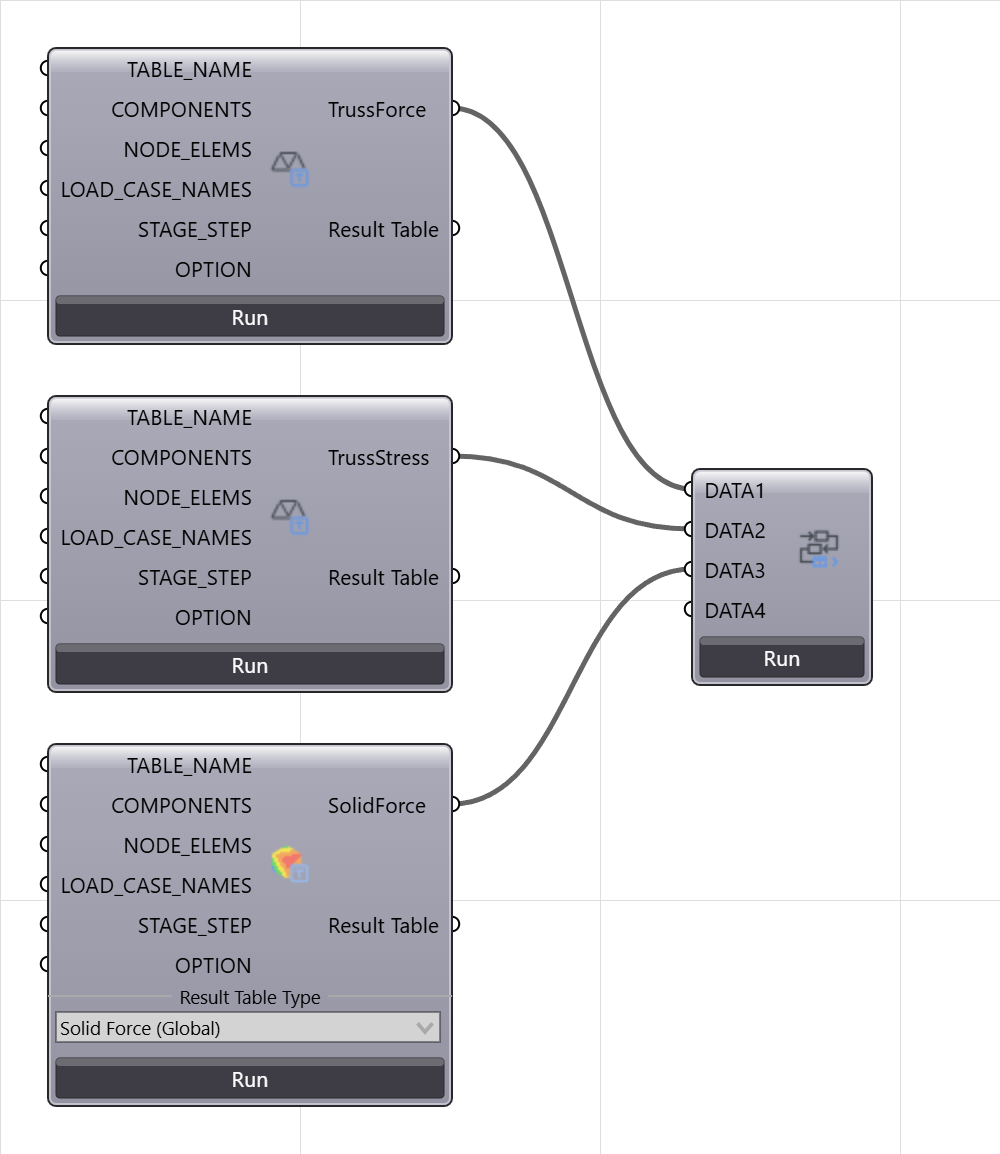

Run the connected result table components.

Grasshopper Path : [Midas] > [Tools] > [Midas Table Builder]

How to use

1. Place the Midas Table Builder component from [Midas] > [Tools] > [Midas Table Builder] on the Grasshopper canvas.

Inputs/outputs in detail: Midas Table Builder manual

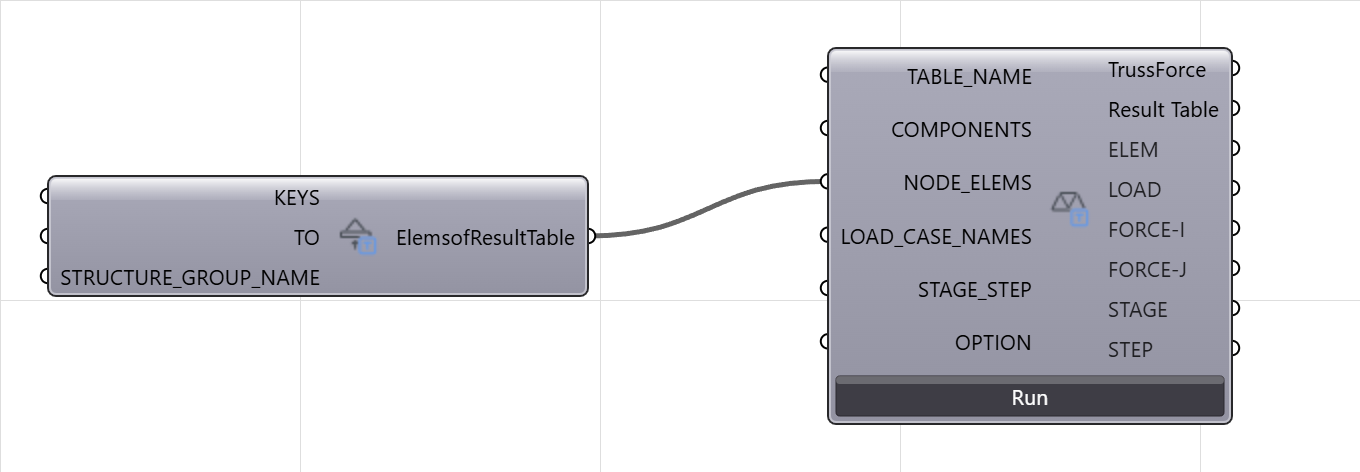

Grasshopper Path : [Midas] > [Results] > [Truss Force]

How to use

1. Place the Truss Force component from [Midas] > [Results] > [Truss Force] on the Grasshopper canvas.
2. Place the Elems of Result Table component and connect its output to the NODE_ELEMS input.
3. Connect values to the required inputs LOAD_CASE_NAMES.
4. Press Run to get the result table from MIDAS; it is output as Result Table (JSON) and one output per column. To run several result components at once, connect them to Midas Table Builder.

Inputs/outputs in detail: Truss Force manual

Reference API Manual: Truss Force - Analysis Result Table (/post/TABLE)

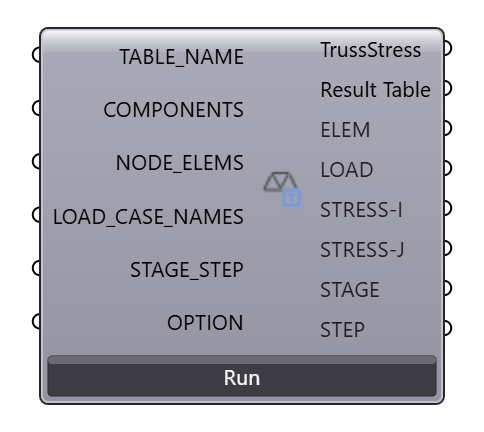

Grasshopper Path : [Midas] > [Results] > [Truss Stress]

How to use

1. Place the Truss Stress component from [Midas] > [Results] > [Truss Stress] on the Grasshopper canvas.
2. Place the Elems of Result Table component and connect its output to the NODE_ELEMS input.
3. Connect values to the required inputs LOAD_CASE_NAMES.
4. Press Run to get the result table from MIDAS; it is output as Result Table (JSON) and one output per column. To run several result components at once, connect them to Midas Table Builder.

Inputs/outputs in detail: Truss Stress manual

Reference API Manual: Truss Stress - Analysis Result Table (/post/TABLE)

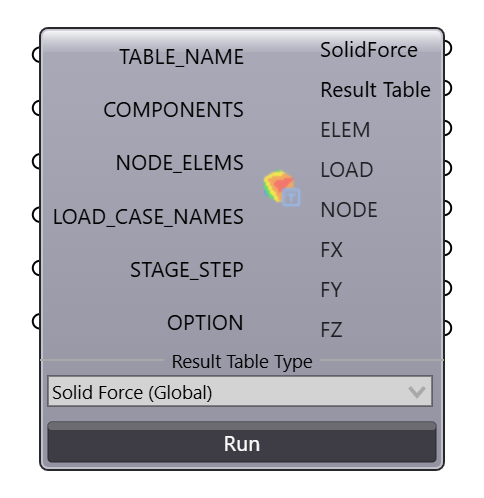

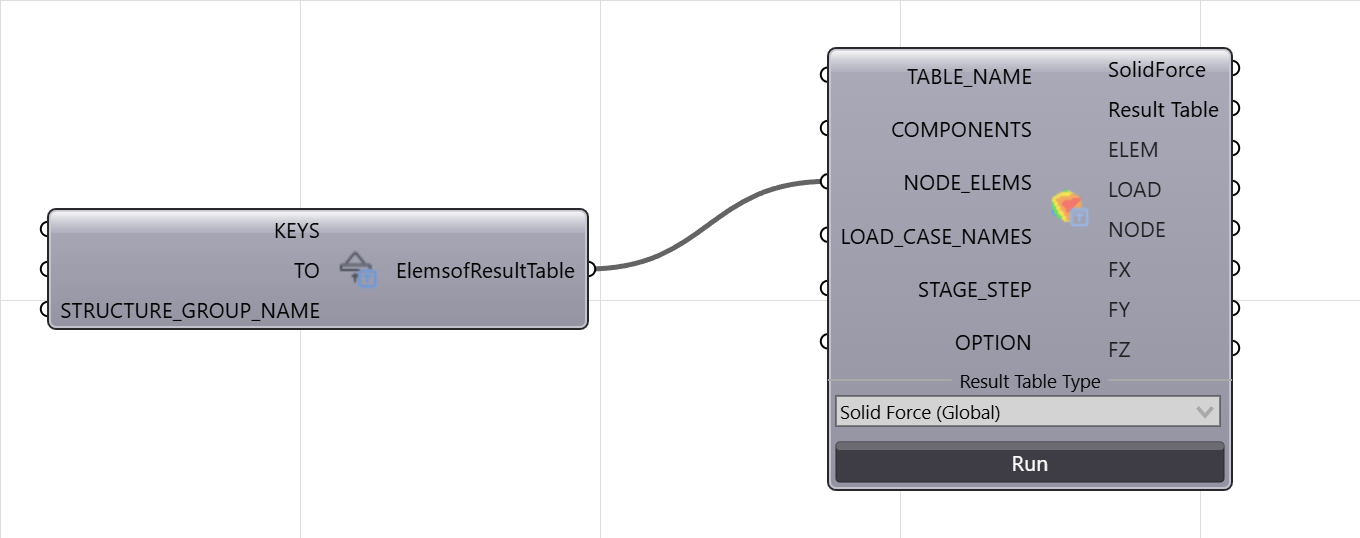

Grasshopper Path : [Midas] > [Results] > [Solid Force]

How to use

1. Place the Solid Force component from [Midas] > [Results] > [Solid Force] on the Grasshopper canvas.
2. Place the Elems of Result Table component and connect its output to the NODE_ELEMS input.
3. Connect values to the required inputs LOAD_CASE_NAMES.
4. Select Result Table Type from the dropdown below the component.
5. Press Run to get the result table from MIDAS; it is output as Result Table (JSON) and one output per column. To run several result components at once, connect them to Midas Table Builder.

Inputs/outputs in detail: Solid Force manual

Reference API Manual: Solid Force (Global) - Analysis Result Table (/post/TABLE) · Solid Force (Local) - Analysis Result Table (/post/TABLE)

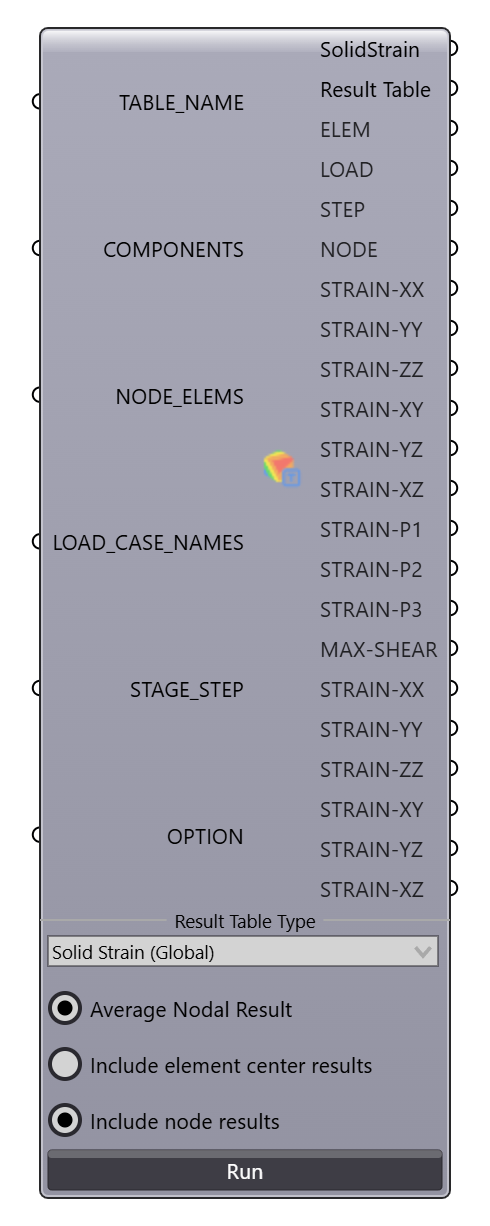

Grasshopper Path : [Midas] > [Results] > [Solid Strain]

How to use

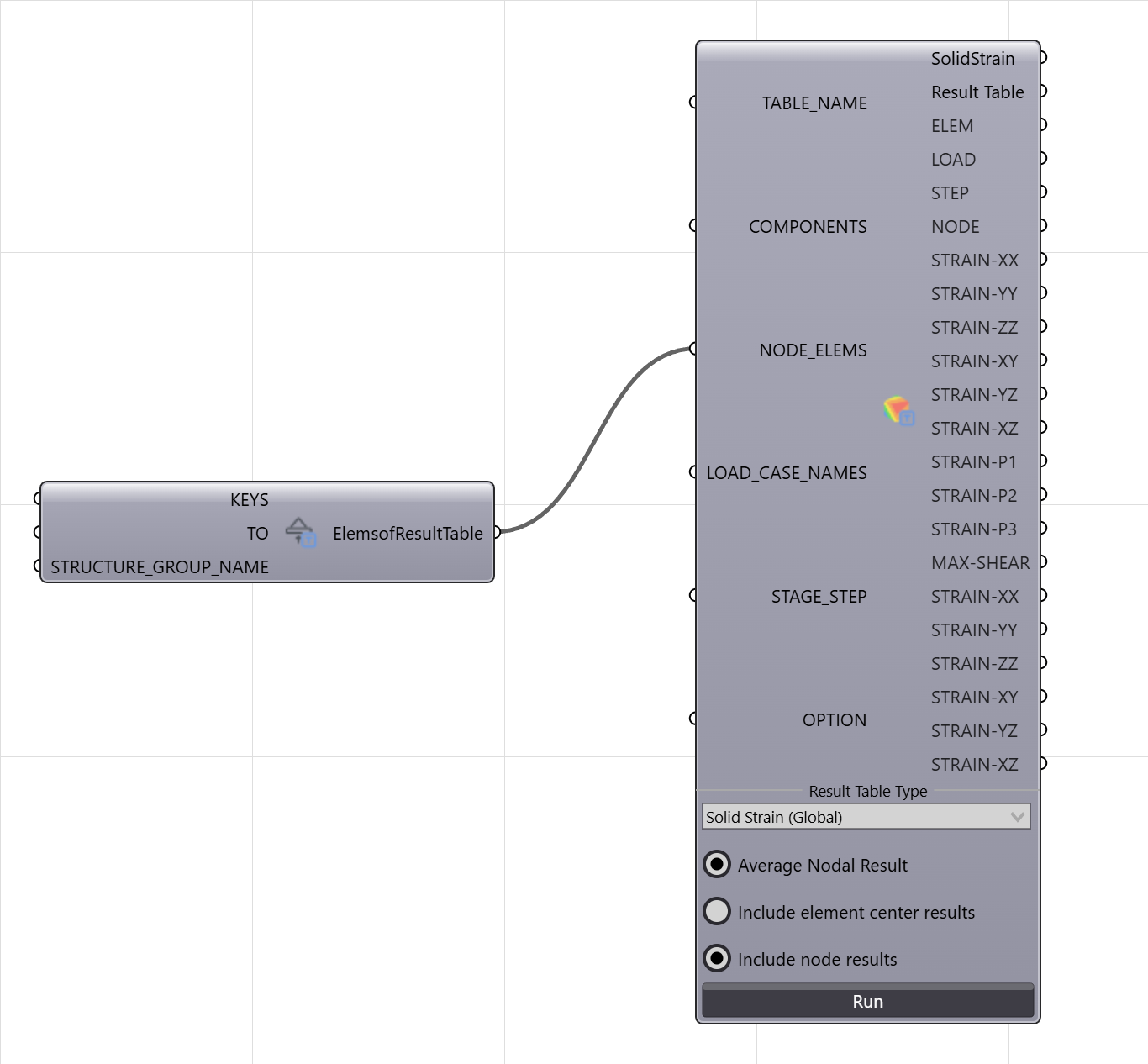

1. Place the Solid Strain component from [Midas] > [Results] > [Solid Strain] on the Grasshopper canvas.
2. Place the Elems of Result Table component and connect its output to the NODE_ELEMS input.
3. Connect values to the required inputs LOAD_CASE_NAMES.
4. Select Result Table Type from the dropdown below the component and check the options you need (Average Nodal Result, Include element center results, Include node results).
5. Press Run to get the result table from MIDAS; it is output as Result Table (JSON) and one output per column. To run several result components at once, connect them to Midas Table Builder.

Inputs/outputs in detail: Solid Strain manual

Reference API Manual: Solid Strain (Global) - Analysis Result Table (/post/TABLE) · Solid Strain (Local) - Analysis Result Table (/post/TABLE)

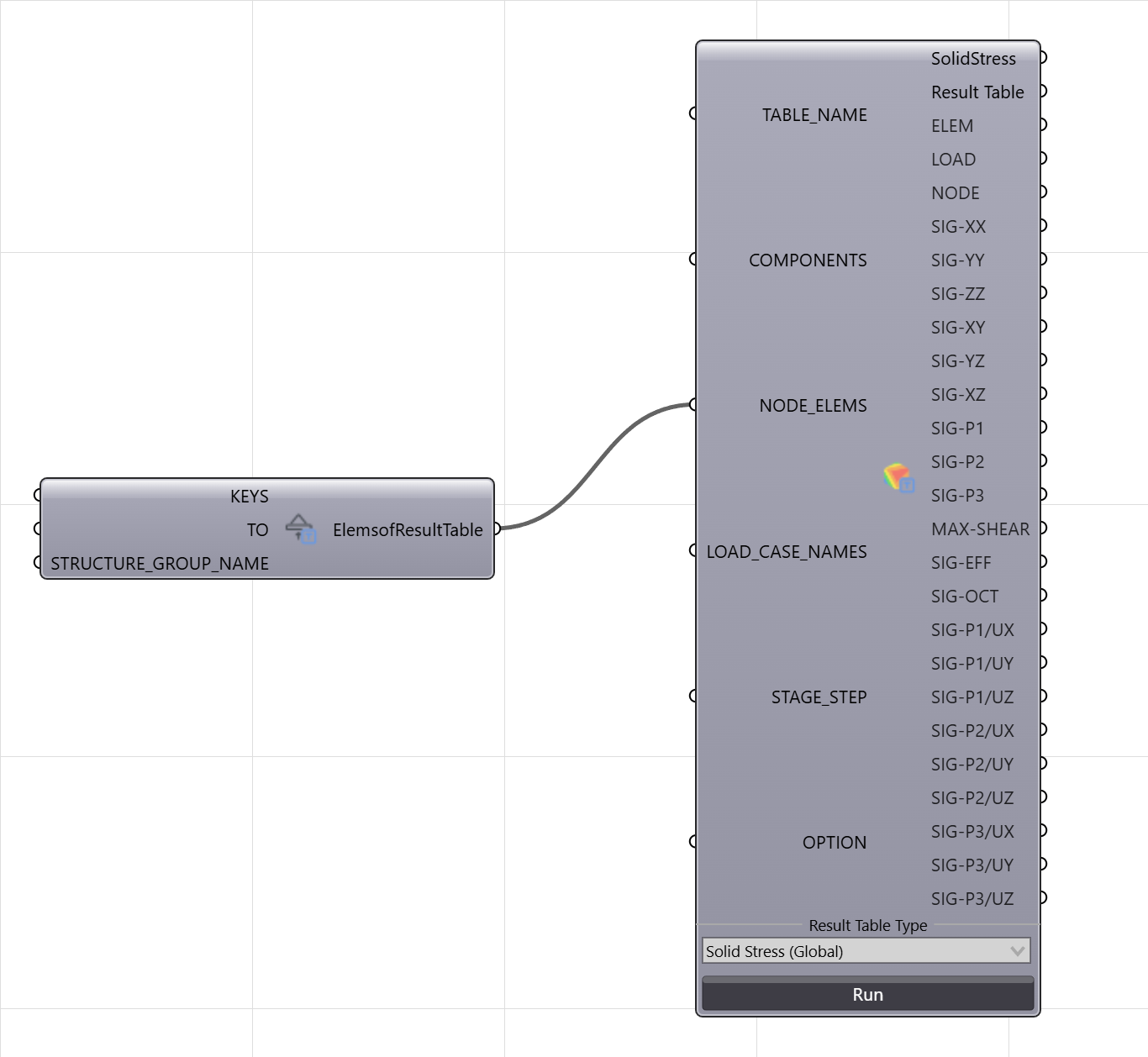

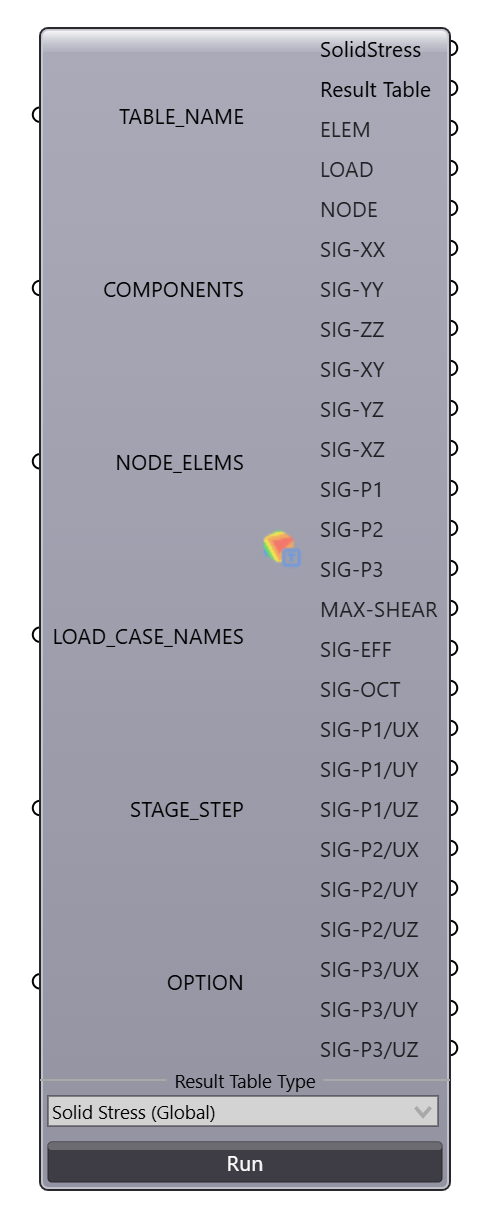

Grasshopper Path : [Midas] > [Results] > [Solid Stress]

How to use

1. Place the Solid Stress component from [Midas] > [Results] > [Solid Stress] on the Grasshopper canvas.
2. Place the Elems of Result Table component and connect its output to the NODE_ELEMS input.
3. Connect values to the required inputs LOAD_CASE_NAMES.
4. Select Result Table Type from the dropdown below the component.
5. Press Run to get the result table from MIDAS; it is output as Result Table (JSON) and one output per column. To run several result components at once, connect them to Midas Table Builder.

Inputs/outputs in detail: Solid Stress manual

Reference API Manual: Solid Stress (Global) - Analysis Result Table (/post/TABLE) · Solid Stress (Local) - Analysis Result Table (/post/TABLE)

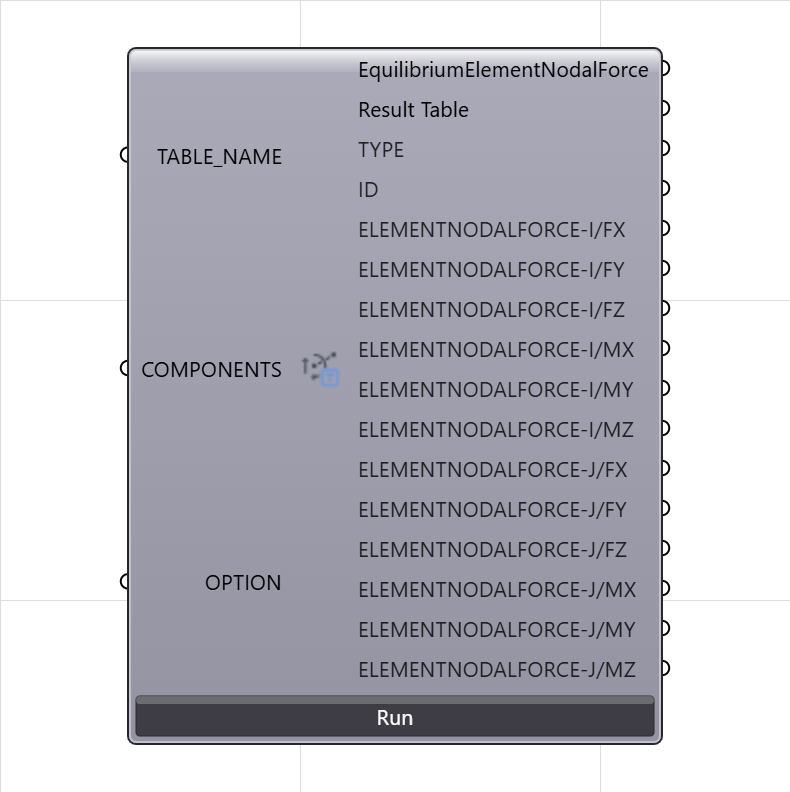

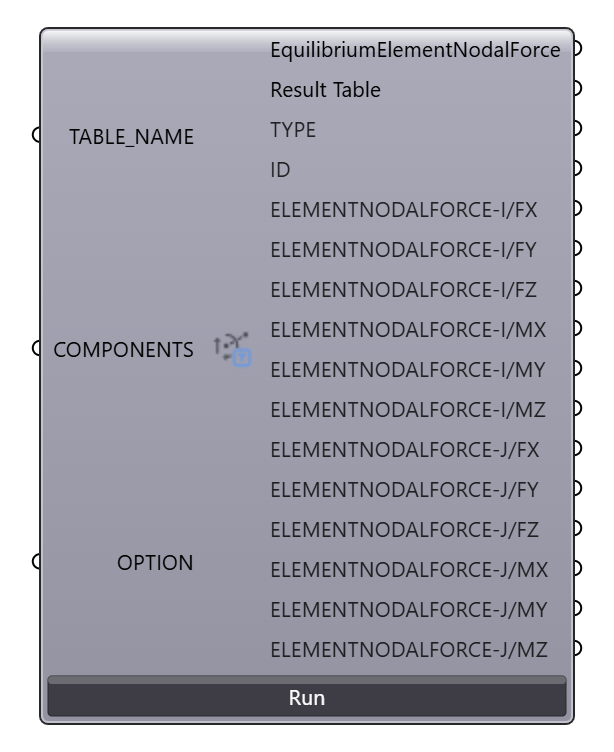

Grasshopper Path : [Midas] > [Results] > [Equilibrium Element Nodal Force]

How to use

1. Place the Equilibrium Element Nodal Force component from [Midas] > [Results] > [Equilibrium Element Nodal Force] on the Grasshopper canvas.
2. Press Run to get the result table from MIDAS; it is output as Result Table (JSON) and one output per column. To run several result components at once, connect them to Midas Table Builder.

Inputs/outputs in detail: Equilibrium Element Nodal Force manual

※ CIVIL NX only

Reference API Manual: Equilibrium Element Nodal Force - Analysis Result Table (/post/TABLE)

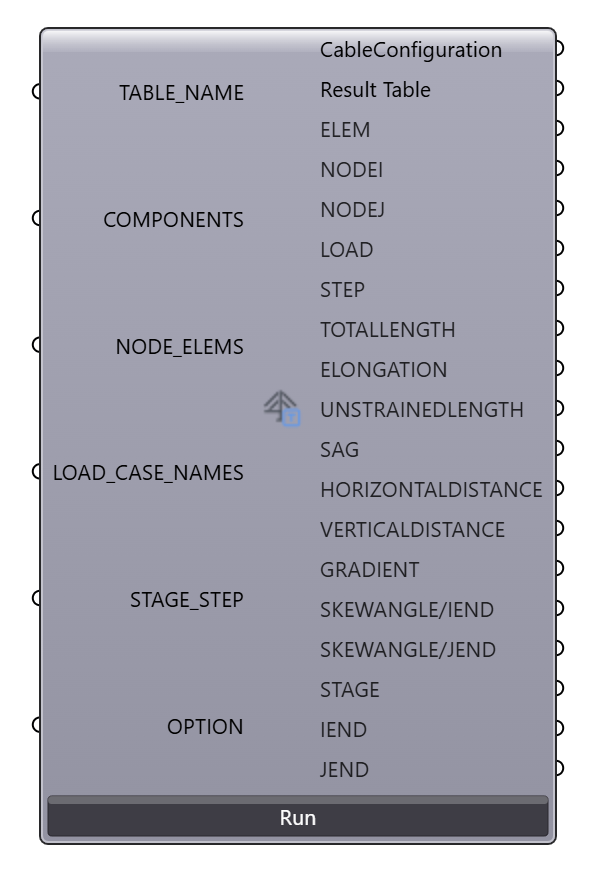

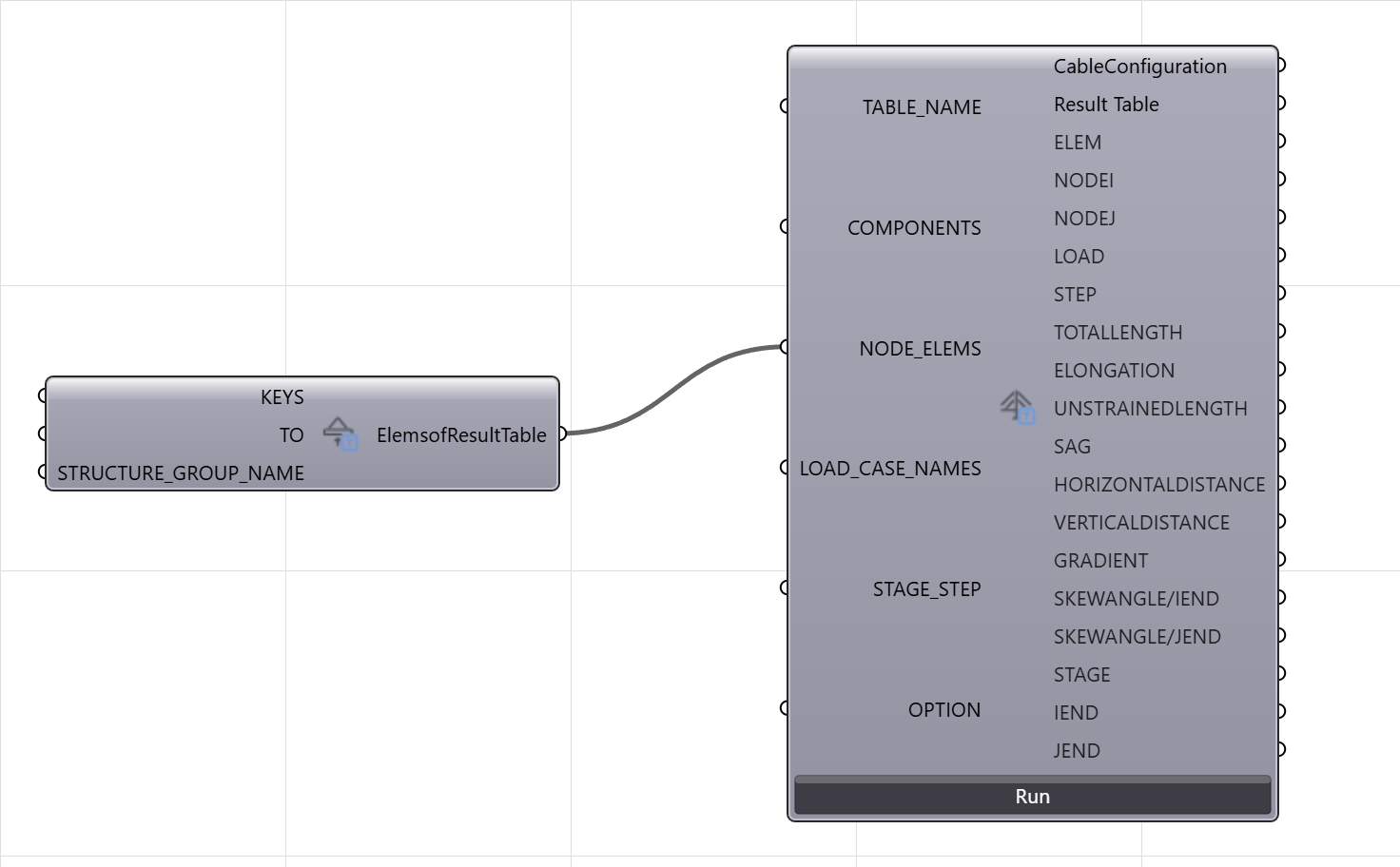

Grasshopper Path : [Midas] > [Results] > [Cable Configuration]

How to use

1. Place the Cable Configuration component from [Midas] > [Results] > [Cable Configuration] on the Grasshopper canvas.
2. Place the Elems of Result Table component and connect its output to the NODE_ELEMS input.
3. Connect values to the required inputs LOAD_CASE_NAMES.
4. Press Run to get the result table from MIDAS; it is output as Result Table (JSON) and one output per column. To run several result components at once, connect them to Midas Table Builder.

Inputs/outputs in detail: Cable Configuration manual

Reference API Manual: Cable Configuration - Analysis Result Table (/post/TABLE)

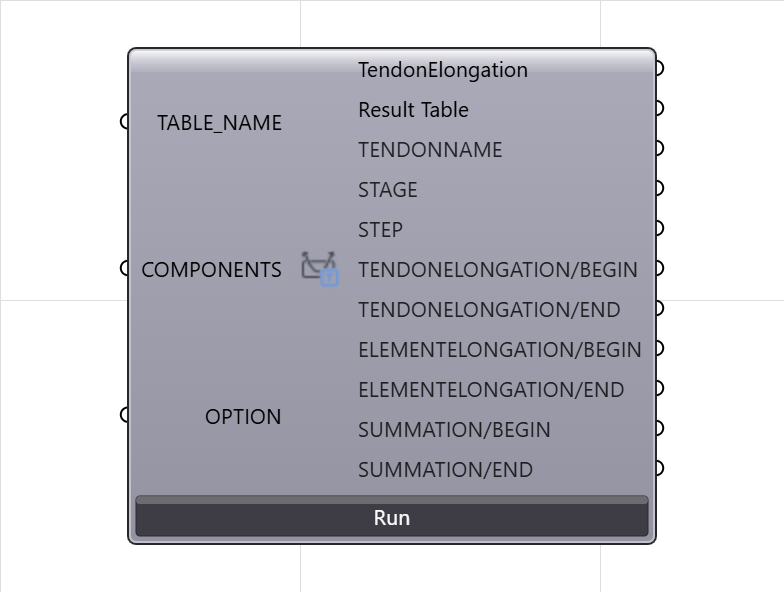

Grasshopper Path : [Midas] > [Results] > [Tendon Elongation]

How to use

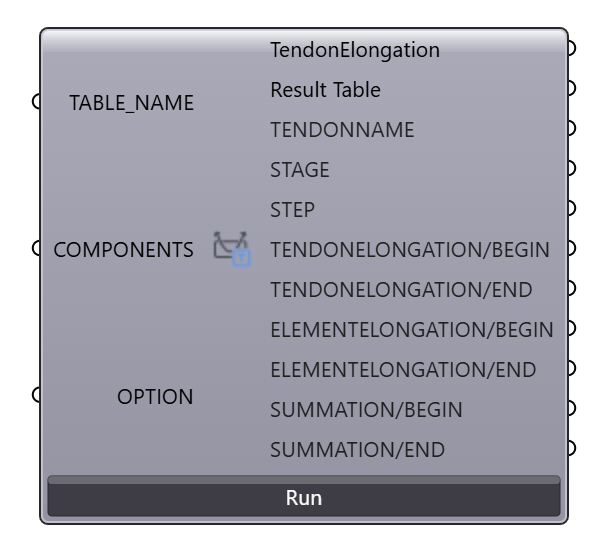

1. Place the Tendon Elongation component from [Midas] > [Results] > [Tendon Elongation] on the Grasshopper canvas.
2. Press Run to get the result table from MIDAS; it is output as Result Table (JSON) and one output per column. To run several result components at once, connect them to Midas Table Builder.

Inputs/outputs in detail: Tendon Elongation manual

Reference API Manual: Tendon Elongation - Analysis Result Table (/post/TABLE)

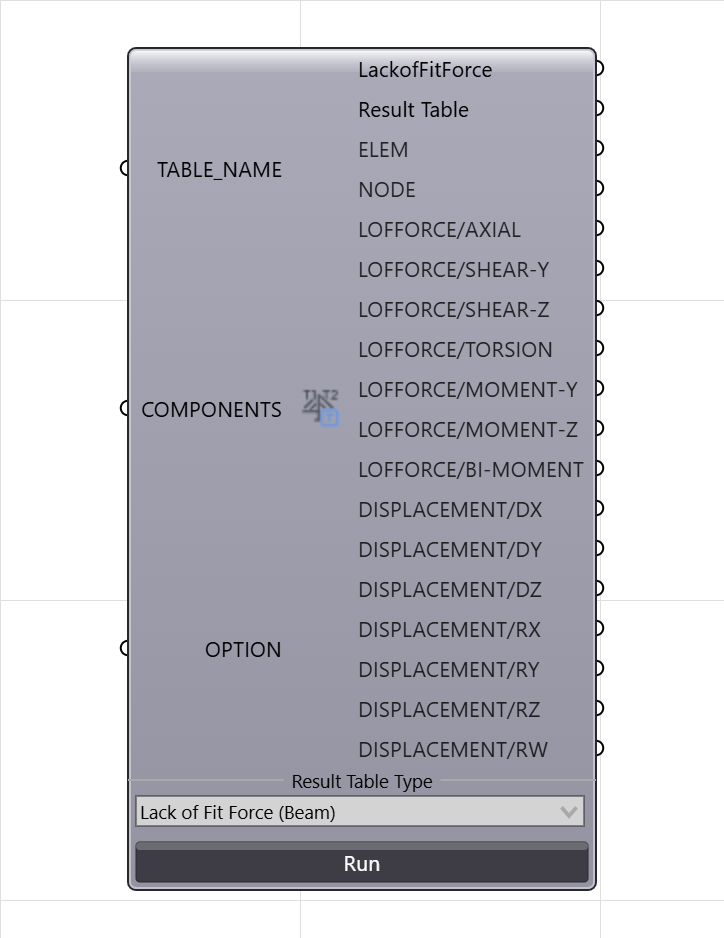

Grasshopper Path : [Midas] > [Results] > [Lack of Fit Force]

How to use

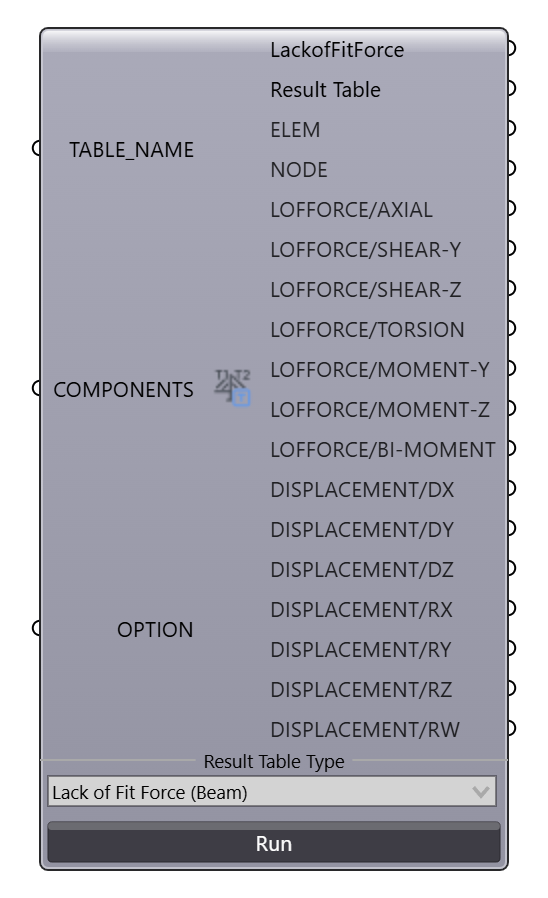

1. Place the Lack of Fit Force component from [Midas] > [Results] > [Lack of Fit Force] on the Grasshopper canvas.
2. Select Result Table Type from the dropdown below the component.
3. Press Run to get the result table from MIDAS; it is output as Result Table (JSON) and one output per column. To run several result components at once, connect them to Midas Table Builder.

Inputs/outputs in detail: Lack of Fit Force manual

Reference API Manual: Lack of Fit Force (Beam) - Analysis Result Table (/post/TABLE) · Lack of Fit Force (Plate) - Analysis Result Table (/post/TABLE) · Lack of Fit Force (Truss) - Analysis Result Table (/post/TABLE)

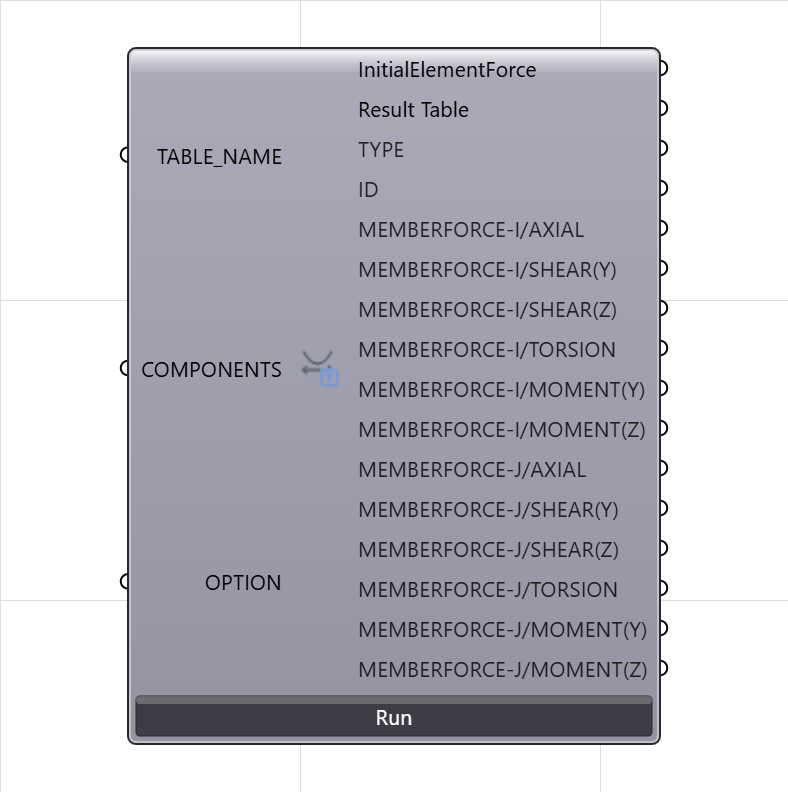

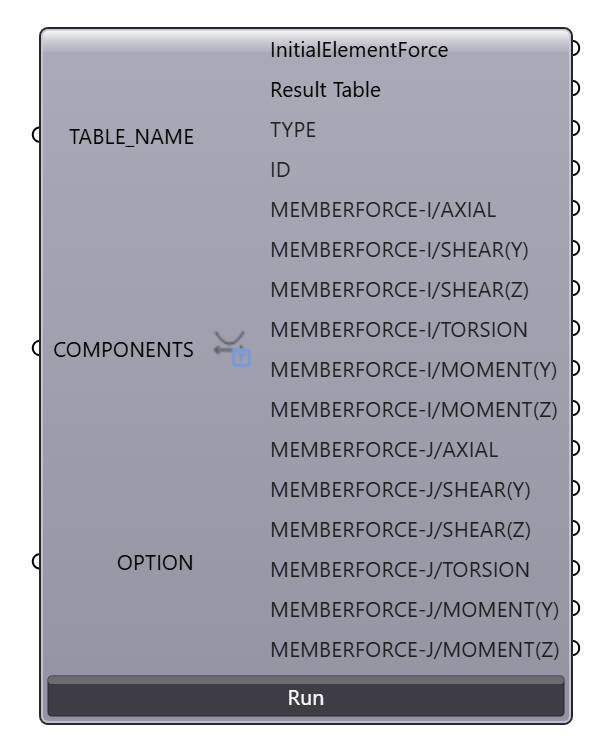

Grasshopper Path : [Midas] > [Results] > [Initial Element Force]

How to use

1. Place the Initial Element Force component from [Midas] > [Results] > [Initial Element Force] on the Grasshopper canvas.
2. Press Run to get the result table from MIDAS; it is output as Result Table (JSON) and one output per column. To run several result components at once, connect them to Midas Table Builder.

Inputs/outputs in detail: Initial Element Force manual

Reference API Manual: Initial Element Force - Analysis Result Table (/post/TABLE)
