Function
This function can be used to obtain the results of nonlinear time history analysis for selected elements and general links.
This leads to reduction in overall analysis time.
Call
From the Main Menu select [Properties] tab > [Inelastic Properties] group > [Inel. Control Data] > [Select Inelastic Hinge Result Output(General Link)]
Input
Procedure
Step 1
Select elements / general links for output
- Click "Add/Replace" button after selecting elements / general links in model view
Step 2

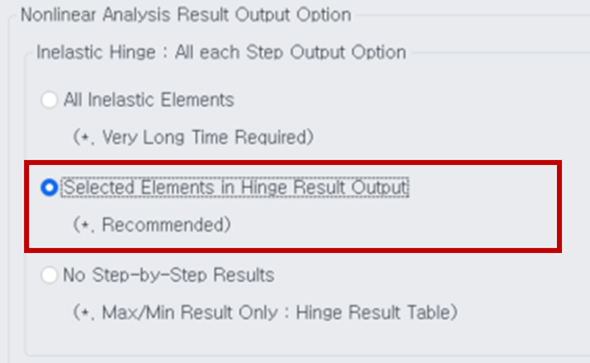

Global Control Setting
- Set to output selected elements
Step 3
Inelastic Hinge Status Result
- Check result of selected elements/general links
