1. Update Item
1) New Features Added
- GEN NX WALL Draw Function Added
2) New Components Added
- Story Mass Summary
- Story Load Summary
- Story Drift
- Story Drift Table
- Story Shear Force
- Story Weight
- Wind Loads
- Wind Pressure(User)
- Wind Additions
- Seismic Loads
- Seismic Pressure(User)
- Seismic Additions
- RS Function
3) Existing Components Updated
- Story Data REPLACE / ADD Functionality Added
4) Bug Fix
- Vehicles User Type GH Structure Bug Fix
2. Description
1) New Features Added

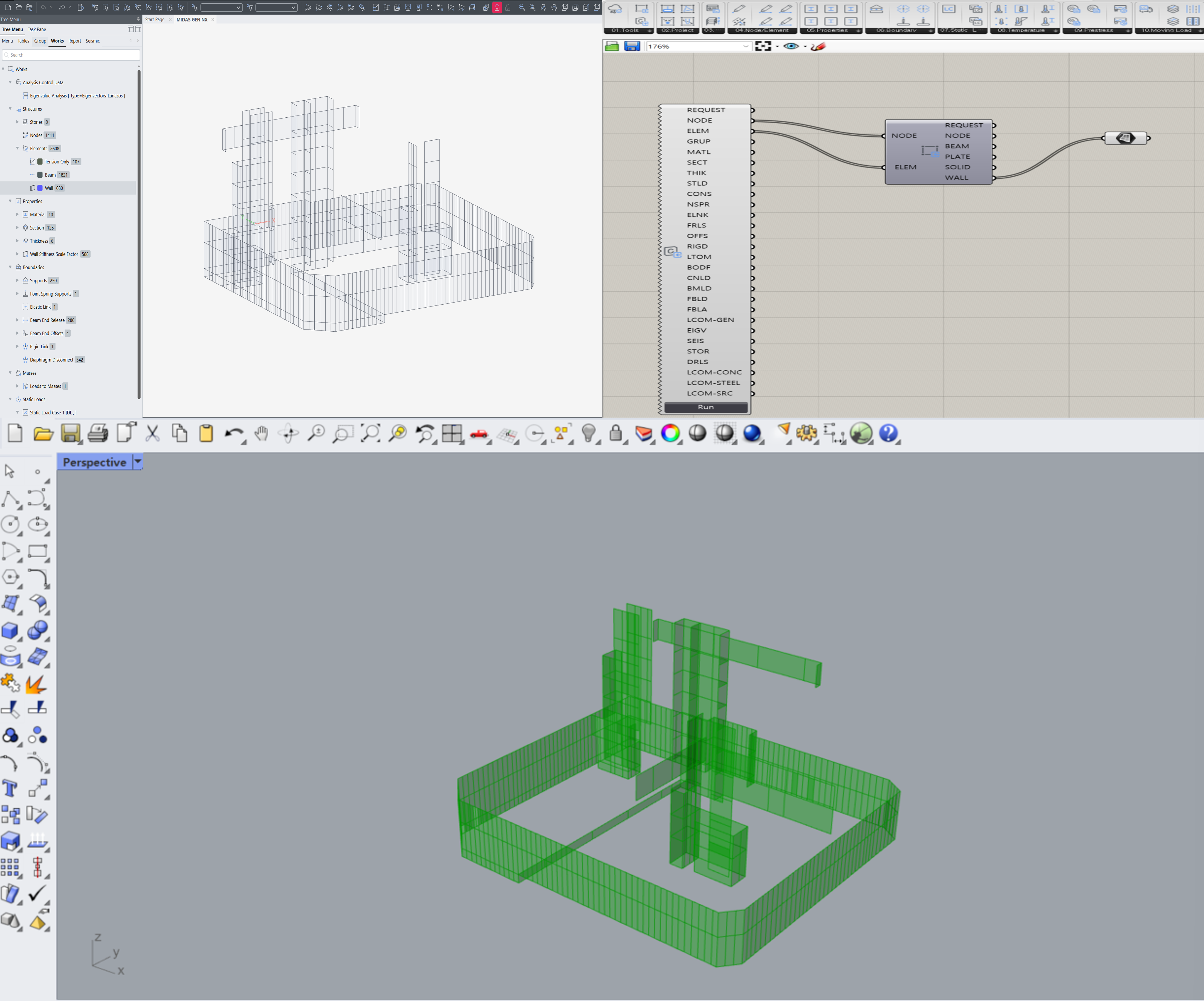

GEN NX WALL Draw
From MIDAS GH 3.3.1, WALL elements generated by GEN NX can be used to create models through the Draw NX component.
※ Exclusive to GEN NX.
2) New Components Added

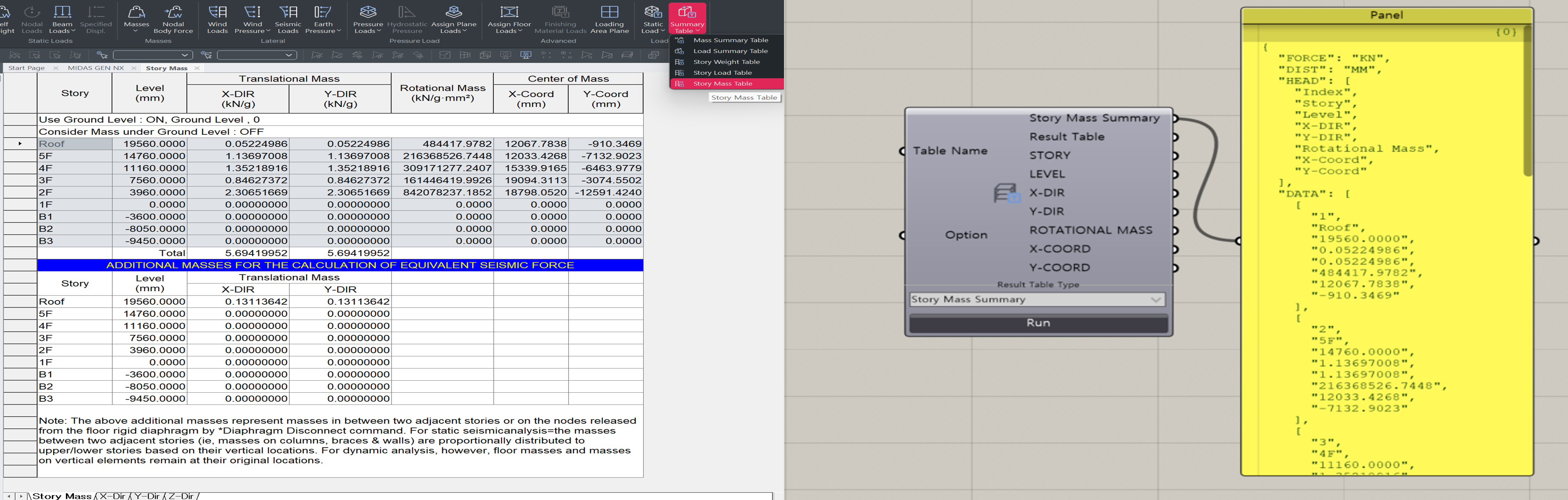

Story Mass Summary
This is a component that can import Story Mass Table results through Grasshopper.
※ Exclusive to GEN NX.

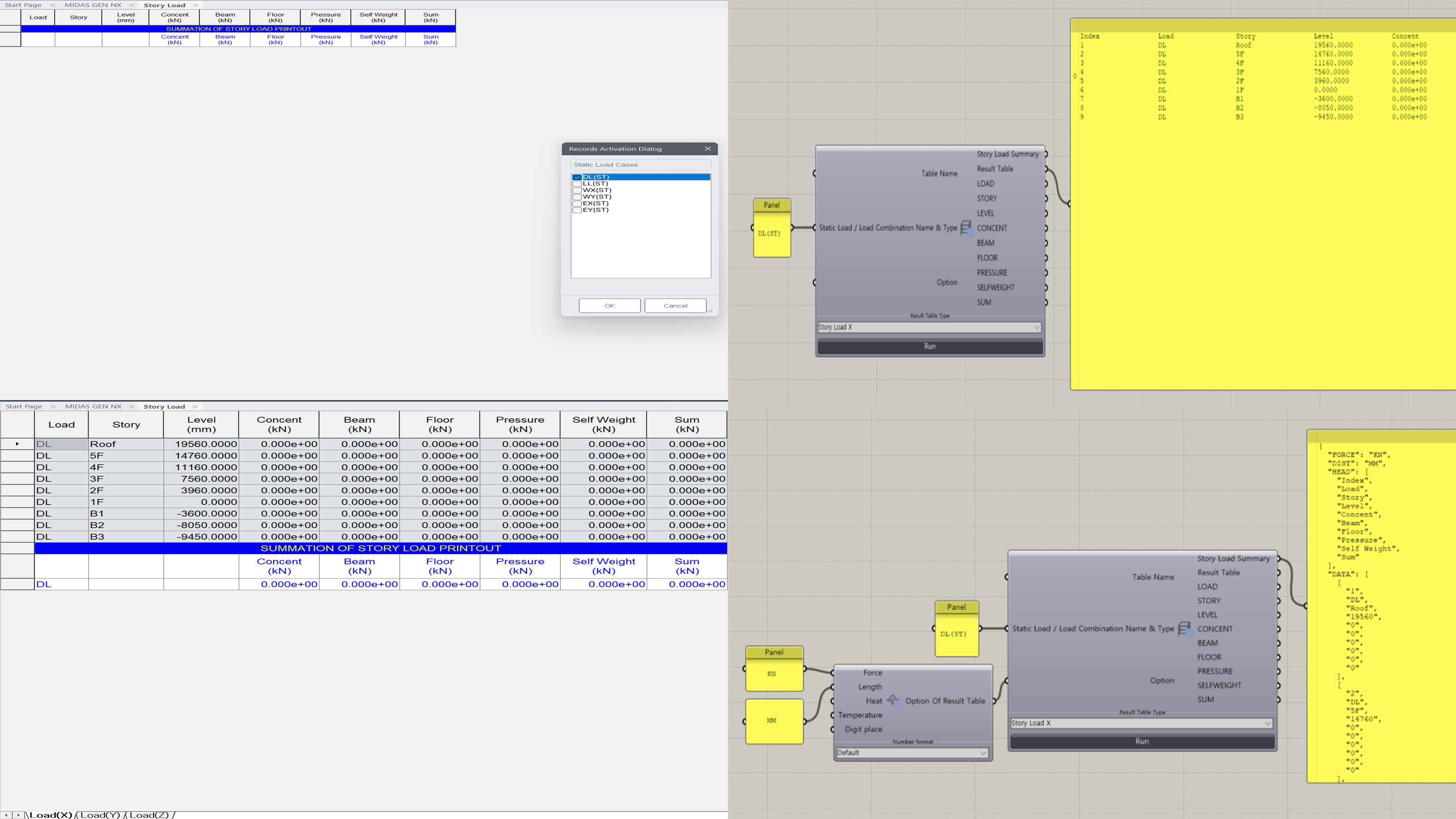

Story Load Summary
This is a component that can import Story Load Table results through Grasshopper.
※ Exclusive to GEN NX.

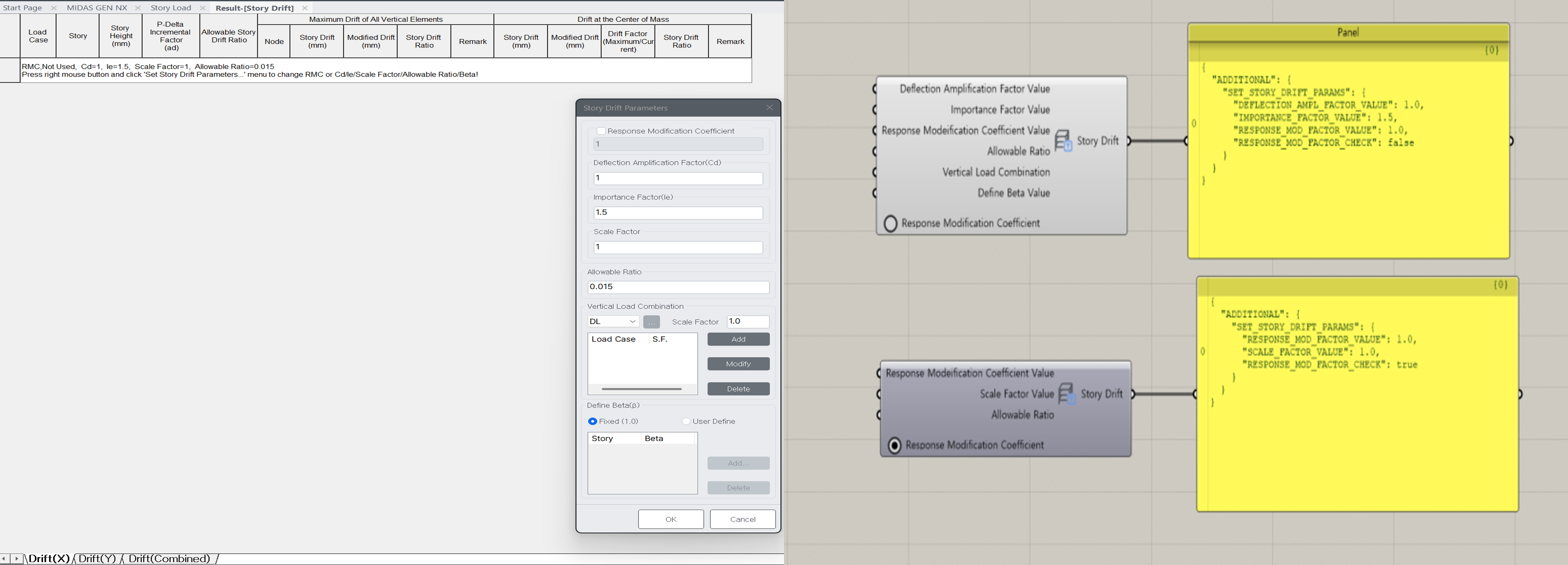

Story Drift
This is a component that can input the Story Drift Parameter.
※ Exclusive to GEN NX.

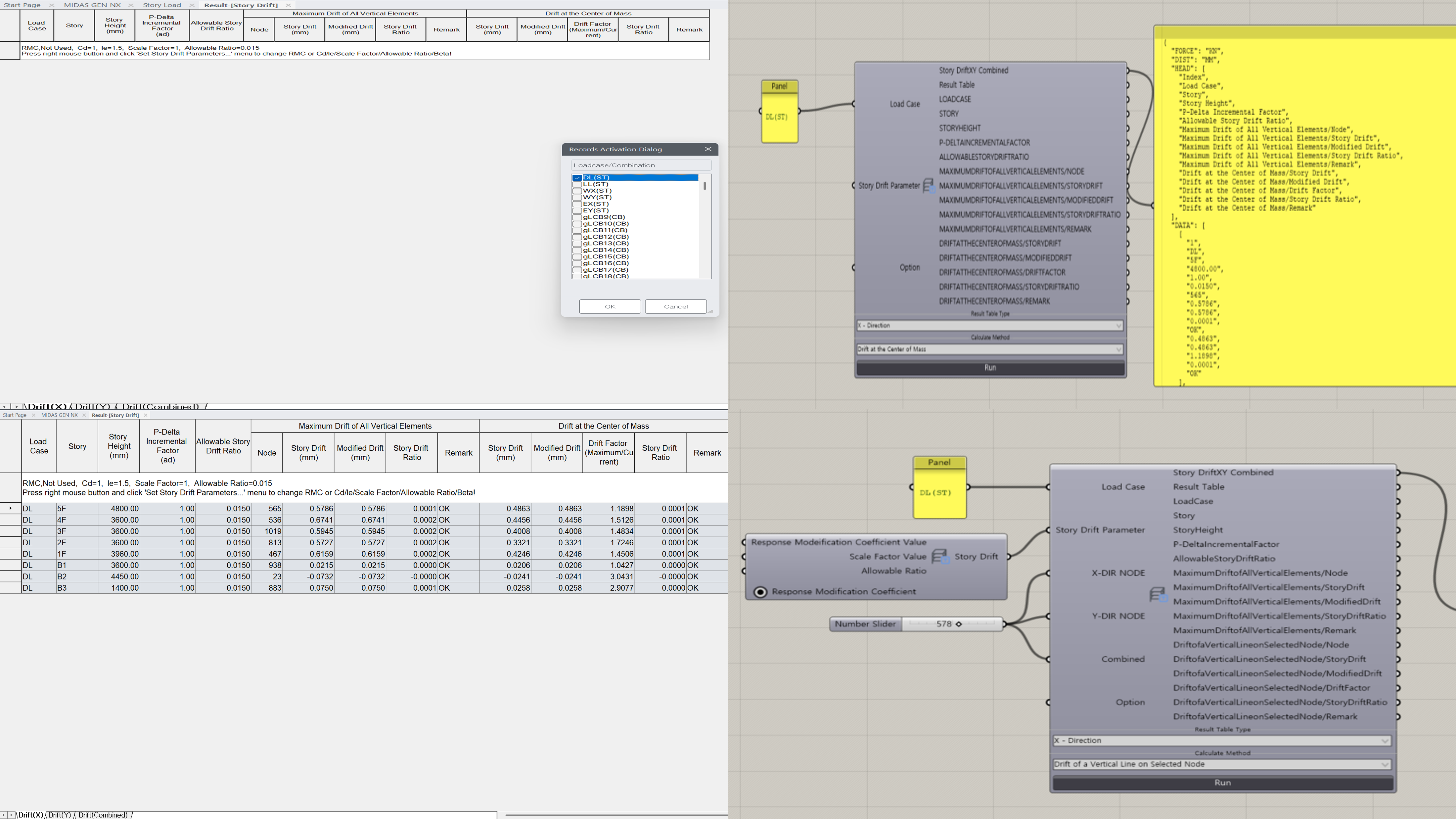

Story Drift Table
This is a component that can import Story Drift Table results through Grasshopper.
The Story Drift Calculation Method enables table results to be retrieved by inputting a node.
※ Exclusive to GEN NX.

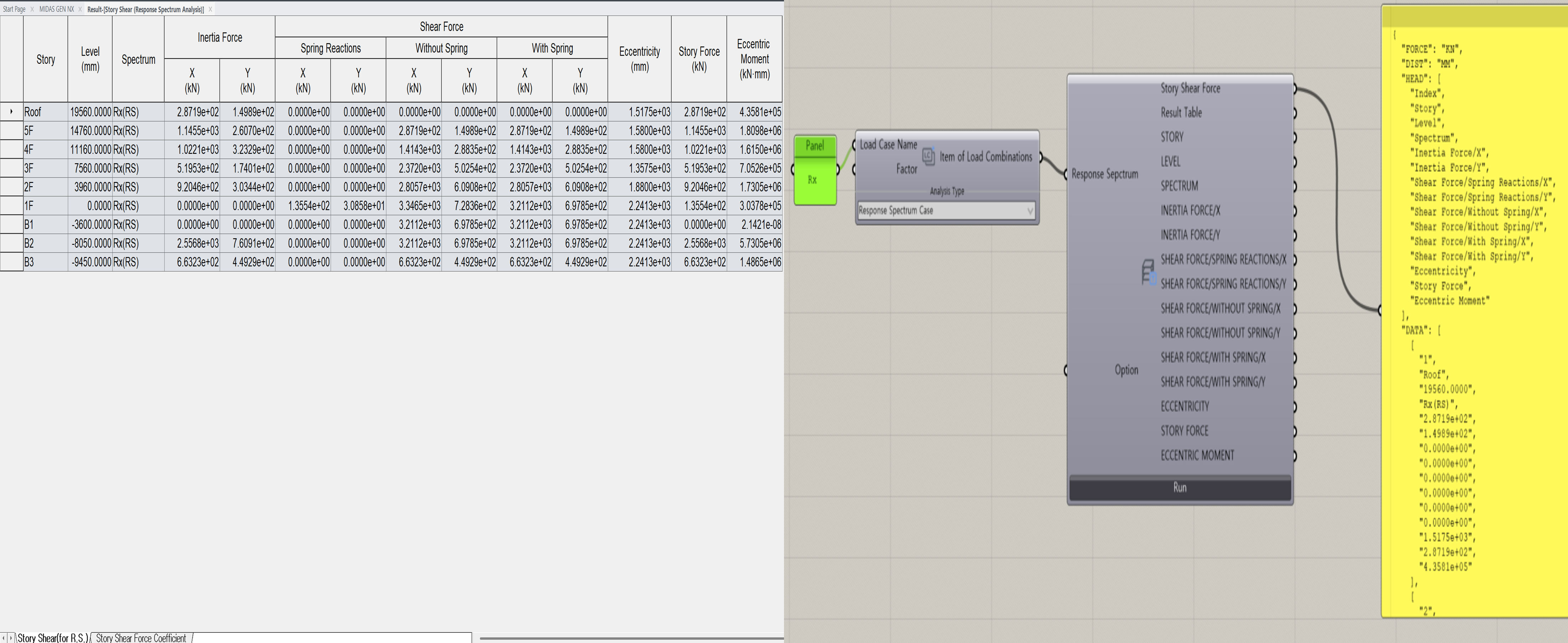

Story Shear Force
This is a component that can import Story Shear (Response Spectrum Analysis) Table results through Grasshopper.
The Story Shear Force component can be executed by utilizing the Item of Load Combinations component as input.
※ Exclusive to GEN NX.

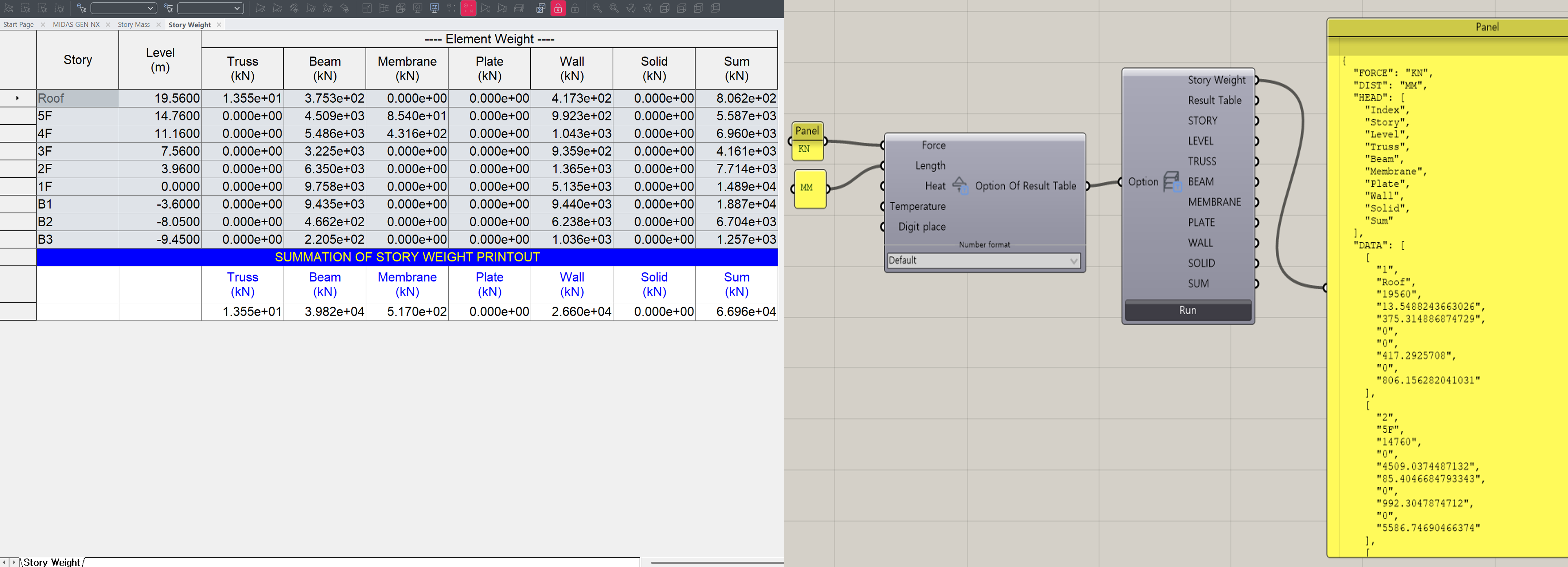

Story Weight
This is a component that can import Story Weight Table results through Grasshopper.
※ Exclusive to GEN NX.

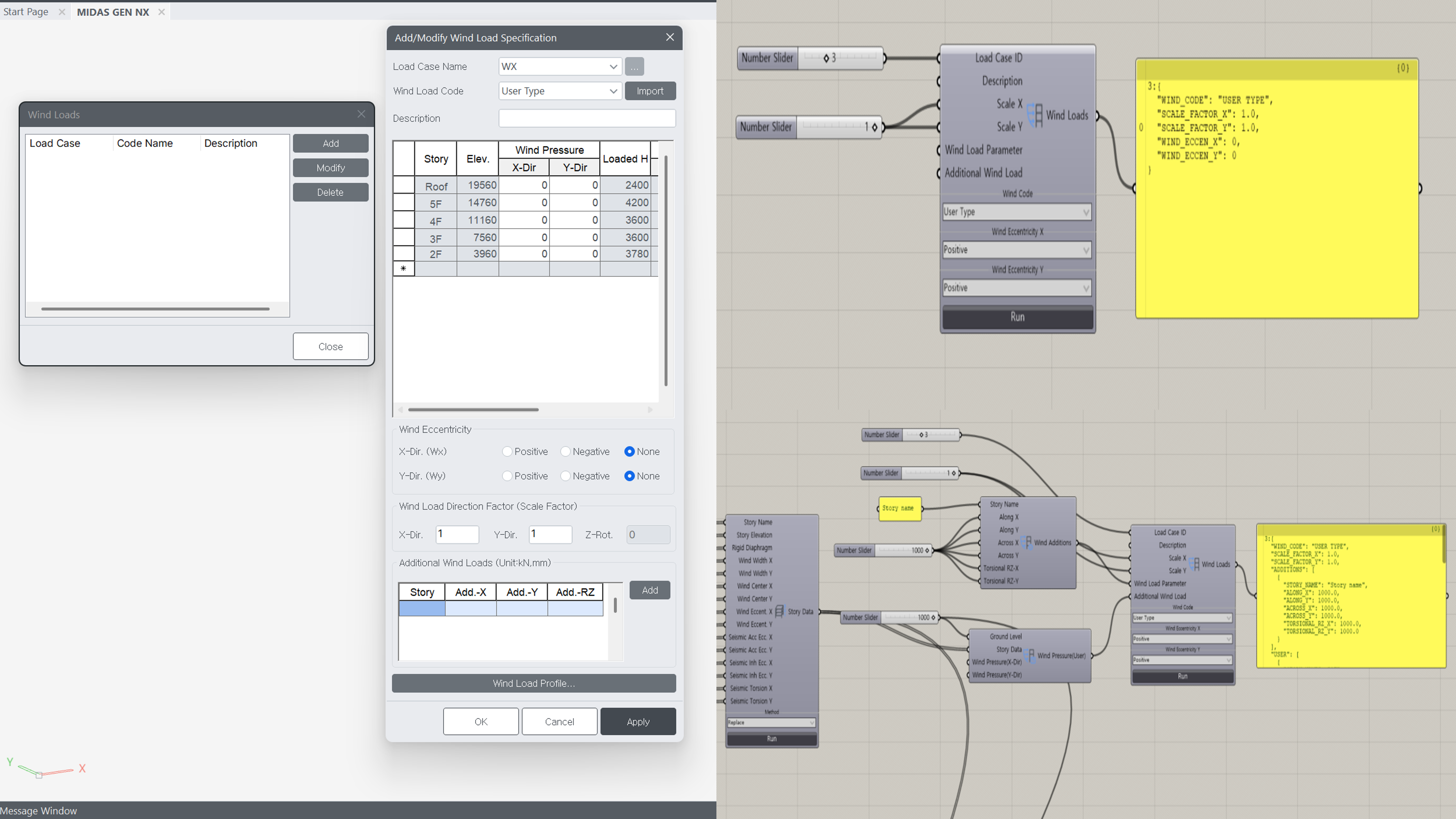

Wind Loads
This component inputs the Wind Load Case as a User Type.
Wind Pressure(User) and Wind Additions components can be utilized.
※ Exclusive to GEN NX.

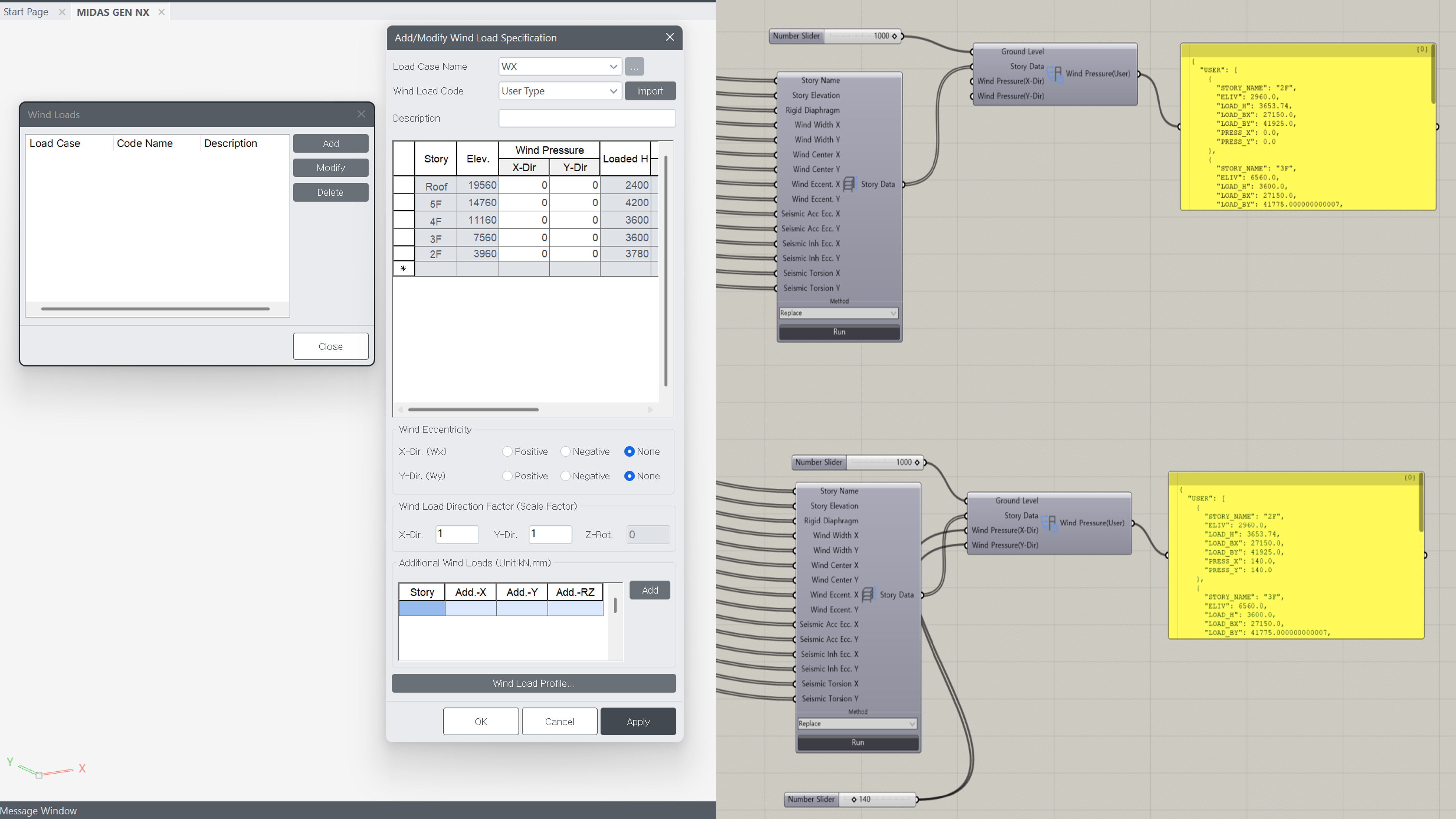

Wind Pressure(User)
This component calculates story levels based on ground level and inputs wind pressure data within the Wind Loads User Type.
※ Exclusive to GEN NX.

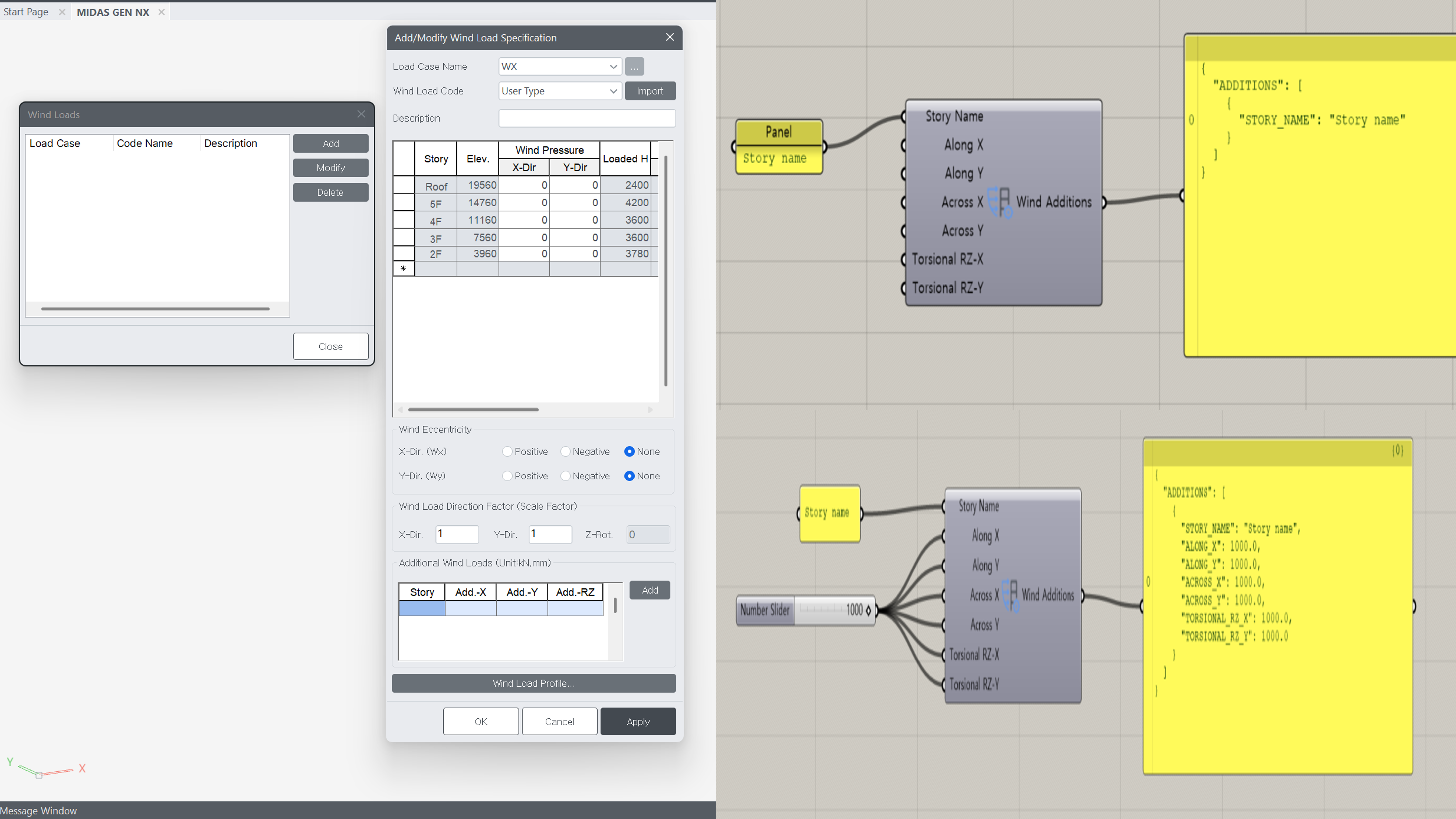

Wind Additions
This component is used to input Additional Wind Loads data in the Wind Loads User Type.
※ Exclusive to GEN NX.

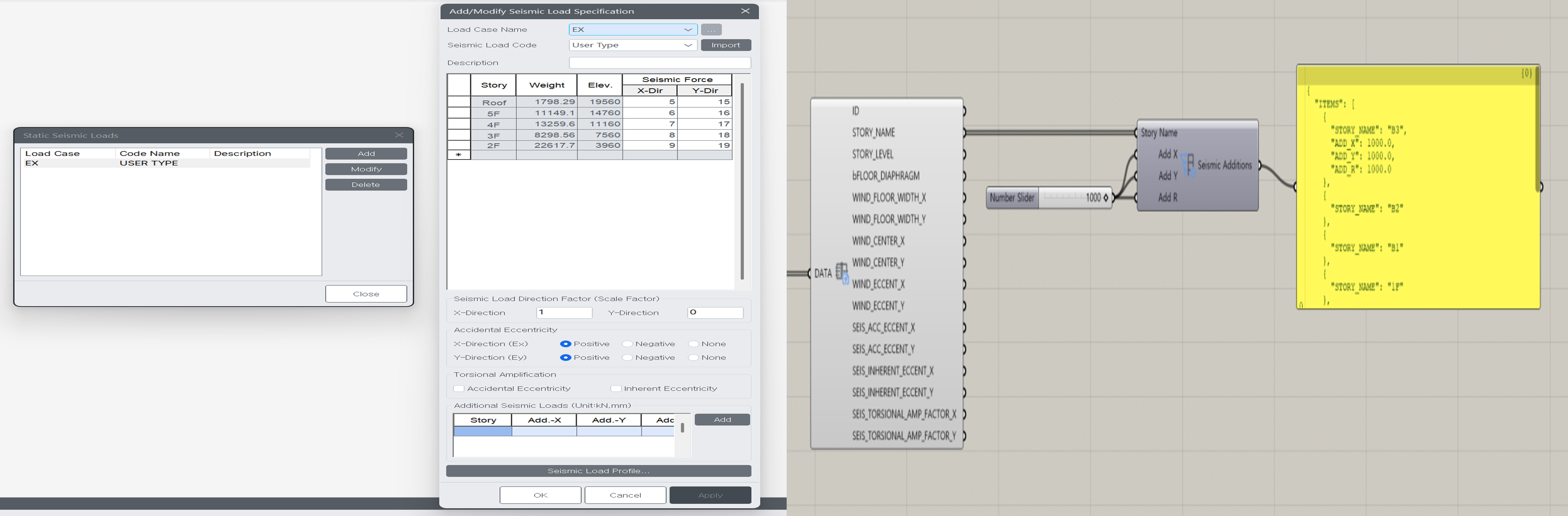

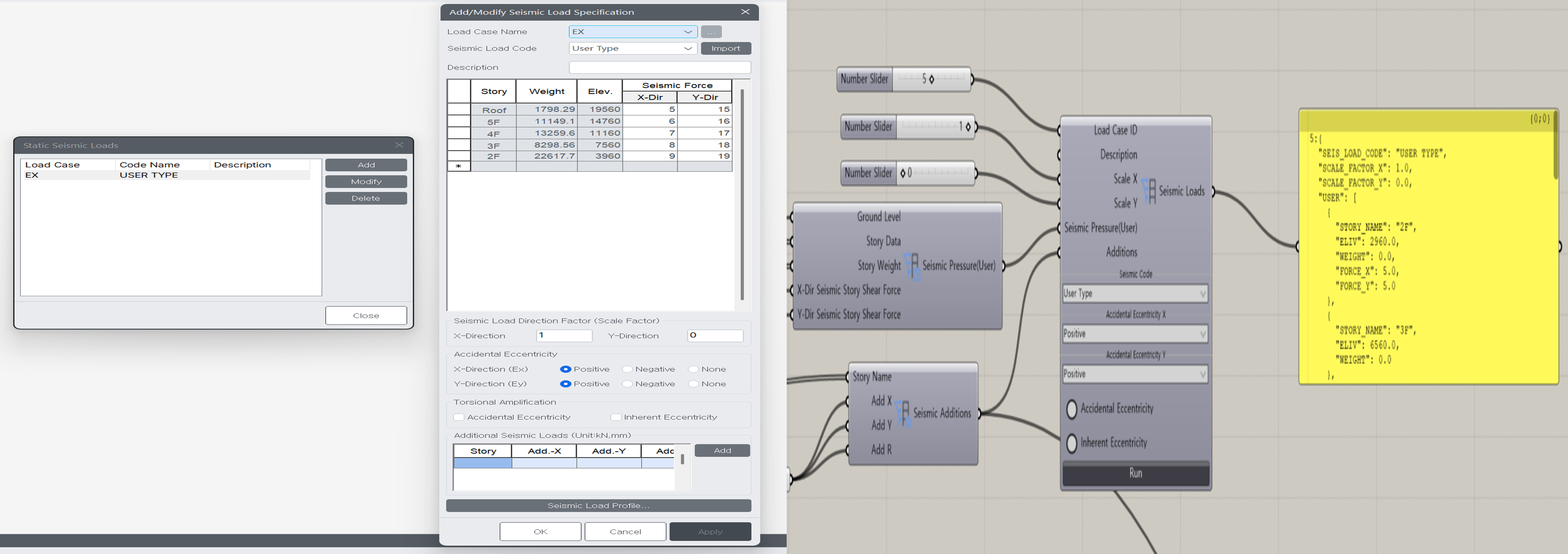

Seismic Loads
This component inputs Seismic Load Case as a User Type.
The Seismic Pressure (User) and Seismic Additions components can be utilized.
※ Exclusive to GEN NX.

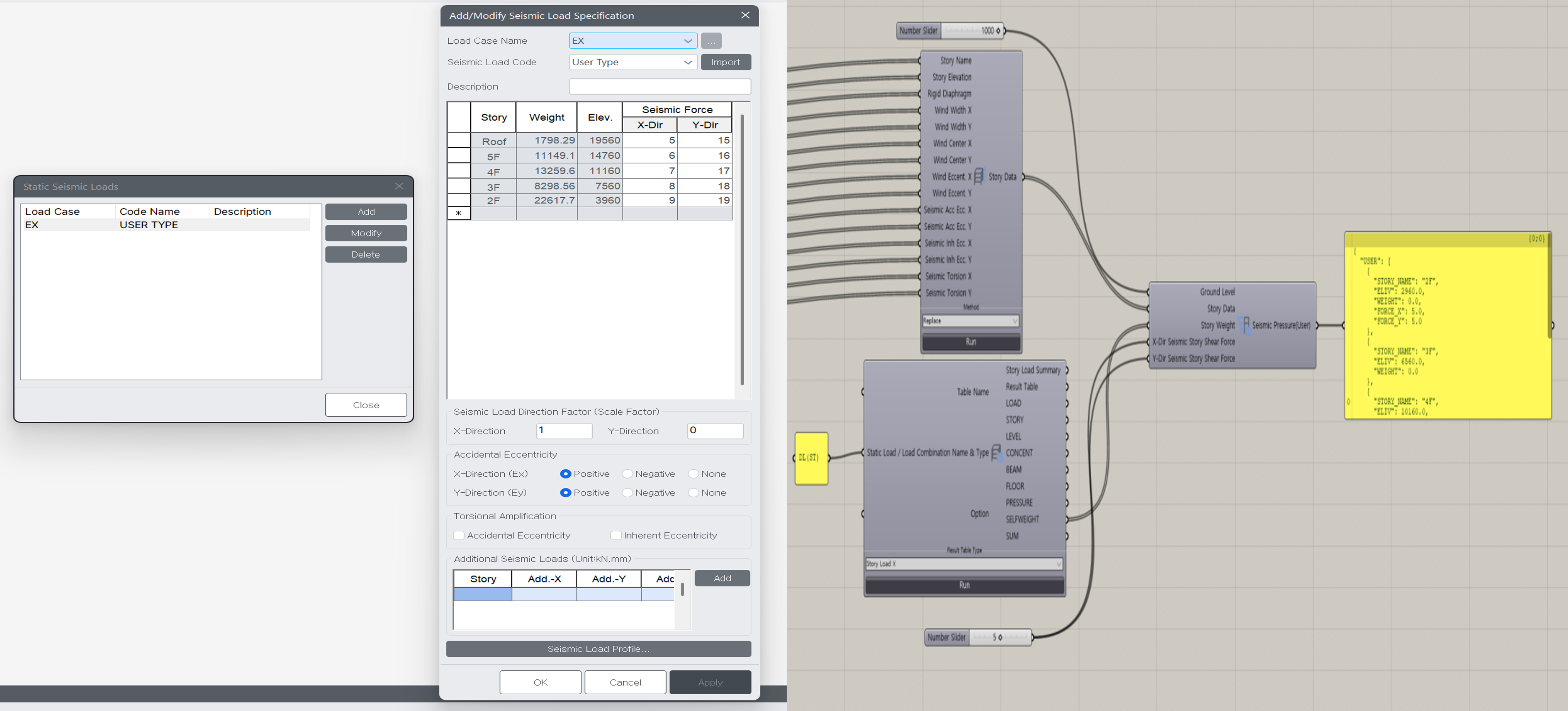

Seismic Pressure(User)
This component calculates story levels based on ground level and inputs wind pressure data within the Seismic Loads User Type.
※ Exclusive to GEN NX.
Seismic Additions
This component is used to input Additional Seismic Loads data in the Seismic Loads User Type.
※ Exclusive to GEN NX.

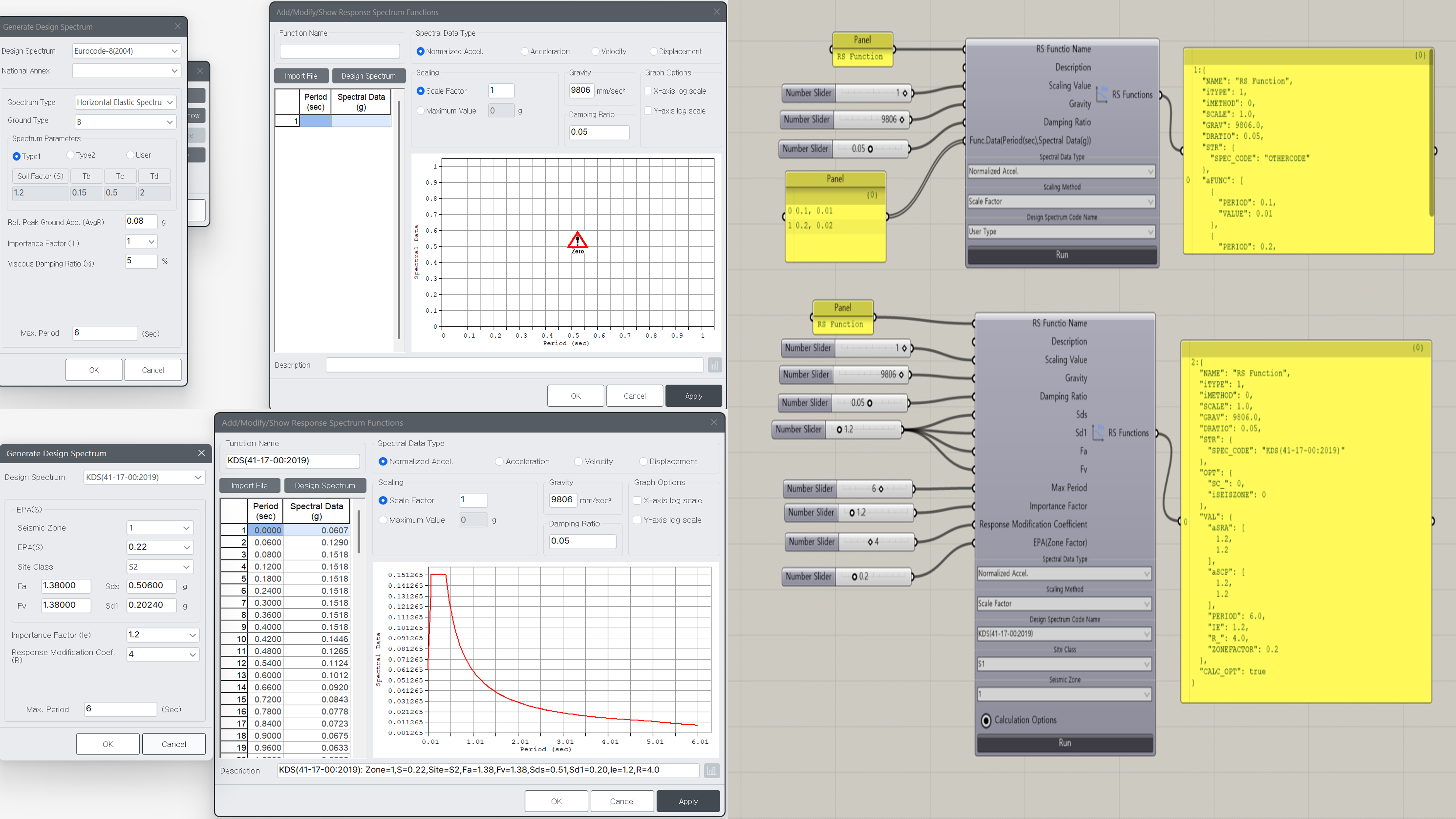

RS Function
This component creates Response Spectrum Functions for Dynamic Loads.
※ This component is a shared component.
※ The Design Spectrum codes supported by GEN NX and CIVIL NX differ.
3) Existing Components Updated
Story Data REPLACE / ADD Functionality Added
The REPLACE / ADD options have been added to the existing Story Data component.
REPLACE = Deletes the existing Story data and replaces it with the Story data entered by the user.
ADD = Adds the desired Story data to the existing Story data.

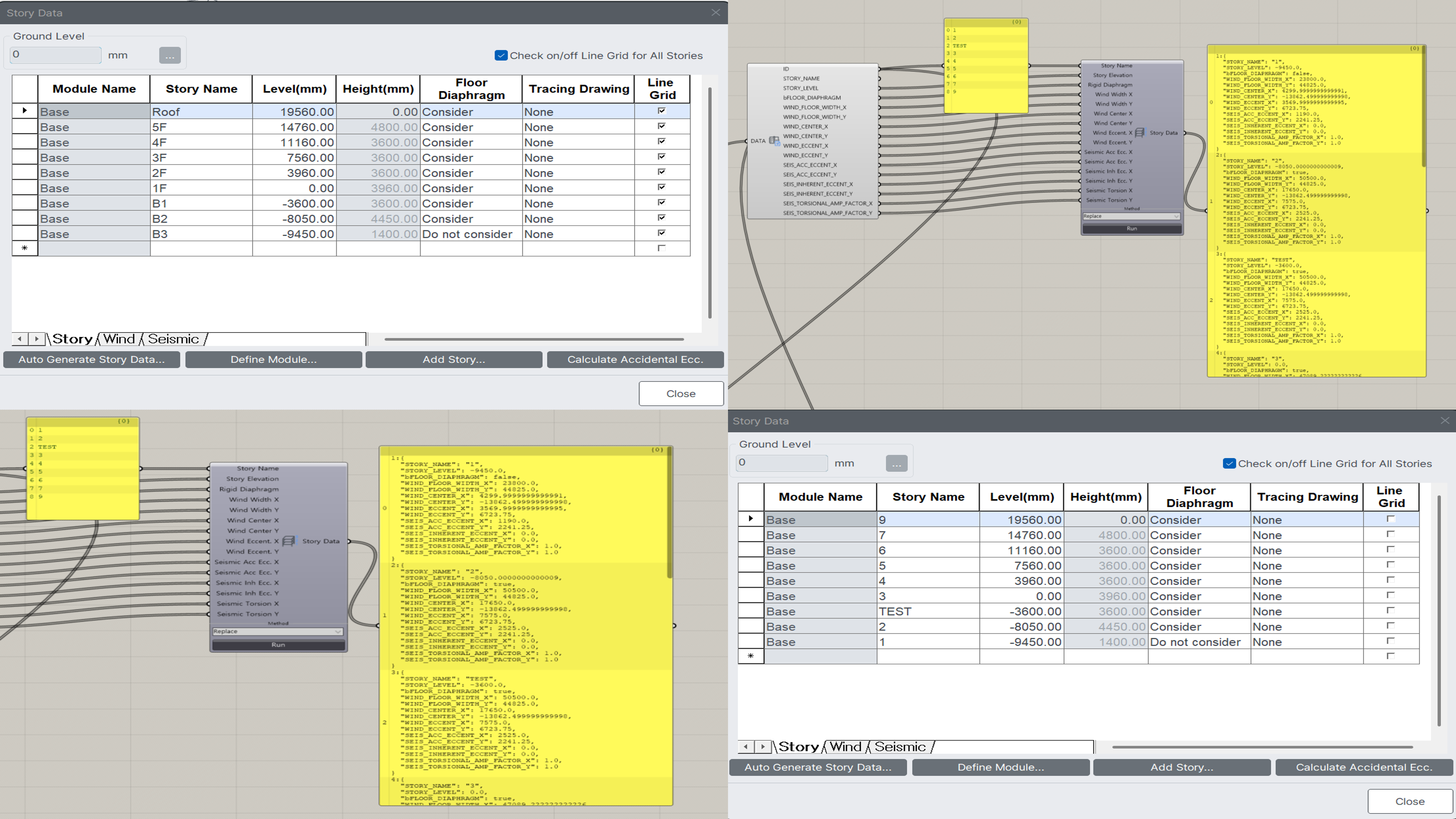

Story Data REPLACE Function

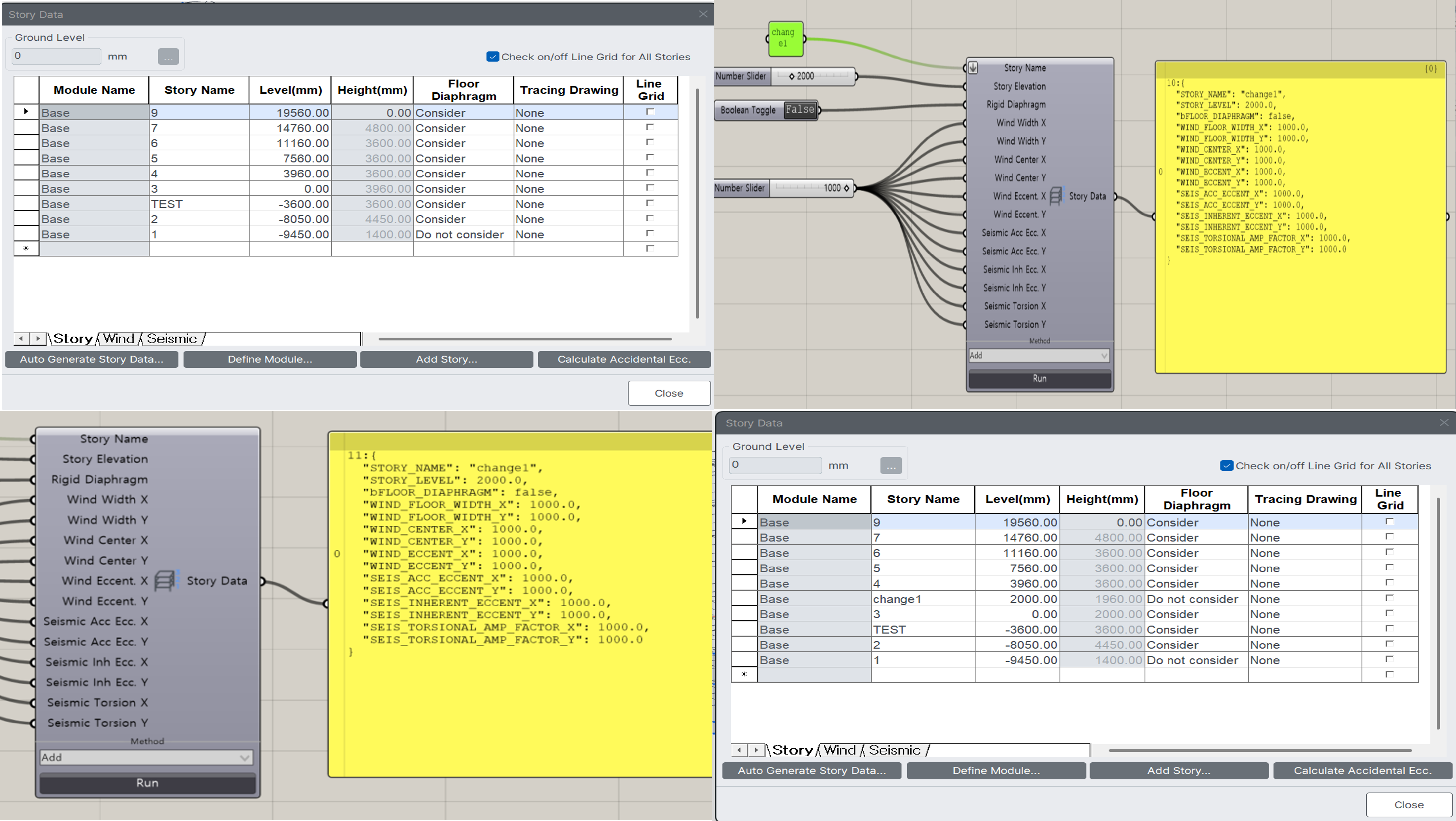

Story Data ADD Function
4) Bug Fix

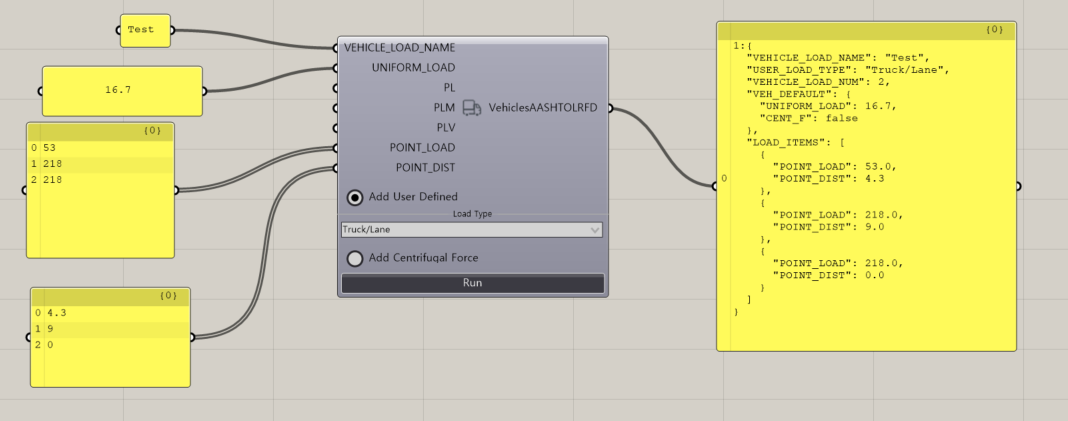

Vehicles User Type (AASHTO LRFD) component output structure modified.
The issue where input load and position data were output in different structures has been fixed.
