Function
As a post-processing feature, Rail Track Analysis Report could be used to analyze all the models and obtain the compiled excel file. It provides the final summary sheet with checks based on UIC 774 - 3. These check limits could be manually modified for regional codes. The Report Wizard is compatible with both the Simplified Separate Analysis and the Complete Analysis Model options. The report will include both tabulated data and graphical output for individual rail stresses, relative displacements between the rail and deck, absolute deck displacements, and substructure forces.
Automatic Generation of Individual Analysis (Simplified Separate Analysis) Modeling
Case 1 : Temperature load case model without train load
Case 2 : When train load is applied, traction/braking, centrifugal and train vertical load case model which has different ballast resistance for both loaded and unloaded section.
Automatic Generation of Step-by-Step Analysis (Stage Analysis or Complete Analysis) Model
Unloaded stage : Unloaded Condition as a stage in which only temperature load is applied, and the ballast resistance is uniformly distributed throughout the entire span.
Loaded stage : Loaded Condition as a stage that includes traction/braking, centrifugal and train vertical load, where the ballast resistance is applied only to the section where the train is present.
Automatic Generation of Moving Load Analysis Model
In the second stage of Stage Analysis or Complete Analysis, the train load is applied to different segments of the bridge to determine the location where maximum additional stress is induced. The analysis is performed by changing the train segment by a fixed length and generating step-by-step model files that incorporate the changing boundary conditions.
Auto-generation modeling analysis and report
Each generated model is automatically analyzed, and based on the analysis results, a review report is generated.
The automatically generated modeling cases are stored within a folder named after the file name before generation.
Using the Rail Track Analysis Report as a pre-processing feature, you can analyze all the models and obtain a compiled Excel file. The report provides a final summary sheet with checks based on UIC 774-3. These check limits can be manually modified for regional codes. The Report Wizard is compatible with both the Simplified Separate Analysis and the Complete Analysis Model options. The report will include both tabulated data and graphical output for individual rail stresses, relative displacements between the rail and deck, absolute deck displacements, and substructure forces.
Call
From main menu, select [Structure] tab > [RSI] group > [Rail Track Analysis Model] > [Rail Track Analysis Report]
Input

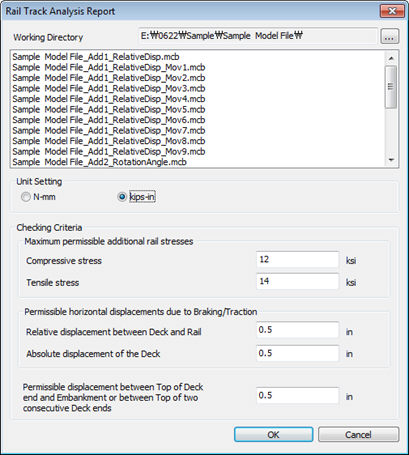

Rail Track Analysis Report
Unit Setting
N-mm : SI unit system
kips-in : U.S. unit system
Checking Criteria
Maximum permissible additional track stresses
Define maximum permissible additional stresses in the track for the compression and tension.
Compressive Stress
Tensile Stress
Track Longitudinal Stress due to Temperature Variation in Deck
Track Longitudinal Stress due to Braking & Traction
Permissible horizontal displacement due to Braking/Traction
Define permissible horizontal displacements due to train braking/traction.
Relative displacement between Deck and Track
Absolute displacement of the Deck
Relative Displacement between Deck and Track1 for Braking & Traction
Deck Absolute Horizontal Displacement for Braking & Traction
Permissible displacement between Top of Deck end and Embankment or between Top of two consecutive Deck end
Define Permissible displacement between top of deck end and embankment or between top of two consecutive deck ends.
Deck End Rotation Displacement for Vertical Load
