Function

  • Enter or modify all the data related to elements in a spreadsheet format Table.
  • Table Tool in midas Civil offers a variety of powerful built-in functions. Refer to the following items for detail directions

Call

From the main menu, select [Node/Element] tab > [Element Detail] group > [Elements Table] > [Elements Table]

Shortcut key[Ctrl]+[Alt]+M



Input

Refer to "Create Elements"

Refer to Usage of Table Tool to enter or modify the following data :

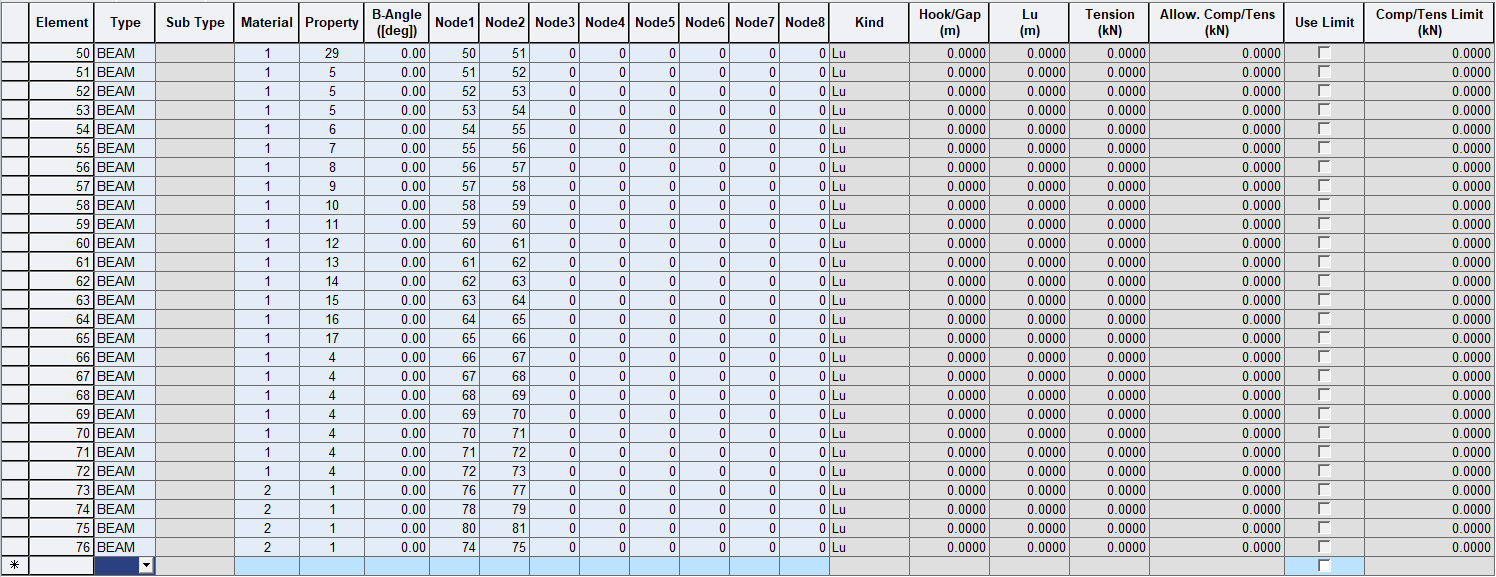

NodeElement-Elements-Elements Table.png

Element Table




Element

Element number



Type

Element type



Sub Type

Element sub-type



Material

Material property number



Property

Section property number



ß Angle

Beta Angle defining section orientation for line elements



Node 1 ~ 8

Element connection node numbers



Kind

Options of inputting Cable tension force (Refer to "Create Elements")



Hook/Gap

Hook or Gap Distance



Tension

Pretension value for Cable elements



Lu

Unstrained length of a Cable element when Cable tension force is entered in terms of Lu/L (Refer to "Create Elements")
