Function
- The nodal mass data entered in the analysis model are verified from the table presented in a spreadsheet format.
Call
From the main menu, select [Load] tab > [Type : Static Loads] > [Load Tables] group > [Summary Table] > [Mass Summary Table]
Input

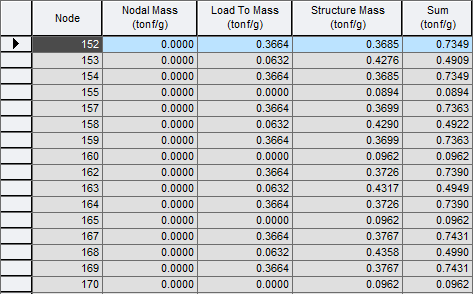

Refer to Usage of Table Tool and enter or modify the following data:
Nodal Mass(X)
Outputs the input mass (Translational Mass) in the X-axis direction of the entire coordinate system.
Node : Node number
NodalMass : Concentrated nodal mass
LoadToMass : Conversion of vertical component of dead loads into nodal masses (Refer to "Loads to Masses")
StructureMass : Conversion of self weight into nodal masses (Refer to "Structure Type")
The weight of the model, i.e., the mass of the input element, is not reflected by the automatic conversion of self-weight to the Loads to Mass function, so it is necessary to select the direction to consider mass in the Converting Type of Model Weight to Masses of the Structural Type dialog box.
Sum : Sum of all the nodal masses at each node
Y and Z directions are identical to X direction.
The modification of data is not permitted in this feature.
