Function
- The static loads entered in the analysis model are verified from the table presented in a spreadsheet format.
Call
From the main menu select [Load] tab > [Type : Static Loads] > [Load Tables] group > [Summary Table] > [Load Summary Table]
Input
Refer to Usage of Table Tool and enter or modify the following data.

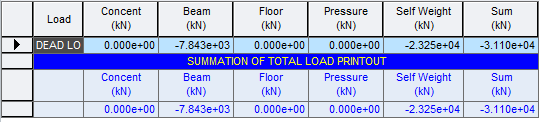

On the tab below of the table, select the direction of the load you want to see and check the following.
Load : Static load case
Concent : Sum of Concentrated Loads
Beam : Sum of Beam Loads
Floor : Sum of Floor Loads
Pressure : Sum of Pressure Loads
Self Weight : Sum of Selfweights
Sum : Sum of static loads
The modification of data is not permitted in this feature.
