기능
- 사용한계 상태시의 콘크리트 응력에 대한 모든 Rating Case의 Bridge Load Rating Design 결과 출력합니다.
호출
메인 메뉴에서 [MODS] 탭 > [Bridge Rating Design] 그룹 > [AASHTO-LRFD05] > [Rating Design Result Table] > [Concrete Stress Data]
입력

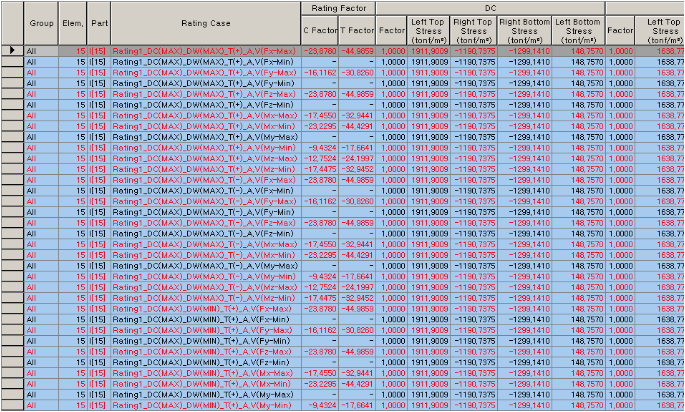

Concrete Stress Data Table
Group : 설계에 적용된 요소 그룹
Elem. : 요소번호
Part : 부재의 위치[I,j]
Rating Case : 해당 부재 결과의 설계 조건
Rating Factor
C Factor : 압축응력에 대한 Rating Factor
T Factor : 인장응력에 대한 Rating Factor
DC
Factor : Bridge Load Rating Setting에서 입력한 DC 하중조건에 대한 계수
Left Top Stress(tonf/m2) : DC 하중조건에 의한 단면의 좌측상연에서의 응력
Right Top Stress(tonf/m2) : DC 하중조건에 의한 단면의 우측상연에서의 응력
Right Bottom Stress(tonf/m2) : DC 하중조건에 의한 단면의 우측하연에서의 응력
Left Bottom Stress(tonf/m2) : DC 하중조건에 의한 단면의 좌측상연에서의 응력
DW
Factor : Bridge Load Rating Setting에서 입력한 DW 하중조건에 대한 계수
Left Top Stress(tonf/m2) : DW 하중조건에 의한 단면의 좌측상연에서의 응력
Right Top Stress(tonf/m2) : DW 하중조건에 의한 단면의 우측상연에서의 응력
Right Bottom Stress(tonf/m2) : DW 하중조건에 의한 단면의 우측하연에서의 응력
Left Bottom Stress(tonf/m2) : DW 하중조건에 의한 단면의 좌측상연에서의 응력
Temperature
Factor : Bridge Load Rating Setting에서 입력한 Temperature 하중조건에 대한 계수
Left Top Stress(tonf/m2) : Temperature 하중조건에 의한 단면의 좌측상연에서의 응력
Right Top Stress(tonf/m2) : Temperature 하중조건에 의한 단면의 우측상연에서의 응력
Right Bottom Stress(tonf/m2) : Temperature 하중조건에 의한 단면의 우측하연에서의 응력
Left Bottom Stress(tonf/m2) : Temperature 하중조건에 의한 단면의 좌측상연에서의 응력
Permanent
Factor : Bridge Load Rating Setting에서 입력한 Permanent 하중조건에 대한 계수
Left Top Stress(tonf/m2) : Permanent 하중조건에 의한 단면의 좌측상연에서의 응력
Right Top Stress(tonf/m2) : Permanent 하중조건에 의한 단면의 우측상연에서의 응력
Right Bottom Stress(tonf/m2) : Permanent 하중조건에 의한 단면의 우측하연에서의 응력
Left Bottom Stress(tonf/m2) : Permanent 하중조건에 의한 단면의 좌측상연에서의 응력
Secondary
Factor : Bridge Load Rating Setting에서 입력한 Secondary 하중조건에 대한 계수
Left Top Stress(tonf/m2) : Secondary 하중조건에 의한 단면의 좌측상연에서의 응력
Right Top Stress(tonf/m2) : Secondary 하중조건에 의한 단면의 우측상연에서의 응력
Right Bottom Stress(tonf/m2) : Secondary 하중조건에 의한 단면의 우측하연에서의 응력
Left Bottom Stress(tonf/m2) : Secondary 하중조건에 의한 단면의 좌측상연에서의 응력
User Defined
Factor : Bridge Load Rating Setting에서 입력한 User Defined 하중조건에 대한 계수
Left Top Stress(tonf/m2) : User Defined 하중조건에 의한 단면의 좌측상연에서의 응력
Right Top Stress(tonf/m2) : User Defined 하중조건에 의한 단면의 우측상연에서의 응력
Right Bottom Stress(tonf/m2) : User Defined 하중조건에 의한 단면의 우측하연에서의 응력
Left Bottom Stress(tonf/m2) : User Defined 하중조건에 의한 단면의 좌측상연에서의 응력
Pri.LL
Factor : Bridge Load Rating Setting에서 입력한 Primary Live Load 하중조건에 대한 계수
Left Top Stress(tonf/m2) : Primary Live Load 하중조건에 의한 단면의 좌측상연에서의 응력
Right Top Stress(tonf/m2) : Primary Live Load 하중조건에 의한 단면의 우측상연에서의 응력
Right Bottom Stress(tonf/m2) : Primary Live Load 하중조건에 의한 단면의 우측하연에서의 응력
Left Bottom Stress(tonf/m2) : Primary Live Load 하중조건에 의한 단면의 좌측상연에서의 응력
Adj.LL
Factor : Bridge Load Rating Setting에서 입력한 Adjacent Live Load 하중조건에 대한 계수
Left Top Stress(tonf/m2) : Adjacent Live Load 하중조건에 의한 단면의 좌측상연에서의 응력
Right Top Stress(tonf/m2) : Adjacent Live Load 하중조건에 의한 단면의 우측상연에서의 응력
Right Bottom Stress(tonf/m2) : Adjacent Live Load 하중조건에 의한 단면의 우측하연에서의 응력
Left Bottom Stress(tonf/m2) : Adjacent Live Load 하중조건에 의한 단면의 좌측상연에서의 응력
