1. Description
This component operates the Seismic Loads function in Gen NX.
The Seismic Loads function can be found in the Gen NX main menu, select [Load] tab > [Static Loads] group > [Lateral] group > [Seismic Loads]
2. Grasshopper Path
[Midas] > [Static Loads] > [Seismic Loads]

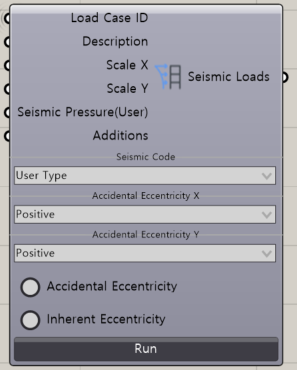

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Load Case ID | Seismic Load ID | Integer | Seismic Load ID | - |
| 2 | Description | Description | String | - | - |
| 3 | Scale X | Scale Factor X | Real | - | - |
| 4 |
Scale Y |
Scale Factor Y | Real | - | - |
| 5 |
Seismic Pressure(User) |
Wind Pressure(User) | Object | - | Seismic Pressure(User) |
| 6 |
Additions |
Seismic Additions | Object | - | Seismic Additions |
- Output Data
| Index | Command | Description | Type |
Next Component |
|
|---|---|---|---|---|---|
| 1 | SEIS | Seismic Loads | Json | - |
