1. Description
Solid Stress

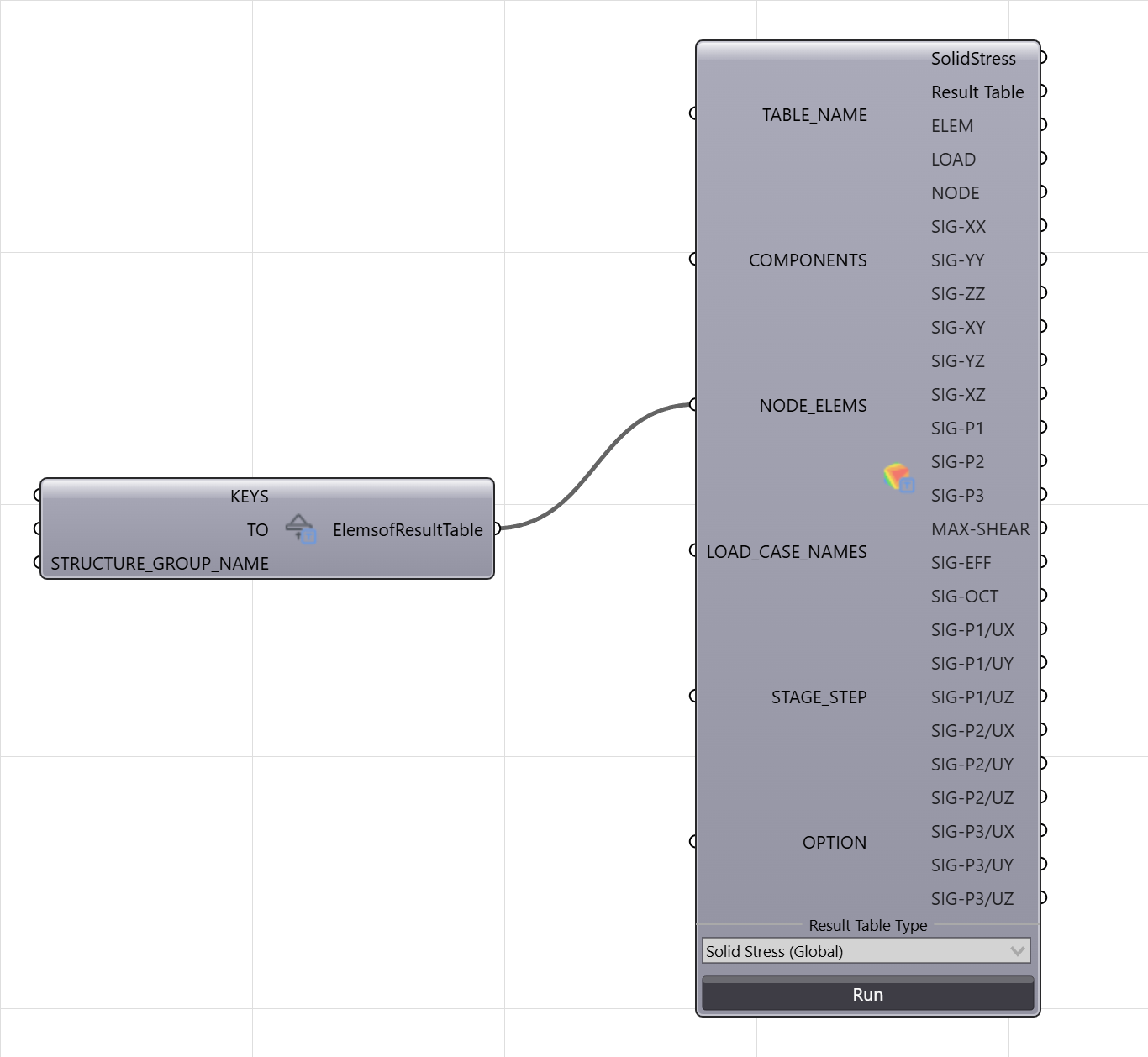

How to use
- Place the Solid Stress component from [Midas] > [Results] > [Solid Stress] on the Grasshopper canvas.
- Place the Elems of Result Table component and connect its output to the NODE_ELEMS input.
- Connect values to the required inputs LOAD_CASE_NAMES.
- Select Result Table Type from the dropdown below the component.
- Press Run to get the result table from MIDAS; it is output as Result Table (JSON) and one output per column. To run several result components at once, connect them to Midas Table Builder.
2. Grasshopper Path
[Midas] > [Results] > [Solid Stress]

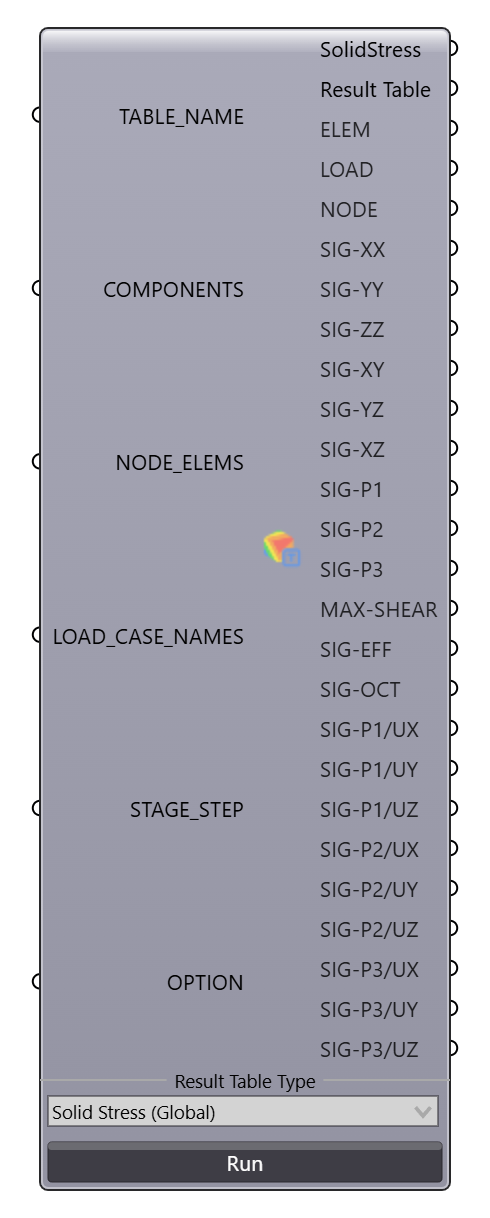

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default | Previous |
|---|---|---|---|---|---|
| 1 | Table Name (Optional) |
Table Name | String | - | - |
| 2 | Components of Result Table (Optional) |
Components of Result Table | String | - | - |
| 3 | Node No. Input (Required) |
Elems of Result Table (connect component output) | Object | - | Elems of Result Table |
| 4 | Static Load / Load Combination Name & Type (Required) |
Static Load / Load Combination Name & Type | String | - | - |
| 5 | Stage Step Name (Optional) |
Stage Step Name | String | - | - |
| 6 | Option (Optional) |
Option Of Result Table (connect component output) | Object | - | Option Of Result Table |
| 7 | Result Table Type (Optional) |
Result Table Type | Enumerated | Solid Stress (Global) | - |
- Output Data
| Index | Command | Description | Type | Next Component |
|
|---|---|---|---|---|---|
| 1 | SolidStress | Solid Stress | Object | Midas Table Builder (optional) | |
| 2 | Result Table | Result Table | Json | - | |
| 3 | Elem | Elem column of the result table | List | - | |
| 4 | Load | Load column of the result table | List | - | |
| 5 | Node | Node column of the result table | List | - | |
| 6 | Sig-XX | Sig-XX column of the result table | List | - | |
| 7 | Sig-YY | Sig-YY column of the result table | List | - | |
| 8 | Sig-ZZ | Sig-ZZ column of the result table | List | - | |
| 9 | Sig-XY | Sig-XY column of the result table | List | - | |
| 10 | Sig-YZ | Sig-YZ column of the result table | List | - | |
| 11 | Sig-XZ | Sig-XZ column of the result table | List | - | |
| 12 | Sig-P1 | Sig-P1 column of the result table | List | - | |
| 13 | Sig-P2 | Sig-P2 column of the result table | List | - | |
| 14 | Sig-P3 | Sig-P3 column of the result table | List | - | |
| 15 | Max-Shear | Max-Shear column of the result table | List | - | |
| 16 | Sig-EFF | Sig-EFF column of the result table | List | - | |
| 17 | Sig-OCT | Sig-OCT column of the result table | List | - | |
| 18 | Sig-P1/ux | Sig-P1/ux column of the result table | List | - | |
| 19 | Sig-P1/uy | Sig-P1/uy column of the result table | List | - | |
| 20 | Sig-P1/uz | Sig-P1/uz column of the result table | List | - | |
| 21 | Sig-P2/ux | Sig-P2/ux column of the result table | List | - | |
| 22 | Sig-P2/uy | Sig-P2/uy column of the result table | List | - | |
| 23 | Sig-P2/uz | Sig-P2/uz column of the result table | List | - | |
| 24 | Sig-P3/ux | Sig-P3/ux column of the result table | List | - | |
| 25 | Sig-P3/uy | Sig-P3/uy column of the result table | List | - | |
| 26 | Sig-P3/uz | Sig-P3/uz column of the result table | List | - |
※ Outputs 3–26 are created one per column of the result table when Run is pressed. The columns depend on the COMPONENTS input and the Result Table Type.
5. Reference API Manual Link
Solid Stress (Global) - Analysis Result Table (/post/TABLE)
Solid Stress (Local) - Analysis Result Table (/post/TABLE)
