1. Description
Cable Configuration
How to use

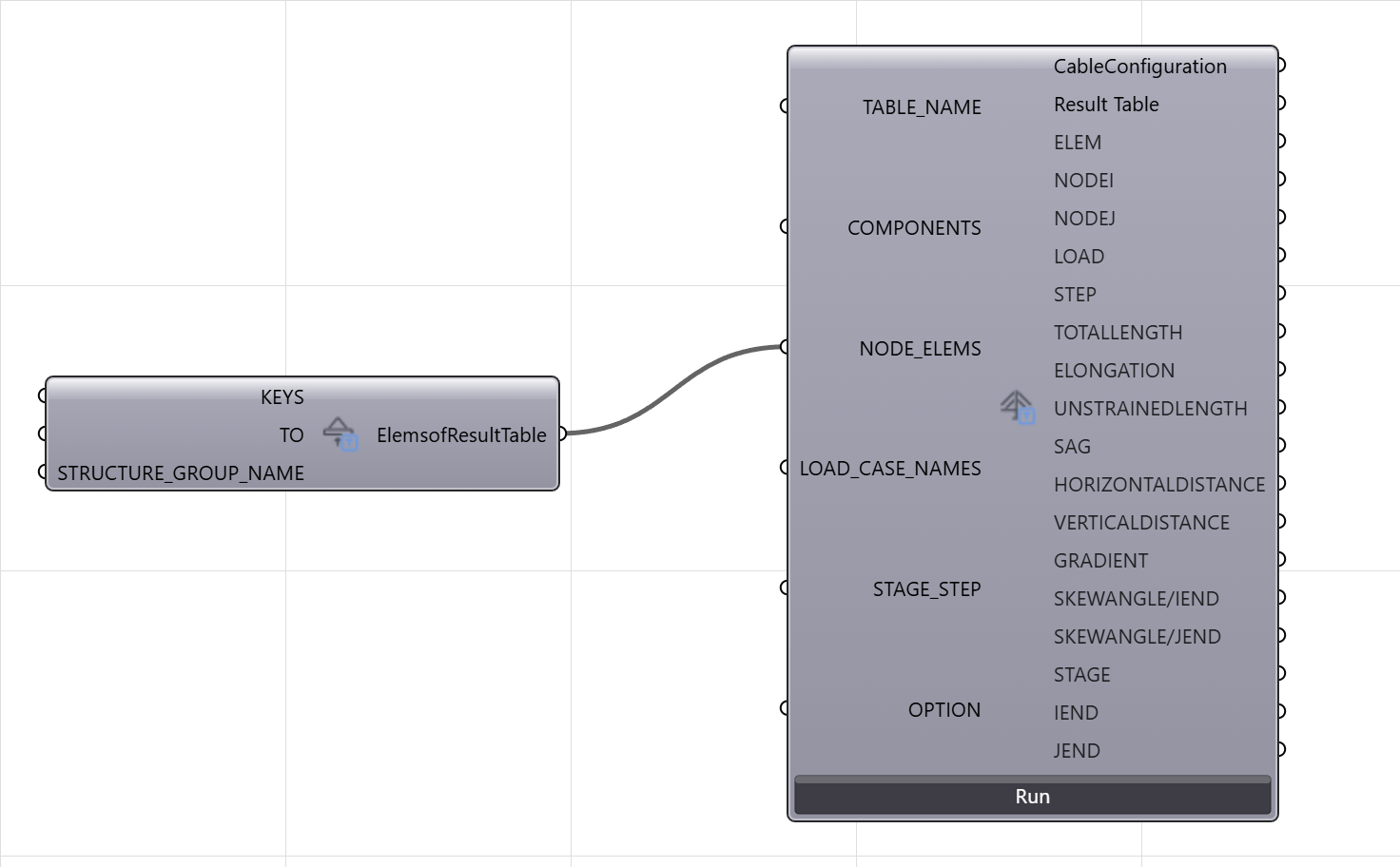

- Place the Cable Configuration component from [Midas] > [Results] > [Cable Configuration] on the Grasshopper canvas.
- Place the Elems of Result Table component and connect its output to the NODE_ELEMS input.
- Connect values to the required inputs LOAD_CASE_NAMES.
- Press Run to get the result table from MIDAS; it is output as Result Table (JSON) and one output per column. To run several result components at once, connect them to Midas Table Builder.
2. Grasshopper Path
[Midas] > [Results] > [Cable Configuration]

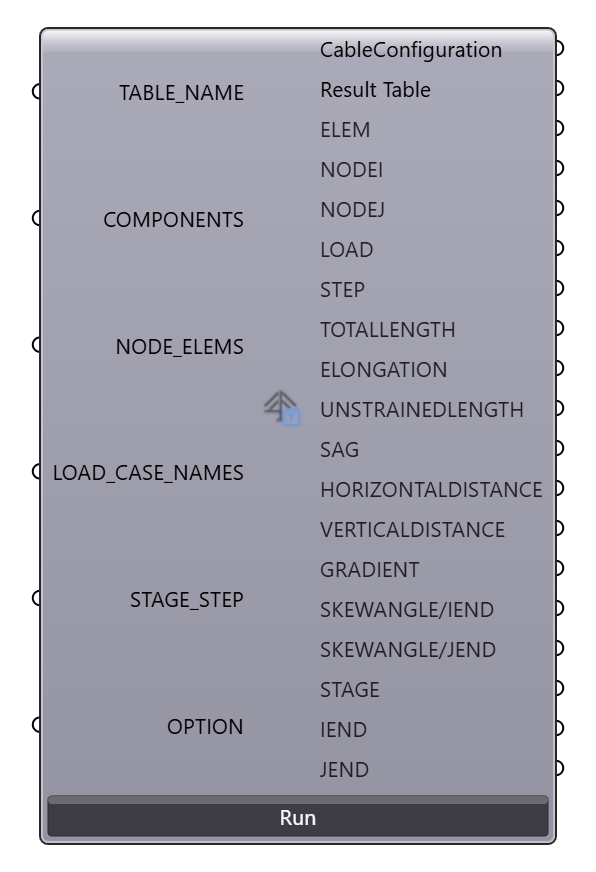

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default | Previous |
|---|---|---|---|---|---|
| 1 | Table Name (Optional) |
Table Name | String | - | - |
| 2 | Components of Result Table (Optional) |
Components of Result Table | String | - | - |
| 3 | Node No. Input (Required) |
Elems of Result Table (connect component output) | Object | - | Elems of Result Table |
| 4 | Static Load / Load Combination Name & Type (Required) |
Static Load / Load Combination Name & Type | String | - | - |
| 5 | Stage Step Name (Optional) |
Stage Step Name | String | - | - |
| 6 | Option (Optional) |
Option Of Result Table (connect component output) | Object | - | Option Of Result Table |
- Output Data
| Index | Command | Description | Type | Next Component |
|
|---|---|---|---|---|---|
| 1 | CableConfiguration | Cable Configuration | Object | Midas Table Builder (optional) | |
| 2 | Result Table | Result Table | Json | - | |
| 3 | Elem | Elem column of the result table | List | - | |
| 4 | NodeI | NodeI column of the result table | List | - | |
| 5 | NodeJ | NodeJ column of the result table | List | - | |
| 6 | Load | Load column of the result table | List | - | |
| 7 | Step | Step column of the result table | List | - | |
| 8 | TotalLength | TotalLength column of the result table | List | - | |
| 9 | Elongation | Elongation column of the result table | List | - | |
| 10 | UnstrainedLength | UnstrainedLength column of the result table | List | - | |
| 11 | Sag | Sag column of the result table | List | - | |
| 12 | HorizontalDistance | HorizontalDistance column of the result table | List | - | |
| 13 | VerticalDistance | VerticalDistance column of the result table | List | - | |
| 14 | Gradient | Gradient column of the result table | List | - | |
| 15 | SkewAngle/IEnd | SkewAngle/IEnd column of the result table | List | - | |
| 16 | SkewAngle/JEnd | SkewAngle/JEnd column of the result table | List | - | |
| 17 | Stage | Stage column of the result table | List | - | |
| 18 | IEnd | IEnd column of the result table | List | - | |
| 19 | JEnd | JEnd column of the result table | List | - |
※ Outputs 3–19 are created one per column of the result table when Run is pressed. The columns depend on the COMPONENTS input and the Result Table Type.
5. Reference API Manual Link
Cable Configuration - Analysis Result Table (/post/TABLE)
