1. Description
Initial Element Force
How to use
- Place the Initial Element Force component from [Midas] > [Results] > [Initial Element Force] on the Grasshopper canvas.
- Press Run to get the result table from MIDAS; it is output as Result Table (JSON) and one output per column. To run several result components at once, connect them to Midas Table Builder.
2. Grasshopper Path
[Midas] > [Results] > [Initial Element Force]

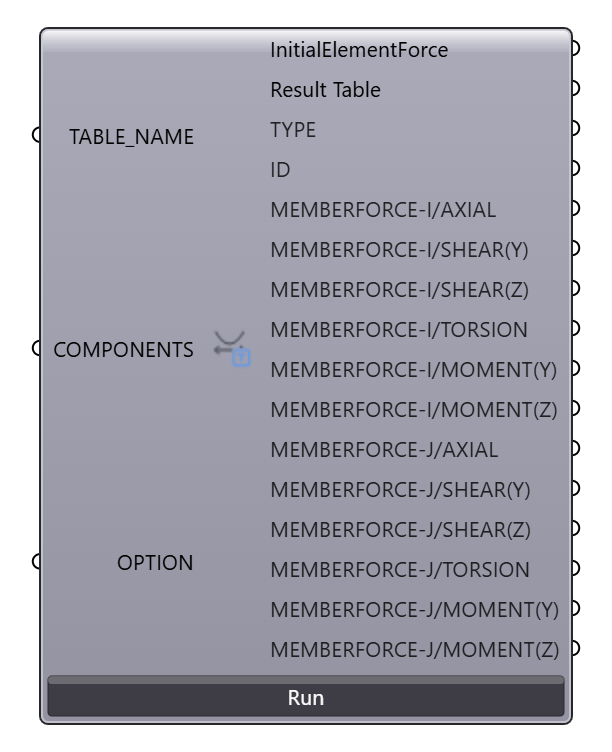

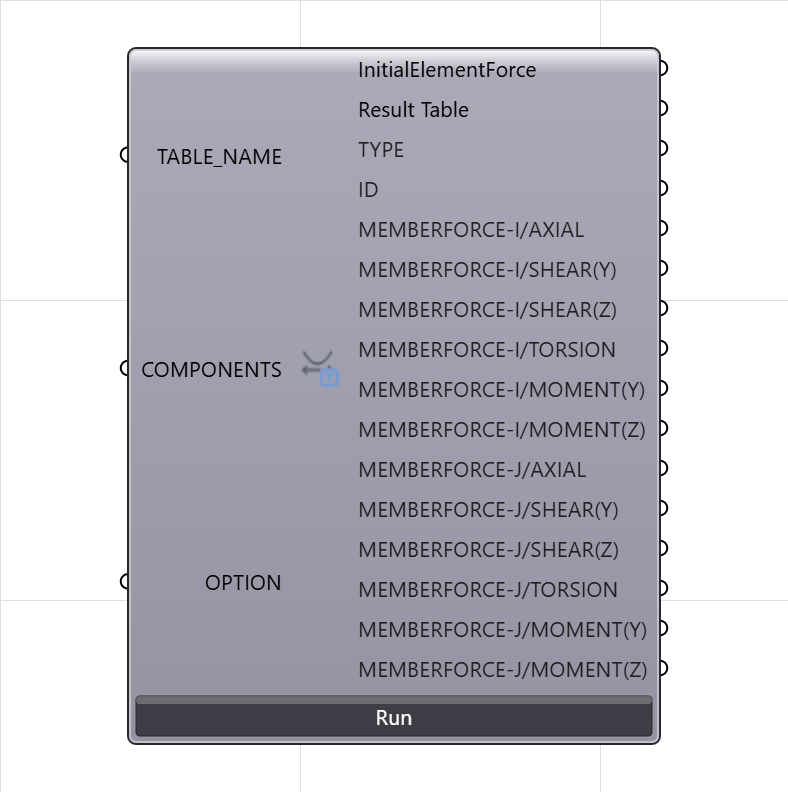

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default | Previous |
|---|---|---|---|---|---|
| 1 | Table Name (Optional) |
Table Name | String | - | - |
| 2 | Components of Result Table (Optional) |
Components of Result Table | String | - | - |
| 3 | Option (Optional) |
Option Of Result Table (connect component output) | Object | - | Option Of Result Table |
- Output Data
| Index | Command | Description | Type | Next Component |
|
|---|---|---|---|---|---|
| 1 | InitialElementForce | Initial Element Force | Object | Midas Table Builder (optional) | |
| 2 | Result Table | Result Table | Json | - | |
| 3 | Type | Type column of the result table | List | - | |
| 4 | ID | ID column of the result table | List | - | |
| 5 | MemberForce-i/Axial | MemberForce-i/Axial column of the result table | List | - | |
| 6 | MemberForce-i/Shear(y) | MemberForce-i/Shear(y) column of the result table | List | - | |
| 7 | MemberForce-i/Shear(z) | MemberForce-i/Shear(z) column of the result table | List | - | |
| 8 | MemberForce-i/Torsion | MemberForce-i/Torsion column of the result table | List | - | |
| 9 | MemberForce-i/Moment(y) | MemberForce-i/Moment(y) column of the result table | List | - | |
| 10 | MemberForce-i/Moment(z) | MemberForce-i/Moment(z) column of the result table | List | - | |
| 11 | MemberForce-j/Axial | MemberForce-j/Axial column of the result table | List | - | |
| 12 | MemberForce-j/Shear(y) | MemberForce-j/Shear(y) column of the result table | List | - | |
| 13 | MemberForce-j/Shear(z) | MemberForce-j/Shear(z) column of the result table | List | - | |
| 14 | MemberForce-j/Torsion | MemberForce-j/Torsion column of the result table | List | - | |
| 15 | MemberForce-j/Moment(y) | MemberForce-j/Moment(y) column of the result table | List | - | |
| 16 | MemberForce-j/Moment(z) | MemberForce-j/Moment(z) column of the result table | List | - |
※ Outputs 3–16 are created one per column of the result table when Run is pressed. The columns depend on the COMPONENTS input and the Result Table Type.
5. Reference API Manual Link
Initial Element Force - Analysis Result Table (/post/TABLE)
