Question
After integration with CAD INFRA-DESIGN in CIM, point rebars within the visible range are not visible in the CIM Mode.
Answer
When a Drawing View is created in CIM and integrated with CAD INFRA-DESIGN, if point rebars within the visible range are not visible, please check if the [Display Point Rebar within Visible Range] option is turned on.
To check if the [Display Point Rebar within Visible Range] option is turned on, follow these steps:

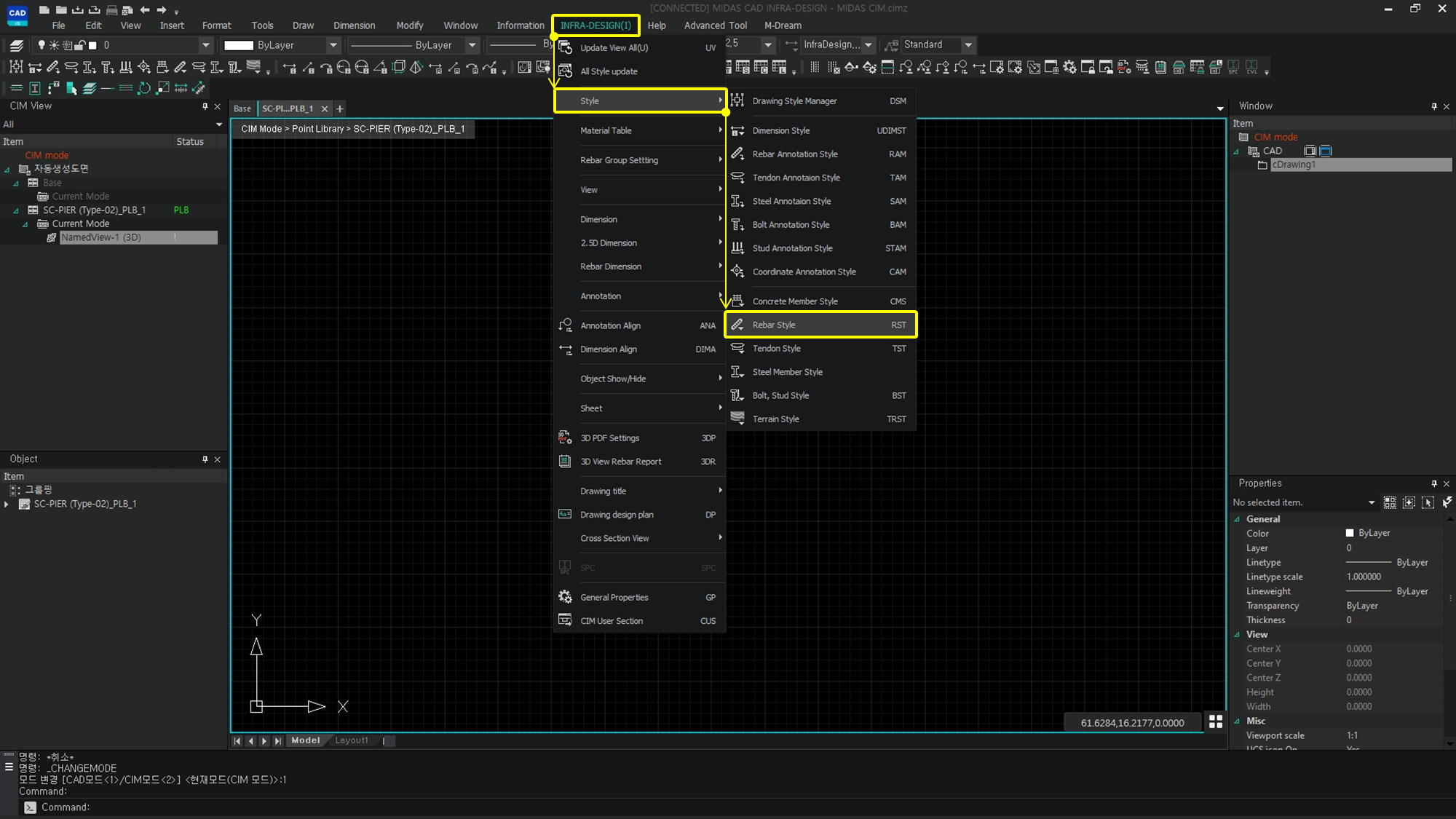

1. Click [INFRA-DESIGN] - [Style] - [Rebar Style] in the top ribbon menu of INFRA-DESIGN.
(Shortcut: RST)
Figure 1. Accessing Rebar Style Properties
2. Check the rebar style used by the View and confirm whether the [Display Point Rebar within Visible Range] option is turned on. If it is not, turn it on.
(If the Drawing View does not specify a style, the default [InfraDesign Rebar S01] rebar style provided by CAD INFRA-DESIGN is used.)
Figure 2. Rebar Style Properties
3. Update the Drawing View and check. There are two ways to update:
1) Right-click on the View Box and click [Update Selected View]
2) Find the view in the Item pane, right-click, and click [Update]
| Method 1 | Method 2 |
